What CPU cooler clearance really means (and why specs lie)
CPU cooler clearance is the true maximum height your air cooler can have from the CPU surface to the inside of the closed side panel without touching, including fans, shrouds, and cosmetic covers, and it directly determines whether a given cooler can be installed safely in a specific PC case.
On paper, this sounds simple: read the case specifications, pick a cooler under that number, done. In reality, official PC case manufacturer cooler clearance specifications are frequently inaccurate. Noctua started doing its own physical measurements on popular cases and found that many manuals either understate or overstate the available space. That matters now more than ever, because high‑performance towers like the Cooler Master V8 ACE 3DHP Black are tall, single‑tower designs that push right up against normal mid‑tower limits while aiming to match dual‑tower performance. If you are building a high‑end system with a large air cooler and tall RAM, you cannot assume the spec sheet is telling the whole truth.
How bad are the official numbers? Real examples of broken specs

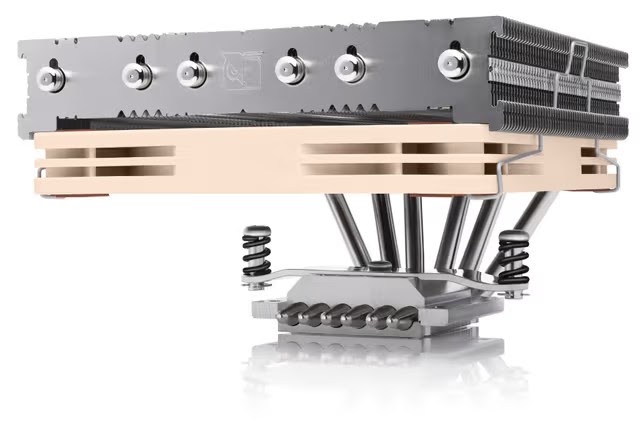

Noctua’s testing shows that case specifications accuracy is all over the place. In some cases you get more room than advertised. The NZXT H2 Flow is officially limited to 75 mm of CPU cooler clearance, but physical testing showed it can fit coolers up to 79 mm, which makes the NH L12Sx77 possible in that chassis. Similarly, the Thermaltake TR100 is listed at 68 mm, yet offers 70.7 mm in practice, enough for the NH L12 Ghost S1 Edition to fit. Popular Corsair 4000D and 5000D models are even more generous, with a full 10 mm of extra margin, going from an official 170 mm to an actual 180 mm.
The opposite problem is worse: when the real space is smaller than promised, your cooler simply will not go in. The ASUS Prime AP201 is claimed to support 170 mm coolers but only provides 168.3 mm, leaving no headroom to raise a front fan for taller memory. The Lian Li B4 mATX case is listed at 168 mm, yet the true hard limit is 164.5 mm, which means a flagship cooler like the NH D15 G2 will not physically fit at all. According to Noctua, "more than 100 computer cases have been checked and 56 models had inaccurate clearance listings".
Step-by-step: How to measure your real CPU cooler clearance
Because case specs can be wrong in both directions, you want your own cooler mounting verification before buying anything big or exotic. This matters most when you are eyeing tall, performance‑oriented coolers—think large dual‑towers or innovative single‑towers like the V8 ACE 3DHP Black with its substantial fin stack and dual 120 mm fans. New high‑performance coolers often sit right at typical 160–170 mm limits, so a 2–3 mm spec mistake is the difference between a perfect fit and an RMA. Treat the official number as a loose hint, not a guarantee.
- Remove the side panel you normally close over the motherboard and set it aside on a flat surface.
- Install your motherboard with its CPU socket, backplate, and standoffs in the case, then tighten it fully so it sits at the correct height.
- Lay a straight edge (for example, a ruler or flat strip) across the inside of the side‑panel frame where the metal would sit when closed.
- Measure vertically from the center of the CPU heat‑spreader area on the motherboard up to the straight edge with a ruler or calipers.
- Subtract 1–2 mm from that measurement as a safety margin for side‑panel flex, foam, paint thickness, or future fan height adjustments.
- Compare the resulting clearance to the total advertised height of your target cooler, including fans and top cover; if it is equal or larger, it should physically fit.
The gotcha is that you must measure from where the CPU surface actually sits, not from the tray or a random screw. Motherboard thickness and standoff height are already baked into the real geometry, which is why measuring in‑case with the board fully installed is so important. Also remember that some coolers, like the V8 ACE 3DHP Black, have slightly different AMD and Intel mounting hardware tuned for each socket’s pressure and integrated heat spreader behavior. That does not change total height, but it is one more reason to look at the full cooler dimensions instead of relying on a generic “fits up to X mm” label.
Using third‑party databases plus your own measurements
You do not have to work alone when checking PC case compatibility. After discovering that manufacturer specifications are frequently inaccurate, Noctua began publishing its own CPU cooler clearance measurements for many popular cases and integrating them into an online compatibility database. To make this data easy to read, the company added a specialized tool tip icon to the database entries so you can see the measured clearance figure rather than the potentially wrong official one. When you pair that independent value with your own tape‑measure check, you gain two separate sources of truth instead of a single shaky number in a PDF.
This cross‑checking becomes critical with larger flagships like the NH D15 G2, where a few extra millimeters from cases such as the 4000D or 5000D can allow taller RAM, while tighter cases like the B4 mATX fail outright. It is the same story for more compact coolers: knowing that an NZXT H2 Flow has 79 mm instead of 75 mm can open up stronger low‑profile options. Think of the database as a second opinion: trust it, but still confirm against your own measurements before committing money and build time.
Takeaway: Measure twice, order once
The trend toward taller, more advanced air coolers—whether dual‑tower designs or refined single‑towers with technologies like 3D heat pipes—means margins inside a mid‑tower are thin. With Noctua finding significant discrepancies in 56 out of 100‑plus cases tested, you cannot rely on case manuals alone for CPU cooler clearance. A quick in‑case measurement, cross‑checked against an independent compatibility database, is the best way to avoid installation failures or last‑minute cooler swaps.
Is the extra effort worth it? For stock coolers or very short towers, maybe not. But if you are planning a high‑end, air‑cooled build with a large heatsink and ambitious memory configuration, measuring your own clearance turns a potential gamble into a safe, predictable upgrade. Watch for edge cases where the real space is smaller than advertised and keep a 1–2 mm safety margin, and you will only have to mount your cooler once.
