Why PC case clearance specs are not as reliable as you think
PC case clearance specs are the manufacturer’s stated dimensions for how tall a CPU cooler, graphics card, or other component can be while still fitting inside the case without blocking panels or other hardware, and they directly determine CPU cooler compatibility and whether a planned build will physically assemble as intended.
If you have ever ordered a new tower cooler, lined it up with your case, and felt that sinking feeling when the side panel would not close, you already know why this matters. Noctua measured more than one hundred cases and found 56 with significant gaps between real CPU cooler clearance and the official spec sheets. That means over half of the tested PC case clearance specs were wrong in some way. Sometimes the case had more room than advertised; other times it had less, which is where the build‑killing problems start. Millimeters might sound trivial, but they are the difference between a clean afternoon build and tearing it apart to return parts later.
Where case specifications go wrong (and why ITX builders should care)

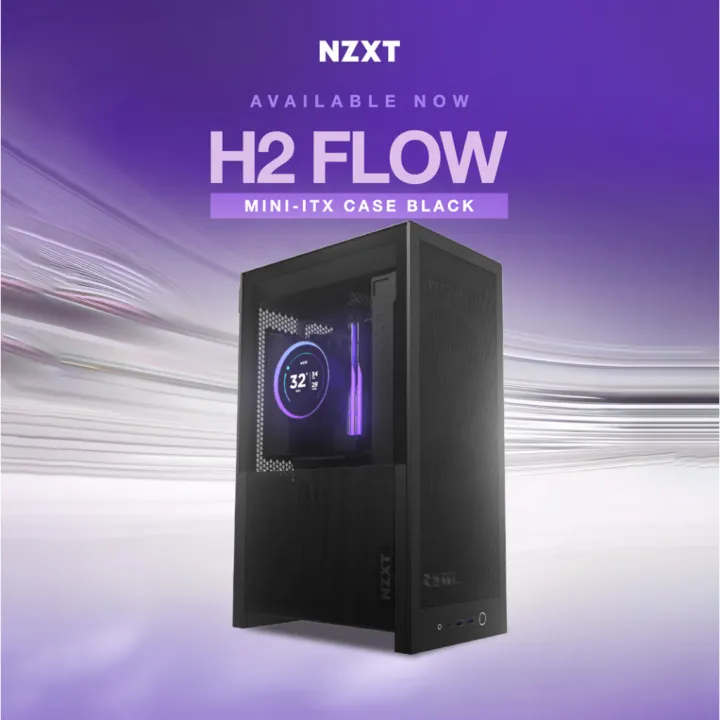

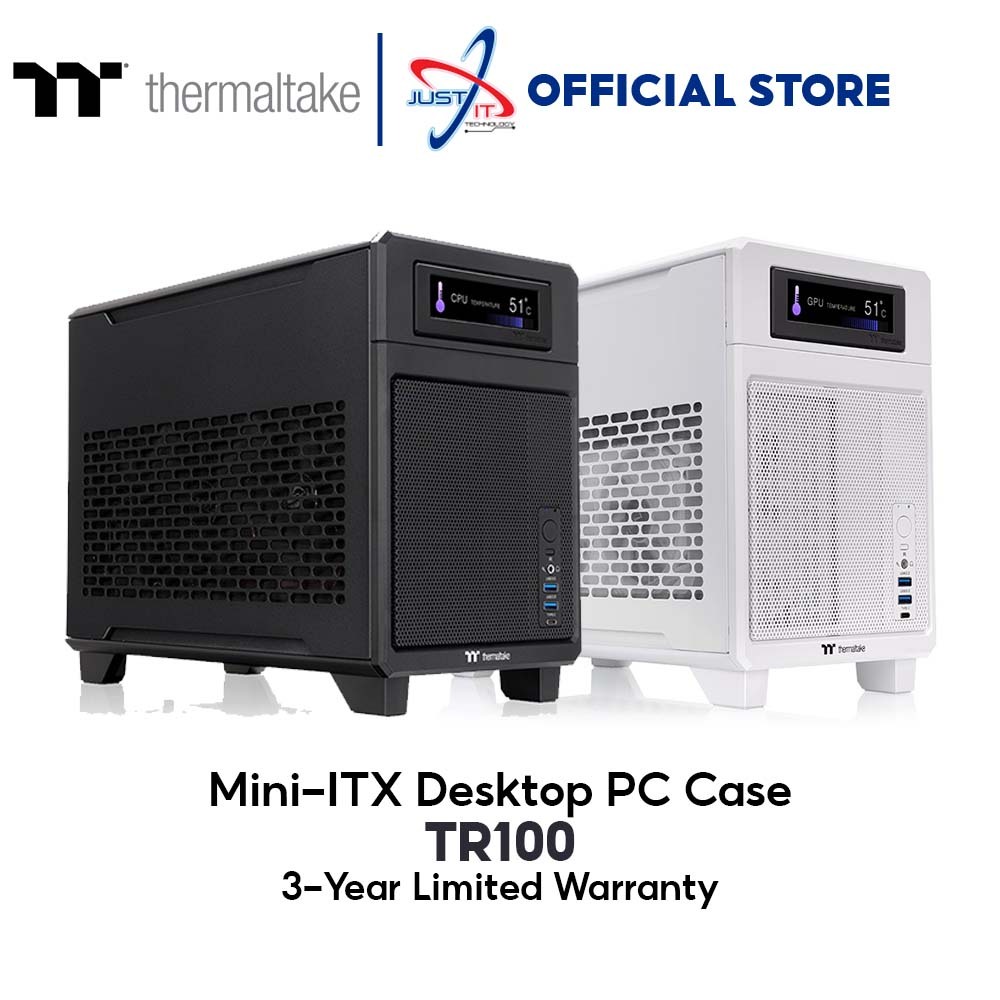

The core problem is case specifications accuracy: what the marketing sheet lists does not always match the metal you bolt hardware into. In some popular mid‑tower cases, Noctua found up to 10mm more real clearance than the spec sheet claimed, and other models like the NZXT H2 Flow and Thermaltake TR100 also turned out to fit taller coolers than their documents suggested. In these situations, you lose out on coolers you could have used, which is annoying but not fatal.
The serious headaches appear when the real clearance is smaller than advertised. Noctua recorded cases where the available height was 1.8mm and 3.5mm shorter than the manufacturer’s spec. That can push a heatsink into the side panel, force you to drop front fans, or make the case impossible to close. Every millimeter matters in small‑form‑factor and ITX case clearance, where a couple of extra millimeters can be the difference between a working system and a failed installation. If you are building in a compact case, you cannot afford to assume the listed numbers are exact.
Step-by-step: How to verify cooler clearance for your specific case
Think of this process like double‑checking a tight parking spot. A little measuring and research before you “pull in” your new cooler can save you from backing out and swapping parts later. Below is a practical sequence you can follow whether you already own the case or are planning a new build from scratch.
- Identify your exact case model and revision, then note the manufacturer’s listed maximum CPU cooler height from the official spec sheet or manual.
- Go to Noctua’s case compatibility database and search for your case model to view its recorded maximum cooler height.
- Check for the tooltip or question mark icon next to the “Max. cooler height” field; if it appears, Noctua’s measured value differs from the official PC case clearance specs.
- Compare the manufacturer’s number and Noctua’s measurement; when they differ, treat the smaller of the two as your safe maximum height to protect CPU cooler compatibility.
- Match your chosen cooler’s height to this safe maximum; if it is close or equal, consider a slightly shorter model, especially for ITX case clearance where tolerances are tight.
- If you already own the case, measure from the CPU heatspreader plane to the inside of the side panel yourself to cross‑check, and keep that value in mind for future upgrades.
Notice how the only tools here are a database, a spec sheet, and maybe a ruler. The real trick is being conservative: when two numbers disagree, you assume the smaller figure wins. That mindset alone can spare you trying to force‑fit a tower cooler into a space that is a millimeter too short.
Using Noctua's case compatibility database the smart way
Noctua built its case compatibility database as a safety net for exactly this problem. The company measured popular cases to confirm whether their internal dimensions match the figures listed on manufacturers’ sites. When its findings differ, the entry for that case shows an indicator next to the maximum CPU cooler height field so you know something is off. Dimensions that deviate from the original data gain a small icon or question mark as a quick warning flag.
This database is not only for owners of Noctua coolers. It is a general reality check for case specifications accuracy and CPU cooler compatibility. One of the most practical quotes to keep in mind is: “With more than 56% of case measurements being inaccurate, this could save PC builders a lot of headaches.” Even if you end up using a different brand’s cooler, knowing your true max height gives you confidence that your chosen model will fit without drama.
Is the extra effort worth it?
Double‑checking PC case clearance specs may feel overcautious, but when more than half of tested cases show inaccurate measurements, it becomes cheap insurance. Taking a few minutes to research your case model in Noctua’s database, and measuring if you already have the chassis on hand, can prevent build‑stopping surprises. Remember, millimeters can make the difference between a smooth afternoon of building and a week’s wait for a replacement part.
As a habit, treat official specs as a starting point rather than the final word. Enthusiasts who independently verify clearance before buying coolers for their specific case model avoid the classic trap of a tower cooler that almost fits but not quite. If you build often, this small routine quickly becomes second nature—and pays for itself the first time you avoid a no‑fit cooler.
