Why PC Case Cooler Clearance Specs Can’t Be Trusted Blindly
PC case cooler clearance is the measured maximum height a CPU air cooler can have while still allowing the case’s side panel to close without interference, and it is a critical figure for CPU cooler compatibility, especially in compact and ITX builds where even a few millimeters can decide whether a cooler fits or fails.
If you’ve been choosing coolers solely by the numbers on a case spec sheet, you’re gambling more than you might think. Noctua tested more than a hundred PC cases and found 56 with significant differences between real CPU cooler clearance and the manufacturer’s listed specs. That’s not a minor rounding error; it’s over half of the tested lineup being wrong in a way that affects builds. The range of errors runs from cases that are smaller than promised to ones that have far more space than the spec suggests, which means both wasted performance potential and outright incompatibility.

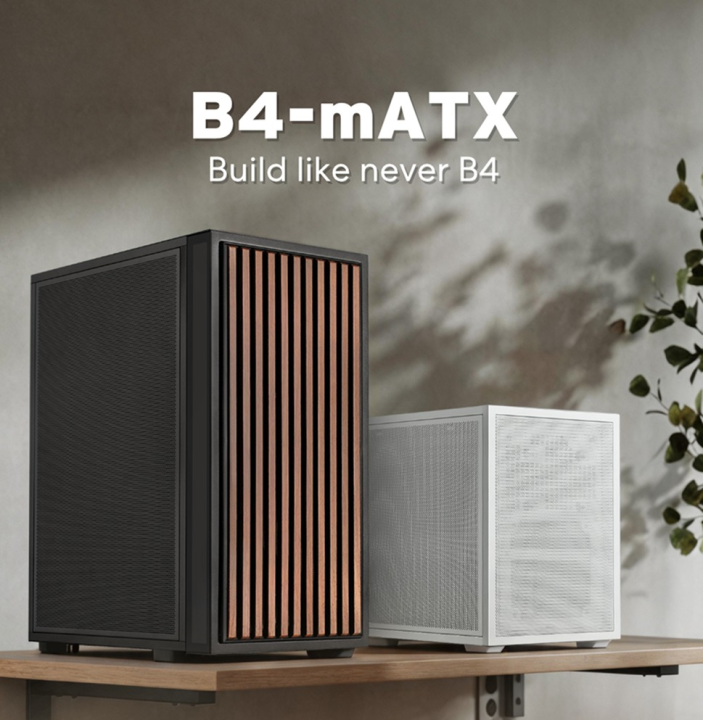

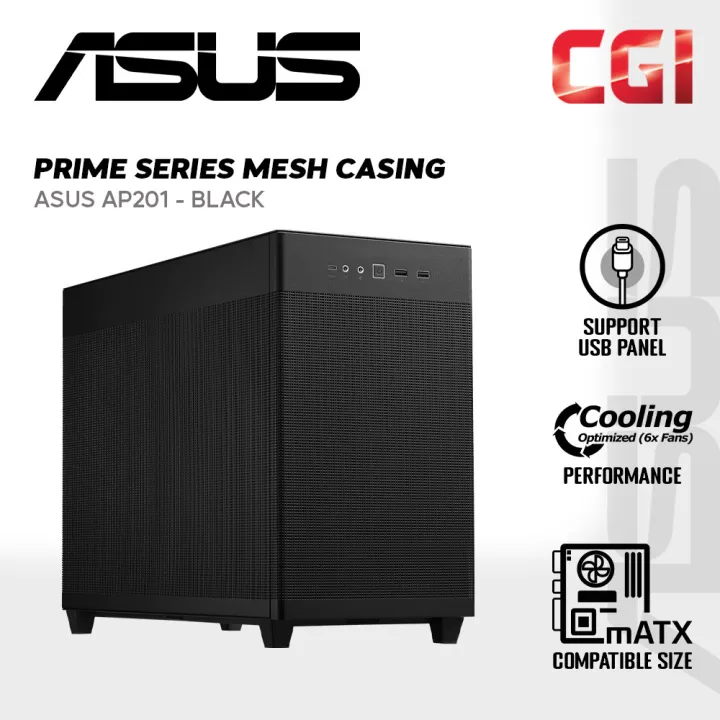

According to Noctua, some popular cases such as the Corsair 4000D can handle CPU coolers up to 10mm taller than their official specification claims. On the flip side, models like the Asus Prime AP201 and Lian Li B4-mATX turned out to be 1.7mm and 3.5mm shorter than advertised, respectively. Those undersized case clearance specs are especially dangerous for small-form-factor and mini-ITX systems where every millimeter matters and parts are often picked to fill the space exactly.
What These Measurement Errors Mean for Your Build
The big worry is not having more space than you thought—it’s having less. When a case’s real CPU cooler clearance is smaller than the spec sheet claims, you can end up with a cooler that touches the side panel or stops the panel from closing at all. That’s the classic situation where you planned a neat build, ordered every part to match the numbers, and then discover on assembly day that your carefully chosen tower cooler will not fit. As one source put it, millimeters can make the difference between a smooth afternoon of building and a week’s wait for a replacement part.

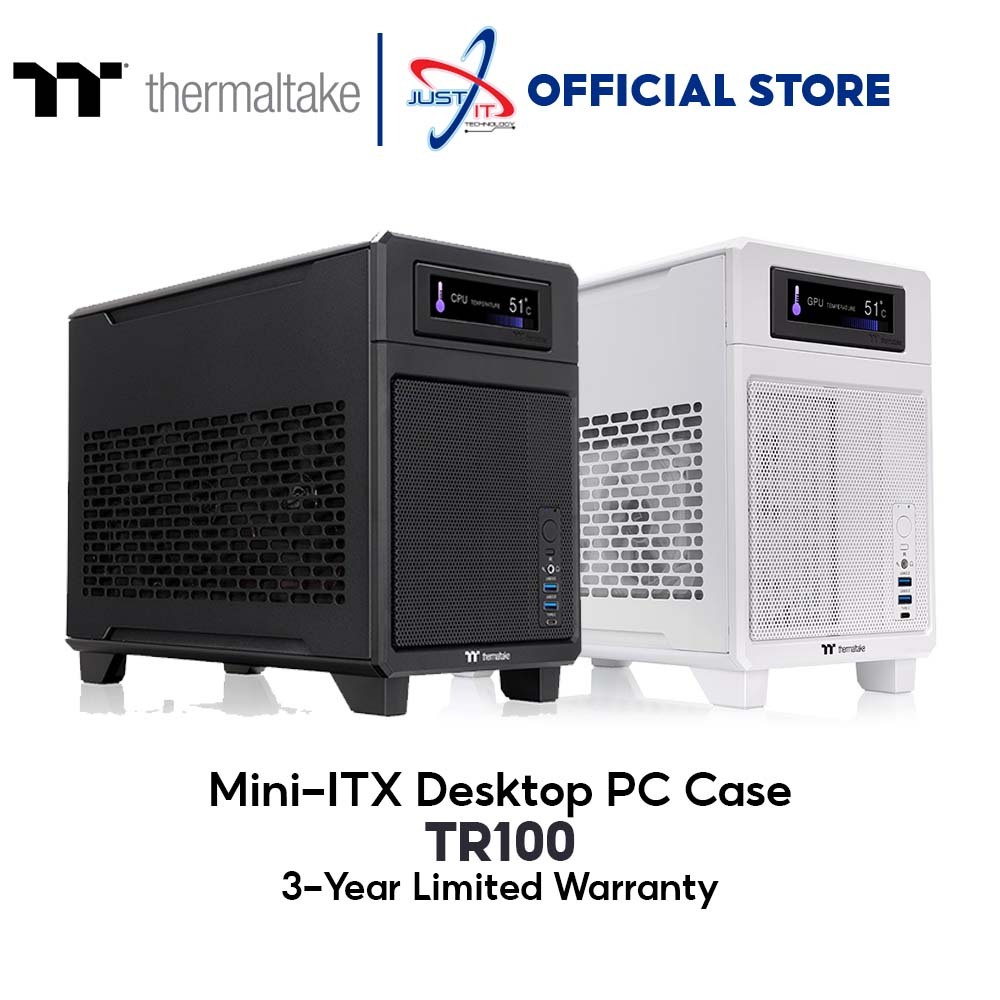

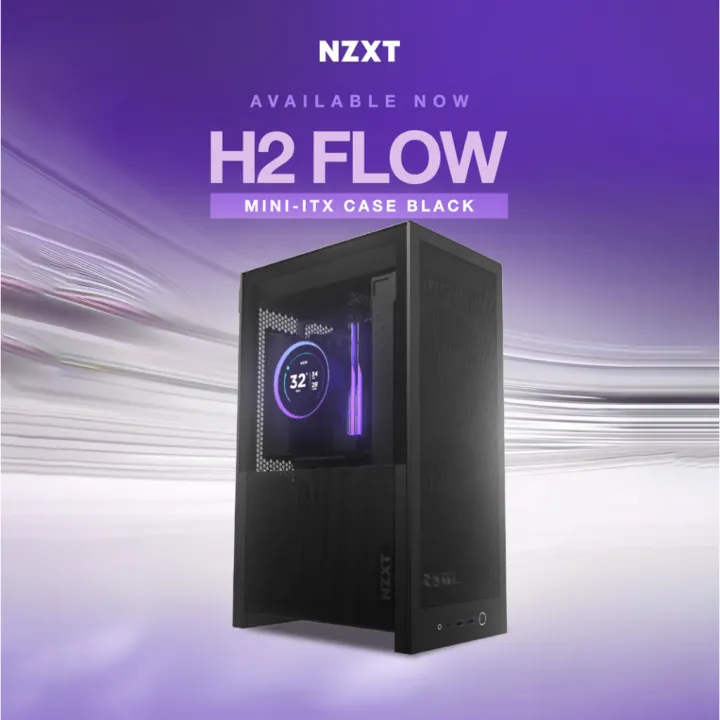

The errors aren’t symmetrical either. Some cases undershoot their real clearance by a lot, which quietly limits your options. For example, the NZXT H2 Flow is officially listed at 75mm maximum CPU cooler height, but Noctua’s checks show it can accommodate up to 79mm. Similarly, the Thermaltake TR100 offers 2.7mm more cooler height in reality than its product page claims, and the Corsair 4000D gives a full 10mm of extra clearance. In each of these, the PC case cooler clearance spec is technically safe, but you may have passed on better-performing coolers that would have fit.
For small-form-factor and mini-ITX builds, undersized clearances are especially critical. Tight ITX case measurements mean there’s no spare room to absorb an inaccurate spec. A cooler that “should” fit on paper might collide with side panels, memory, or cables when tolerances are this tight. That risk isn’t limited to one brand or form factor. With Noctua finding more than half of tested cases misstate cooler clearance, treating case clearance specs as perfect truth is no longer reasonable.
Step-by-Step: How to Verify Your Case’s CPU Cooler Clearance
Here’s the practical bit: you want to be confident your CPU cooler compatibility is real, not a hopeful guess based on marketing. The safest solution is to have the PC case in hand before you buy the rest of the parts, then measure for yourself. If you’re starting a build from scratch and can’t do that yet, you can still cross-check the numbers with Noctua’s case compatibility database, which uses verified measurements from its own team.
- Get the case first and remove the side panel so you can access the motherboard tray area where the CPU socket will sit.
- Measure from the surface of the motherboard tray (or the motherboard if installed) straight out to the inside of the closed side panel to find the true maximum cooler height.
- Compare your measurement to the case clearance specs listed on the manufacturer’s product page, noting any differences of more than a millimeter or two.
- Visit Noctua’s compatibility search page and look up your case to see the verified Max. cooler height value and any question-mark indicators where their data differs from official specs.
- Choose a CPU cooler that is a few millimeters shorter than the smallest clearance figure you have (your own measurement and Noctua’s), so the side panel closes comfortably without scraping.
Those steps look a bit fussy, but they save you from the two most common mistakes: trusting a single spec sheet and buying a cooler that matches the number exactly. When you aim for a cooler height that leaves a small buffer, you protect yourself from manufacturing tolerances, cable bulges, and those silent measurement errors that are now known to be widespread. Noctua’s compatibility tool will give you peace of mind when shopping for the best cooler and is valuable even if you end up buying a cooler from another brand. For ground-up builds, a little research and a check against that database can prevent the headache of returns and rebuilds.
Mini-ITX and SFF: Where Every Millimeter Counts
If you like compact PCs, you have the least room for error. In mini-ITX cases, the clearances between the CPU cooler, side panel, and other components are razor-thin, so inaccurate ITX case measurements can ruin a whole layout. Tight tolerances mean that the “listed” cooler height might already be the absolute maximum, leaving no extra room if the case is 1–3mm smaller than advertised. With undersized specs, that mismatch can stop the panel from closing or press firmly against the cooler—neither is good for long-term reliability.
Because of this, the advice to buy the PC case before you shop for the remaining parts is even more important for the best mini-ITX cases. Once you have the case, measuring it yourself puts you back in control and lets you pick coolers and other hardware based on reality instead of hope. When you combine your own measurements with Noctua’s compatibility search page, which lists case clearances verified by its team, you have a double-check that greatly reduces the risk of surprises. This matters most when you’re planning a high-performance tower cooler in a case that was designed around tight dimensions.
Remember that cooler height is only one part of the puzzle. While Noctua’s database focuses on coolers, it also raises a bigger question about how accurate case specifications are for GPUs, PSUs, and other components. For now, you’ll need other data sources or your own tape measure for those parts. But starting with reliable PC case cooler clearance numbers is the foundation of a stable, quiet build that doesn’t need last-minute compromises.
Takeaway: How Much Work Is This, and Is It Worth It?
Verifying your case’s cooler clearance adds a few minutes to the planning phase, but it saves you from far bigger problems later. By having the case physically available and measuring it yourself, you’re at least confident that what you’re buying will fit. Cross-checking those measurements with Noctua’s case compatibility database, which highlights any differences from manufacturer specs, gives you an extra layer of certainty.
The expected result is simple: you avoid coolers that scrape panels, builds that won’t assemble, and the hassle of returning parts. This compatibility tool will give you peace of mind when shopping for the best cooler and is useful even if you choose another brand in the end. For new builds where you’re buying both case and cooler, a bit of research and a quick visit to that database helps prevent the headaches that inaccurate case clearance specs are now known to cause. In other words, a tape measure and ten minutes of checking are worth far more than a week of frustration waiting for replacement hardware.
