Why Next‑Gen GPUs Need New Cooling Technology
Next‑gen graphics card cooling refers to a new wave of GPU cooling technology that combines advanced materials, redesigned fans, and modular liquid cooling to manage much higher power and heat loads than previous generations. With cards like Nvidia’s expected RTX 5090 pushing power and density, traditional plastic shrouds and simple heatpipes are no longer enough for reliable RTX 5090 thermal management. Vendors at Computex put cooling front and center, treating thermals as a primary design feature rather than an afterthought. Air coolers are gaining metal fan blades and diamond-infused thermal pads, while liquid cooling AIO systems are moving toward modular, drip-free designs that can fit more cases and radiators. At the same time, power delivery is being upgraded with safer 16-pin connectors and resettable fuses, since any cooling strategy is only as safe as the power flowing into the board.
MSI’s Diamond-Infused Thermal Architecture

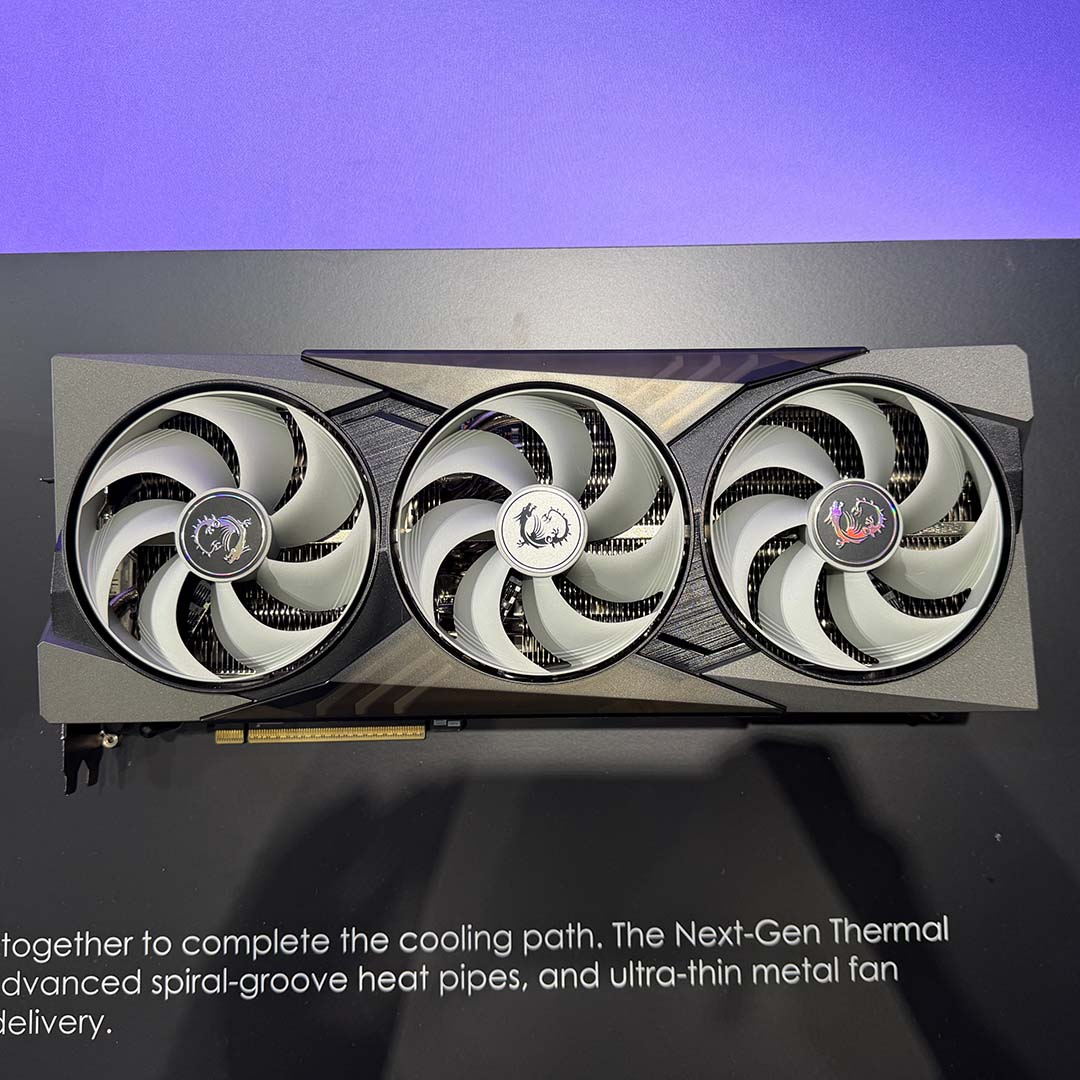

MSI’s Gaming Trio Next-Gen concept card shows how far air-based GPU cooling technology can be pushed. The new cooler replaces plastic fans with ultra-thin metal blades, only 0.8mm thick, which MSI says improve airflow efficiency by increasing the effective airflow area while resisting flex at high RPMs. According to MSI, the metal design can deliver up to 40% better airflow than conventional plastic fan blades. Under the shroud, spiral-groove heatpipes increase internal contact area, boosting heat transfer from the GPU into the fin stack. The real headline, though, is diamond-infused thermal hardware: diamond-composite thermal pads sit on the memory modules, while a diamond-copper composite baseplate sits between layers of copper to speed heat from the GPU die into the heatsink. Diamonds have far higher thermal conductivity than copper, so even a thin composite layer can lower memory and core temperatures on MSI’s RTX 5090 32G Gaming Trio Next-Gen prototype.
Power Safety: Safe 16-Pin Connectors and Resettable Fuses
Cooling alone cannot protect a next-gen GPU if its power delivery is fragile, so MSI is pairing its thermal redesign with a safer electrical layout. The company is extending its Safeguard technology from its MPG power supplies to high-end graphics cards, adding resettable fuses and a reinforced 16-pin connector. A safer 16-pin design aims to reduce the risk of poor contact or overheating at the plug, issues that can escalate rapidly when boards draw extreme power. Resettable fuses add another layer of defense by cutting power during abnormal events without permanently damaging the card, then automatically restoring operation when conditions return to normal. Together with a denser PCB and integrated cooling module, these changes show that RTX 5090 thermal management is as much about electrical integrity as heatsinks and fans, especially when GPUs operate near the limits of what PCIe power connectors can handle.
PNY and LYNK+: Modular Liquid Cooling for RTX 5090
While MSI doubles down on advanced air cooling, PNY is pushing liquid cooling AIO systems in a more flexible direction through its collaboration with LYNK+. The RTX 5090 card shown at Computex uses a factory pre-filled modular liquid cooling AIO system connected via the LYNK+ interconnect. This design allows users to attach different radiators through drip-free quick-connect fittings, removing much of the complexity that usually comes with custom loops. LYNK+ claims its cooling can cut GPU temperatures by up to 25°C compared to traditional air cooling and lower acoustic noise by about 50% during demanding workloads. Integrated digital signaling lets the GPU coordinate pump and fan behavior, while low-diffusion tubing and a leak-resistant, air-storage-equipped loop are meant to extend service life. The result is a next-gen graphics card cooling option that tries to offer custom-loop performance in a consumer-friendly, modular package.
An Industry-Wide Race to Cool the Next Generation
Taken together, the approaches shown at Computex signal that RTX 5090 thermal management will define this GPU generation as much as raw performance. MSI is betting on diamond-infused thermal pads, spiral-groove heatpipes, and metal-bladed fans to reshape air cooling, while also tightening power safety with resettable fuses and safer 16-pin connectors. PNY and LYNK+ are instead making the liquid cooling AIO system smarter and more modular, betting that quick-connect radiators and quieter operation will appeal to high-end gamers and creators. Other vendors are expected to answer with their own combinations of exotic materials, denser fin stacks, and hybrid coolers. For buyers, the message is clear: next-gen graphics card cooling is no longer a box-ticking exercise, but a core differentiator in how reliable, quiet, and compact future RTX-class systems can be.
