What MSI’s Next-Gen GPU Cooling Technology Is

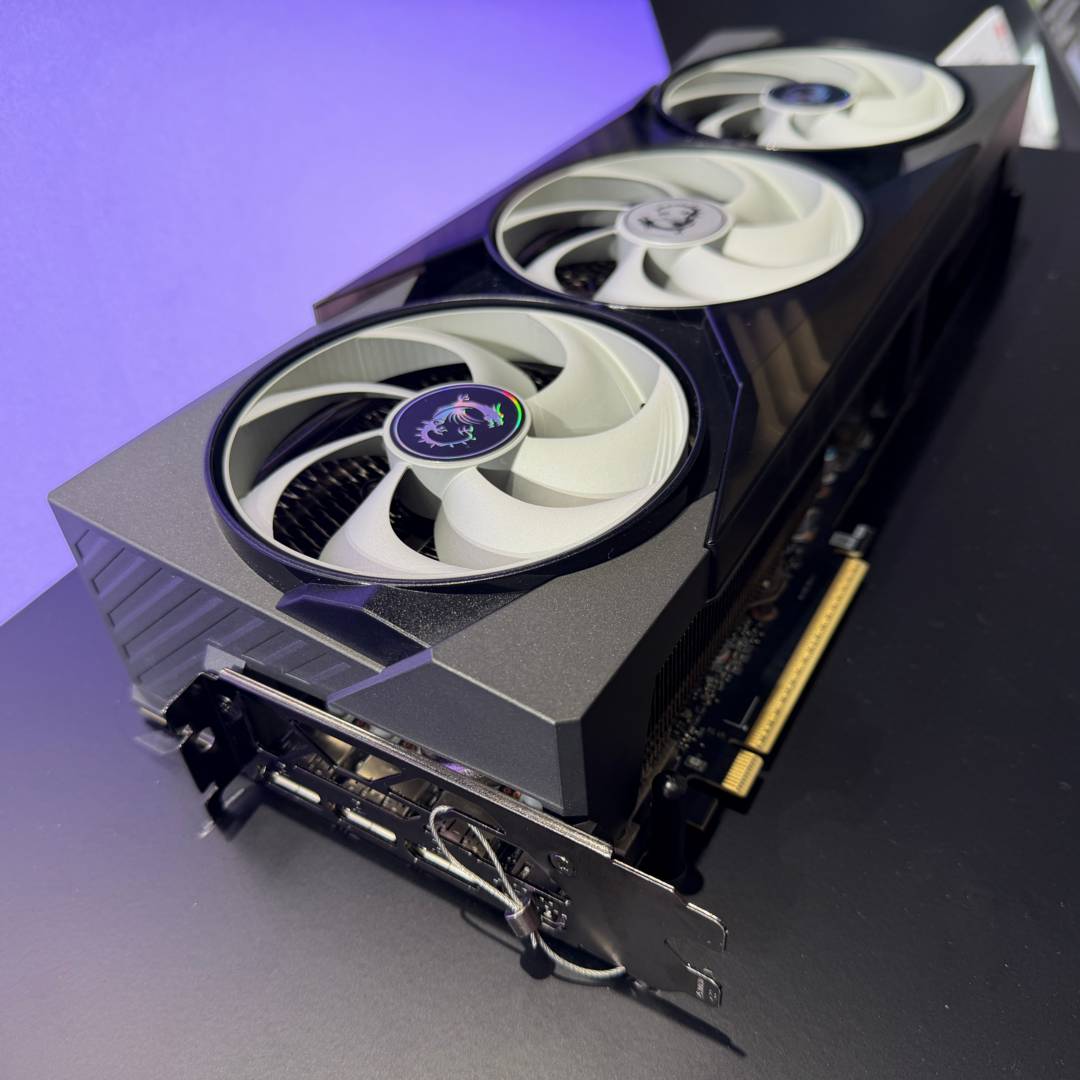

MSI’s next-generation GPU cooling technology is a new thermal architecture for future NVIDIA RTX graphics cards that combines ultra-thin metal fans, spiral-groove heat pipes, diamond thermal pads and a diamond-copper baseplate to improve heat transfer, reduce temperatures and support higher sustained performance in demanding workloads. This design debuts on a prototype GeForce RTX 5090 32G Gaming Trio Next-Gen card displayed at Computex, giving an early look at potential RTX 5090 cooling strategies. Unlike cosmetic refreshes, MSI keeps the Gaming Trio’s familiar shroud and focuses on what sits underneath: airflow efficiency, contact surface area and material conductivity. The goal is to move more heat from GPU core and memory into the heatsink, which underpins better thermal performance, quieter operation and more consistent boost clocks for next-gen GPUs that are expected to push power and density further than current models.
Metal Fan Design: From Plastic Blades to 0.8mm Metal
MSI’s most eye-catching change is its ultra-thin metal fan design, which replaces conventional plastic blades on the Gaming Trio Next-Gen cooler. The new fans keep a familiar seven-blade layout but switch to a high-rigidity metal structure just 0.8mm thick, widening airflow paths between blades and lowering resistance. According to Wccftech, the company claims this all-metal design can deliver up to 40% better airflow than traditional plastic fans at comparable speeds. The extra stiffness also means less blade deformation at high RPMs, which should reduce turbulence and keep airflow more predictable under heavy gaming or rendering loads. In practice, these airflow gains directly support RTX 5090 cooling by pushing more air through a densely packed fin stack without needing extreme fan speeds, opening the door to quieter profiles and improved long-term performance consistency.
Diamond Thermal Pads and Baseplate: Conductivity Where It Matters
The headline material change is MSI’s use of diamond-laced components across the GPU cooling stack. Diamond thermal pads sit over the memory modules, mixing diamond particles into the pad material to improve heat conduction from GDDR to the heatsink. MSI also introduces a diamond-copper composite baseplate, where a diamond-copper layer is stacked between copper layers to form a high-conductivity pathway from GPU die into the fin array. Club386 notes that diamond has the highest thermal conductivity of any natural material, around five times that of copper, making it ideal for moving heat away from hotspots. In the context of RTX 5090 cooling, this means faster spreading of heat spikes from the core and VRAM into the cooler, which can lower peak temperatures, reduce thermal throttling risk and give board partners more headroom for aggressive power targets or factory overclocks.
Spiral-Groove Heat Pipes and Integrated Cooling Module
Beyond fans and baseplates, MSI reworks the heatsink itself with advanced spiral-groove heat pipes and tighter integration between components. Traditional heat pipes use smooth internal walls, but MSI’s spiral grooves increase internal contact surface area, which improves phase-change efficiency and boosts overall heat transport capacity. Overclock3D and Wccftech both highlight these spiral-groove pipes as a core part of the new architecture, sitting between the diamond-copper baseplate and the fin stack to move heat more quickly away from the GPU. All elements – metal fans, diamond thermal pads, composite baseplate and spiral pipes – are built into a single cooling module that drops into an RTX 5090 32G Gaming Trio Next-Gen prototype. While MSI has not yet shared detailed temperature deltas, the company positions this design as delivering lower thermals than its current Gaming Trio coolers across GPU core and memory.
Power Safety, Real-World Gains and What Comes Next
Cooling is only part of MSI’s plan for next-gen NVIDIA RTX GPUs. The company is also bringing its Safeguard power protection technology from MPG PSUs onto GPUs via the 16-pin connector, adding monitoring and protection without requiring a specific power supply. On top of that, MSI uses server-grade reusable eFuses with a gate-based reset mechanism, designed to respond to short circuits in around 200ns and then reset instead of blowing permanently. These additions matter as power draw climbs, since they help protect both card and system. In real-world terms, gamers and creators can expect improved thermal performance, potentially quieter fan profiles and more stable boost behavior under heavy loads. MSI’s prototype RTX 5090 Gaming Trio Next-Gen is a preview: the company says the final integrated cooling and power design will arrive first on future Gaming Trio and SUPRIM-class next-gen RTX cards.
