What a Lean, Reliable Plex Server Really Is
A lean, reliable Plex server setup is a self-hosted media server that stores well-organized local files on always-available storage, uses efficient transcoding to serve multiple devices, and avoids unnecessary hardware upgrades by matching components to the real workload. If you like the idea of streaming your own movies and shows anywhere, but want to avoid constant buffering and library chaos, this is for you. The only real prerequisite is that you pick storage you can leave connected, and accept that you don’t need maximum-quality rips on day one. From there, you can focus on what gives the best performance-per-dollar: smart file management, solid backup habits, and GPU acceleration for live transcoding.
Before you buy anything, understand the three big mistakes that make Plex painful. First, people put media on drives they disconnect all the time; when that SSD is missing, Plex loses access until you reconnect it. Second, they ignore folder structure and filenames, then wonder why metadata is chaos. Third, they insist on maximum quality for every rip, which sounds great until 4K transcoding crushes their hardware and Wi‑Fi. The fix is not a huge platform rebuild. If your server’s main job is live transcoding for remote users, an older, inexpensive GPU can be far more effective than a new CPU.
The Three Plex Setup Mistakes That Break Everything
These three mistakes quietly undermine performance and reliability, and they are all avoidable with a bit of discipline. The first is storing your media on frequently disconnected drives, especially portable SSDs you unplug to travel with. Every time that drive disappears, Plex can’t see your library, can’t scan for changes, and can’t assign new metadata while the drive is missing. Even worse, when you reconnect, the operating system might assign a different drive letter, confusing Plex all over again.
The second mistake is ignoring folders and filenames when adding new content. Plex relies heavily on both to identify titles correctly, so mixing movies and shows in one folder or skipping season/episode labels leads to chaos. Plex explicitly recommends not mixing movies and TV in the same location; putting a show under a path like "TV Shows/Twin Peaks/Season 3" keeps things unambiguous. The third mistake is insisting on maximum quality for every rip and playback session; 4K content is demanding to transcode and stream, and can cause severe buffering on modest hardware or Wi‑Fi.
A Practical Step-by-Step Plex Server Setup
Think of your Plex server as three layers: storage, organization, and compute. You want storage that is always online, a sane folder layout, and hardware tuned to what you actually do. The gotcha: changing any one layer later (like a big platform rebuild) can snowball into more cost and downtime than it’s worth. Instead, walk through a simple, ordered setup focused on reliability first, then transcoding performance.
- Pick always-available storage for your media library, such as an internal drive, a dedicated external SSD you leave plugged in, or a NAS that stays connected to your router so Plex always has access.
- Create a clean folder structure that separates movies and TV shows, and for series use a hierarchy like "TV Shows/Show Name/Season 01" to avoid ambiguity when Plex scans your library.
- Name files in a Plex-friendly way, including years for movies with duplicate titles and SxxEyy episode tags for shows (for example, "Dune (1984)" or "Twin Peaks S03E08") so metadata matches the right content.
- Choose sensible quality targets for your media, favoring 1080p for most rips, since transcoding high-quality 4K is extremely demanding and 1080p is far more likely to play smoothly on typical setups.
- Install Plex on your server hardware, point it to your organized folders, and let it scan and match metadata, verifying that new items appear correctly before you import a large collection.
- Add a backup method for your media and metadata, whether that is copying to another drive or backing up to a NAS, so you don’t lose everything and have to rebuild your library from scratch.
- Finally, monitor CPU usage when multiple users stream; if live transcoding is your main workload and the CPU is maxed, plan a GPU upgrade rather than a full platform rebuild.
Following this sequence keeps you from painting yourself into a corner. The main trap is skipping file organization and backups because they feel like chores; later, fixing mismatched metadata and missing libraries is far more painful. Likewise, starting with 4K rips can overwhelm your system; 1080p files are far more likely to transcode smoothly while using a fraction of the storage and bandwidth, and the visual difference on many TVs is small.
Transcoding Optimization and Cheap GPU Acceleration
Transcoding is the part most people misunderstand. Live transcoding is when your self-hosted media server converts a video on the fly because the viewer’s device or connection can’t handle the original format or bitrate. For live streaming, speed matters more than absolute compression quality; the goal is to keep the stream playing without complaints about buffering. Software encoding on the CPU can give better compression for archival tasks, but for live streaming, it often becomes a bottleneck that makes your server feel overloaded.

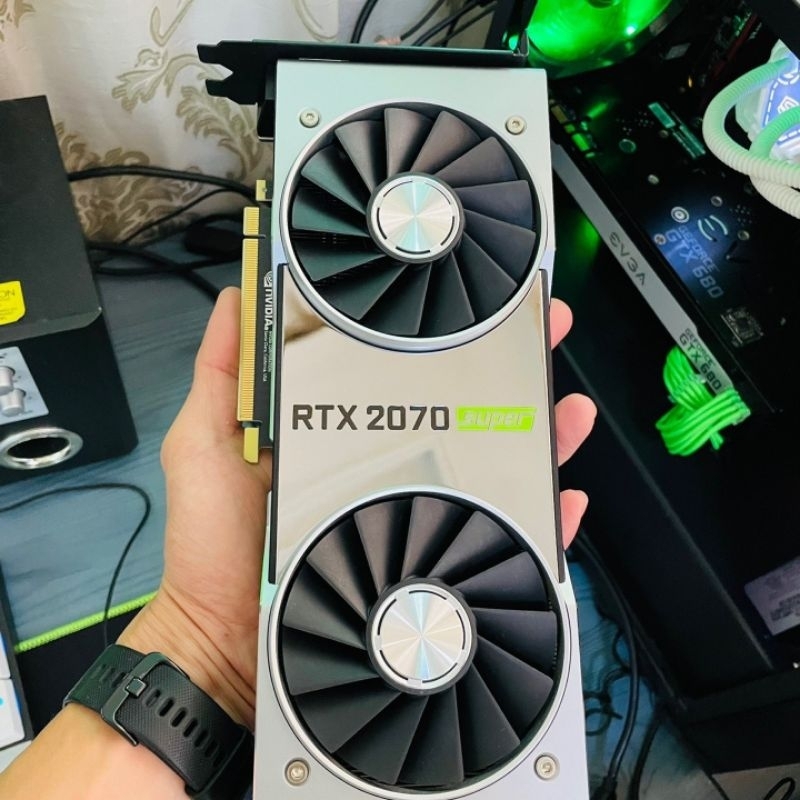

That is where GPU acceleration shines. All Nvidia GPUs after the GTX 600 series ship with NVENC hardware encoders, which are designed for real-time H.264 and H.265 transcoding. In one example, upgrading from an older GPU to a used RTX 2070 Super shifted almost all the transcoding load off the CPU and delivered a clear improvement: CPU usage stopped spiking when friends streamed remotely because the GPU handled the heavy lifting. If your server’s biggest job is live transcoding for remote users, even an older, inexpensive GPU can solve the problem more effectively than a new CPU. One quote-worthy lesson from that experience is: “Match your hardware to your media server, not someone else’s”.
Lean Architecture, Backups, and the Final Verdict
A lean Plex architecture is about keeping the system as simple as it can be while still reliable. For storage, many people use a NAS because it is always connected to the router and therefore always available to Plex, even if their main PC is off. On top of that, a backup plan is non-negotiable: copying your media or at least your library data somewhere else means a failed drive does not force you to rebuild everything.
In the end, a self-hosted media server is worth it if you treat it like a long-term project: keep storage online, keep folders clean, and keep expectations sane so you do not chase unnecessary upgrades. Building a home server can be rewarding, especially when you see how much useful life older hardware still has once you stop forcing it into the wrong role. GPU acceleration often gives the biggest performance-per-dollar improvement, since shifting live transcoding from CPU to GPU reduces spikes and makes streams feel effortless. The main things to watch: avoid disconnecting your library drives, avoid mixing media types in one folder, and avoid assuming you need a massive hardware rebuild when a modest GPU can do the job.
