What a NAS Media Server Does and Why Plex Matters
A NAS media server is a network-attached storage device running server software such as Plex that organizes your movie, TV, music, and photo files, then streams them over your home network to apps on your TVs, phones, and laptops as a personal Netflix-like service.
If you have folders full of downloads or ripped discs, a NAS media server turns that chaos into a clean streaming experience. Plex is the “magic bridge” that takes scattered files and presents them as a “fully functional streaming service that you control entirely”. The Plex Media Server runs on the NAS where your files live, while Plex apps run on devices like smart TVs and phones and talk to the server to play content. For home media streaming, Plex relies on your local Wi‑Fi, so the video never leaves your router and you can play high‑bitrate files without data caps or buffering. The main prerequisite is a NAS that can stay on 24/7, plus some basic comfort with web interfaces; without that, setup will feel frustrating rather than fun.
Prepare Your NAS and Network Storage Setup
Before you dive into Plex installation on your NAS, you need a solid network storage setup. The idea is simple: store your media on the NAS, then let Plex serve it to your devices. Because Plex playback at home relies on your local Wi‑Fi and the fact that the server and TV share the same router, the video file never goes out to the internet. This local path is “incredibly fast and completely unmetered”, so you can stream huge 4K files without worrying about data caps or buffering.
If you are using Docker‑based media tools on your NAS, one common prerequisite is a container manager. For example, Ruin Media, a Docker‑based PHP web app, is installed and managed through Portainer. You first install Portainer on the NAS and ensure you have the latest version before deploying any stacks. The same pattern applies to many NAS media server add‑ons: get container management in place, then layer Plex and companion apps on top, all sharing the same storage pools.
Step-by-Step: From NAS Storage to Home Media Streaming
Think of this as walking a friend through turning a pile of files into a Netflix‑style service. The key is to move slowly: get the server running, confirm it works locally, then build out libraries and extras.
- Install your container manager or control panel on the NAS. For Docker‑based tools, that means installing Portainer and making sure it is updated to the latest version before you deploy anything.
- Connect to your NAS’s management interface and confirm the NAS sees your storage volumes and shared folders where your media will live. These paths will later be mapped into Plex as library locations.
- Install Plex Media Server on the NAS and point it at your main media share. Plex is the brains of the operation, running on the NAS where the video files live and organizing them behind the scenes.
- Create dedicated folders for Movies, TV Shows, and Music, and start populating them with files using clear names such as “Jaws_1975_1080p.mp4”; when files land in these folders, Plex scans them, identifies the title, and pulls posters, artwork, plot summaries, cast lists, and even ratings from the internet.
- Install the Plex app on your playback devices (smart TV, streaming stick, phone, tablet). Each app connects to the server on your NAS over your local network, requests a title, and starts streaming, so the file travels from the NAS, through your router, to the device without touching the wider internet.
- Optionally add extra web apps via Docker stacks. For example, to deploy Ruin Media on a UGREEN NAS, you log into Portainer, click Home then Live connect, go to Stacks, click + Add stack, name it “ruinmedia”, then paste the provided Docker compose code into the Web editor, which defines the ruinmedia service using the korosys/ruin.media:latest image and maps port 6082 to port 80.
- Scroll down in the stack editor and click Deploy the stack; once deployment completes, look for the “Success Stack successfully deployed” message in Portainer, then open a browser to http://ugreen-ip-address:6082 to use Ruin Media by uploading audio or image files, choosing STANDARD or RUINATION mode, and processing them.
That is the whole loop: the NAS hosts the brains, the network carries the streams, and your devices run lightweight apps. The biggest gotcha is rushing into remote access or advanced features before your basic local streaming is solid; get playback working in your living room first, then layer on extras like mobile access or additional Docker tools.
Organize Libraries, Permissions, and Metadata the Smart Way

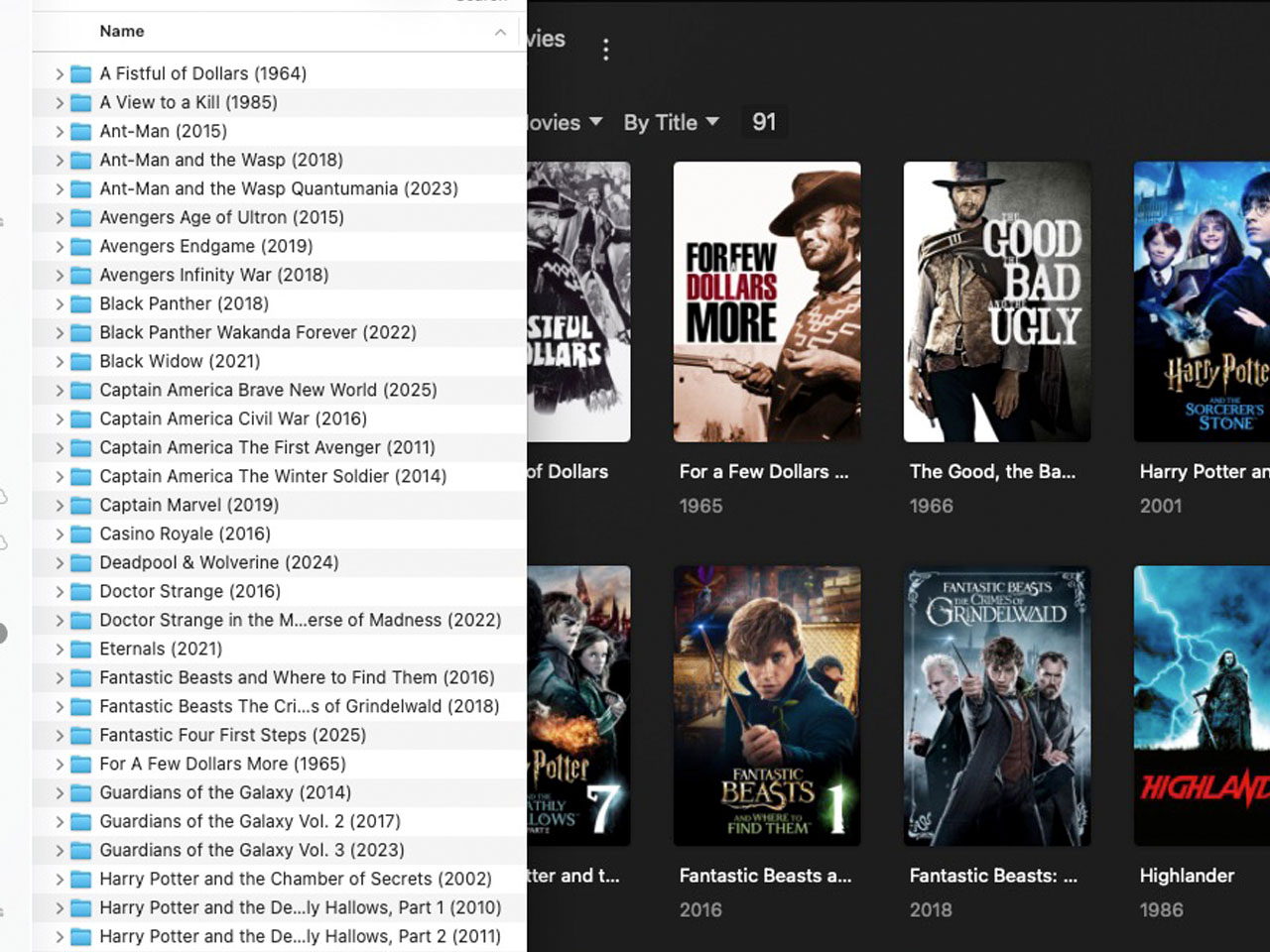

Once Plex sees your media, good organization makes the difference between a fun home media streaming setup and a clumsy one. Plex excels at turning filenames into rich experiences: when you drop a movie like “Jaws_1975_1080p.mp4” into the right folder, it identifies the movie and downloads posters, artwork, summaries, cast lists, and ratings automatically. This only works reliably when your folders and names follow a consistent pattern.
Think in terms of libraries with clear boundaries: one for movies, one for TV, one for music. Plex tracks your watch history and supports custom playlists and collections, so multiple people can watch different things from the same library. For permissions, give your Plex server account read access to every media folder and restrict write access so the server cannot accidentally alter raw files. Remote access is an optional layer: Plex can stream when you are away from home, but its primary strength is “flawlessly managing your local network playback”. Start local, tune metadata and folders, then expand outward once your family is comfortable using it.
Is Building a NAS Media Server Worth It?
Putting Plex on a NAS turns a basic storage box into your home’s entertainment backbone. Instead of juggling USB drives and guessing which folder holds what, you get a polished streaming interface that looks and feels like a commercial service but lives entirely on your hardware. Because everything streams over your own Wi‑Fi and router, you gain speed and stability while avoiding data caps.
The trade‑off is that you become the admin. You install and update tools, manage Docker stacks such as Ruin Media when you want extra features, and keep an eye on storage and backups. If that sounds fun, the payoff is huge: your media, organized the way you like, accessible from almost any device in your home and, when you choose to enable it, beyond. Take your time, validate each step, and you will end up with a reliable NAS media server that can grow with your library.
