Silo Server With Hardware Transcoding on NAS: Synology and UGREEN Setup

What Silo Server With Hardware Transcoding Gives You

Silo Server with hardware transcoding is a self-hosted media server that streams movies, shows, music, and books from your NAS and uses its built-in graphics capabilities for automatic direct play, remuxing, and hardware-accelerated transcoding so multiple devices can play compatible formats smoothly without overloading the main CPU.

Think of this setup as turning your Synology media server or UGREEN NAS into a home streaming hub that feels like a polished commercial service but stays under your control. It’s worth doing if you have a decent NAS, a growing media library, and family or friends who stream at the same time. The real prerequisite is Docker with Portainer installed and up to date on your NAS, because Silo Server is deployed through a single stack. Before touching Silo itself, you also need a dedicated docker folder on the NAS where Silo’s data, plugins, and transcoding cache will live.

Before You Start: Prerequisites and Common Gotchas

Before you spin up any stack, make sure the basics are in place. On both Synology and UGREEN, you need Docker available and Portainer installed, and it should be the latest Portainer version so the stack editor and health checks behave as expected. On Synology, you’ll work from File Station to prepare directories; on UGREEN, you’ll use Files. According to the setup guides, Portainer is the only management tool you interact with once those folders are ready, as deployment is designed around a single Docker Compose command.

The two mistakes that trip people up are surprisingly small. First, folder names must be all lowercase: the main silo folder and the ten subfolders catalog-seeds, compat, db, media, meilisearch, plugins, redis, rustfsdata, rustfslogs, and transcode are case-sensitive on both platforms. Second, when you paste the stack code, values such as PUID, PGID, and MEILI_MASTER_KEY are placeholders and need to be replaced with your own numbers or key before you deploy. If you skip that, containers start with wrong permissions or an example master key, and you’ll be debugging access problems instead of streaming movies.

Step-by-Step: Silo Server NAS Setup With Hardware Transcoding

Here’s the practical flow you’d follow sitting at the NAS, whether it’s Synology or UGREEN. The specifics differ slightly between platforms, but the sequence is the same idea: prepare storage, tell Portainer what to run, then sign in through the browser to the Silo dashboard once the containers are healthy. The hardware transcoding NAS side of things comes from mapping the right devices in the stack so Silo can talk to the /dev/dri paths exposed by the NAS. Walk through the steps in order; skipping around often leaves you with missing permissions or unmapped volumes.

1. Confirm Docker and the latest Portainer are installed on your Synology or UGREEN NAS, or update Portainer if needed.

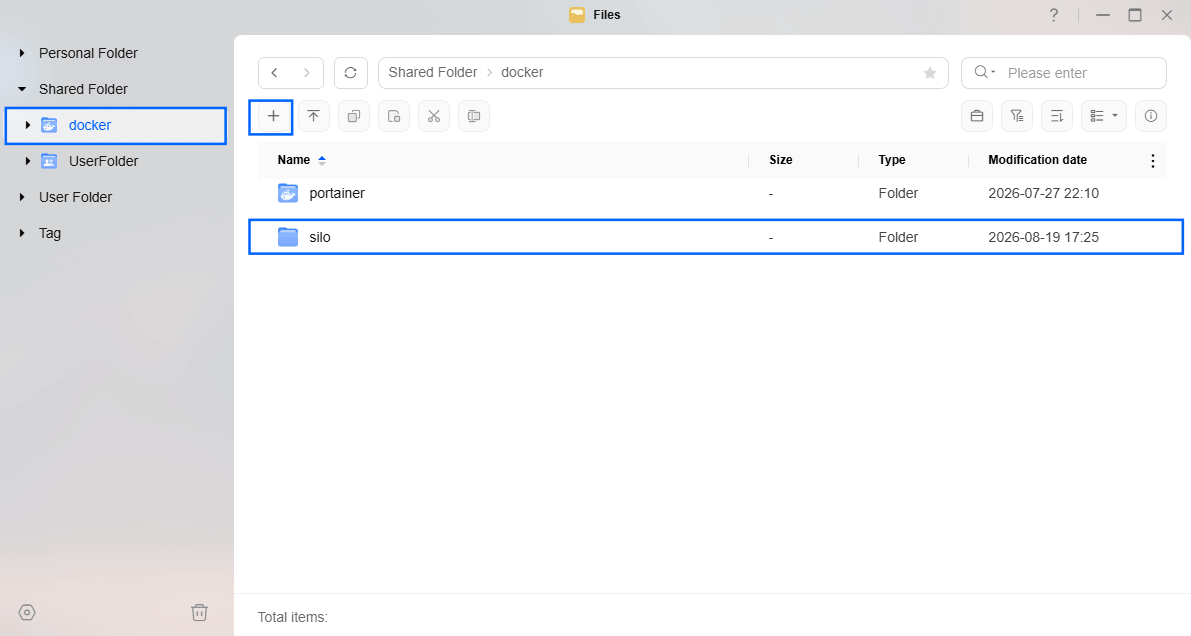

2. On Synology, open File Station and create the docker/silo folder; on UGREEN, open Files and create the same docker/silo folder, using lowercase only.
3. Inside docker/silo, create ten lowercase subfolders: catalog-seeds, compat, db, media, meilisearch, plugins, redis, rustfsdata, rustfslogs, and transcode for Silo’s data and transcoding cache.
4. On UGREEN, make sure the docker folder has read and write permissions so containers can access all the Silo directories before you deploy the stack.
5. Log into Portainer, choose Home then Live connect, go to Stacks, and click + Add stack to start defining the Silo Server NAS setup.
6. Name the stack silo, paste the provided Silo Server Docker Compose code into the Web editor, and replace placeholder values such as PUID, PGID, and MEILI_MASTER_KEY with your own before saving.
7. Confirm that the volume paths in the stack point to /volume1/docker/silo/... on Synology or the equivalent docker/silo paths on UGREEN, so the db, redis, and media directories persist your data.
8. For hardware transcoding NAS support on Synology, check the official list to ensure your model supports it, and keep the /dev/dri device mappings in the stack so Silo can use Intel or AMD hardware rendering.
9. Deploy the stack, wait for the Silo-DB, Silo-REDIS, and other containers to report healthy status in Portainer, then point your browser to http://Synology-ip-address:8098 or http://ugreen-ip-address:8098 to create the Silo administrator account.
10. Once the Silo dashboard loads at a glance, add your media folders from the NAS to the catalog and confirm playback and transcoding behave as expected with one or more client devices.

Synology vs UGREEN: Small Differences, Same Dashboard Result

In day-to-day use, Silo Server looks the same regardless of whether you installed it on a Synology media server or through a UGREEN NAS installation. You hit the same port 8098 in your browser, create an administrator account, and land on the Silo dashboard where profiles, metadata plugins, and library management all live. The differences are mostly in the path and permissions details: Synology uses File Station and /volume1/docker/silo for volumes, while UGREEN uses Files and its own docker mount plus a mandatory read and write permission step.

Hardware transcoding configuration is also defined in the stack itself rather than inside the Silo web UI; on supported Synology models, mapping /dev/dri/renderD128 and /dev/dri/card0 gives Silo access to Intel or AMD acceleration for transcoding. After deployment, the expected result is clear: your Silo dashboard is reachable and ready for the next steps of adding media libraries and profiles. If you get that clean dashboard view but playback stutters, revisit device mappings, folder permissions, and the lowercase naming rules—most problems trace back to those small details.

Takeaway: Worth Setting Up, With Attention to Details

If you’re willing to follow a stack-based deployment, Silo Server with hardware transcoding is worth setting up on either NAS platform. Once the directories, permissions, and stack values are correct, you get a self-hosted media system that exposes optional Jellyfin or Emby-compatible APIs alongside its own web client and admin interface, all deployed through that single Docker Compose definition. The process is not complicated, but it is unforgiving of typos in folder names and copy-paste errors in the stack.

The main things to watch for are keeping Portainer updated, ensuring the docker folder has read and write access (especially on UGREEN), using lowercase for every Silo directory, and replacing placeholder IDs and master keys before deploying. Do that, and when you open port 8098 and see your Silo dashboard at a glance, you’ll know the groundwork is solid and you can focus next on organizing your media rather than chasing container errors.
