What This NAS Mini PC Comparison Is About
This NAS mini PC comparison examines Minisforum’s N5 MAX and S5 systems, two compact network-attached storage designs that mix modern CPUs, 10GbE networking, and multi-drive storage for demanding creative workflows and small business data. Both are more than simple file servers: they are full x86 computers that can run mainstream desktop operating systems while acting as central storage hubs, with the N5 MAX pairing powerful AMD silicon with mixed HDD and SSD bays, and the S5 pursuing a silent, all-flash NAS storage concept built around efficient Intel hardware. By contrasting their processors, cooling strategies, storage architectures, and likely real-world roles, this guide helps buyers decide whether raw compute performance or silent, all-flash density matters more for their next NAS mini PC.
Processors and Performance: AMD Strix Halo vs Intel Wildcat Lake
At the heart of the N5 MAX is the AMD Ryzen AI Max+ 395 Strix Halo processor with a 16‑core, 32‑thread CPU and a discrete‑class Radeon 8060S GPU plus high‑bandwidth memory. According to Liliputing, this makes the N5 MAX powerful enough to double as a local AI box or gaming PC while still serving as a NAS. It ships with 64GB of LPDDR5X‑8000 and a 128GB SSD for the OS. The S5 takes a different path, using Intel’s Core Series 3 “Wildcat Lake” platform with at least 5 CPU cores (1P + 5E) and integrated NPU and iGPU for light AI tasks. Minisforum pairs it with 12GB of soldered LPDDR5X‑7500 and a separate 64GB UFS 2.2 chip for the operating system. In pure compute terms, the N5 MAX wins; the S5 trades peak performance for efficiency and low heat.
Storage Architecture: Hybrid Bays vs All-Flash NAS

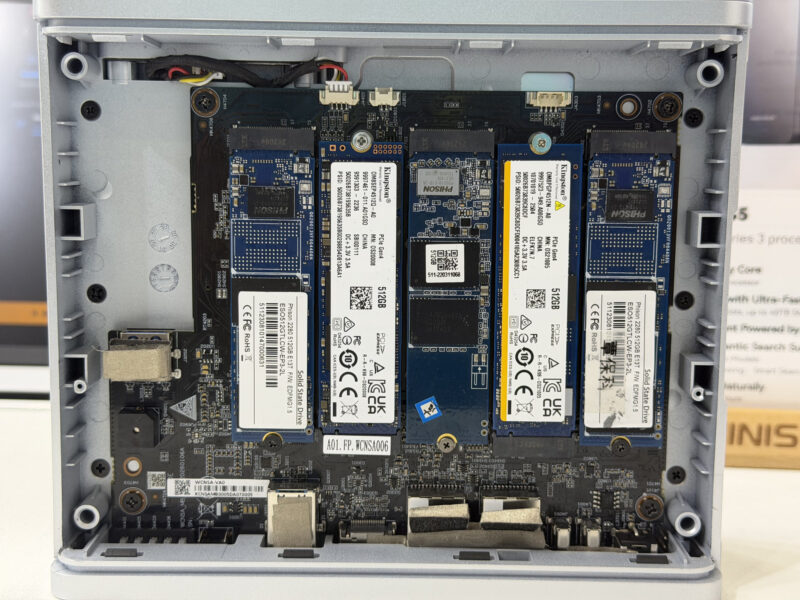

The N5 MAX is a hybrid NAS, combining capacity and flexibility. Its aluminum chassis holds 5 bays for 3.5‑inch or 2.5‑inch SATA drives plus 5 M.2 2280 slots, allowing up to 10 storage devices and as much as 200TB of total capacity. Only one M.2 slot runs at PCIe 4.0 x4 speeds, while the other four are limited to PCIe 4.0 x1, but the system supports RAID 0, 1, 5, and 6 for data protection. The S5 is an all-flash NAS storage design. Inside, it provides 5 M.2 2280 slots, each wired as PCIe Gen4 x1, with Wildcat Lake’s limited PCIe lanes carefully divided to favor capacity over raw SSD speed. The OS sits on its own 64GB UFS 2.2 chip, so all M.2 slots remain dedicated to NAS duties. For users who want quiet, shock‑resistant all‑flash arrays, the S5 is purpose‑built.
Cooling and Noise: Active Fans vs Fanless Storage System
Thermal design is one of the clearest differences between these two NAS mini PCs. The N5 MAX uses a traditional active cooling system with 5 heat pipes and 5 fans: two for the CPU, two for the hard drives, and one for the SSDs. This approach is tailored to the high‑power Strix Halo processor and up to 10 drives, prioritizing sustained performance under heavy workloads such as AI inference, game streaming, or multi‑user virtualization. The S5 is a fanless storage system. Minisforum relies on the low power consumption of Intel’s Series 3 platform and M.2 SSDs, cooling the unit entirely through its finned aluminum case. The result is ultra‑silent operation that can be tucked under a monitor or into a quiet studio without adding any fan noise. For noise‑sensitive environments, that passive design may outweigh the N5 MAX’s higher performance potential.
Connectivity and Use Cases for Creators and Small Businesses
Both NAS mini PCs offer serious networking for mid‑to‑high‑end storage needs. The N5 MAX includes dual 10 Gigabit LAN ports (RTL8127), multiple USB4 ports (two USB4v2 at 80Gbps and one USB4 at 40Gbps), additional USB‑A ports, and HDMI 2.1, making it suited to workflows that mix high‑speed file access, direct‑attached storage, and external GPUs or docks. The S5 uses Intel’s native I/O to offer 2.5GbE plus 10GbE (again via RTL8127), dual 40Gbps USB‑C, HDMI 2.1, and two 10Gbps USB‑A ports. It also brings Wi‑Fi 7 and hardware AV1 encoding, appealing to photo and video teams who want a silent, connected NAS with modern media features. Minisforum pre‑installs MiniCloud OS on both, but the N5 MAX’s x86 design can also run Windows, Linux, or popular NAS OS options, which is attractive for businesses standardizing on familiar platforms.
