Verdict: A bold edge AI box that comes too early
The Minisforum N5 Max is a compact AI mini PC and 5‑bay NAS hybrid that combines a 16‑core Ryzen AI Max+ processor, 64GB memory and dual 10GbE networking to run on‑premises AI workloads and serve data from a single chassis for technical users who want edge AI computing without relying on the public cloud.
In use, this on‑premises AI appliance delivers the performance Minisforum promises: fast multi‑user storage, strong AI inference speeds and plenty of headroom for concurrent tasks. Yet it is held back by immature software and a demanding setup that assumes you are comfortable replacing the NAS OS and tuning AI runtimes yourself. At a qualitative level this is a premium, niche device aimed at professionals who value local control more than convenience. For that audience, the N5 Max proves the mini PC NAS hybrid concept works. For everyone else, a conventional mini PC with a discrete GPU plus a separate NAS will be easier to live with.
| Specification | Detail |
|---|---|
| Type | Barebones mini PC NAS hybrid enclosure with on‑premises AI focus |
| Processor | AMD Ryzen AI Max+ 395, 16 cores with integrated Radeon 8060S graphics |
| AI/NPU | Up to 50 TOPS NPU, Copilot+‑class capability |
| Memory | 64GB LPDDR5X unified memory (max 64GB) |
| Drive bays | 5 x 3.5" SATA, 5 x M.2 NVMe (4 user‑accessible, 1 system disk pre‑fitted) |
| RAID support | RAID0, 1, 5, 6, 10, JBOD |
| Networking | 2 x 10GbE LAN ports |
| Ports | 2 x USB4 (80Gb/s), 1 x USB 3.2 Gen2, 1 x USB 2.0, 1 x HDMI |
| Dimensions & weight | Approx. 199 x 202–252mm, 5.8kg |
| Warranty | Two‑year RTB warranty |
Design and hardware: a dense AI NAS chassis with quirks

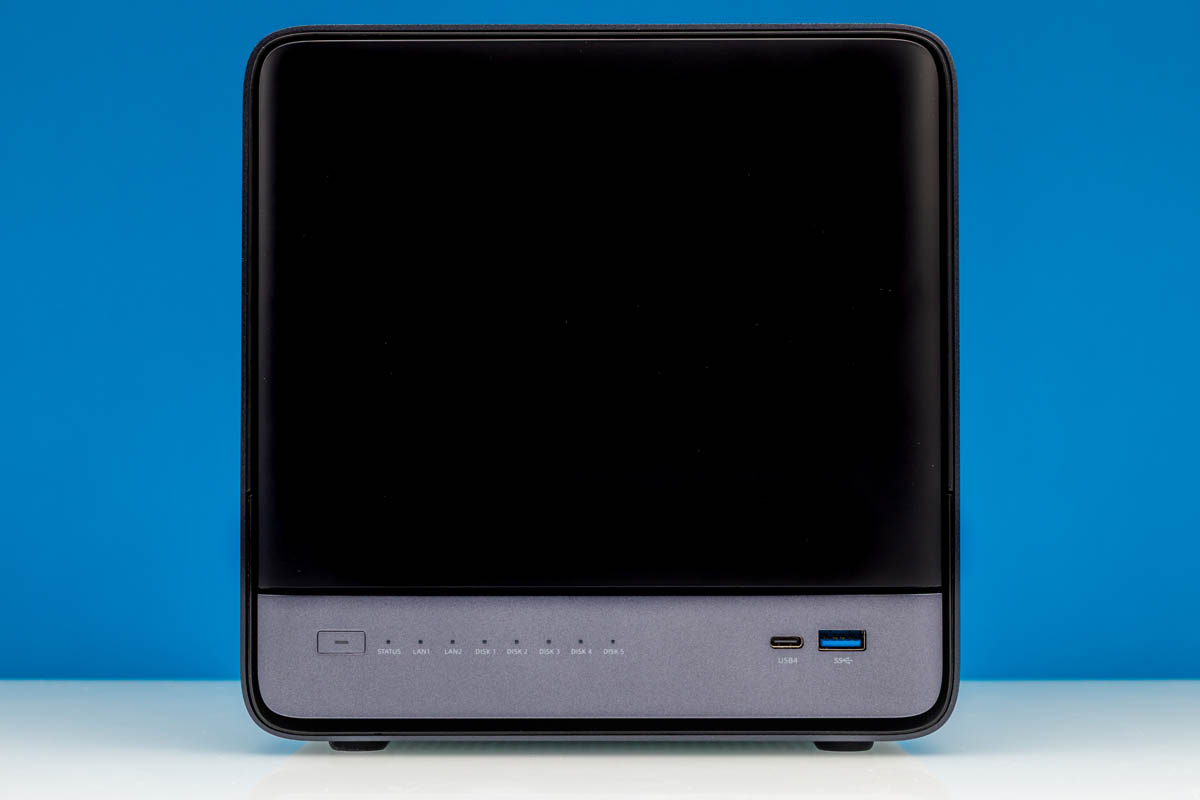

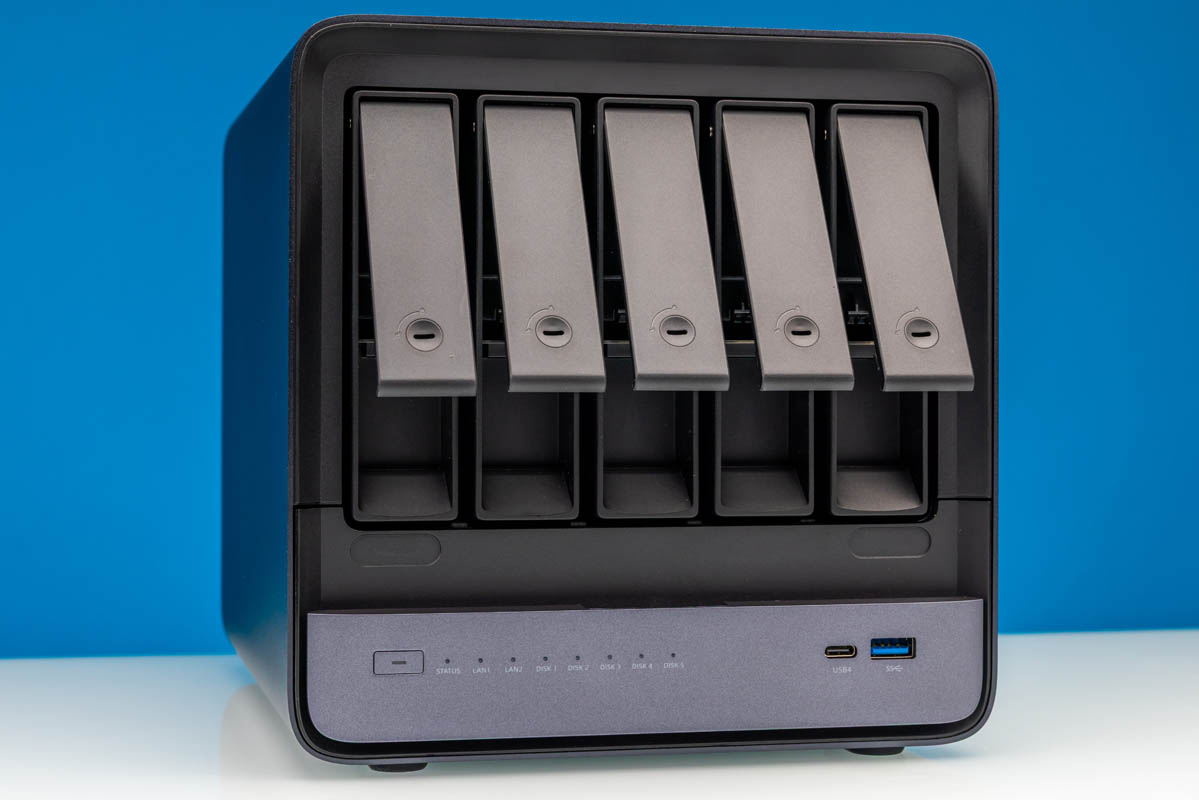

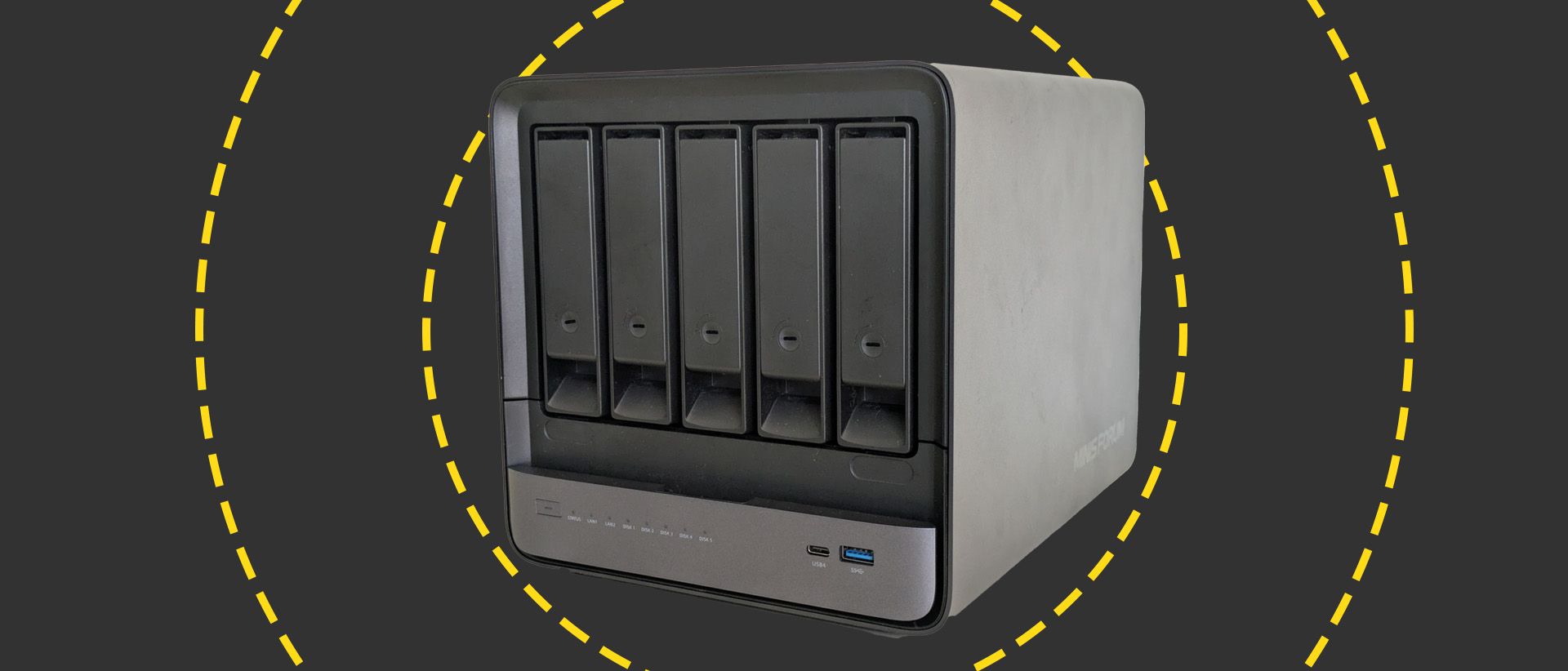

Physically, the N5 Max looks more like a compact 5‑bay NAS than a typical Ryzen AI Max mini PC, but hides serious compute inside. A magnetically attached front cover pulls away to reveal five tool‑less 3.5‑inch SATA bays, each with its own locking latch and status LED so you can immediately see which disk is active. Minisforum packages all SSD slots and core components on a compute module that slides out of the chassis, alongside an internal power supply and substantial cooling hardware.
Build quality is acceptable rather than luxurious. Reviewers note it lacks the premium feel of some rival NAS systems, and the plastic drive caddies can be fragile: a release lever broke under light force during testing, making one tray difficult to remove and reinstall. Adding NVMe drives also demands patience, because you need to unscrew and partially disassemble the cooling assembly to reach all M.2 slots. On the plus side, the footprint is only slightly larger than a typical four‑bay NAS while integrating far more compute, which is impressive for anyone short on rack or desk space.
Storage performance: fast enough for real multi‑user work
Under its default Miniscloud OS, the N5 Max already behaves like a high‑end NAS. With five 2TB hard drives in RAID 5 and SSDs added for tiered storage and caching, it almost saturates a 5GbE client connection, pushing more than 590MB/s in write tests from 64KB blocks upward, and around 560MB/s reads. In mixed file testing with about 11,000 small files plus larger ones, it sustained roughly 145MB/s, rising to 165MB/s when an SSD cache was added.
Reinstalled with a more mature NAS OS such as TrueNAS, performance climbs further. One review notes that it became “the first device we’ve tested to write our entire 11GB dataset to disk in less than a minute”, hitting 202MB/s even without SSD caching. Crucially for a mini PC NAS hybrid, AI inference workloads running on the Ryzen AI Max+ 395 did not measurably hurt storage throughput, suggesting the CPU, NPU and 64GB memory leave sufficient headroom for simultaneous multi‑user file access and background AI tasks. For edge AI computing in a studio or lab, that balance matters more than synthetic benchmarks.
AI performance and software: powerful, but you must tune it
The main reason to pick this Ryzen AI Max mini PC NAS hybrid over a standard NAS is local machine learning. The AMD Ryzen AI Max+ 395 combines 16 CPU cores, integrated Radeon 8060S graphics and a 50 TOPS NPU, exceeding the bar for a Copilot+‑class PC and enabling serious on‑premises AI workloads without the cloud. In containerized tests using Ollama and the ROCm GPU backend, large language models like Gemma 4 26B reached around 44 tokens per second, while a 31B variant managed about 9 tokens per second under the same setup.
Switching runtimes shows the platform’s flexibility but also its complexity. Running a model with GPU acceleration delivered over 40 tokens per second; moving to the NPU via the Lemonade environment reached 18.9 tokens per second, while a Vulkan backend with MXFP4 quantization jumped to 72.9 tokens per second. That kind of tuning is powerful yet time‑consuming, and it highlights how immature local AI tooling still is. Minisforum’s Miniscloud OS makes this worse: it lacks a web admin console, forces you to install a dedicated app, offers no app ecosystem or even config backup/restore, and overall “feels like an early release”. Many reviewers ended up wiping it for TrueNAS or OpenMediaVault before building AI stacks on top.
What the N5 Max does well
- Excellent hybrid design with 5 SATA bays plus 5 NVMe slots for tiered storage and caches in a compact chassis
- Ryzen AI Max+ 395 and 64GB memory give strong edge AI computing performance for on‑premises inference and data processing
- Dual 10GbE and USB4 ports support high‑speed networking and external accelerators or storage
- Storage performance is outstanding under mature NAS OSes, with no visible impact from AI workloads during testing
Where it falls short
- Miniscloud OS feels unfinished, lacks web management, app ecosystem, and basic features like configuration backup and restore
- Drive caddies feel flimsy; a tray release lever broke under low force during review
- Adding NVMe SSDs involves partial disassembly, making upgrades fiddly
- Getting the best AI speeds requires expert‑level tuning across ROCm, Vulkan and NPU backends, which many users will find daunting
Who the Minisforum N5 Max is really for
In practice, the N5 Max is less a plug‑and‑play NAS and more an experimental edge AI computing node with integrated storage. It is ideal for a small team or solo professional who is already comfortable with containers, ROCm, NPU runtimes and alternative NAS operating systems, and wants a single always‑on box to store data and run local models. Creative studios working with heavy assets, ML engineers running inference at the edge and data‑heavy home labs will all find the hardware compelling. However, the rough operating system and ecosystem fragmentation mean that for many buyers, a separate high‑end AI mini PC with a mid‑range 32GB GPU plus a conventional NAS remains the safer, more straightforward route.
- Buy the Minisforum N5 Max if you are a highly technical user who enjoys tuning local AI environments and NAS operating systems.
- Skip the Minisforum N5 Max if you want a polished, appliance‑like NAS with mature software, web admin and app ecosystem out of the box.
- Buy the Minisforum N5 Max if you need a single edge AI appliance that can serve files over 10GbE while running on‑premises AI workloads on the same box.
- Skip the Minisforum N5 Max if you prefer to separate concerns with a standard mini PC plus discrete GPU for AI and a dedicated NAS for storage.
- Buy the Minisforum N5 Max if you plan to replace Miniscloud with TrueNAS or OpenMediaVault and treat the device as a powerful barebones platform.
- Skip the Minisforum N5 Max if fragile plastics and slightly awkward SSD upgrades are deal‑breakers in your environment.
