Mini PC gaming comparison: where power beats size
A gaming mini PC is a compact desktop-class system that squeezes a high-performance CPU, capable graphics, and modern connectivity into a small chassis, aiming to deliver competitive frame rates and multi-monitor support while occupying far less desk or living-room space than a traditional tower and challenging console-like Steam Machines for serious gaming use. In that arena, GMKtec’s NEO-X1 and EVO-T2S present two aggressive but very different philosophies. One is a Ryzen 9 mini PC built around a mobile RTX GPU; the other leans on an Intel platform with integrated graphics and flexible expansion. Both want to be your primary competitive rig, not a secondary box. If you care about performance more than footprint, the headline takeaway is simple: raw GPU power still wins, but Panther Lake-style integration is starting to look tempting for disciplined, upgrade-minded players.
Ryzen 9 plus RTX 5070 compact: brute-force desktop gaming
The NEO-X1 is a compact gaming PC that pairs AMD Ryzen 9 processors with Nvidia mobile RTX graphics to deliver desktop-class gaming in a chassis far smaller than a traditional tower. Both versions use Ryzen 9 CPUs, with the standard model based on the 9955HX and the Pro stepping up to the 9955HX3D. The standard configuration couples that silicon with an RTX 5060 Ti, while the NEO-X1 Pro moves to a mobile RTX 5070 with 12GB of VRAM, 64GB of DDR5 memory, and 2TB of storage for high-end play. This RTX 5070 compact combination is the reason the system can move AAA games from 1440p comfort into credible 4K with ray tracing, a jump that makes Valve’s PC console “look like a kids’ toy” in practical terms. If your priority is maximum frames and visual settings today, the Ryzen 9 mini PC wins this head-to-head on sheer muscle.
Panther Lake performance: integrated first, discrete later

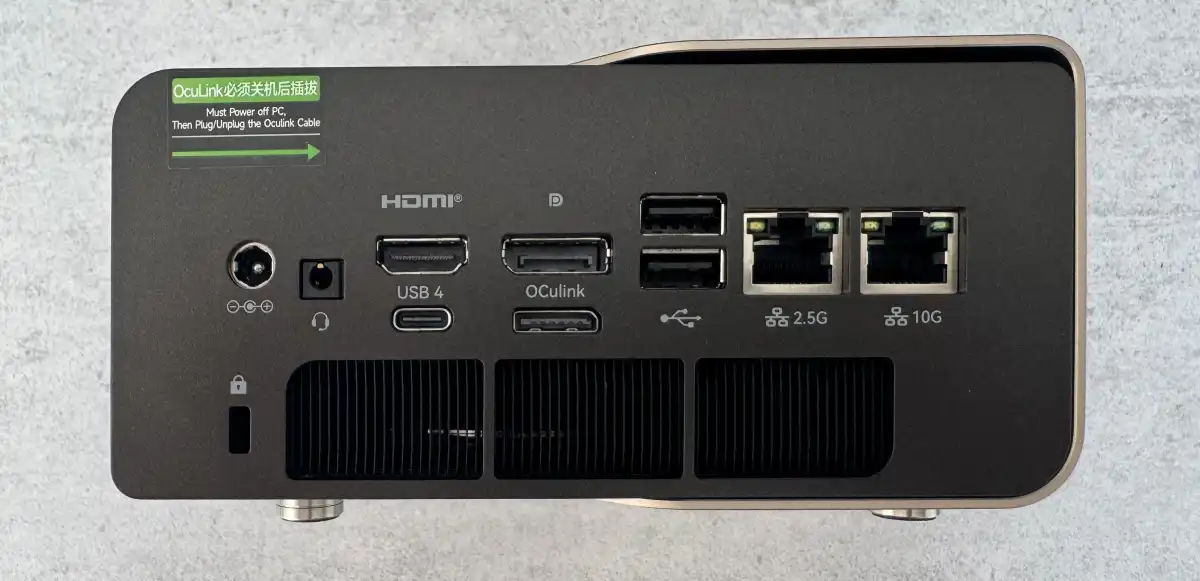

Where the Ryzen 9 rig leans on a mobile RTX card from the start, the EVO-T2S follows a different route: Panther Lake CPU paired with Arc B390 integrated graphics, backed by serious I/O. This machine is designed as a flexible gaming mini PC that can start on its iGPU and grow into a full eGPU setup. Its rear panel includes HDMI, DisplayPort and an OCuLink connector for external desktop graphics cards, operating at PCIe 4.0 x4 and offering a theoretical bandwidth of just under 8GB/s. USB4 ports on the front and rear support up to 40Gbit/s, DisplayPort, and 100-watt Power Delivery for docks or fast external SSDs, and you can run up to four displays simultaneously. The philosophy is clear: accept integrated GPU limits up front, but keep a low-loss pathway open for a future discrete card when Arc B390 no longer keeps up with your competitive ambitions.
Thermal design: liquid vs vapor in sustained play

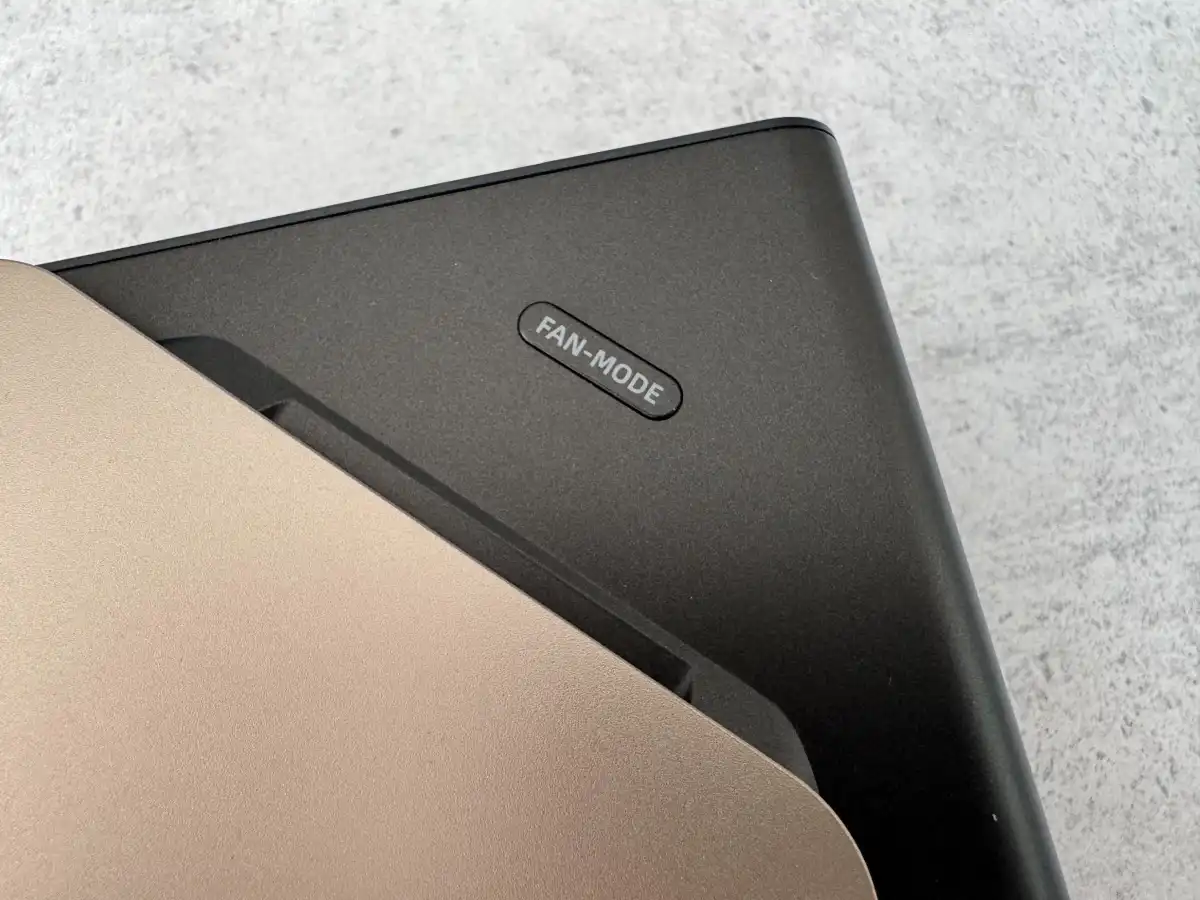

Cooling strategy is where these two mini PCs quietly reveal their long-game intentions. The NEO-X1 uses liquid cooling plus a three-fan airflow architecture inside a 14.6L metal chassis, measuring 350 x 165mm. That footprint is larger than a typical Steam Machine, but it allows an internal 850W power supply and thermal headroom for a hot-running Ryzen 9 and RTX 5070 combo. The EVO-T2S, by contrast, relies on a vapor chamber solution with two fans, one of them comparatively large and placed directly beneath the metal top cover, complete with switchable RGB lighting. While this dual-fan design is unusual for a mini PC of its size, it speaks to a focus on consistent cooling in a tighter envelope. In practice, liquid cooling favors long, high-power gaming sessions; vapor chamber cooling is more about staying quiet and controlled while leaving room for an external GPU to shoulder future thermal load.
Steam Machines challenged and the future of compact rigs
Both systems are built to outclass traditional Steam Machines. The NEO-X1 is described as “a compact gaming PC with the sort of power that makes Valve’s PC console look like a kids’ toy,” and extends play from 1440p into 4K with ray tracing. The EVO-T2S counters not with brute force, but with clever expansion: HDMI and DisplayPort, dual USB4 with DisplayPort and Power Delivery, dual Ethernet including 10Gbps, and OCuLink for external desktop GPUs that avoid the signal loss of USB4-based eGPU setups. In a head-to-head mini PC gaming comparison, the message is stark. If you want instant, uncompromised frames, the Ryzen 9 plus RTX path is the better performance bet. If you value a compact, upgrade-friendly platform that can grow over time, the Panther Lake plus Arc design looks smarter. Either way, the idea of a fixed Steam Machine suddenly feels dated.
