What HDMI 2.2 Is and How It Differs from HDMI 2.1
HDMI 2.2 is the next-generation HDMI specification that doubles maximum bandwidth to 96Gbps, enabling uncompressed 4K 240Hz video and higher-resolution modes while building on the FRL signaling introduced with HDMI 2.1 for more future‑proof displays, consoles, and home theater devices. In practical terms, HDMI 2.2 is a major display bandwidth upgrade over HDMI 2.1, which tops out at 48Gbps. Where HDMI 2.1 needed Display Stream Compression for many extreme modes, HDMI 2.2 can carry uncompressed 4K at up to 240Hz and uncompressed 8K at 60Hz. It also adds FRL2, an evolution of the Fixed Rate Link system, aiming to reduce compatibility issues compared with the older jump from TMDS in HDMI 2.0. According to the HDMI Forum, the spec was finalized in 2025, laying the groundwork for a new wave of ultra-high-refresh gaming and professional displays.
The Numbers: 96Gbps, 4K 240Hz Video, and Beyond
On paper, the HDMI 2.2 specification is all about raw throughput. Its headline figure is 96Gbps of total bandwidth, twice that of HDMI 2.1’s 48Gbps ceiling. That extra headroom lets a single cable carry uncompressed 4K 240Hz video, something that currently needs compression, and uncompressed RGB 8K 60Hz. With chroma subsampling, it can push even higher, up to 4K 480Hz in 4:2:0, and with Display Stream Compression it reaches into experimental territory, such as 8K 240Hz and 1440p at refresh rates above 1,000Hz. These modes are far beyond what today’s GPUs and TVs can deliver, but they show where high-end gaming and pro visualization are headed. For now, though, the most meaningful upgrade is straightforward: cleaner, uncompressed 4K 240Hz video for fast gaming and smoother motion without relying as heavily on compression tricks.
When HDMI 2.2 Hardware Is Coming

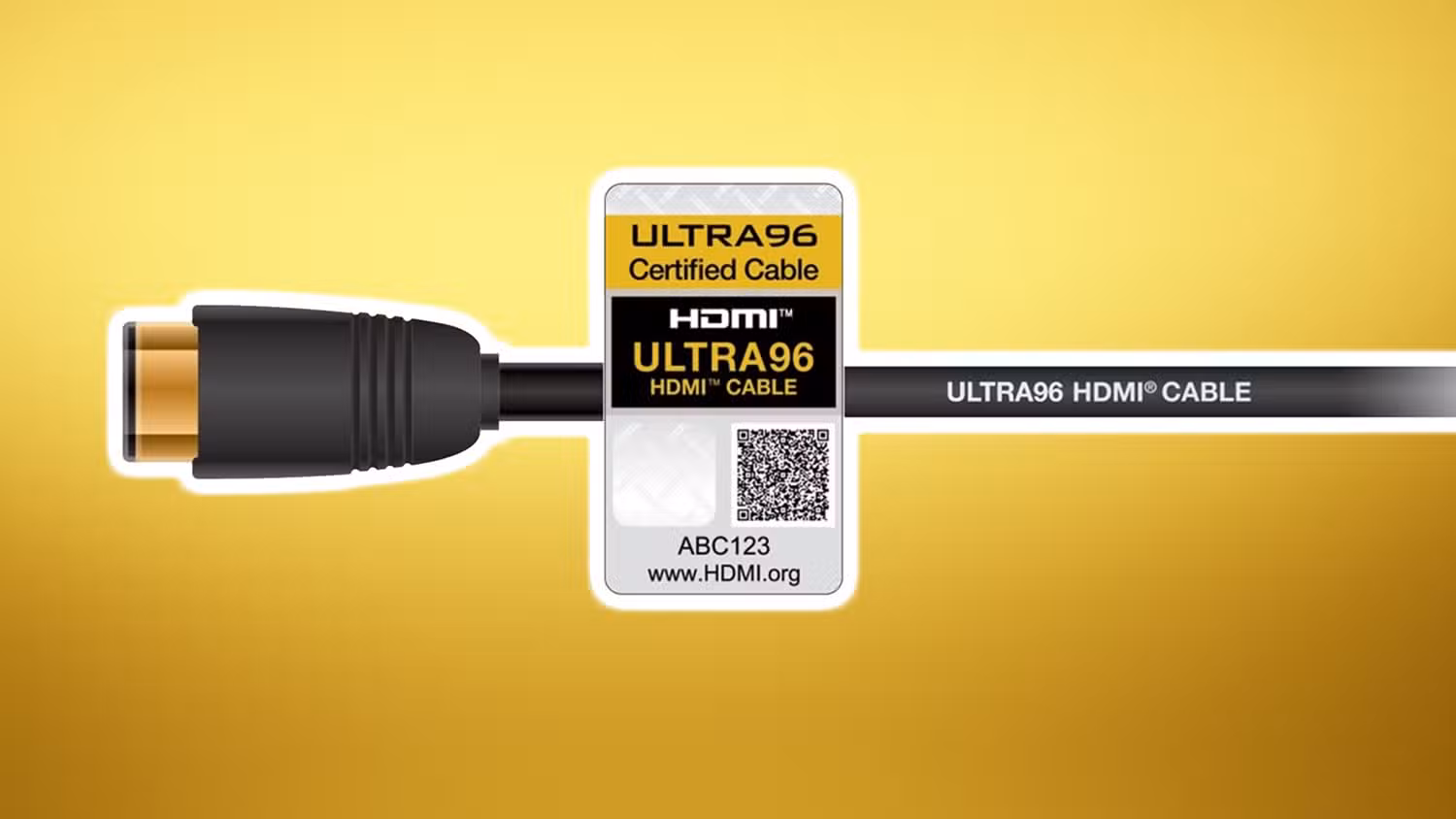

HDMI 2.2 is finalized, but you will not find it on shelves yet. The HDMI Forum completed the specification in June 2025, and chipmakers are now sampling FRL2 silicon to device manufacturers. According to Rob Tobias, CEO and president of HDMI Licensing Administrator, “we should start to see some 96 or up to 96 gigabit HDMI 2.2 products next year,” with the first wave expected in 2027. Ultra96 (96Gbps-rated) HDMI cables are due to arrive before then, so cabling should be ready ahead of TVs, monitors, and receivers. Early adopters will likely see HDMI 2.2 first on high-end televisions and gaming monitors, followed by next-generation graphics cards and consoles based on future Nvidia RTX 60‑series and AMD RDNA 5 architectures. That means the real-world impact of HDMI 2.2 will roll out gradually over several product cycles rather than overnight.
HDMI 2.1 vs 2.2: Do You Need to Upgrade?
For most people, HDMI 2.1 still covers everyday needs. It already handles 4K 120Hz and 8K 60Hz, supports gaming features like Variable Refresh Rate and Auto Low Latency Mode, and matches the capabilities of current consoles and many PCs. HDMI 2.2’s uncompressed 4K 240Hz video will mainly appeal to competitive gamers, pro e‑sports venues, and niche professional users who need extremely high frame rates or specialized high-resolution workflows. Even then, GPUs capable of reliably driving 4K 240Hz in modern games will be rare at first. If you are buying a TV or monitor in the near term, treating HDMI 2.2 as a nice bonus rather than a must-have is reasonable. HDMI 2.1 gear will remain relevant for years, and you will not lose picture quality with today’s content by skipping the first generation of HDMI 2.2 devices.
Why the Label Isn’t Enough: Reading HDMI 2.2 Fine Print
There is one important catch: not every HDMI 2.2 port will deliver the full 96Gbps. The spec allows multiple tiers, including 64Gbps and 80Gbps options, and manufacturers can still market these as HDMI 2.2. That means two displays with the same logo could have very different bandwidth ceilings and support different maximum resolutions or refresh rates. Before you upgrade, you will need to read spec sheets carefully to check per-port speeds, which inputs support 4K 240Hz video, and whether advanced modes require chroma subsampling or compression. The situation echoes early HDMI 2.1, when some TVs limited full bandwidth to one or two ports. As adoption ramps up, buyers should treat “HDMI 2.2” as a starting point and confirm the exact bandwidth rating and supported modes rather than relying on the label alone.
