Why Use Raspberry Pi for a Self-Hosted Photo Backup
A Raspberry Pi photo backup server is a low‑power home photo storage server that uses a single-board computer and external drives to store, organize, and wirelessly back up pictures and videos from your phones, acting as a DIY Google Photos alternative with no recurring cloud subscription and stronger privacy controls than commercial services. This is for anyone hitting Google’s 15GB free cap and wondering why their memories are locked behind monthly plans. If you’re willing to tinker a little, one Raspberry Pi and a hard drive or two can create a reliable self-hosted photo backup solution for multiple phones and tablets in your house. The one real prerequisite is comfort with following terminal commands and basic network settings—you don’t need to be an engineer, but you should be okay copying and pasting commands and checking IP addresses.
What You Need: Hardware, Storage, and Software Choices

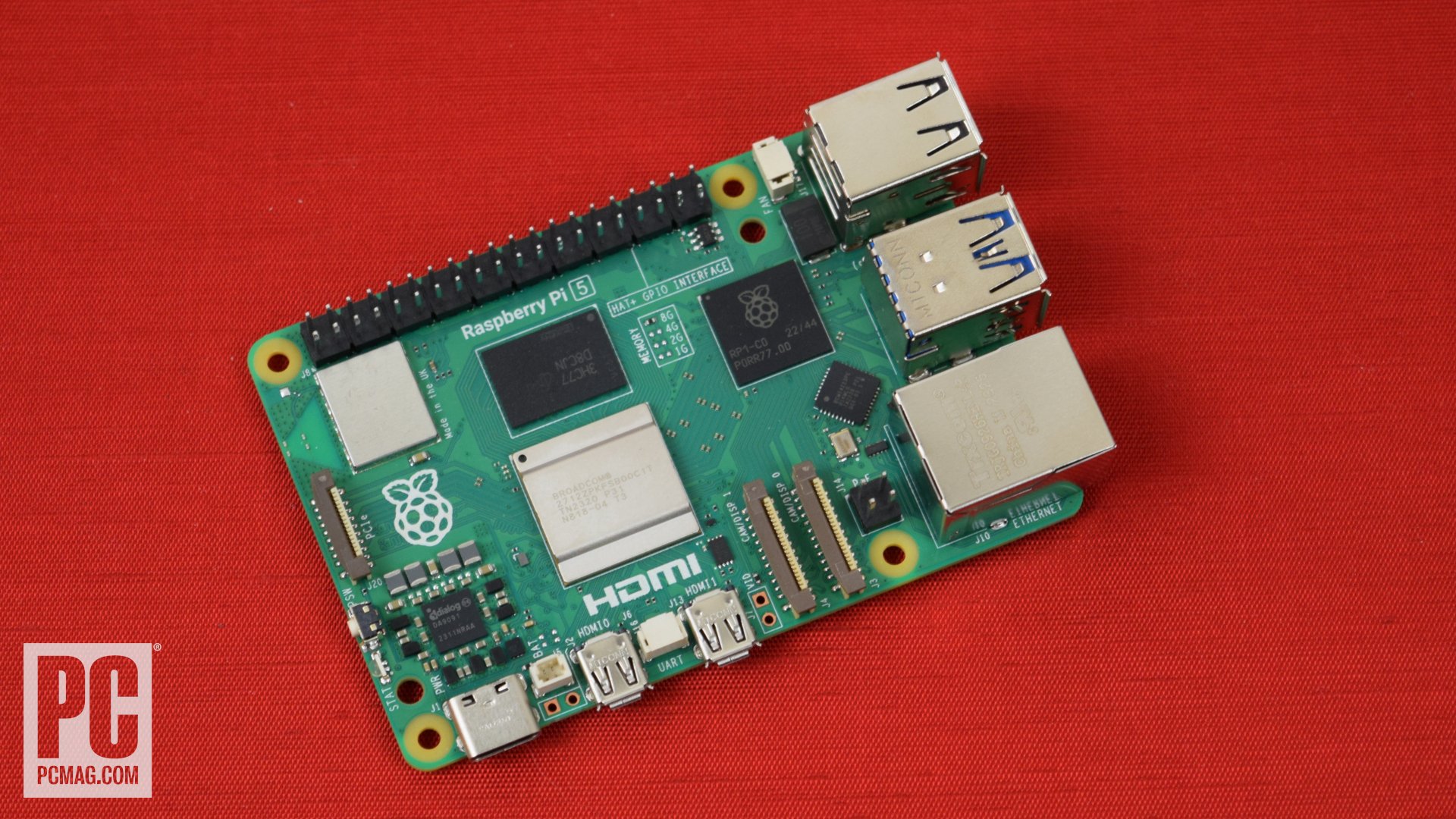

Before you start, gather the right parts. You’ll need a Raspberry Pi board; a Pi 4 or Pi 5 with 8GB RAM is recommended because Immich’s AI features for facial recognition and smart search demand more memory. You also need a power supply, a microSD card for the operating system, and a mouse, keyboard, and monitor for the first-time setup, unless you configure it entirely over the network. A kit that includes most accessories keeps things straightforward. For storage, do not plan to keep your photo library on the Pi’s SD card—microSD cards fail under heavy write loads. Instead, attach an external SSD or HDD via USB; a drive that plugs into the wall or a powered USB hub avoids power issues. For long-term reliability, drives designed for network attached storage are a good choice. On the software side, you’ll use Raspberry Pi OS Lite and Docker Compose to run Immich, the self-hosted Google Photos replacement.
Step-by-Step: Turning Your Pi into a Private Photo Server
Think of this like setting up a tiny server in your living room. You’ll install an operating system, attach proper storage, and then bring Immich online so every phone in the house can back up wirelessly. The main things that can go wrong are wiping the wrong drive and storing photos on the fragile SD card, so pay attention to which disk you are formatting and where Immich points its library path.

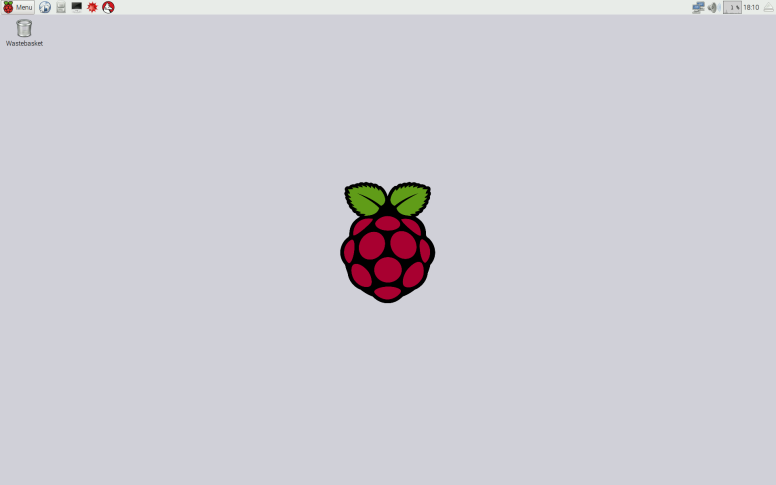

- Burn Raspberry Pi OS Lite to your microSD card, insert it into the Pi, connect power and network (Ethernet for faster transfers), and boot the Pi, setting a secure password and installing updates.
- Configure the Pi so you can reach it over SSH from your main computer, which lets you manage it without keeping a mouse, keyboard, and monitor attached.

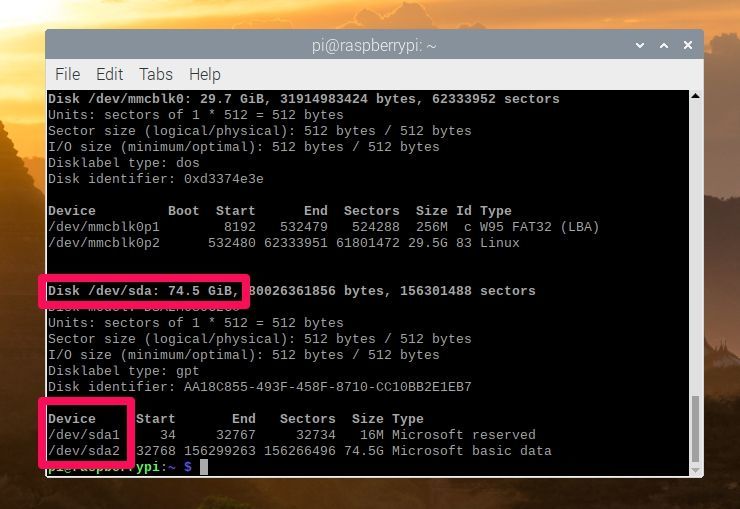

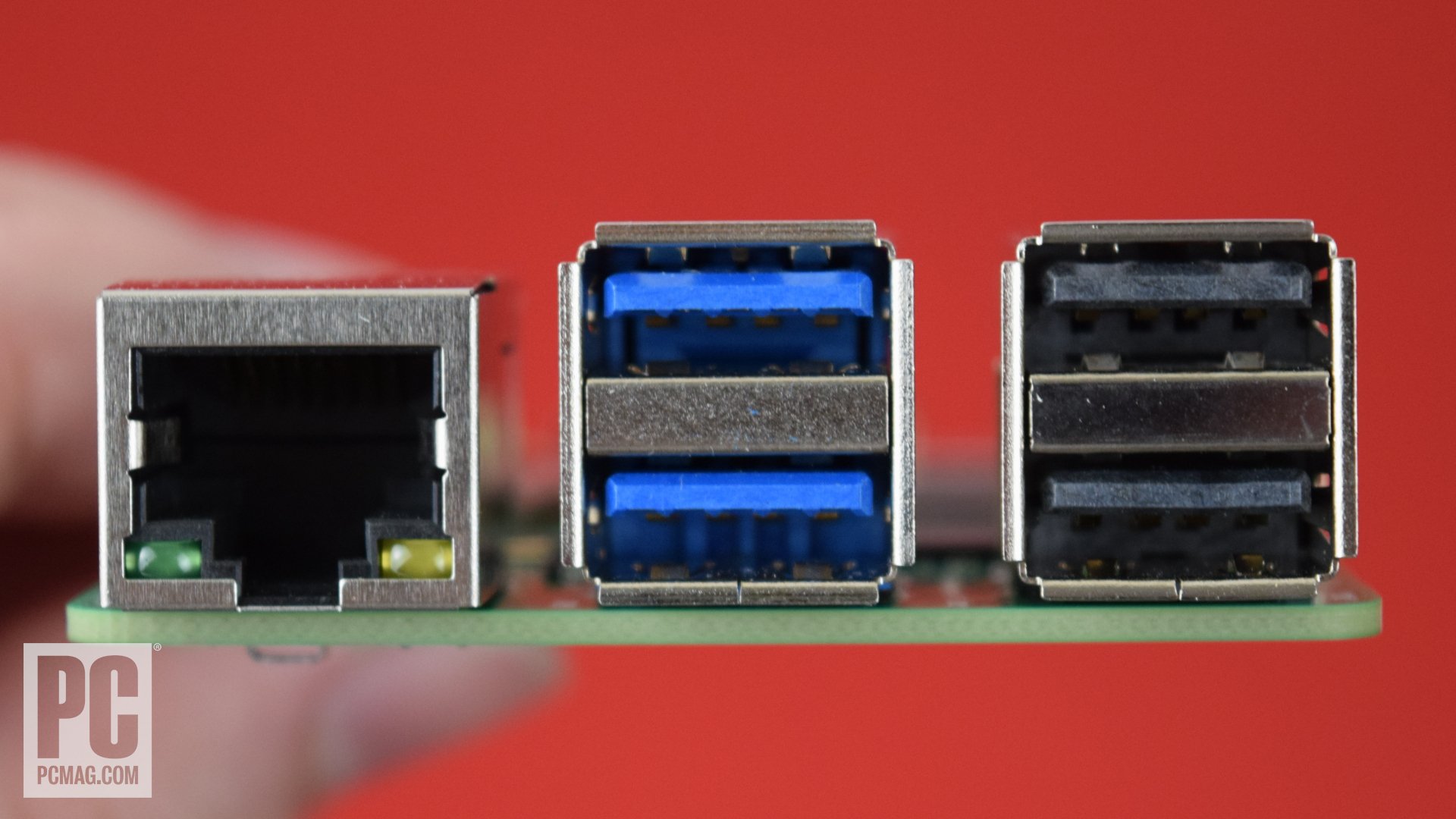

- Attach your external SSD or HDD to a USB port, then use a terminal on the Pi to run "sudo fdisk -l" and identify the drive you’ll use for your photo library—for example, /dev/sda.
- Unmount that drive (for example, "umount /dev/sda1") and erase or re-partition it as needed, making sure any important files are backed up elsewhere first, because this step will wipe the drive.
- Install Docker and Docker Compose on Raspberry Pi OS Lite, download Immich’s Docker Compose configuration, and set the library path so it points directly to the external drive rather than the SD card.
- Start the Immich containers so the server, database, cache, and machine-learning services are running; once live, you can access Immich’s web interface from a browser on your home network.

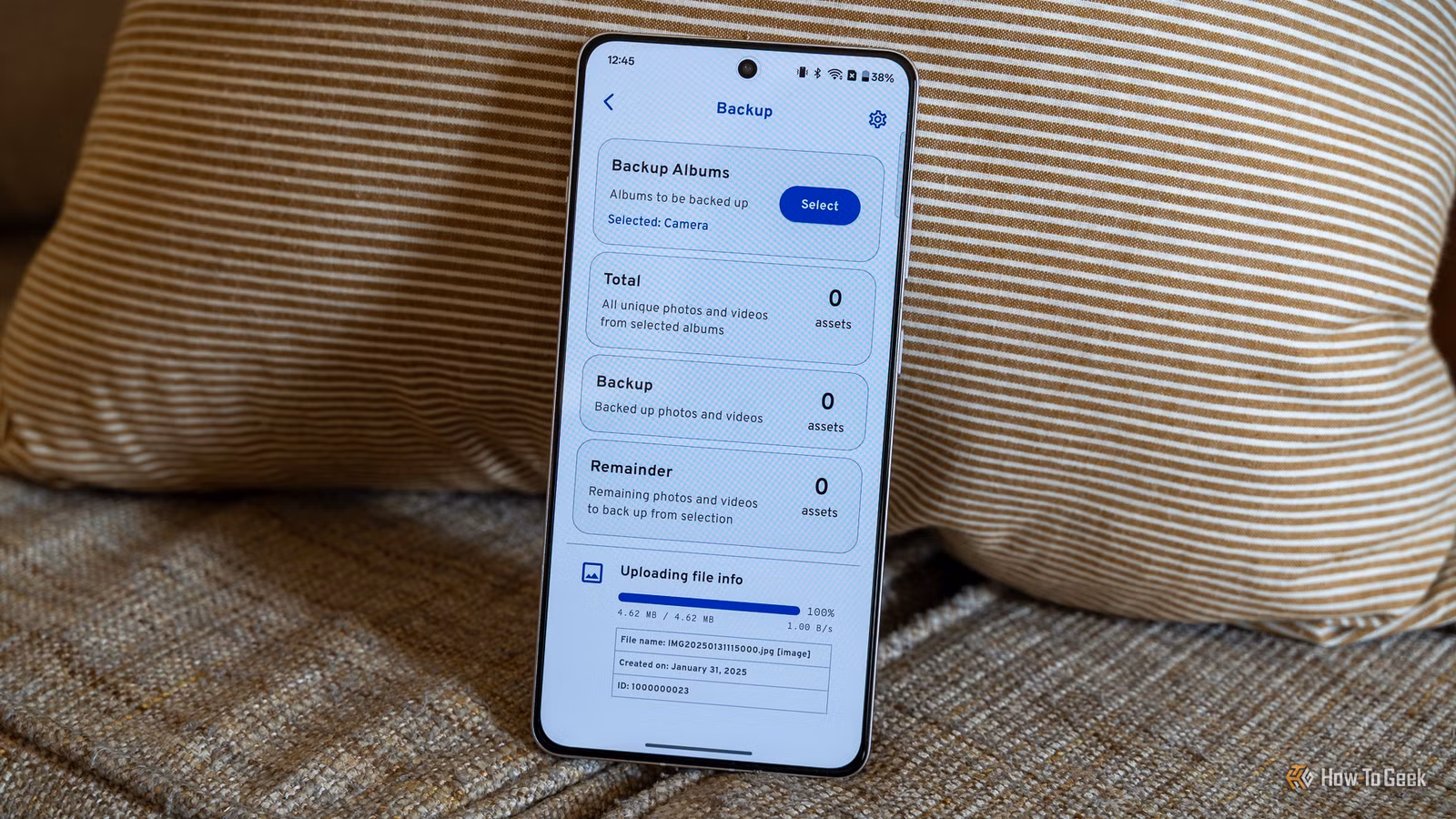

- Install the Immich mobile app on every phone you want to protect, create separate user accounts, and turn on automatic background backup for photos and videos on both iOS and Android devices.
From here, the setup process is finished. You can now access your media from the network. Immich acts as your self-hosted photo backup, giving you timeline and map views, shared albums, and AI search without sharing faces or memories with an outside service. If you want desktop access too, you can expose the same external drive over Samba so any laptop on the network can drop files onto your home photo storage server. The biggest gotchas: never let your library drift onto the SD card, and remember that remounting drives after a power loss can be spotty, so set a reminder to check the server after outages.
Cost, Privacy, and Drive Reliability: Is It Worth It?
This DIY Google Photos alternative trades convenience for control. Google Photos shares a 15GB free pool across Drive, Gmail, Photos, and other services, so that space disappears fast. Paid plans add up over time, whereas with self-hosted storage you pay once for hardware and keep using it for years: one source notes spending about USD 100 yearly (approx. RM460) for 2TB of Google cloud storage, while their own collection of hard drives and SSDs has delivered around 50TB of personal capacity for a one-time cost. Your photos stay on hardware you physically own, and no one is mining your data to train AI models. The trade-off is responsibility: you must pick reliable drives, avoid cheap no-name units, and keep a second backup of irreplaceable pictures because the Pi itself doesn’t offer strong RAID options.
Living With a Raspberry Pi Photo Backup Day to Day
Once it’s running, a Raspberry Pi photo backup feels pleasantly boring—in a good way. It quietly acts as an always-on home photo storage server, letting every phone in the house upload photos automatically over Wi‑Fi. Because Immich backs up in the background on iOS and Android, you don’t have to remember to plug anything in; the uploads happen while you go about your life. If you set up Samba or similar file-sharing, laptops and desktops can access the same drive for movie storage or PC backups too. The main thing to watch for is what happens after power cuts: automatically remounting drives can be unreliable, so make a habit of checking that your external drive is mounted and Immich is running again after any outage. If you’re okay with occasional maintenance, the payoff is a private, subscription-free photo library that feels much like using Google Photos—only the server sits on your shelf instead of in someone else’s data center.
