Why Raspberry Pi Is Your Weekend DIY Power Tool
Raspberry Pi projects are hands-on builds that turn a small, silent, single-board computer into useful tools like media servers, VPNs, storage boxes, or custom gadgets using mostly free software and a few simple accessories.
If you are tired of paying for streaming, VPNs, and other subscriptions, a DIY Raspberry Pi setup can cover several jobs at once: gaming, media, and even secure remote access. Because one board can handle multiple roles, it can be more affordable than buying separate commercial devices and services. Free apps, open-source tools, and code shared on GitHub mean you can build Raspberry Pi projects that work out of the box without extra software purchases. These Raspberry Pi alternatives to commercial gear help you depend less on proprietary systems while keeping control of your own data and hardware.
We will walk through six practical DIY Raspberry Pi ideas: a live train departures board, an optical music box, a NAS, a personal VPN, a streaming box, and a network-wide ad blocker. Think of this as a friend’s field guide to making your Pi earn its keep.

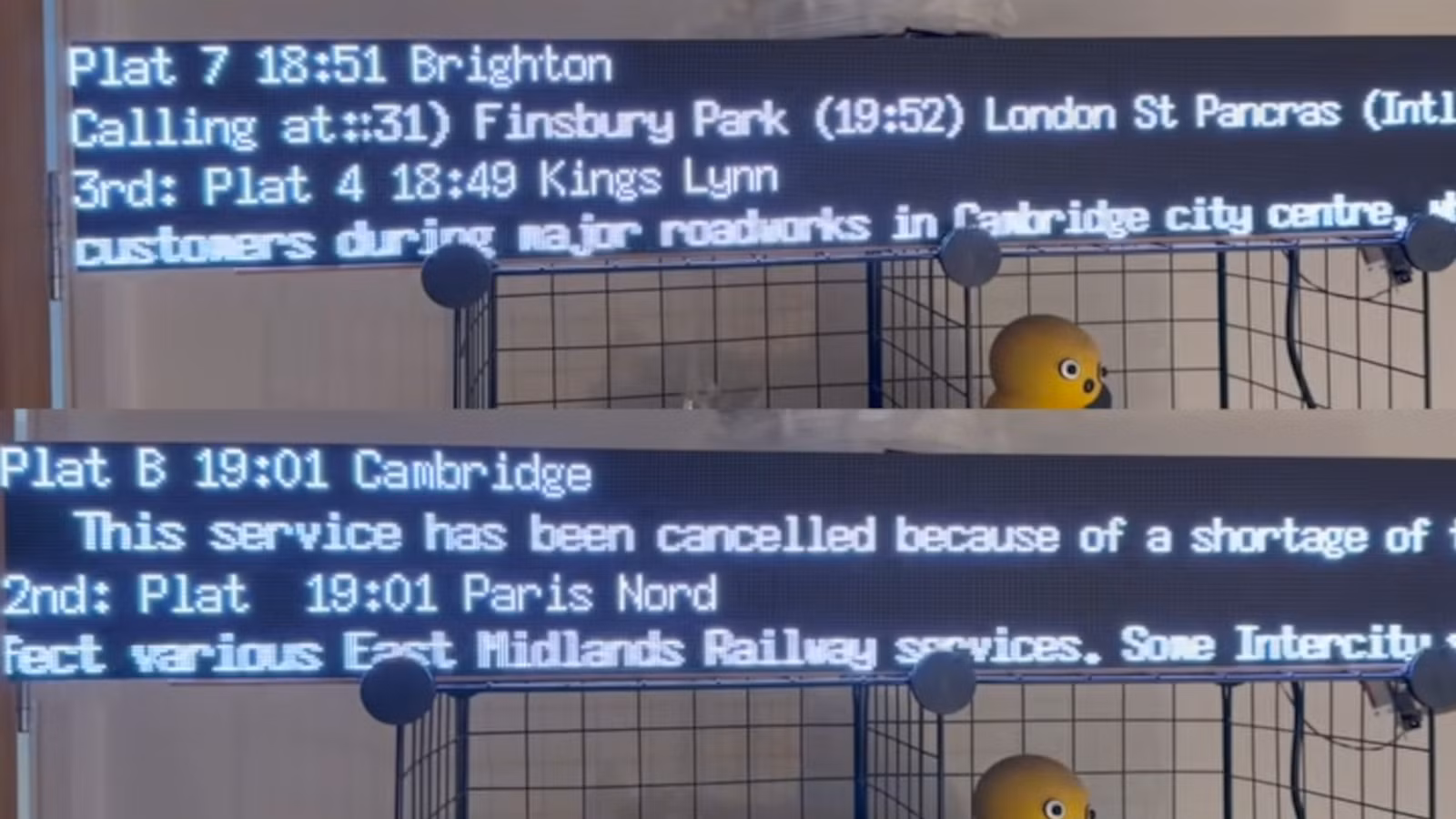

Project 1: Live Train Departures Board for Your Wall
This Raspberry Pi project turns your small board computer into a live train departures board you can hang in your home or office. Instead of buying an expensive commercial display or subscribing to a proprietary service, you can assemble a simple RGB matrix screen, connect it to your Pi, and pull live data from your local rail or transit API. The full build guide and code are published on the maker’s site and GitHub, so you can start without paying for extra software.
To get the job done, you need a Raspberry Pi 4 with at least 1GB of memory, a 5V power supply, a few 128x64 pixel colour modules with a HUB75E interface, and either an RGB Matrix Bonnet or an RGB Matrix board. Once everything is wired, you feed in departure data from your train network and let the Pi handle the display. The main gotcha is power and cabling: those LED panels can draw significant current, so keep your wiring tidy and follow the guide closely.
- Assemble your hardware: mount the 128x64 HUB75E RGB modules, attach them to the RGB Matrix Bonnet or Matrix board, connect this stack to a Raspberry Pi 4 with at least 1GB of RAM, and supply stable 5V power.
- Install the recommended operating system on the Pi, then download the maker’s departures board code and configuration files from GitHub or the linked build guide.
- Configure the software for your transit provider by entering your rail or transit API credentials so the Pi can pull live departure data from the appropriate marketplace or local API.
- Test the display indoors on a desk, confirming that live departures appear correctly on the matrix and that the Pi is not overheating or browning out due to power issues.
- Mount the board in its final location, secure cables and power, and leave the system running to act as your at-home live train departures board, updating automatically through the API connection.
Once it is up, you have a functional alternative to commercial signage screens that would otherwise lock you into their own subscriptions. The payoff is both aesthetic and practical: live information at a glance, powered by a computer you own.
Project 2: Optical Music Box With Colored Strips

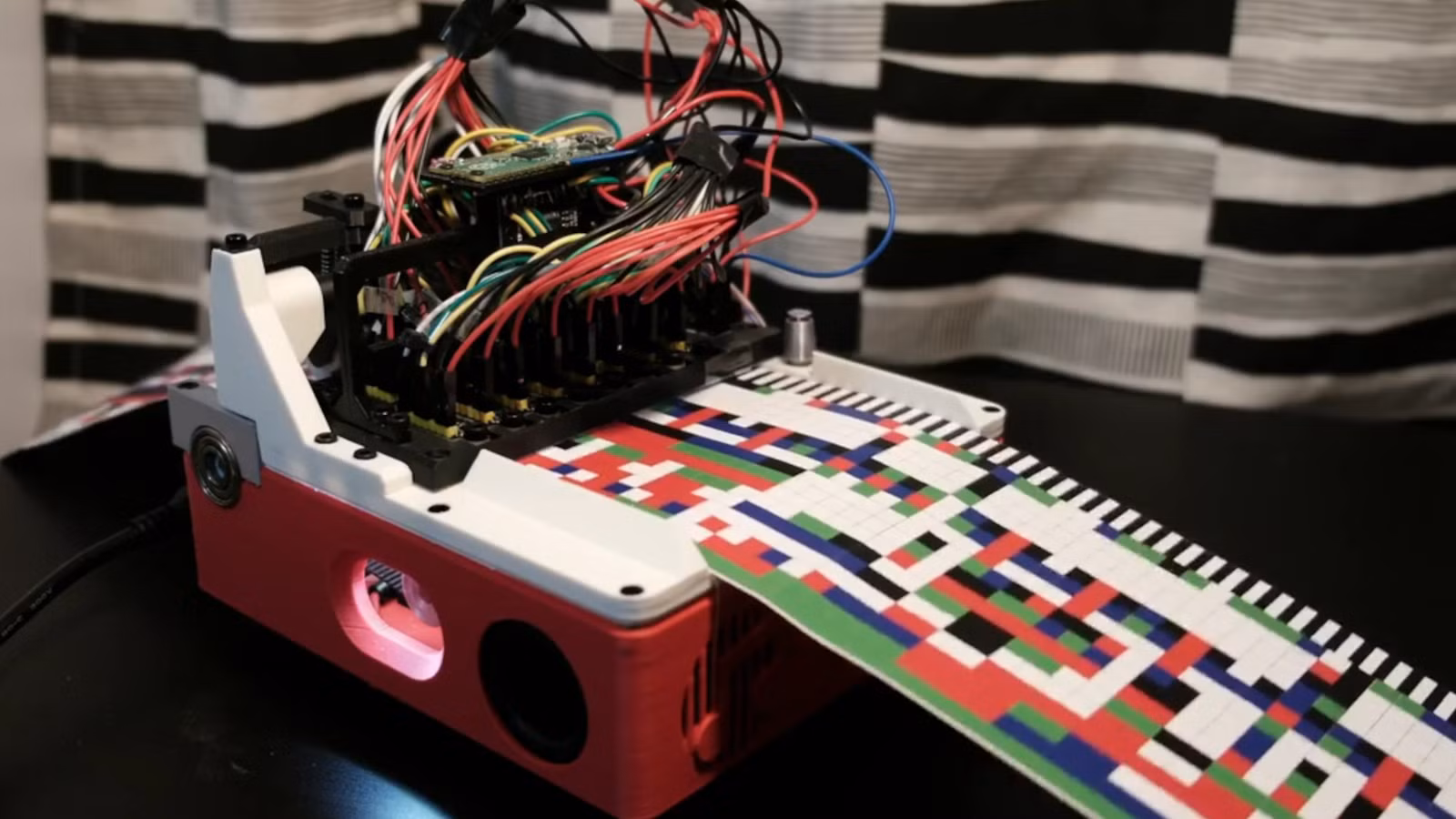

If you enjoy a mix of retro charm and modern electronics, the COMB Optical Music Box is an excellent DIY Raspberry Pi project that turns coloured paper strips into music. It revives the idea of punch card music machines using color instead of holes and uses a Raspberry Pi Pico as the brain. This is an especially good project if you want a tangible, physical interface instead of another app.
The build uses a Raspberry Pi Pico, TCS3472 colour sensors, and a SAM2695 synthesis chip in an M5Stack MIDI unit to read the coloured strip of card and turn that into sound. Music is encoded in base 5 with four instrument channels, one command channel for parameters such as speed, volume, and note duration, and a checksum digit. All the code, documentation, and the COMBiner compiler you need to make and play your own music cards are available on GitHub, so you can use free software to bring the hardware to life.
The biggest surprise here is how sensitive the optical reading can be: good lighting and consistent printing or colouring of strips matter. Take your time on the mechanical layout so the strip passes smoothly over the sensors. Once tuned, you get a unique, portable music device that feels like a cross between a toy and a serious instrument.
Projects 3–5: NAS, Personal VPN, and Streaming Box
Next up are three Raspberry Pi projects that cover storage, privacy, and entertainment—areas where commercial services often charge recurring fees. With a single board and some accessories, you can build a Raspberry Pi NAS, a personal VPN, and a streaming box using open-source tools. This way, your Pi becomes an alternative to several paid cloud and streaming services, and it can still stay more affordable when you use it for multiple purposes like gaming, streaming, and creating your own virtual private network.

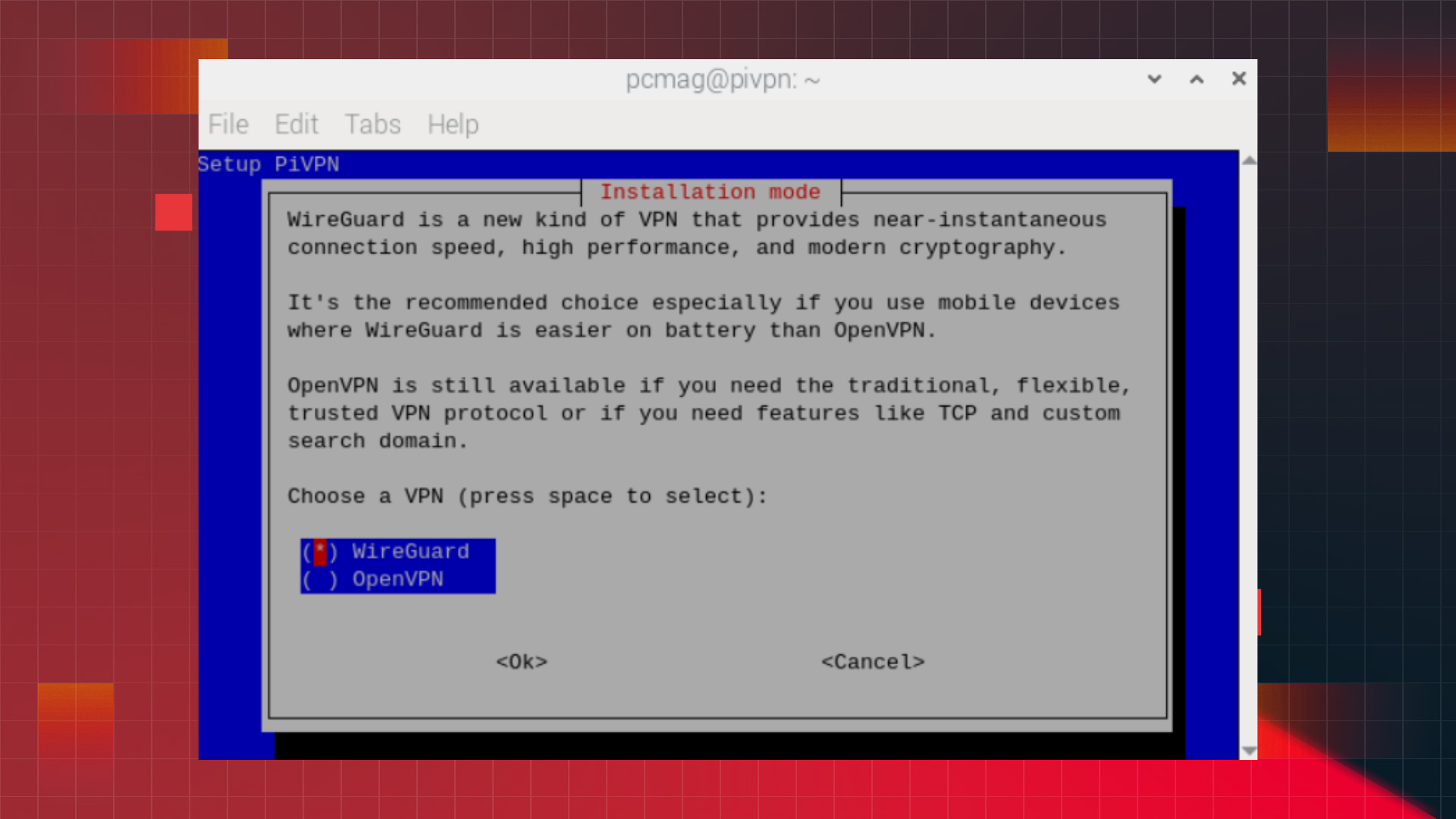

For storage, attach an SSD to your board to create a simple NAS that acts as a cheap alternative to cloud drives, although it will not include enterprise-level redundancies. For privacy, pairing a Pi with PiVPN lets you set up OpenVPN or WireGuard, both free VPN protocols, to create a personal virtual private network. For media, installing Plex Media Server or Kodi on a Pi turns it into a streaming box so you can keep your own library instead of paying for multiple streaming subscriptions. As one guide notes, “Don’t like having to pay for a million subscription services to watch your favorite movies? Say goodbye to Netflix and set up a Plex server instead.”
The main things to watch: your home internet upload speed, storage reliability, and power backup. A NAS and Plex box are only as good as the drives and power feeding them, and a VPN needs a stable network to be useful.
Project 6: Whole-Network Ad Blocker and Final Takeaways
The last project targets something everyone notices: unwanted ads. Pairing Pi-Hole, a DNS-based filtering tool, with your Raspberry Pi lets you create a physical ad blocker that filters traffic for every device on your Wi‑Fi network. Instead of installing extensions on each browser, your Pi acts as a single control point, cutting down tracking and noise in one place. This is a practical Raspberry Pi alternative to relying on proprietary ad-blocking services.
DIY technology can be time-consuming, but each of these DIY Raspberry Pi builds uses free or open-source software and avoids recurring subscriptions where possible. The full build guides and code for several projects, such as the train departures board and the optical music box, are available on GitHub, so you can build Raspberry Pi projects without paying for extra apps. The trade-off is that you become the support team: you will handle updates, backups, and occasional troubleshooting. If that sounds acceptable, the reward is a home full of gadgets you understand, control, and can modify however you like.
