What the CM5 Programming Jig Is—and Why It Matters
The Raspberry Pi Compute Module 5 Programming Jig is a single-head provisioning system that programs Compute Module 5 boards with an operating system and security configuration in a consistent, repeatable way, removing the need for a separate IO board and host computer in embedded systems production workflows.
The key takeaway is blunt: if you plan to ship more than a handful of CM5-based devices, the CM5 Programming Jig turns provisioning from a fiddly side quest into a predictable part of Raspberry Pi manufacturing. Instead of wiring each module to an IO board and a separate computer, the jig combines the provisioning host and module interface in one box, eliminating the need for a separate IO board. That matters once you stop asking “how do I bring up this prototype?” and start asking “how do I make the next thousand?”
This isn’t a toy for tinkerers who flash a board once a month. It is aimed squarely at developers designing products on Compute Module 5 and at industrial users facing stacks of boards destined for embedded systems. If you are wrestling with repeatable CM5 programming, this is the tool your workflow has been missing.
Clamp–Flash–Repeat: Turning Provisioning into a Production Motion

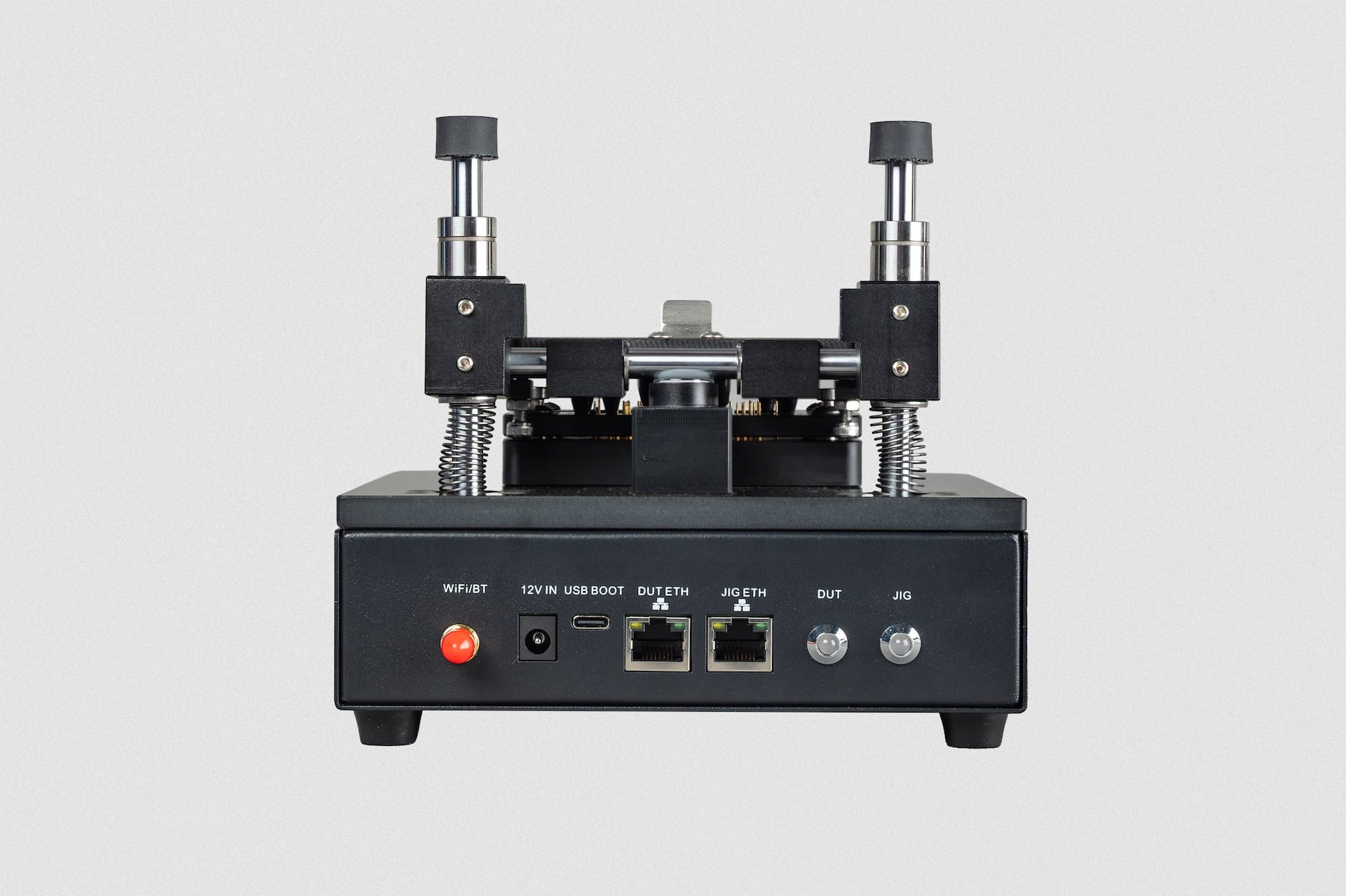

The big win of the CM5 Programming Jig is that provisioning becomes muscle memory: clamp, flash, repeat. The single-head device accepts one Compute Module 5 at a time and weighs just under 1.8 kg, making it a self-contained station you can drop straight into a line or a test bench. Once you have configured the jig’s own operating system and ports, the human workflow is as simple as it should have been from day one: insert the module into the bay, press the clamp shut, and let the system take over.
Provisioning begins automatically when the computer is clamped in place, with no extra button presses or keyboard inputs. A typical installation takes about 90 seconds, after which a green status LED signals that the module is programmed and ready to swap for the next one. That LED-driven loop is exactly what industrial users need when staring down a stack of CM5s bound for embedded systems. There is even support for connecting both the jig’s Ethernet port and the device-under-test Ethernet port to the same network for faster operation.
In practice, this turns Compute Module 5 programming into a background task for technicians rather than a bottleneck that demands your most experienced engineer’s attention.
Software Brains: rpi-image-gen, rpi-sb-provisioner and the Wider Ecosystem
Hardware is only half the story; the jig earns its place in embedded systems production because of the software stack it rides on. To automate production tasks such as secure boot implementation, full disk encryption, and bare operating system installation, the CM5 Programming Jig is built around the OS construction tool rpi-image-gen and the automated provisioning software rpi-sb-provisioner. This means your batch provisioning jig uses the same building blocks as the rest of the Raspberry Pi ecosystem instead of a fragile, one-off script.
The jig’s operating system ties into Raspberry Pi Imager, whose recent update promotes Compute Module writing to public availability, so you can customise the jig’s OS with Wi‑Fi, security, and user settings before it ever sees a CM5. You can then use Raspberry Pi Connect to access the jig’s desktop remotely, upload images, and manage configurations without hovering over the box itself. The upshot is that the same OS components and customisation scripts you rely on elsewhere now drive your production line—and you benefit from ongoing development in Raspberry Pi OS, Raspberry Pi Connect, and rpi-sb-provisioner.
For both commercial deployments and serious hobbyist runs, this tight integration is what upgrades the jig from a clever fixture to a long-term tool in your Raspberry Pi manufacturing toolbox.
Who the Jig Is For—and Where It Falls Short
The CM5 Programming Jig is not a universal upgrade; it is a focused answer to a specific pain point. If you are still experimenting with hardware, the cheaper IO board exposes the Compute Module 5’s interfaces for development and prototyping and remains the right tool for that stage. The jig, by contrast, comes into its own once your design is settled and you care more about consistency and throughput than access to every connector.
There are limits you should acknowledge before you reorganise your workflow. The device is single-head, so it accepts one CM5 at a time rather than programming multiple modules in parallel, and it weighs just under 1.8 kg, which makes it a bench tool more than a pocket gadget. It is also purpose-built for Compute Module 5; if you need a universal board programmer, this is not it. And while the green LED is helpful, the jig lacks the small ergonomic touches—like an audible “ping” when a job completes—that would make it friendlier in noisy production environments.
Still, for developers planning to move from tens of units to hundreds or thousands, these trade-offs are reasonable. You are trading flexibility for repeatable, low-friction Compute Module 5 programming, and that is a swap many teams should welcome.
Verdict: A Purpose-Built Bridge from Prototype to Scale
The CM5 Programming Jig exists to answer one nagging question in Raspberry Pi manufacturing: once you have a product working, how do you produce the next thousand without wasting engineering time? By folding the provisioning host and module interface into one box and automating operating system and security configuration, it removes most of the friction from Compute Module 5 programming at scale.
If your work lives in spreadsheets and slide decks, this device will look like an indulgence. If you are the person stuck in the lab late at night flashing yet another CM5 through an IO board and a spare computer, it is the rare tool that will give you your evenings back. Industrial users with piles of modules for embedded systems, as well as serious hobbyists building small runs, should see it as the missing link between scrappy prototypes and repeatable embedded systems production.
In other words, the CM5 Programming Jig is not magic—but for anyone living with the tedium of manual Compute Module 5 programming, it will feel close enough.
