What a DIY RP2040 Smartwatch Is and Why It Matters
A DIY smartwatch build with the Raspberry Pi RP2040 is a custom wearable project where you combine a compact RP2040-based board, a small display, battery power, and a 3D‑printed case to create a fully personal timepiece that teaches core microcontroller wearables skills through hands-on experimentation. Unlike off‑the‑shelf smartwatches, this approach lets you decide what the watch does and how it looks, from minimal time‑only designs to feature‑rich interfaces. The ChronoWatch X2040 shows how accessible this can be: it uses a Waveshare RP2040 Round Touch Display, a 3D‑printed case, and simple firmware to show time, switch watch faces, and manage settings without any phone app. Building something similar gives you practical experience in embedded systems, from power management and display control to user interface design on a small touchscreen.
Core Hardware: RP2040 Board, Display, and Power
At the heart of this DIY smartwatch build is the Raspberry Pi RP2040, a dual‑core microcontroller that offers reliable processing power in a compact package ideal for microcontroller wearables. A convenient option is the Waveshare RP2040 Round 1.28‑inch Touch Display, which combines the RP2040 chip, a 240×240 capacitive touch screen, and motion sensors in a single board with USB Type‑C and battery charging. According to the ChronoWatch X2040 project, this board is “ideal for DIY smartwatches, mini dashboards, and IoT devices.” For power, a 3.7 V Li‑Po cell around 950 mAh fits well in a small enclosure and provides hours of runtime. You will also need M2 heat inserts and 4 mm screws to secure the case, along with a simple on/off switch if your board does not include one, to keep the wearable practical and safe to maintain.
Designing and 3D Printing a Custom Watch Case
The enclosure turns bare electronics into a real wearable. For a DIY smartwatch build, using a simple CAD tool such as Tinkercad keeps the process approachable. The ChronoWatch X2040 case is split into three key parts: a middle body that holds the RP2040 round display, battery, and strap mounts; a top frame that locks the display in place and gives a clean front face; and a bottom cover that screws on to protect the internals while staying easy to open for upgrades or battery replacement. This structure highlights how custom wearable projects balance style and serviceability. Print the parts in a durable filament, then install M2 heat inserts into the plastic with a soldering iron so your screws have strong metal threads. Test fit the electronics before final assembly to confirm button access, charging port alignment, and wrist comfort.
Programming the Watch: Time, UI, and Controls
Once the hardware is assembled, the RP2040 needs firmware to behave like a real watch. The Waveshare board supports MicroPython, Arduino IDE, and C/C++, so you can pick the environment that fits your experience. Start by configuring the display and touch input libraries, then create a main loop that draws the current time, refreshes the screen, and listens for taps or swipes. The ChronoWatch X2040 implements multiple watch faces, settings for time and date, and toggles between 12‑hour and 24‑hour formats. It also includes brightness control, a stopwatch, screen rotation, and a sleep timer to extend battery life. Re‑using patterns from other embedded projects, such as heart‑rate monitors that drive small OLEDs through Adafruit_GFX, can help you structure display updates. Keep your code modular so you can add future features like step counters or simple notifications later.
Next Steps: From One Watch to a Wearable Toolkit

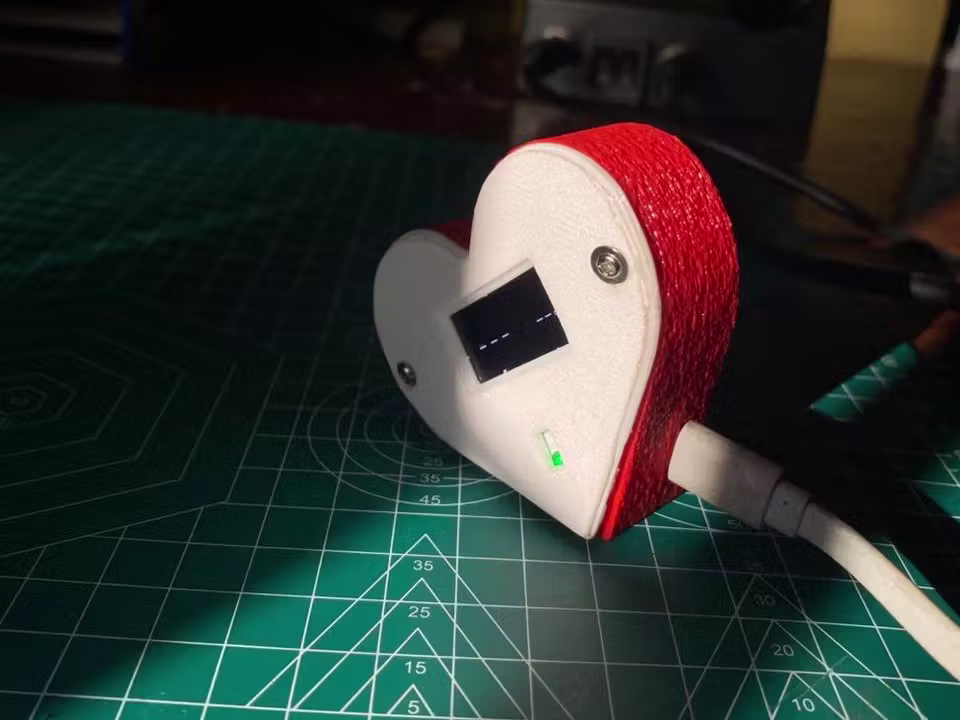

Building a Raspberry Pi RP2040 smartwatch is more than a single project; it is a gateway into a broader world of custom wearable projects. After you finish a basic time‑only watch like the ChronoWatch X2040, you can extend the same skills to health trackers, gesture‑controlled devices, or themed wearables in playful enclosures such as heart‑shaped cases. Each iteration reinforces embedded concepts: reading sensors, filtering signals, drawing to constrained displays, and managing battery‑powered systems. You also gain design confidence by adapting 3D‑printed parts to new boards or form factors. Over time, your personal library of code and CAD files becomes a toolkit for microcontroller wearables, letting you move from following tutorials to designing original devices that match your style, workflow, or learning goals while remaining free from the limits of commercial smartwatches.
