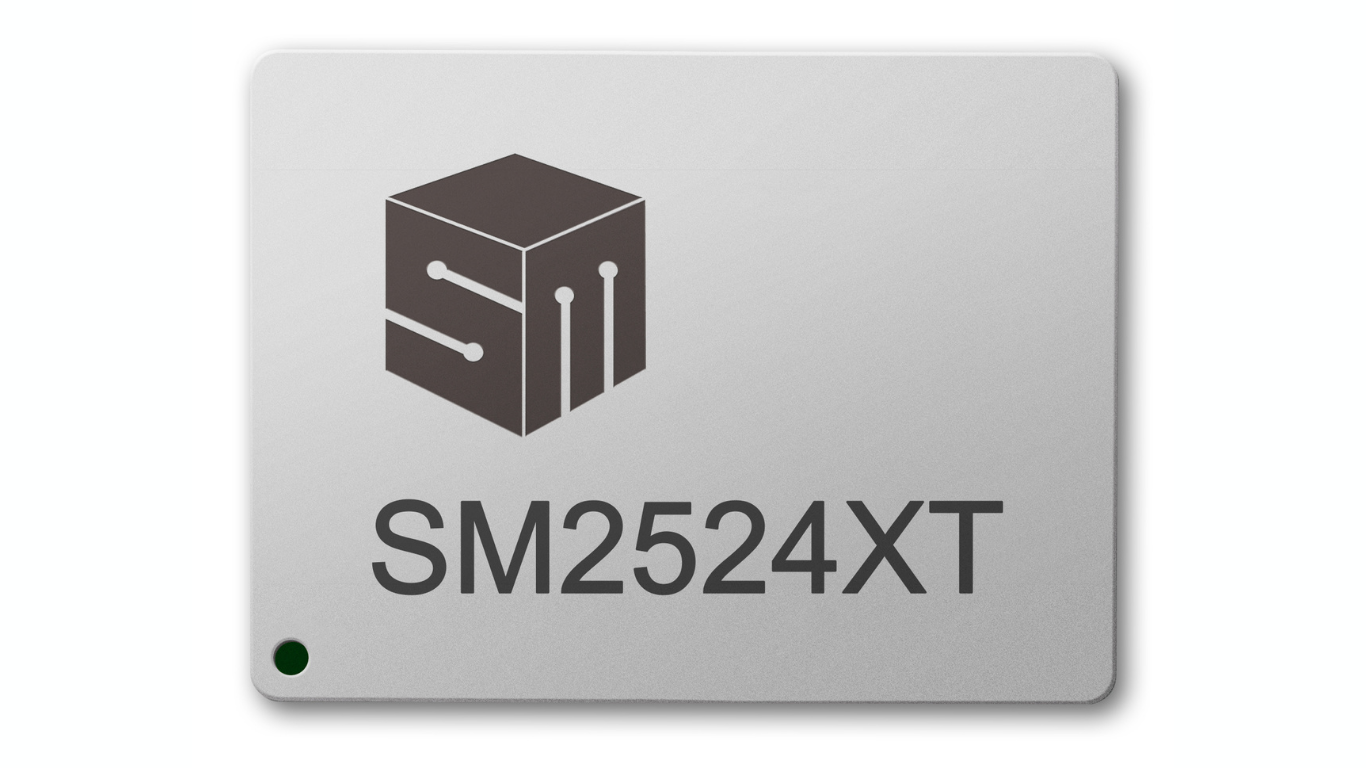

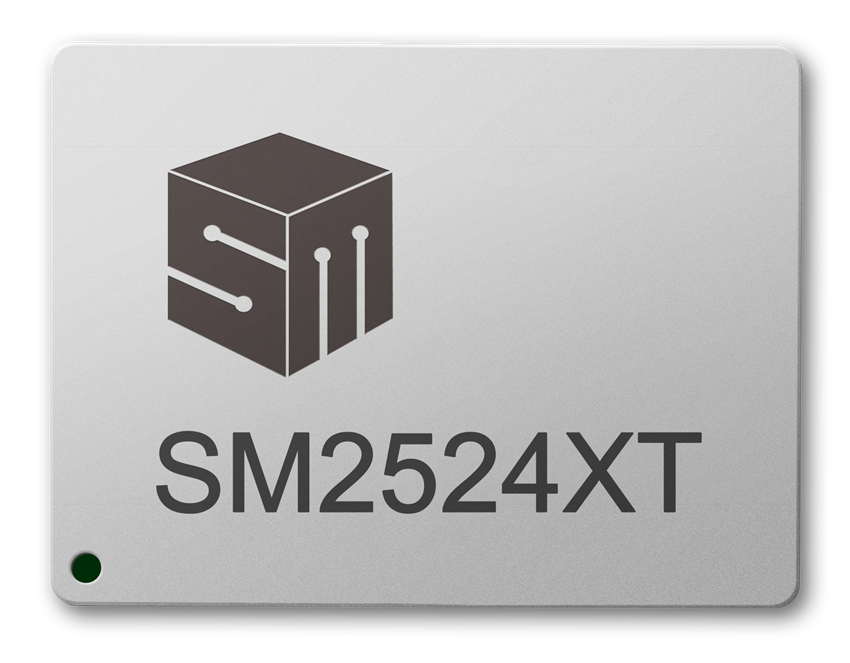

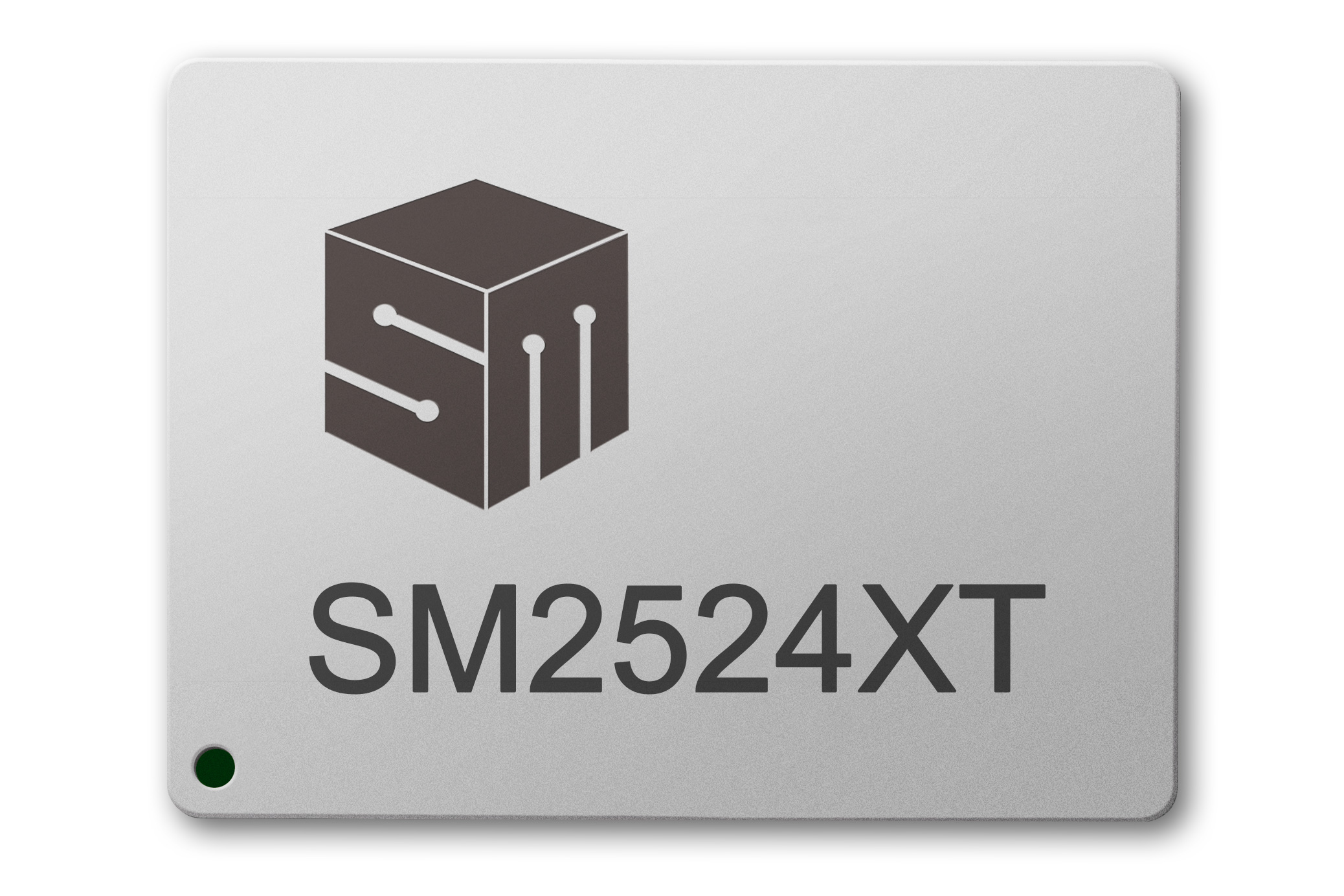

What the Silicon Motion SM2524XT Is and Why It Matters
The Silicon Motion SM2524XT is a quad-core Arm-based PCIe Gen5 DRAM-less SSD controller that combines high sequential bandwidth, very high random I/O performance, and low power draw to act as an efficient AI PC storage solution for local AI inference and KV cache workloads. Silicon Motion positions the SM2524XT as a mainstream PCIe Gen5 SSD controller for PCs and edge AI devices, designed around a DRAM-less architecture rather than the external DRAM used in many high-end SSDs. Built on TSMC’s 6nm process, it connects over PCIe Gen5 x4 and supports ONFI 5.2 NAND at up to 4,800 MT/s through four channels. By focusing on random IOPS, latency stability, and performance per watt, the SM2524XT targets AI PCs that need fast, predictable access to model context data without the extra cost and complexity of a DRAM-equipped controller.
Architecture: Quad-core Arm, PCIe Gen5, and DRAM-less Design
At the heart of the Silicon Motion SM2524XT PCIe Gen5 SSD controller is a quad-core Arm Cortex-R8 CPU paired with four NAND channels, each supporting up to 4,800 MT/s and 16 chip selects. This design lets the controller schedule flash translation layer tasks and error correction in parallel, pushing random performance up to 2.5 million IOPS. It supports NVMe 2.1 and ONFI 5.2 while remaining DRAM-less, relying on internal SRAM and controller algorithms instead of external DRAM buffers. Silicon Motion includes Separated Command Address (SCA), advanced FTL scheduling, and NANDXtend LDPC ECC to keep latency steady and protect data when workloads are sustained. The DRAM-less SSD technology reduces component count and board complexity, which can lower cost for consumer AI PCs while still offering next-generation PCIe Gen5 performance for both sequential and random access patterns.
Performance and Efficiency: 25% Gain for AI and Consumer Workloads
The SM2524XT targets both headline bandwidth and sustained efficiency. Silicon Motion reports sequential read speeds up to 14 GB/s and writes up to 12 GB/s, assuming PCIe Gen5 x4 connectivity and fast NAND. Random performance reaches up to 2.5 million IOPS, a level that once required large SATA SSD arrays and now fits in a single DRAM-less PCIe Gen5 SSD controller. According to Silicon Motion, the SM2524XT “delivers up to 25 percent higher performance per watt compared to the previous-generation controller,” while also improving random performance and cutting latency by up to 25 percent for demanding workloads. Internal tests show roughly 29 percent more sequential throughput at about the same active power, keeping total SSD power under 5W. This balance of speed and efficiency suits thin AI PCs and compact edge systems with tight thermal limits.

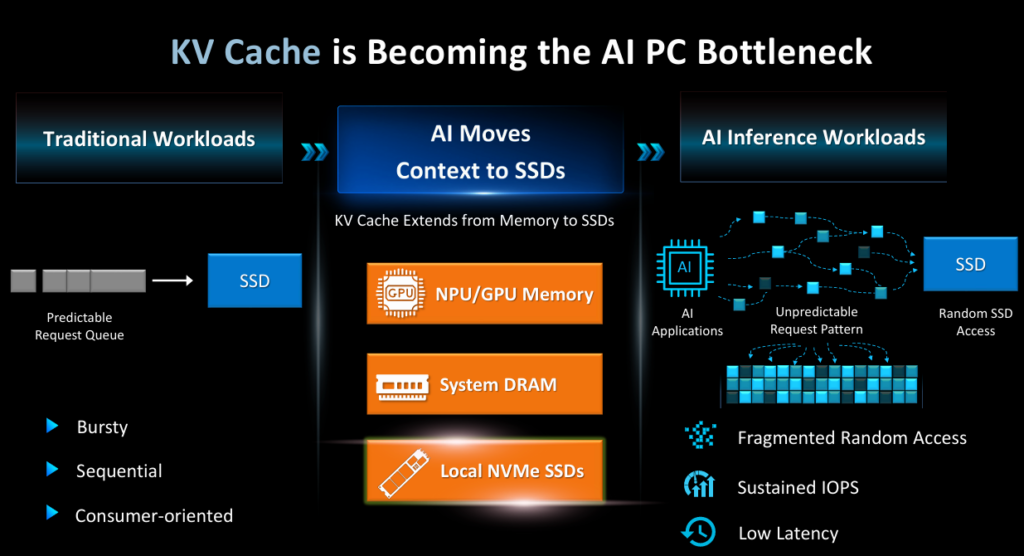

Tuning for KV Cache and Local AI Inference
AI PCs face very different storage patterns from traditional consumer workloads, especially when running local large language models or agent-style applications. KV cache data is fragmented, extremely latency-sensitive, and generates continuous random reads and writes instead of short sequential bursts. Silicon Motion highlights KV cache as a primary storage bottleneck for on-device AI inference. Nelson Duann, Senior VP of Client & Automotive Storage Business at Silicon Motion, notes that “KV Cache has become a critical factor in AI inference performance, driving the need for sustained high random read/write throughput and low-latency data access.” The SM2524XT is purpose-built to keep random IOPS high and latency stable under these conditions. Its four-core architecture, SCA command handling, and advanced FTL scheduling aim to maintain predictable response times, so AI prompts, context windows, and agent state data remain responsive even as models grow.
A Shift Toward DRAM-less PCIe Gen5 for Edge AI PCs
The SM2524XT reflects a wider shift toward DRAM-less SSD technology as AI capabilities move onto consumer and edge hardware. With DRAM and NAND prices under pressure, many vendors are turning to DRAM-less PCIe Gen5 SSD controllers to keep AI PC storage solutions affordable while still raising performance. Silicon Motion’s sub-5W power target and 25% performance-per-watt uplift point to a future where local AI inference runs on quieter, thinner systems without large cooling budgets. By showing that a DRAM-less PCIe Gen5 SSD controller can hit 14 GB/s reads and 2.5 million IOPS, the SM2524XT challenges the idea that external DRAM is required for high-end client drives. As on-device LLMs and local agents depend more on fast KV cache, controllers like the SM2524XT are set to become a foundation for edge AI computing on everyday PCs.
