What the SM2524XT Brings to PCIe Gen5 and AI PCs

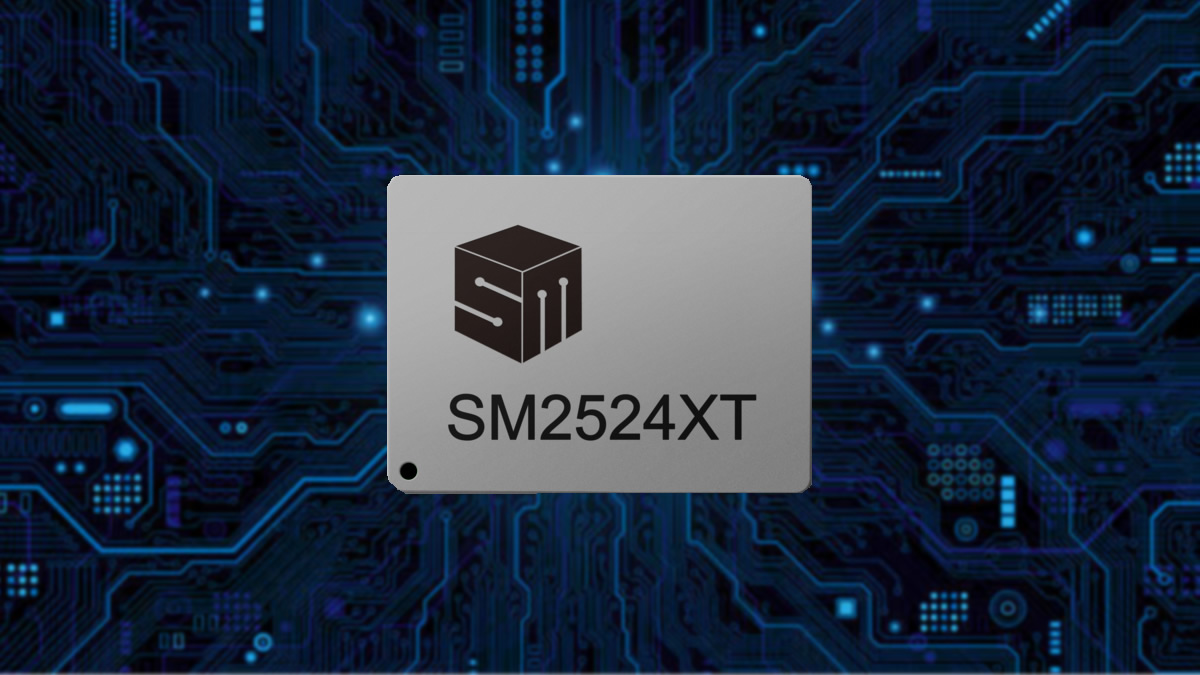

Silicon Motion’s SM2524XT controller is a quad-core ARM-based PCIe Gen5 controller for DRAM-less SSDs that aims to deliver higher performance, lower power draw, and better random I/O for AI-focused PCs and edge devices, while removing the cost and complexity of onboard DRAM from next-generation storage designs. Built on TSMC’s 6nm process with four Cortex-R8 cores, the SM2524XT is designed for PCIe 5.0 x4 drives that adhere to the ONFI 5.2 standard. Silicon Motion says the controller can reach up to 14 GB/s sequential read and 12 GB/s write throughput, provided it is paired with fast NAND. The design targets AI PC storage use cases such as local large language model inference, KV cache-heavy workloads, and local agents that need high IOPS and low latency without exceeding tight notebook or small-form-factor thermal limits.
Architecture: Quad-Core Design, 4 NAND Channels, No DRAM
At the heart of the SM2524XT is a 4-processor-core architecture coupled with four NAND channels, each supporting up to 16 chip selects and speeds up to 4,800 MT/s. Instead of relying on external DRAM, the controller is tuned to keep its flash translation layer and error correction efficient enough to sustain high performance as a DRAM-less SSD. Silicon Motion cites peak random performance of 2.5 million IOPS, a level that once required large SATA arrays and is now reachable on a single client drive. The SM2524XT also supports Separated Command Address (SCA), which splits command and address signals between controller and NAND to cut latency and improve throughput. For endurance and data protection, the controller includes Silicon Motion’s 8th-generation NANDXtend LDPC ECC plus on-disk training, aimed at preserving data integrity on high-density, AI-oriented QLC-based drives.
Performance and Efficiency Gains Over Previous Gen
Silicon Motion positions the SM2524XT as a performance-per-watt upgrade over its SM2504XT predecessor. According to Silicon Motion, “the SM2524XT delivers up to 25 percent higher performance per watt compared to the previous generation controller,” with up to 25% more random I/O performance. Internal tests show the controller achieving 14,800 MB/s sequential read at 4.689 W active power, compared to 11,511 MB/s at 4.67 W for the older chip, while still targeting sub-5 W total drive power. That extra headroom matters for notebooks and compact AI PCs where SSD thermals often limit sustained speed. Lower latency and higher IOPS improve responsiveness not only in traditional consumer workloads, but also when serving fragmented KV cache access patterns and AI inference traffic that constantly query and update small chunks of data across the drive.
Why DRAM-less PCIe Gen5 Matters for AI PC Storage
By eliminating the DRAM requirement, the SM2524XT enables DRAM-less SSD designs that reduce bill-of-material cost, power consumption, and PCB complexity while still delivering high PCIe Gen5 performance. This is increasingly important as DRAM and NAND prices push manufacturers to consider DRAM-less SSDs for mainstream systems. For AI PCs, the controller’s 2.5M IOPS and low-latency operation aim to make local LLM inference, KV cache storage, and agent frameworks feel responsive without resorting to server-grade hardware. The DRAM-less approach does come with sensitivity to NAND quality and firmware tuning, so final product behavior will depend on SSD vendors’ design choices. Still, the SM2524XT shows how a modern PCIe Gen5 controller can narrow the gap between cost-focused DRAM-less SSDs and traditional DRAM-backed designs in AI-heavy client workloads.
Outlook: A Controller Built for the Emerging AI PC Segment
The SM2524XT underlines Silicon Motion’s belief that AI PCs need storage silicon tuned for AI inference patterns rather than generic benchmark numbers. Features like advanced FTL scheduling, proactive fault monitoring, automatic recovery, and SCA support are all geared toward sustaining random performance under constant small-block accesses. For OEMs, the controller offers a way to build PCIe Gen5 DRAM-less SSDs that can stay under 5 W while still feeding local models and caches at multi-gigabyte-per-second speeds. Consumers are unlikely to see the SM2524XT name on retail boxes, since Silicon Motion sells controllers, not complete drives. However, as SSD makers adopt this PCIe Gen5 controller, AI PC storage options that balance speed, thermals, and cost should become more common, especially in thin laptops and compact desktops designed around on-device AI features.
