Why Your NAS Needs a UPS in the First Place
Adding an uninterruptible power supply (UPS) to a Network Attached Storage (NAS) system means connecting a small backup battery that keeps the NAS running long enough to protect files, prevent data corruption, and shut down cleanly when the main power fails.
If you run a NAS for media streaming, file storage, or smart‑home services, you rely on spinning disks or SSDs that do a lot of read‑write work. One sudden power loss can wipe out everything before you even know what happened. Sudden drops can corrupt file systems or, in the worst case, damage drives when they lose power mid‑write.

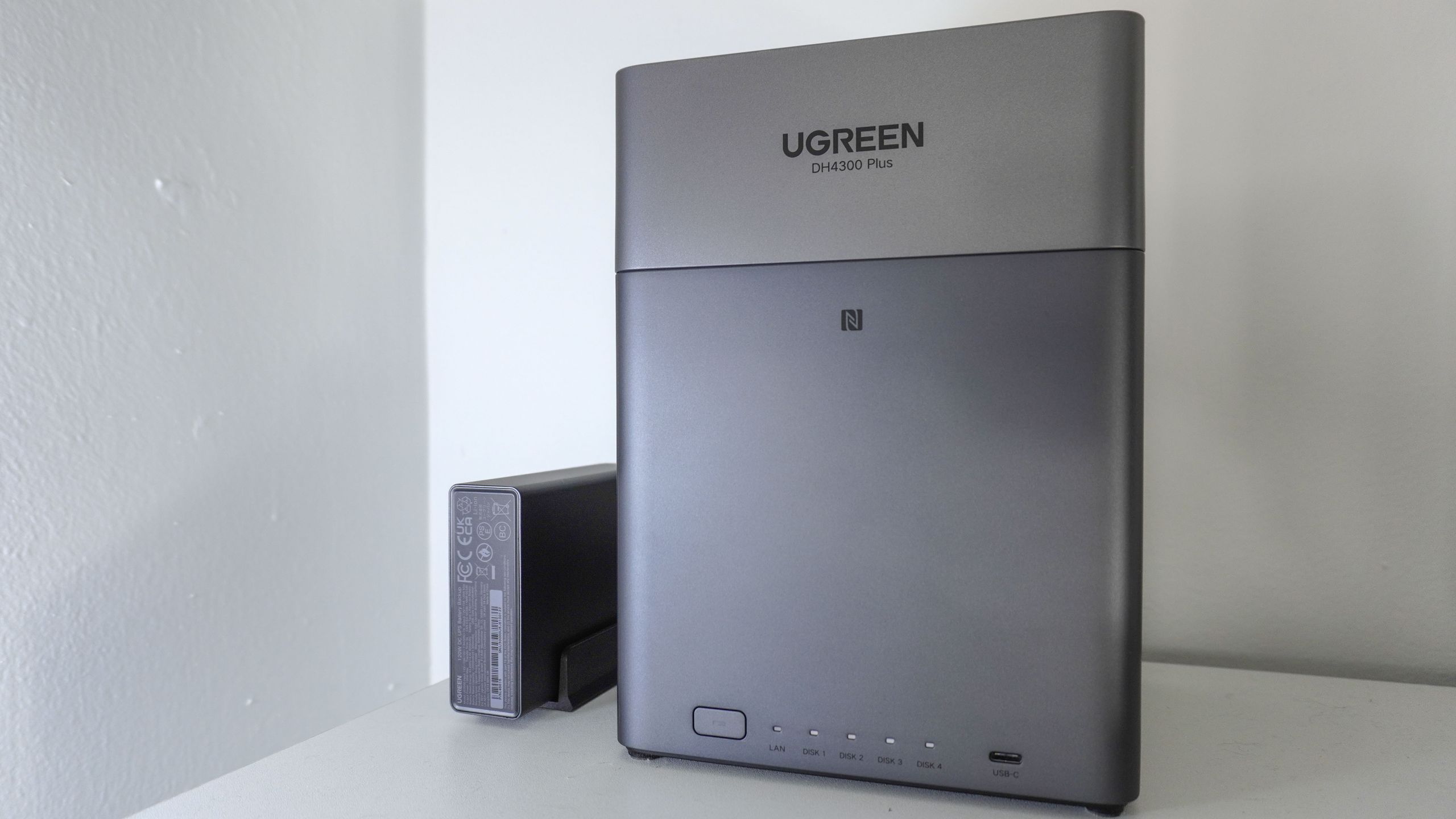

A NAS UPS backup gives you power outage protection and data loss prevention without needing a huge battery cabinet. Compact mini UPS units, roughly the size of a power bank, can cover a single NAS and act as a bridge through short outages or voltage dips. The catch: you must connect and configure them correctly, or your NAS may still crash when the battery runs dry.
What You Need Before You Start
Before you plug anything in, make sure you have the right pieces. You need your NAS with its existing power adapter, a compatible UPS (a compact mini UPS is enough for many 4‑bay systems), and the cables that came in the box. Typical mini UPS units include the device itself, a vertical stand, and a USB‑C to USB‑A cable.
UPS units provide critical protection against sudden power loss and data corruption on NAS systems, especially when you use them with the proper data link cable and software integration. Purpose‑built mini UPS devices can feature zero‑second transfer time and tight integration with NAS operating systems to manage safe standby modes and prevent file system corruption during a power loss.
On the NAS side, you also need administrative access to its web interface so you can configure power settings. If your NAS software supports UPS options such as Standby or Auto Shutdown modes, you will use those in a later step to control how the system behaves when the UPS reports that power has failed.
Step-by-Step: Integrating a UPS with Your NAS
Think of this process as teaching your NAS and UPS to work as a team: the UPS keeps power flowing for a few minutes, and the NAS uses that window to save its place and shut down safely. The biggest gotcha is skipping the data link cable, which turns the UPS into a dumb battery and leaves the NAS unaware that power is out. Follow these steps in order so both devices talk to each other and handle outages gracefully.
- Shut down your NAS cleanly from its web interface, wait for it to power off, and unplug it from the wall. This prevents accidental disk writes while you rewire the power path.
- Plug your NAS power adapter into the input power port on the UPS, then connect the UPS’s hardwired power‑out cable to the NAS’s power jack so the UPS now sits in between the wall and the NAS power input.
- Use the supplied USB‑C to USB‑A cable to connect the UPS’s USB‑C port to a USB port on the NAS; this creates a data link so the NAS can detect power failures and battery status in real time.
- Power on the UPS if needed, then power on the NAS and log into the NAS operating system; open the power or UPS settings page so you can pair the NAS with the connected UPS.
- In the UPS settings, hit the Connect button or equivalent to detect the UPS, then choose your preferred behavior: Standby mode or Auto Shutdown, depending on how you want the NAS to react when external power fails.
Hitting the Connect button gives you access to a quick suite of tailored options, such as Standby mode and Auto Shutdown. Standby mode unmounts your storage volumes and halts read‑write activity to protect your drive pool from corruption while keeping the CPU powered at minimal draw, allowing the NAS to resume instantly once your power returns. Auto Shutdown, on the other hand, fully powers off the hardware, which is ideal for prolonged blackouts but requires a full boot later on.
Common Mistakes and How to Avoid Them
The most common mistake when adding a NAS UPS backup is treating the UPS like a simple power strip. One user was so eager to get a mini UPS set up that they initially forgot the most important part: the USB data cable. In that configuration, the UPS will serve as a basic battery backup, but you miss its best features, including automated standby and safe shutdown.
Without that data link, your NAS has no idea the power is out — it will simply drain the battery to zero and crash anyway during a long outage. That kind of crash can leave your storage volumes in an inconsistent state and undo the whole point of power outage protection. Another mistake is ignoring the UPS behavior settings and leaving everything at defaults, which might not match how you use your NAS.
To avoid these problems, always confirm that the UPS appears in your NAS’s UPS settings after you plug in the USB cable, and test your chosen mode with a controlled power cut. Purpose‑built integrations can automatically manage safe standby modes and prevent file system corruption during a power loss when configured correctly.
What You Get Once Everything Is Set Up
Once your uninterruptible power supply and NAS are properly linked and configured, you gain peace of mind every time the lights flicker. Standby mode lets the NAS unmount its storage volumes and halt read‑write activity while keeping the CPU on at minimal draw, so it can snap back to life as soon as power returns. Auto Shutdown gives you a safer outcome during longer blackouts by fully powering down the hardware.
UPS units provide critical protection against sudden power loss and data corruption on NAS systems by acting as a bridge through power dips and blackouts. For some users, the result is that they can rest easy knowing their files are safe when the lights flicker and they no longer have to manually reboot their NAS when power comes back so the family can continue watching a movie.
You never know when a power outage, blackout, or power dip can strike. That is why investing in a compact mini UPS or a larger model is an important part of data loss prevention for home and small‑office setups. Once you have one in place and tested, the small effort to connect a single cable and tweak a few settings pays off every time your grid misbehaves.
