Build a Bulletproof Home Internet Backup with Multi-WAN Failover

What Multi-WAN Failover Is and Why You’d Want It

Multi-WAN failover setup is a home internet redundancy technique where your router connects to two or more different internet links at the same time and automatically switches live traffic to a backup internet connection whenever the primary link fails, so existing calls, video streams, and remote sessions stay up with minimal interruption and without you manually changing Wi‑Fi networks.

If you work from home, run a homelab, or self-host services, a single ISP becomes a single point of failure. The more you rely on cloud apps, streaming, or remote access to your own Jellyfin, Nextcloud, or password manager, the more an outage stops your day and everyone in your household. Adding a second ISP or even a third connection turns that fragile setup into something closer to carrier-grade reliability at consumer prices. SD-WAN for home networks takes this further: the router watches all WAN links and moves traffic over in seconds when one dies, which users have found avoids dropped calls, buffering video, and timed-out web pages even after a dozen connection drops.

What You Need: Hardware and Connection Options

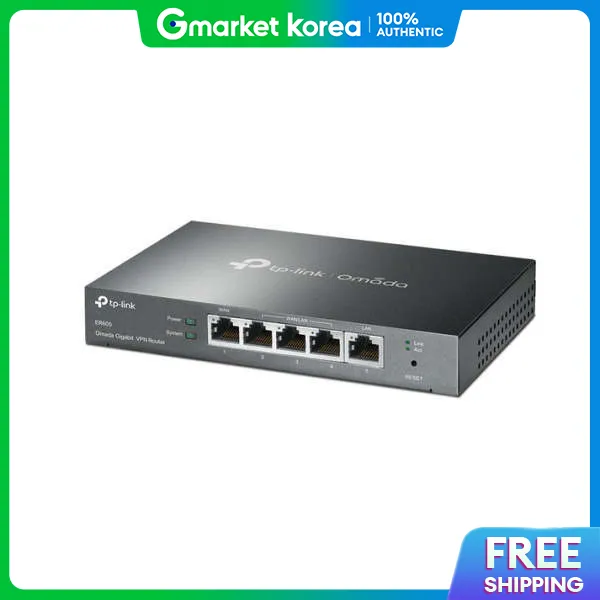

Before you touch any settings, sort out your ingredients. At minimum you need one multi-WAN router that supports WAN failover. Real-world examples include a gateway with dual or triple WAN ports like the ER605, which can take multiple ISP feeds at once, or an SD-WAN appliance such as the UDM-SE that already supports multi-WAN and policy-based routing without extra licenses.

Next, list your actual links. A typical recipe looks like: primary wired internet (fiber, cable, or even DSL), a 5G home internet backup for high-speed wireless access, and a third safety net from phone tethering. One case used an almost-unused 5G plan on an old Galaxy phone, discovered that Android Ethernet tethering appears as a normal DHCP WAN on the router’s third port, and turned that idle phone into a genuine backup line. You’ll likely also need a USB‑C‑to‑Ethernet adapter and a decent Ethernet cable to bridge the phone to the router’s WAN port.

Step-by-Step: Wiring and Configuring Multi-WAN Failover

This is where you turn a pile of boxes and cables into a working multi-WAN failover setup. The goal is one LAN and Wi‑Fi network behind a smarter router, not two or three separate SSIDs you have to switch between during an outage. Follow these steps in order; skipping around usually leads to odd routing issues or backups that never trigger when you need them.

1. Connect each ISP gateway to a separate WAN port on your multi-WAN or SD-WAN router, then power everything on and wait until all modem lights are stable.
2. If you’re using phone tethering, plug a USB‑C‑to‑Ethernet adapter into the phone, run an Ethernet cable from the adapter to the router’s third WAN port, and enable Ethernet tethering on the phone so it hands out a normal IP via DHCP.
3. In the router’s WAN settings, mark your wired primary (for example fiber or 5G home internet) as the main connection and a second line such as Starlink as backup, choosing failover rather than load‑balancing so traffic moves to the backup only when the primary drops.
4. Add the tethered phone WAN as a secondary or tertiary backup; on one ER605 configuration, WAN1 and WAN/LAN2 were set as primary and WAN/LAN3 (phone) as backup, with failover only triggering when both primaries failed.
5. Enable health checks or link monitoring so the router can detect outages, then apply the configuration and observe WAN status pages until each link shows an IP, gateway, and DNS when connected.
6. Stage a controlled failure test by disconnecting primary ISP cables one by one and watching your SD-WAN router fail over live; users have pulled both ISP cables and seen the phone WAN become the only link up, with a valid IP and gateway.
7. Confirm real-world performance over the backup by running a speed test and opening fresh browser sessions; one configuration delivered about 105 Mbps down, 8.9 Mbps up, and 27 ms ping on the tethered backup, good enough for browsing, streaming, SSH, and remote access.

The temptation is to create two separate networks with different SSIDs and move your laptop manually when one dies, but that gives you overlapping Wi‑Fi channels, tangled firewall rules, and broken calls whenever the switch happens mid-meeting. Letting an SD-WAN router do multi-WAN failover instead means it reroutes traffic quickly enough that connection drops never become visible: one home setup experienced at least a dozen outages over two months, yet reported no dropped calls, no buffering video, and no timed-out pages thanks to rapid failover.

Common Gotchas: Shared Carriers and ISP Gateways

The biggest hidden flaw in many home internet redundancy plans is putting all your backups in one basket. If your primary wired line, your secondary ISP, and your 5G phone plan all ride on the same underlying carrier, then a major carrier outage takes down every path at once. That’s why pairing something like 5G with Starlink, or mixing wired DSL/fiber with cellular and satellite, is far safer than stacking three products from one provider.

Another snag is the ISP gateway itself. Some satellite and wireless providers offer a bypass mode that lets your SD-WAN router see the raw link. Others ship combo modem/routers that don’t expose a full bridge mode, and you may only be able to disable the onboard Wi‑Fi through an internal utility. That’s workable, but it means double NAT and a little more complexity. It’s worth the trouble, though: one homelab owner noted that the test wasn’t about tethering, but about discovering that hardware already on hand could solve an infrastructure problem they would normally throw extra money at.

What “Bulletproof” Looks Like Day to Day

When you get this right, the result feels almost unfair compared with a single line. You keep one Wi‑Fi name, one LAN, and your SD-WAN router quietly watches multiple links, steering traffic over whichever one is healthy. Multi-WAN failover ensures continuous connectivity when the primary internet fails: one user reported that after at least a dozen dropped connections, the gateway failed over fast enough that it never became an issue, with no lost calls, no buffering, and no stuck pages. Another homelab setup saw the secondary backup line step in seamlessly whenever the primary had an outage.

You don’t need enterprise licenses to get there. Home users can achieve carrier-grade redundancy at consumer price points thanks to SD-WAN implementations that expose multi-WAN and policy-based routing without extra fees. If you already pay for more than one data plan or have an old phone sitting idle, you might be closer than you think; one owner turned that spare Galaxy into their third WAN port and proved it as a solid backup line. The payoff is simple: fewer interruptions, more confidence in your setup, and a home network that keeps working even when your favorite ISP has a bad day.
