What Noctua’s New 70mm Low-Profile CPU Cooler Is
Noctua’s next-generation low-profile CPU cooler is a 70mm-tall, AM5-focused heatsink and fan combo designed to deliver high thermal performance in ultra-compact mini PCs where conventional tower coolers do not fit. Seen at Computex, this unnamed prototype is described as a completely reconceived successor to the Noctua NH-L12, targeting console-sized systems that struggle with heat when using powerful processors. By combining a dense heatsink, a new base design, and a flagship 120mm fan in a slim package, it aims to solve one of the toughest problems in compact PC cooling: how to keep modern desktop CPUs under control without exceeding the strict height limits of mini-ITX and small-form-factor cases. For builders who want gaming or creator-grade performance in a chassis barely larger than a console, this cooler is designed as a critical missing piece.
Reconceived Design: From NH-L12 Lineage to AM5 Specialist

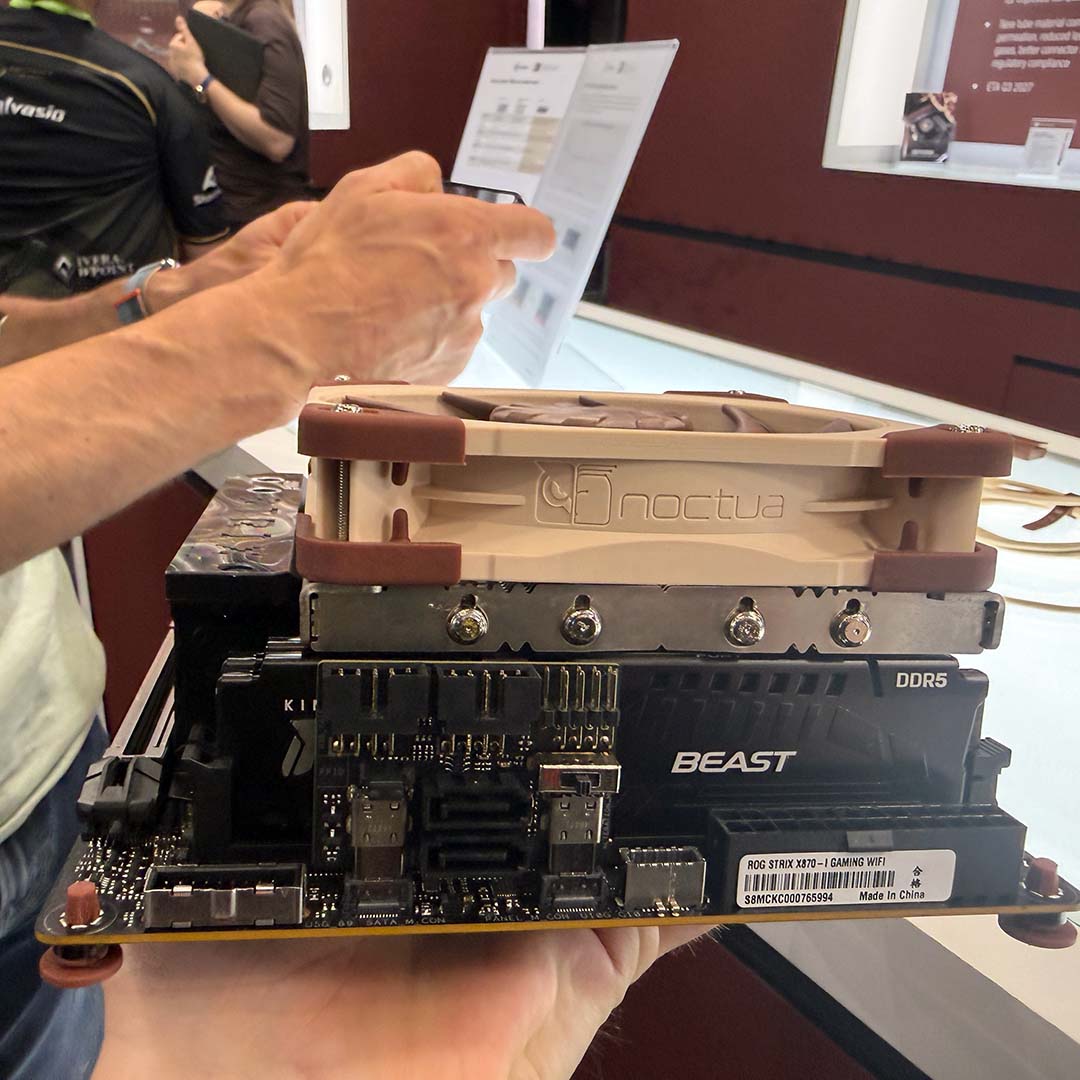

Noctua is clear that this is more than a minor update, calling the prototype a “completely reconceived NH-L12 series heatsink.” The unit stands 70mm tall including fan, yet still manages 35mm of RAM clearance, which keeps it compatible with most modern DIMMs while staying firmly in low-profile CPU cooler territory. Six heatpipes feed a compact fin stack, and an LBC (Low Base Convexity) base is tuned for optimal contact with AM4 and AM5 hotspots, removing the need for offset mounting tricks. According to Club386, the cooler is purpose-built for AM5 CPUs and was shown on an ROG Strix X870-I Gaming WiFi motherboard with Kingston Fury Beast DDR5, underscoring its focus on high-end, space-constrained builds. This tight mechanical design gives system integrators more predictable component clearances inside cramped mini-ITX layouts.
Flagship Fan and Thermal Accessories for Serious Mini PC Cooling
Thermal performance in compact PC cooling depends as much on airflow as it does on metal, and Noctua equips this low-profile cooler with its full-fat NF-A12x25 G2 fan, the company’s current 120mm flagship. That is notable: many low-height designs fall back to smaller fans that need higher speeds and produce more noise. Noctua has not released benchmark numbers yet, but pairing a six-heatpipe stack with a premium 120mm fan suggests a strong focus on sustained performance rather than short boost bursts. To round out mini PC thermal management, the cooler will ship with NT-H2 thermal compound and the NA-TPG1 thermal paste guard, helping builders apply paste cleanly on Ryzen CPUs without filling the socket’s edges. Together, these touches aim to deliver desktop-grade cooling behavior in enclosures where every millimeter of space and every degree of temperature margin count.
Why High-Performance Mini PCs Need Specialized Low-Profile Coolers
As mini PCs and console-sized desktops move toward high-end graphics and multi-core CPUs, their biggest limitation becomes heat, not raw component performance. Systems such as ASUS’s ROG NUC 16 Edition 20, which combine powerful GPUs with dense layouts, need cooling solutions that can move serious heat within a 70–80mm vertical envelope. Traditional tower coolers and many all-in-one liquid coolers are overkill in size or conflict with case and motherboard constraints, while older low-profile CPU cooler designs often throttle under modern power limits. A purpose-built 70mm solution with tuned base geometry, generous RAM clearance, and a 120mm fan directly targets this gap. It lets integrators keep aggressive performance profiles and quieter acoustics without resorting to larger chassis. For users, that means mini PCs that behave more like full-sized desktops during long gaming or rendering sessions.
A Shift Toward Dedicated Cooling for the Mini PC Market
Noctua’s prototype highlights a broader shift in cooling design: instead of shrinking tower coolers, vendors are crafting parts specifically for compact enclosures. This reconceived NH-L12 successor is tailored for AM5, sized for console-like cases, and scheduled for retail release in Q2 2027, signalling confidence in sustained mini PC market growth. By bundling high-end components such as the NF-A12x25 G2 fan, NT-H2 thermal paste, and NA-TPG1 paste guard, Noctua is packaging a complete thermal management solution rather than a bare heatsink. For builders and OEMs, that reduces guesswork and tuning time when creating performance-focused mini-ITX or NUC-style systems. If this approach catches on, we can expect more platform-specific, low-profile coolers that treat small-form-factor builds as primary targets, not afterthoughts, enabling a new wave of compact systems that do not compromise on CPU power.
