Compact performance builds need smarter cooling and cases
The future of compact PC building is defined by low-profile cooling and purpose-built compact cases that together improve thermals, noise, and component compatibility in space‑constrained systems while still allowing high-end CPUs and GPUs to run at sustained performance levels without thermal throttling or awkward layout compromises. Enthusiasts who build small form factor builds and dense microATX systems now expect the same performance as full towers, which exposes the limits of older coolers and generic cases. Modern CPUs concentrate heat in smaller hotspots, while long, tall graphics cards block airflow in cramped interiors. That combination pushes case and cooler makers to rethink layouts, airflow paths, and heatsink geometry from the ground up. Noctua’s new 70mm cooler design and Arctic’s Xtender Mini compact PC case are two clear examples of how focused engineering is closing the gap between small footprint and big performance.
Noctua’s 70mm NH‑L12 successor targets serious small form factor builds
Noctua’s prototype low-profile CPU cooler is a near drop‑in answer for builders who want powerful small form factor builds without moving to liquid cooling. The unit stands 70mm tall including its fan and is purpose-built for AM5 processors, with an LBC (Low Base Convexity) base designed to match AM4 and AM5 hotspots. According to Club386, this “completely reconceived NH-L12 series heatsink” uses six heatpipes and offers 35mm of RAM clearance, so it plays well with most DDR5 DIMMs on mini‑ITX boards. Noctua pairs the heatsink with its flagship 120mm NF‑A12x25 G2 fan, aiming to keep thermals under control even in dense layouts. The retail version, planned for Q2 2027, is set to ship with NT‑H2 thermal paste and the NA‑TPG1 guard, making it a compelling low-profile CPU cooler option for builders who want reliable, repeatable installations in tight spaces.
Arctic’s Xtender Mini brings big‑case thinking to microATX cooling

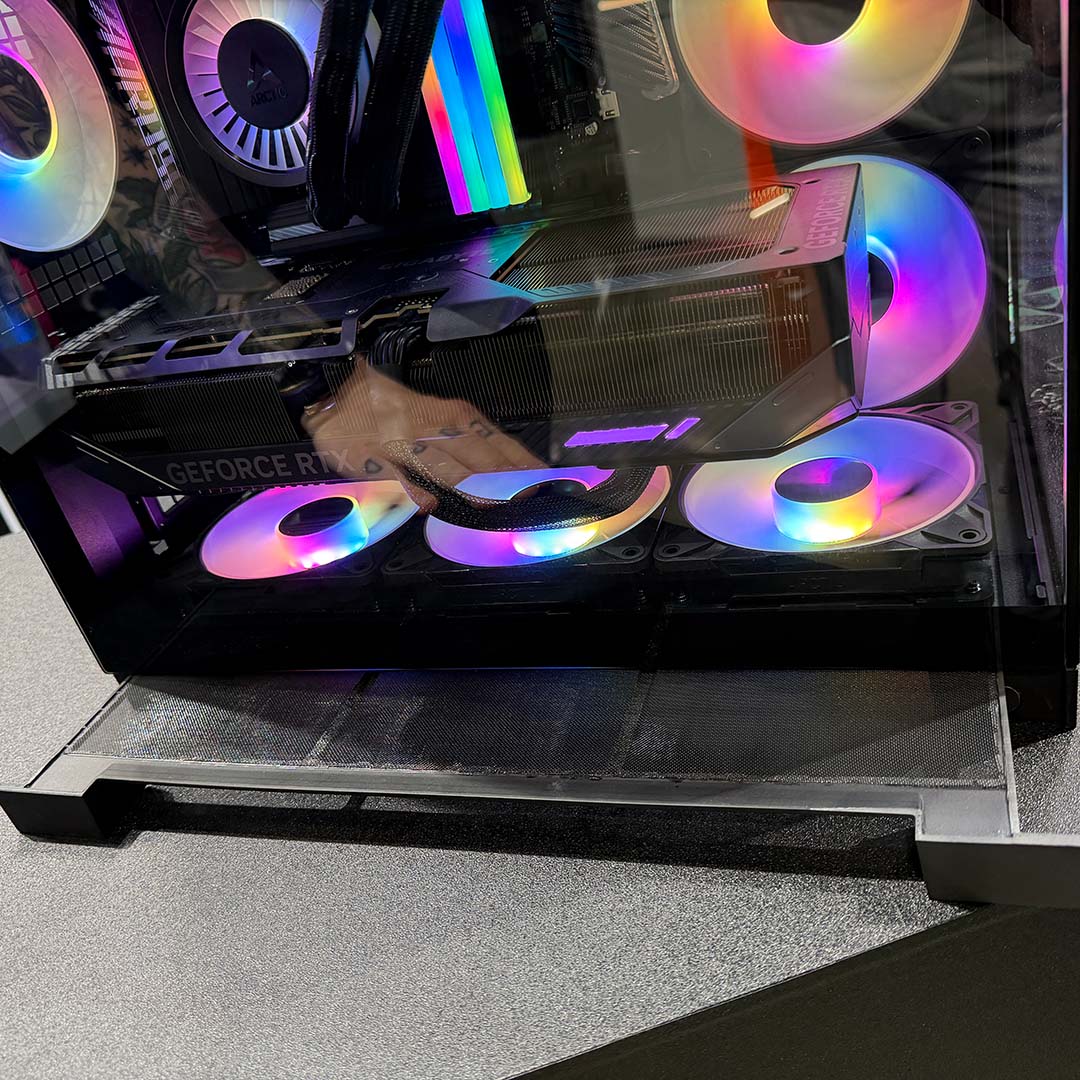

Arctic’s Xtender Mini is a compact PC case that approaches microATX cooling like a scaled‑down flagship tower rather than a budget box. Despite its short height, the chassis supports large graphics cards up to 402mm long and 165mm tall, avoiding the usual compromise between case size and GPU choice. Arctic preinstalls four 120mm A-RGB fans, with one rear exhaust and three reverse-blade fans on the floor feeding fresh air directly to the GPU area. The side panel supports a 360mm radiator, and the PSU is housed under a roof shroud, freeing interior space and simplifying cable routing. A magnetic, pull‑out dust filter on the underside works with a top filter to keep airflow paths clean without constant disassembly. Arctic plans both black and white versions, plus an optional bundle with its Liquid Freezer III Pro 360mm AIO, giving microATX cooling enthusiasts a case tuned for airflow out of the box.
Balancing thermals and performance in small form factor and microATX builds
Together, Noctua’s 70mm cooler and the Xtender Mini case show how the industry is addressing the thermal squeeze in compact PCs. High‑density CPUs and long GPUs create complex microATX cooling challenges, especially when builders want quiet systems. Low-profile coolers like Noctua’s new NH‑L12 successor provide higher fin density, better contact over hotspots, and full-size fans without exceeding 70mm height limits in slim cases. Meanwhile, airflow‑aware cases like the Xtender Mini push more intake through the floor, offer 360mm radiator support on the side, and move the PSU into a dedicated shroud to clear the main chamber. These choices reduce recirculated warm air and give coolers a better working environment. For small form factor builds and compact microATX rigs, the message is clear: thermal performance now depends as much on case layout and airflow planning as on the CPU cooler itself.
What this means for the next wave of compact PC builders
For builders planning their next compact PC case or low‑profile CPU cooler upgrade, these designs hint at a new baseline. A 70mm cooler no longer means budget‑tier hardware; instead, it can be a serious option for AM5 gaming or creator systems when paired with a well‑ventilated chassis. Cases like the Xtender Mini make it easier to treat microATX as a first‑class platform, not an afterthought between mini‑ITX and ATX. Expect more cases that prioritize floor intakes, magnetic dust filters, and radiator‑ready side mounts, along with coolers that respect RAM height and motherboard constraints while still using 120mm fans. As compact PCs continue to pack in flagship components, low-profile coolers and carefully designed microATX and small form factor builds will be essential for maintaining stable clocks, acceptable noise levels, and tidy interiors without moving back to bulky towers.
