Why Build a DIY Edge Router Instead of Renting One?
A DIY router build is the process of replacing your internet service provider’s rental router with your own edge router setup, using general-purpose hardware and open-source firmware to gain better network performance, tighter security, and full control over configuration while removing ongoing rental fees. Many ISP router rental costs look harmless each month, but over a full year they add up while delivering limited control and weak thermal design. One MakeUseOf writer found the rented router cost USD 12 (approx. RM56) every month, or USD 144 (approx. RM672) a year, and still overheated and required weekly restarts. By building a custom edge router, you remove that unreliable plastic box and gain faster updates, smart-home isolation, and easier DNS changes for privacy. The one-time investment in hardware typically pays for itself in roughly 12–18 months compared to ongoing ISP router rental costs.
Plan Your Custom Edge Router: Hardware, Topology, and Thermal Design
Before you start, sketch how your edge router setup will sit behind your modem or optical network terminal (ONT). You are not replacing the ONT; you are replacing the ISP router that plugs into it. The internet will flow modem/ONT > DIY router > your LAN and Wi-Fi gear. For hardware, you can use an existing ESXi host, a mini PC, a NUC, or an old PC with at least two Ethernet interfaces. Good airflow and cooling matter more than fancy looks, because rental routers often suffer poor thermal management and frequent overheating. Place the machine where it has space around it, keep vents clear, and consider larger, slower fans for quiet, stable operation. This planning stage is where you decide which devices live on which subnets, how you will segment smart home gadgets, and which switches or wireless access points will plug into the LAN side.
Install OpenWRT and Turn a PC or VM into an Edge Router
With hardware ready, install an open-source router operating system such as OpenWRT to power your DIY router build. One MakeUseOf writer used the x86 build of OpenWRT in a virtual machine on ESXi instead of buying another router, but the same approach works on a mini PC or repurposed desktop. Assign one adapter for WAN and at least one for LAN; if you have a separate wireless access point, give it a LAN-side adapter as well. Inside OpenWRT, set the LAN interface to a static IP (for example, 192.168.24.254) with an appropriate netmask, configure WAN to use DHCP or IPoE from your ISP, and then bridge additional LAN adapters so wired and wireless clients share the same subnet. Once you restart the network service, connected devices will obtain addresses from the OpenWRT DHCP server and your custom router performance will already exceed many ISP boxes.
Optimize DNS, Security, and Smart-Home Isolation

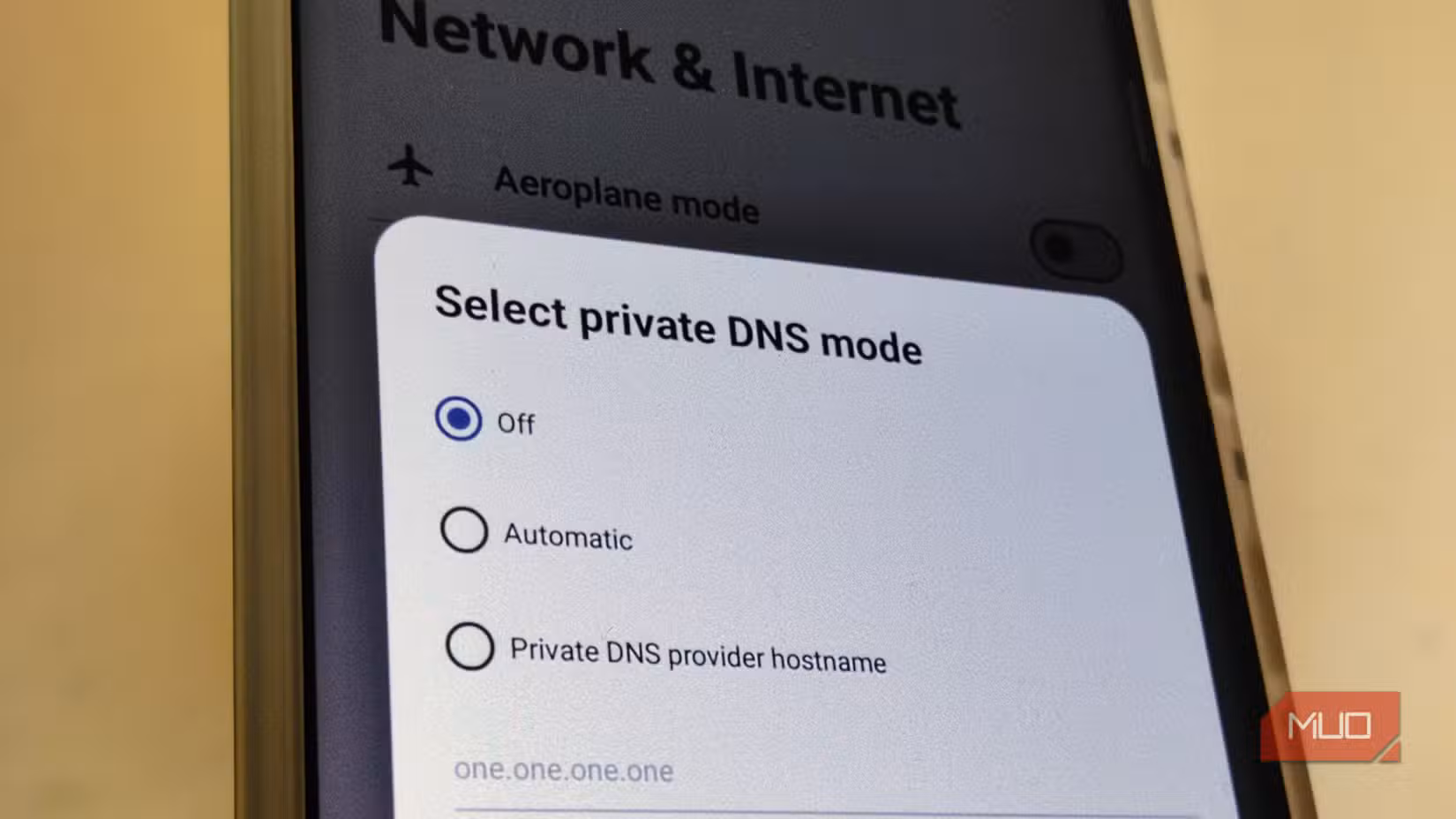

Once packets are flowing, improve privacy and resilience by changing DNS across the whole network. Instead of the ISP defaults, point your edge router setup to security-focused DNS providers such as Quad9, Cloudflare, OpenDNS, or Google Public DNS. According to MakeUseOf, moving away from ISP DNS often brings faster speeds, better privacy, and stronger protection against malicious domains. In OpenWRT, set your chosen DNS servers on the WAN or system configuration so every device benefits without manual changes. Use the firewall to isolate smart home devices on their own subnet, as the MakeUseOf example did, to prevent smart gadgets from saturating your main LAN Wi-Fi. Enable automatic updates where possible, and configure basic protections like blocking remote administration from the WAN and disabling unused services, turning your DIY router build into a safer and more reliable gateway.
Measure Performance, Stability, and Long-Term Savings
With everything configured, test your custom router performance against the old ISP box. Check speed tests at peak times, latency for gaming or remote work, and responsiveness for smart-home controls. The MakeUseOf user who replaced the ISP router reported that the DIY edge router stopped the weekly overheating and restart cycle and became a stable single point of control for the network. Watch temperatures on your hardware and keep an eye on uptime; a well-cooled system should run for months without reboots. Financially, compare your one-time build cost to what you previously spent on ISP router rental costs. At USD 12 (approx. RM56) per month, USD 144 (approx. RM672) a year disappears into fees for hardware you do not own, so a modest build can pay for itself within roughly 12–18 months while giving you a faster, cooler, and more secure home network.
