What a DIY Wi-Fi Extender Is and Why Your Old Router Works
A DIY Wi-Fi extender is a home network upgrade where you repurpose an old router as an extra access point or bridge so it broadcasts your existing network farther, helping eliminate dead zones both indoors and outdoors without buying a dedicated mesh system or plug-in extender. If your house has solid Wi-Fi indoors but the backyard is a dead zone, that spare router collecting dust is a strong mesh router alternative. Instead of throwing it away, you can turn it into an old router extender and extend Wi-Fi coverage free, apart from a bit of cable and time. This approach cuts waste, keeps another device out of landfill, and gives you more usable outdoor space for streaming, calls, and smart devices without relying on cellular coverage.
Plan Your Repurpose Router Setup and Check the Basics
Before changing settings, confirm your main network is healthy. Run an online speed test near your primary router and, if needed, plug a laptop in with Ethernet to see whether slowdowns come from Wi-Fi coverage or from the internet link itself. PCMag notes that if speeds are fine beside the router but weaker elsewhere, your coverage is the problem rather than your connection. Walk around your home and backyard with your phone to map strong and weak spots, then pick a place where the old router can sit roughly halfway between strong signal and the dead zone. Aim for open air, away from thick walls and metal, similar to recommended best practices for primary router placement. Decide if you will connect the old router back to the main one with Ethernet or with powerline networking adapters for more flexibility.
Step-by-Step: Turn an Old Router Into an Access Point

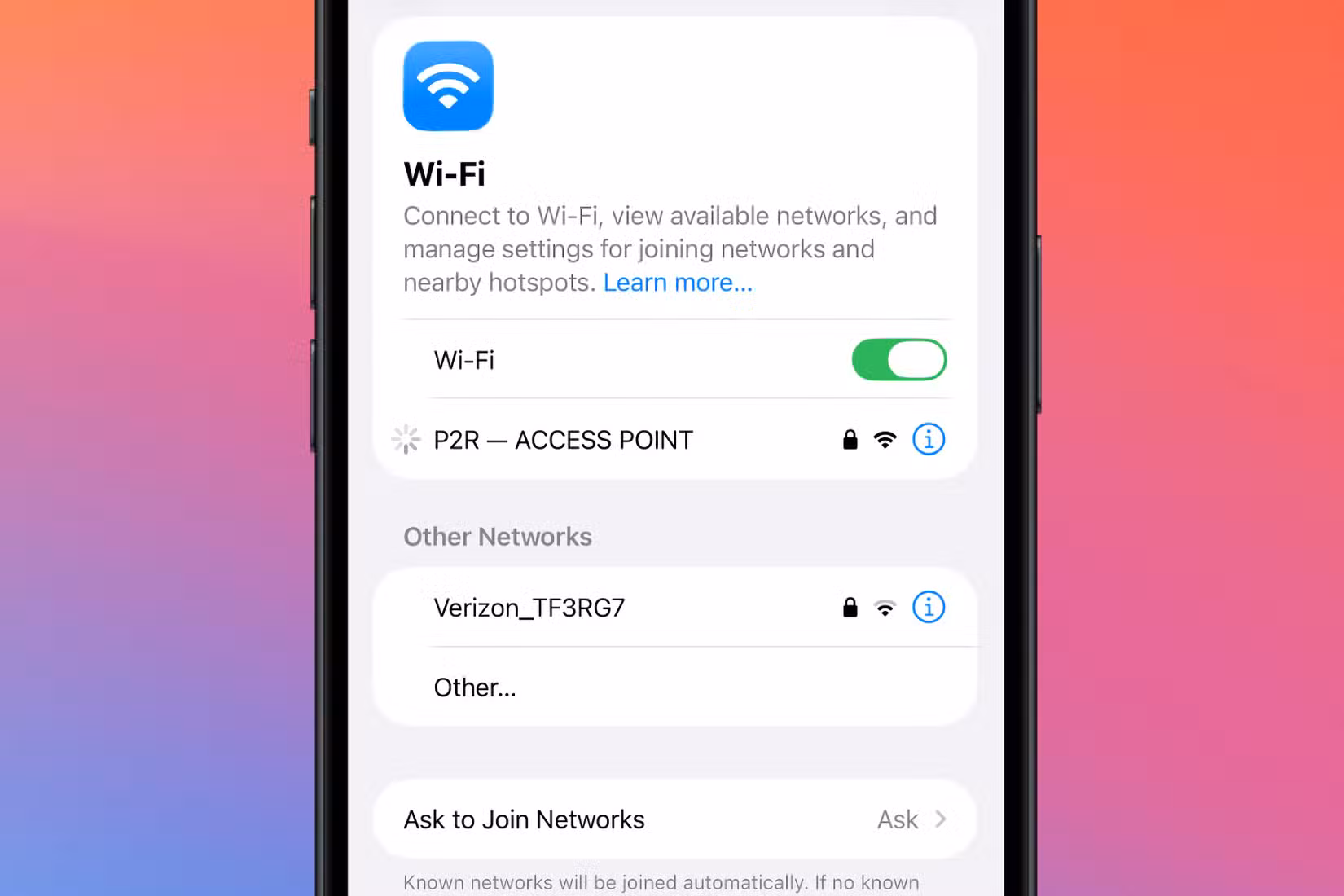

To convert an old router into an extender-style access point, connect a computer to one of its LAN ports and log in to its admin page. First, disable its DHCP server so your main router remains the only device handing out IP addresses. Next, change its LAN IP to something that fits your main network but does not conflict with the primary router, then note this address for future logins. Connect the old router to the main one using a LAN-to-LAN Ethernet cable, not the WAN port. Set the same Wi-Fi name and password as your main network for seamless roaming, or choose a clear name that marks it as the backyard access point. Save and reboot. When you connect outdoors, your phone should now see a strong signal from the DIY Wi-Fi extender.
Tuning, Troubleshooting, and When to Consider Other Options
Once your old router extender is online, test in different corners of the yard while streaming video or making a video call. If speeds are good near the access point but poor farther out, experiment with moving the device, raising it higher, or shifting the wireless channel in the admin settings to reduce interference. Updating firmware on both routers can improve stability and security, as manufacturers often release fixes and optimizations over time. According to PCMag, keeping router firmware current is an important part of maintaining reliable Wi-Fi performance. If you still have dead zones even after careful placement and configuration, you might consider additional Ethernet runs, powerline adapters, or, as a last resort, a dedicated mesh router alternative system when reuse and free fixes are no longer enough.
Money Saved, E-Waste Reduced, and a Better Backyard
Repurposing a spare router as a DIY Wi-Fi extender lets you extend Wi-Fi coverage free instead of buying a multi-unit mesh kit. In many homes, that old device is more than capable of handling backyard web browsing, music, and work calls, especially when linked back to your main router over Ethernet or powerline. Turning it into an access point increases the lifespan of hardware you already own and keeps an extra gadget from becoming e-waste. The result is a practical mesh router alternative that fits into your existing network, reaches outdoor seating areas, and makes weak-signal corners usable. You gain smoother streaming and more reliable connections in your yard, while your budget and the environment both benefit from one thoughtful configuration session instead of another purchase.
