Hotspot Data: The Missing Piece in RTX 5090 Performance
RTX 5090 thermal throttling refers to automatic performance cuts triggered when the hottest points on the GPU, tracked as hotspot temperature, hit protection limits even while the average GPU temperature appears normal, a behavior that can silently reduce frame rates on high-end gaming builds and mislead users who rely only on standard monitoring tools.
The key takeaway is blunt: RTX 50 series cooling is being judged with the wrong thermometer. NVIDIA shifted consumer tools toward average GPU temperature and memory temperature, dropping visible hotspot readouts on Blackwell GPUs. Average temperature is comfortable marketing, but it hides the thermal choke points that matter for gaming performance throttling. Modders have now proved the hotspot sensor never vanished; it was only hidden. Paulo Gomes unlocked the GPU hotspot temperature on RTX 50 cards and immediately found widespread issues, with cards reporting "abnormal gaming performance" and ramped-up fans while averages sat below throttle limits. Once you see hotspot numbers, it becomes clear these premium GPUs are often fighting thermal limits in the background.
How Hotspot Temperature Works—And Why Averages Lie
Hotspot temperature is not a marketing metric; it is a technical reality check. Sensors are laid out across the GPU and report the highest temperature anywhere on the silicon surface. That makes hotspot the best indicator of the single worst thermal point, while the standard "GPU Temperature" is a smoothed average that can stay in the 70–80°C range even as one corner of the die cooks past 100°C. With Blackwell, users still see average GPU and memory temperatures but lose direct visibility of hotspot readings in mainstream tools.
This distinction explains why so many RTX 5090 and RTX 5070 owners experience gaming performance throttling without obvious overheating signs. In Paulo Gomes’ repairs, cards showed average temps around 70–80°C while hotspot temperatures hovered around 107°C, triggering a thermal throttle step when the protection limit kicked in and causing performance loss. After addressing poor thermal contact by replacing the thermal interface material, hotspot dropped to roughly 100°C and performance returned to levels "that should have been there from the start". If you only look at averages, you never see the thermal cliff your GPU keeps walking off.
Diagnosing RTX 50 Series Cooling Failures with Hotspot Telemetry
Enthusiasts have been forced to fly blind. Without hotspot data, diagnosing misaligned coolers, badly mounted waterblocks, or weak thermal paste becomes guesswork. Yet hotspot is exactly what you need to identify poor cooler contact and insufficient TIM application. The unlocked telemetry shows multiple RTX 50 cards arriving at repair shops with the same pattern: abnormal gaming performance, fans screaming, and average temps still below throttle limits. Only when hotspot data is revealed does the real culprit—contact and cooling flaws—come into focus.
This is more than an academic concern. When hotspot spikes, the GPU repeatedly hits its protection limit, throttles, cools slightly, and then climbs back to the same critical temperature, creating a loop of RTX 5090 thermal throttling that cuts frame rates in demanding titles. Without knowing the hotspot temperature, users may "call it a day" because averages look safe, while the silicon’s hottest region is running near critical levels and causing both inferior performance and potential damage. In a generation this power-hungry, hiding hotspot telemetry from consumer tools is a step backward, especially when NVIDIA’s data center GPUs get more complete diagnostic support for hotspots and airflow issues.
Multiple Failure Modes: Beyond the 16-Pin Connector
The thermal story would be bad enough on its own, but RTX 50 series problems are not limited to temperature or the much-discussed 16-pin connector. A recent case shows a ZOTAC RTX 5090 dying in a cloud of smoke after only a few minutes of gameplay, with a loud pop and crackling before the card failed. The user found the 16-pin connector "totally fine", yet there was a burn mark on the small gold finger tail near what was identified as an MLCC array. Commenters suggested a short circuit potentially linked to a crack in the circuit board, likely caused by GPU sag from the heavy card weight.
This matters because it debunks the comforting idea that fixing connector design alone will stabilize the RTX 50 generation. Thermal throttling revealed by hotspot measurements is one failure mode; physical stress, sag, and board-level short circuits are another. The "another one bites the dust" incident explicitly did not involve the common 16-pin burning out. Put together with the hotspot-driven performance issues, the pattern is clear: RTX 50 series cooling and mechanical design both demand closer scrutiny. High-end GPUs are being shipped into the enthusiast market with performance and reliability margins that assume perfect mounting, perfect airflow, and perfect handling—conditions that do not exist in most real-world builds.
What Enthusiasts Should Do—and What NVIDIA Should Admit

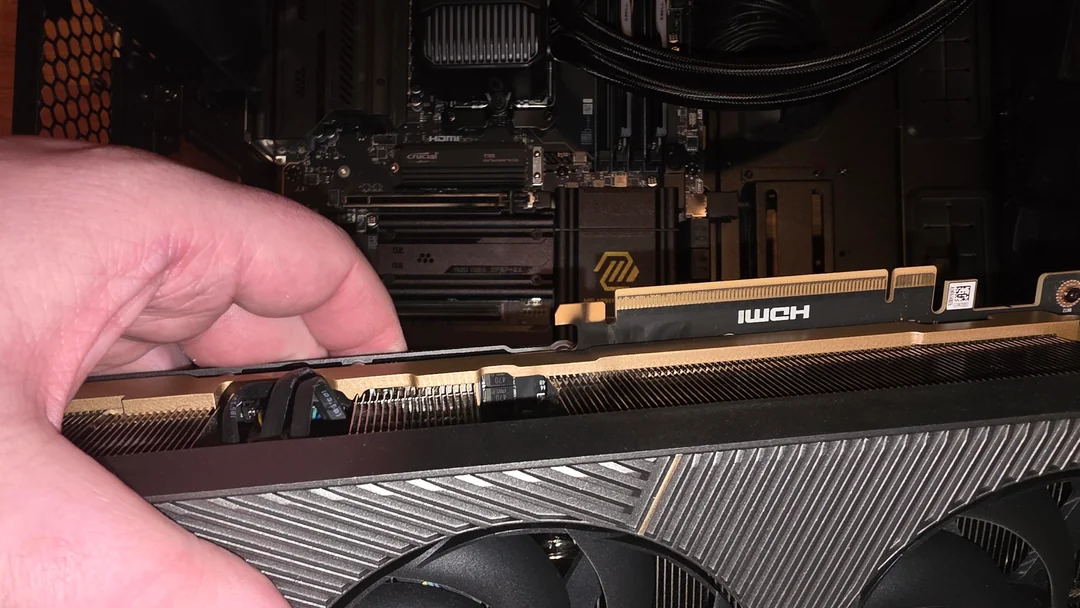

For enthusiasts, the lesson is to stop trusting average temperature as the final word on RTX 5090 thermal throttling. If your high-end RTX 50 build shows frame rate dips, erratic clocks, or maxed-out fans while reported temps sit comfortably below throttle limits, treat that as a red flag, not reassurance. Where possible, use tools or mods that surface GPU hotspot temperature; if hotspot is near or above the mid-100°C range while averages stay in the 70–80°C band, you likely have poor cooler contact or weak thermal paste and should consider remounting the cooler or reapplying TIM. And if your card is sagging, physically support it—few things are more frustrating than an expensive GPU dying from a cracked PCB rather than raw heat.
NVIDIA, meanwhile, needs to acknowledge that hiding hotspot telemetry from mainstream tools is not protecting users; it is obscuring genuine RTX 50 series cooling problems. The same company already offers detailed hotspot and airflow diagnostics on data center GPUs, proving it understands the value of these metrics. Enthusiasts should push for driver-level re‑exposure of hotspot sensors and more transparent thermal limits. Until that happens, modders will keep doing the work NVIDIA chose not to: revealing where the silicon is actually suffering, and showing that many RTX 5090 and RTX 5070 cards only deliver their promised performance once their cooling flaws are corrected.
