What Is CardputerZero and Why It Matters for Makers
CardputerZero is a pocket Linux computer that integrates a Raspberry Pi Zero 2W-class processor, display, keyboard, and battery into one palm-sized device designed for portable software and hardware development. Built around the Raspberry Pi Compute Module 0 with a quad‑core Cortex‑A53 CPU and 512MB RAM, it turns the familiar Raspberry Pi Zero architecture into a self-contained handheld. Unlike earlier ESP32-based Cardputer models that ran microcontroller firmware, CardputerZero runs Linux and supports full terminal workflows, scripting, and multimedia. M5Stack positions it as a field-ready tool for makers, developers, and hardware enthusiasts who need a Raspberry Pi Zero portable setup without a bag of peripherals. In practice, it behaves like a tiny Linux maker computer that you can boot, code on, and connect to networks or external hardware wherever you are.
All-in-One Hardware: Display, Keyboard, Battery, and I/O

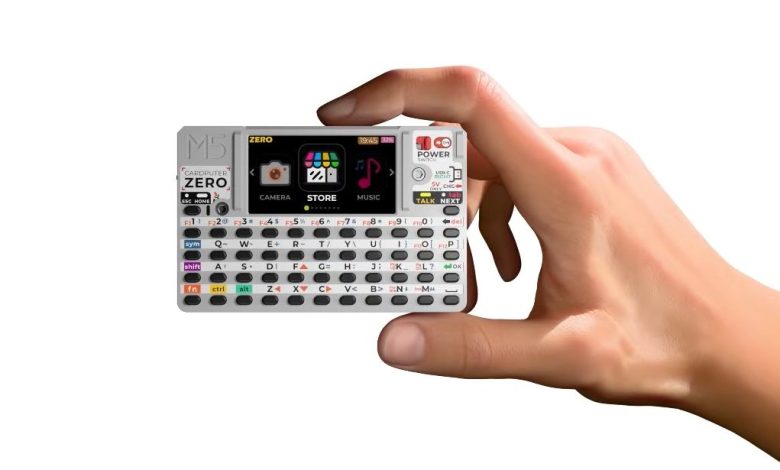

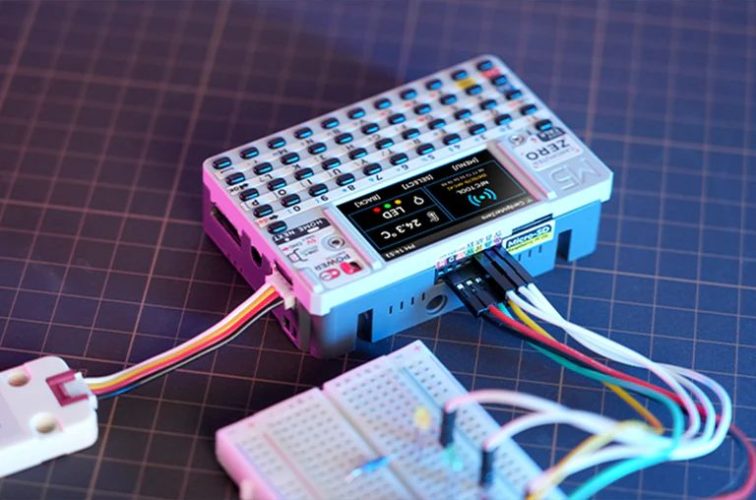

The core of the CardputerZero design is its all-in-one hardware layout. The device measures about 85 x 54 x 23.1 mm, roughly the size of a small stack of business cards, yet packs a 1.9‑inch 320 × 240 color display, a 46‑key matrix keyboard, and a 1500 mAh battery with a 1 W speaker. It also includes Wi‑Fi 4, Bluetooth 4.2 LE, HDMI output for up to 1080p/30 fps, a 3.5 mm audio jack, IR transmitter and receiver, and a microSD card slot. Multiple USB ports (two USB‑C and one Type‑A) plus Ethernet turn it into a capable portable developer device for both network work and USB peripherals. Expansion headers expose I2C, SPI, UART, GPIO, USB, and 5V rails, so you can attach Grove, M5Stack caps, LoRa modules, and other add-ons without hauling a dev bench around.
Portable Linux Workflows: From Pocket Terminal to Field Lab

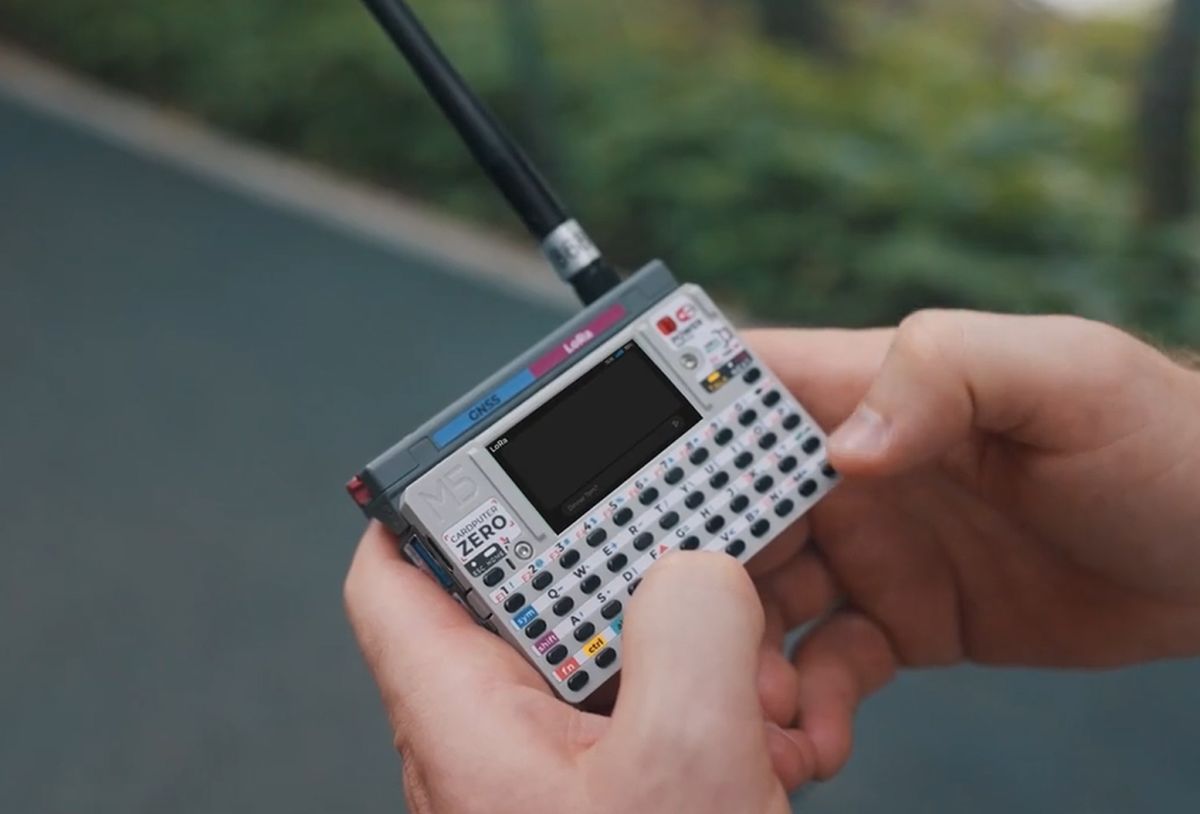

CardputerZero is designed as a Linux maker computer that supports full workflows on the move. With the built-in keyboard and screen, it acts as a self-contained terminal for coding in a text editor, running Python scripts, or using standard command-line tools without an external display or keyboard. M5Stack describes it as a pocket Linux lab for SSH into remote servers, running diagnostics on embedded systems, or debugging devices in the field. Optional wireless caps such as CC1101 and LoRa modules extend it into wireless research, protocol experiments, and mesh networking. The integrated 8MP camera (on the standard model), microphone, speaker, and HDMI port also allow simple gaming, MP3 playback, basic video, and interactive demos. For makers used to juggling a Raspberry Pi board, power bank, cables, and keyboard, CardputerZero consolidates that entire setup into a single device.
Two Models for Different Use Cases and Budgets
M5Stack offers CardputerZero in two variants aimed at different priorities. The standard CardputerZero includes an 8MP camera, IMU (gyroscope and accelerometer), and a bundled 32GB microSD card. It targets developers who want onboard sensing and storage for field projects such as portable vision demos, motion-aware prototypes, or data logging. CardputerZero Lite removes the camera, IMU, and SD card to keep cost down while preserving the same pocket Linux computer core. According to M5Stack’s Kickstarter information, pledge levels start at USD 79 (approx. RM370) for the new CardputerZero family, with the full-featured unit offered during crowdfunding at USD 119 (approx. RM560) and the Lite model at USD 89 (approx. RM420). This tiered approach lets makers pick a configuration that suits either experimentation on a budget or more advanced portable builds.
An Ecosystem Built for Accessibility and Community
CardputerZero builds on a Cardputer ecosystem that has been active since 2023, where community firmware and tools have shaped how people use these devices. M5Stack reports that popular projects on M5Burner such as M5Launcher, Bruce, and Evil‑Cardputer have each passed 50,000 downloads, showing a strong base of users who share code, UI ideas, and niche utilities. By moving the platform into the Linux era, M5Stack is extending that ecosystem rather than resetting it. Existing makers get a familiar Cardputer form factor, now with a more capable Raspberry Pi Zero portable brain and far greater software compatibility. The company’s focus on integrated hardware, accessible expansion ports, and ready-to-use tools lowers the barrier for new developers who want a practical portable developer device that works as soon as they power it on, yet leaves plenty of room for deeper customization.
