What This Arduino Weather Display Project Does

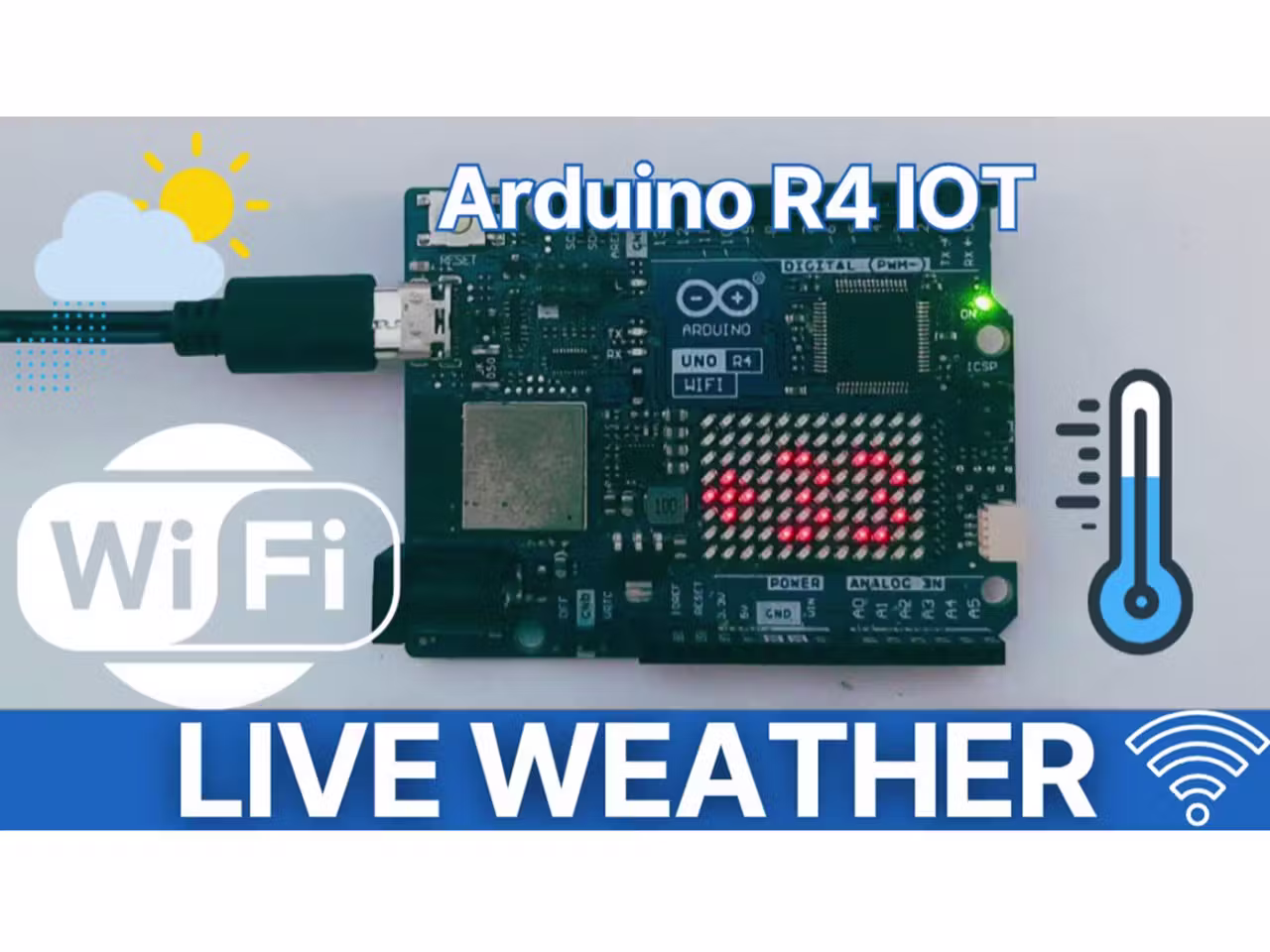

An Arduino weather display is a small WiFi-connected project that fetches live weather data from an online service, extracts key values like temperature, and shows them directly on the Arduino Uno R4’s built-in LED matrix so you get a compact, always-on real-time data Arduino dashboard without external sensors or screens.
If you own an Arduino Uno R4 WiFi and want a practical Arduino IoT dashboard rather than another blinking LED demo, this project is worth your time. Using the board’s integrated LED matrix and WiFi, you can display current temperature for any city on earth without wiring extra modules or keeping a PC connected. The secret is a free weather API called wttr.in, which serves plain-text weather data over HTTP so you avoid paid services or complex authentication. Once programmed, the board connects to your router, pulls data every few minutes, and scrolls the latest reading across the matrix. The only real prerequisite is a stable WiFi network and basic comfort installing Arduino tools; after setup, the device runs on its own, like a tiny dedicated weather station on your desk.
What You Need Before You Start
You do not need a bench full of electronics for this build. The Arduino Uno R4 WiFi already includes an 8x16 LED matrix and onboard WiFi, so no external displays or sensors are required for the core weather visualization. That makes this one of the simplest ways to get a live Arduino IoT dashboard running in your home or office.

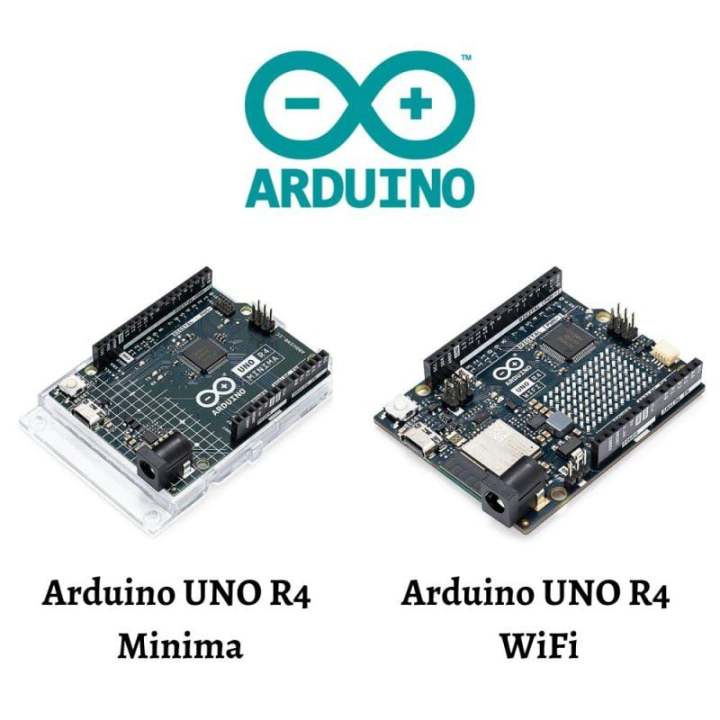

- Arduino Uno R4 WiFi board with built-in LED matrix and WiFi
- A WiFi network SSID and password you can configure on the board
- A PC with the Arduino IDE or a visual tool like Visuino installed
- USB-C cable to connect and power the board for programming
- Optional: 5V 3A USB-C PD adapter for reliable standalone power later
During setup, you will connect the Uno to your PC via USB-C, open your programming environment, and configure WiFi credentials and the HTTP request to wttr.in. According to one tutorial, “no external sensors or displays are required — everything runs on the Arduino Uno R4 WiFi using its built-in WiFi and LED Matrix.” Once the sketch or visual project is flashed, the board can sit anywhere within WiFi range and doesn’t need a permanent PC connection, which is perfect if you want to mount it as a small weather station or environmental monitor on a shelf.
Step-by-Step: Build a Live Weather Dashboard on Arduino
Think of this section as a friend walking you through the build in order, from blank board to glowing matrix. Follow the steps once, and your Arduino weather display should keep showing real-time data with almost no supervision. The main gotcha is WiFi details: a wrong SSID or password means no data, so double-check those values before you flash anything.
- Connect the Arduino Uno R4 WiFi to your PC with a USB-C cable and power it, ideally from a 5V 3A USB-C PD adapter for steady performance.
- Install and open your programming tool (Arduino IDE or a visual environment like Visuino), then select the Arduino Uno R4 WiFi board type so uploads target the correct device.
- In the board’s WiFi module settings, add a WiFi access point entry with your router’s SSID and password so the Arduino can join your local network.
- Create a TCP/IP client (or similar WiFi socket) configured for port 80 and host “wttr.in”, which is the free weather API you will query.
- Add an HTTP client component or code that issues a GET request to a URL such as “/London?format=%t” or “/Miami?format=%t” to request the current temperature.
- Set up text handling components to convert incoming characters to text, trim the response to the temperature value, and prepare it for display on the LED matrix.
- Configure the LED matrix display module with a text field element and a small font (for example, Adafruit Picopixel) so the temperature fits nicely on the matrix.
- Wire the internal signals: start the WiFi sockets, trigger the HTTP GET, feed the response into your text converter, and route the final text string into the LED matrix display element.
- Set a refresh delay, for example every 300000000 microseconds (around 5 minutes), so the Arduino automatically requests new temperature data and keeps the reading current.
- Upload the project to the Arduino Uno R4 WiFi from your PC, then disconnect the USB cable; the board will continue to connect to WiFi and update the weather in real time on its own.
When everything is wired correctly and the code is running, the Arduino connects to the internet, downloads the latest weather data from wttr.in, extracts the current temperature, and displays it directly on the onboard LED matrix as a compact real-time weather display without any external hardware. The data refreshes automatically every few minutes, which gives you a live Arduino weather display you can glance at like a tiny IoT dashboard.
Why Real-Time Data Makes Your Arduino More Useful
Once your LED matrix WiFi setup is working, you have more than a neat temperature gadget — you have a framework for live data on embedded hardware. The same pattern of “connect to WiFi, call an API, parse a simple response, display it” can apply to many other services, from air quality feeds to custom endpoints you host yourself.
The wttr.in service offers more weather parameters such as humidity, wind speed, pressure, forecasts, and detailed multi-day data, so you can expand this simple build into a fuller weather station on the same Arduino Uno R4 WiFi. You might switch display modes on the LED matrix, cycle between multiple cities, or combine online data with local sensors. Real-time data display enables practical IoT applications like home weather stations and environmental monitoring that keep working without a full computer attached. With the right code or visual blocks, your board behaves like an always-on Arduino IoT dashboard in a tiny footprint, giving you quick insight at a glance.
Takeaway: A Small Board, A Capable IoT Dashboard
After you deploy the project, the Arduino Uno R4 WiFi quietly handles everything in the background: it joins your network, talks to wttr.in, and scrolls fresh temperature readings across its LED matrix. You do the setup once on a PC, then leave the board in a remote spot with power; no cables or apps are needed afterward.
It is worth building because it turns a general-purpose microcontroller into a small but useful Arduino IoT dashboard that reacts to live data instead of hard-coded numbers. The main thing to watch for is connectivity: if your WiFi details change or your router blocks outbound HTTP, the display will freeze at the last successful reading. Beyond that, you have a ready-made framework for showing other live data sources, from additional weather metrics to any custom API you care to build, all on a single board with no external display.
