What the DSP4-6602 Is—and the Problem It Solves
The Ascendo DSP4-6602 is a four-channel passive subwoofer amp with 6,600W RMS and integrated DSP amplifier control, designed to give luxury home theaters sustained, infrasonic bass power without the usual compromises of pro audio hardware in residential rooms. In many high-end cinemas, large passive subwoofer arrays outpace what typical home theater amplification can deliver, especially at very low frequencies and low impedances. At the same time, standard touring amplifiers often bring fan noise, awkward control, and thermal issues into quiet living spaces. The DSP4-6602 is built to close this gap: it offers stable 2-ohm operation, bridgeable channels for 4-ohm loads, and output that extends down to 5Hz, all in a chassis tuned for quiet cooling and installer‑friendly integration. The goal is theater-grade bass impact that is powerful, refined, and reliable in a custom residential environment.
Sustained 6,600W RMS and 5Hz Output for Serious Subwoofers
At the heart of the DSP4-6602 is subwoofer amplifier power that is unapologetically overbuilt for residential use. Rated for up to 6,600 watts RMS across four channels, it can comfortably feed large-format passive subwoofers and complex arrays that would leave many home theater amplification solutions gasping for headroom. It is stable into 2-ohm loads in stereo and can be bridged into 4-ohm loads for even higher channel power, enabling flexible pairing with infrasonic and high-output subs. The specification that stands out for luxury cinema audio is its ability to maintain output down to 5Hz, supporting the tactile, room-pressurizing effects modern film soundtracks demand. A damping factor of 1,000 or greater from 20–200Hz helps keep long-throw drivers under tight control, so that extreme low-frequency energy arrives as clean, timed impact rather than bloated, indistinct rumble.
DSP Amplifier Control: Precision Tools for Luxury Cinema Audio
Raw wattage is only half the equation; the DSP4-6602’s built-in DSP amplifier control is what lets integrators turn power into precise, room-tailored bass. Each channel offers up to 100 ms of input delay and 20 ms of output delay in fine 0.01 ms steps, allowing subwoofer arrays and other channels to be time-aligned with real accuracy. The amplifier’s 4×4 routing and mixing matrix, plus eight bands of input parametric EQ and eight bands of output EQ, give designers the tools to shape response to the room and to the target curve. High-pass and low-pass filter options include Butterworth, Bessel, and Linkwitz-Riley slopes up to 48 dB/octave, alongside FIR filters, polarity control, level matching from -18 dB to +18 dB, and mute functions. Together, these features turn the DSP4-6602 into a central processing hub for demanding bass systems.
Engineered for Quiet, Reliable Residential Integration

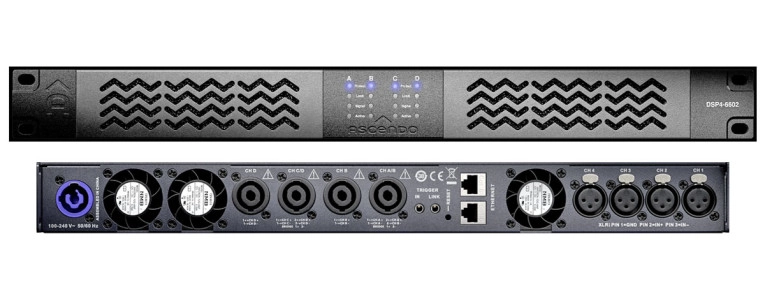

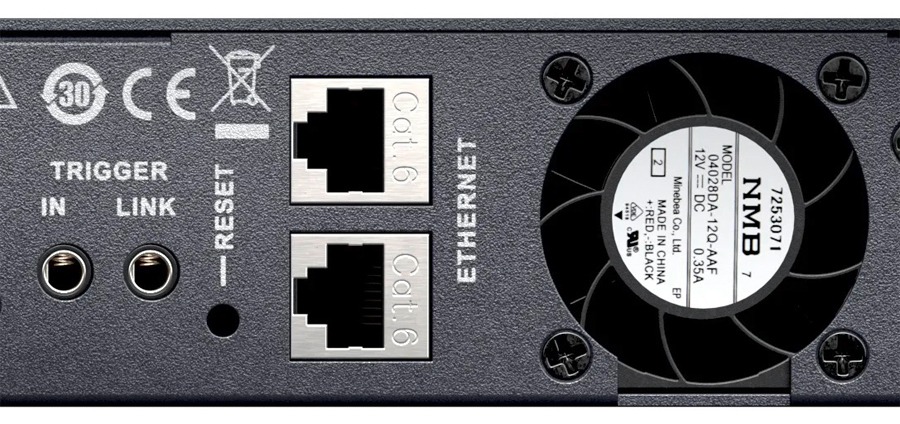

Where many pro amps stumble in home environments, the DSP4-6602 is purpose-built for quiet, reliable operation in equipment racks that share space with living areas. A low-noise cooling system with three rear-mounted fans and front-panel vents is designed for in-room use, minimizing audible fan noise during quiet scenes. The switching power supply uses active power factor correction and soft-switching to handle voltage variation while maintaining efficiency and stability. According to Ascendo, “The DSP4-6602 has both the brute-force low-frequency performance and residential refinement that today’s high-end cinemas require.” Integration features match that brief: selectable 12V trigger input logic, trigger output, configurable auto-standby, and Ethernet-based multi-amplifier management simplify control in large systems. Options for networked audio, including Dante on specific models, further streamline signal distribution without adding extra boxes or cabling complexity.
Why Custom Installers and Enthusiasts Should Care
For custom installers and serious home theater enthusiasts, the DSP4-6602 is less an accessory and more a foundation for reference-grade low-frequency systems. It is a passive subwoofer amp built to handle large infrasonic subs, multi-sub arrays, and future expansion without swapping out amplification. High signal-to-noise performance (≥105 dB A-weighted) keeps backgrounds quiet, while cross-talk of at least 90 dB helps maintain channel separation in complex bass routing schemes. In practice, this means deep, room-filling bass that locks seamlessly into immersive formats without drawing attention to the hardware. Whether driving a pair of high-output subs in bridged mode or feeding four discrete channels in a multi-row theater, the DSP4-6602 combines extreme subwoofer amplifier power with fine-grained DSP control and installer-focused features, making it a compelling core for luxury cinema audio systems where compromise is off the table.
