What High-Power DSP Subwoofer Amplifiers Do Differently
High-power subwoofer amplifiers with built-in DSP subwoofer control are specialized power stages designed to drive passive cinema-grade subwoofers with huge wattage, while precisely shaping low-frequency response to match room acoustics, listener positions, and system design goals in a way standard home theater amplification cannot match. The ASCENDO DSP4-6602 is a clear example: a four-channel passive subwoofer amp aimed at custom audio installation projects where impact and precision both matter. Rated for up to 6,600W RMS and stable into 2-ohm loads, it is built to handle large passive subwoofer arrays instead of the typical single powered sub. By pairing brute electrical power with detailed DSP, it promises bass that is not only louder and deeper, but also more controlled, coherent, and repeatable from seat to seat in a dedicated home theater.

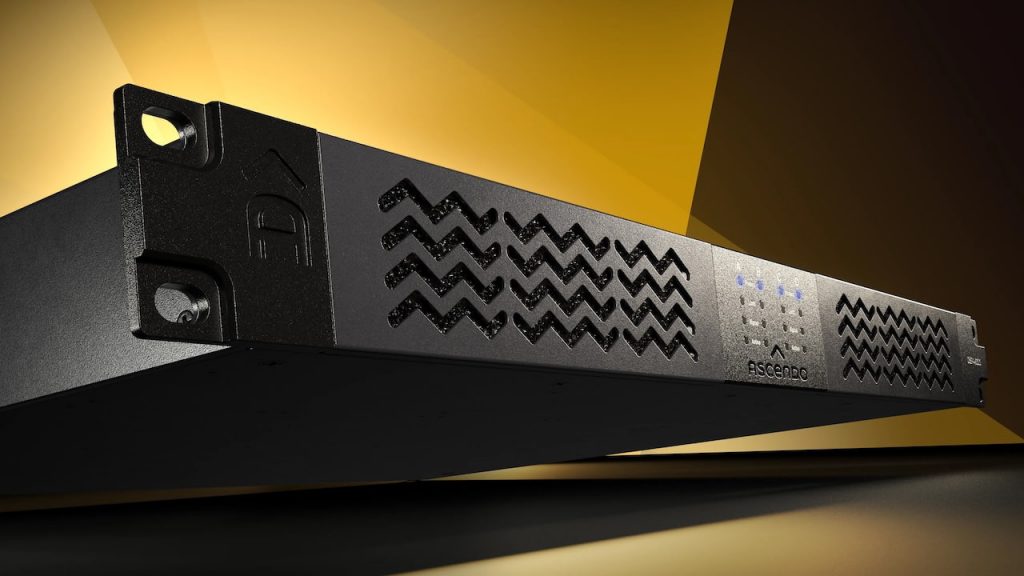

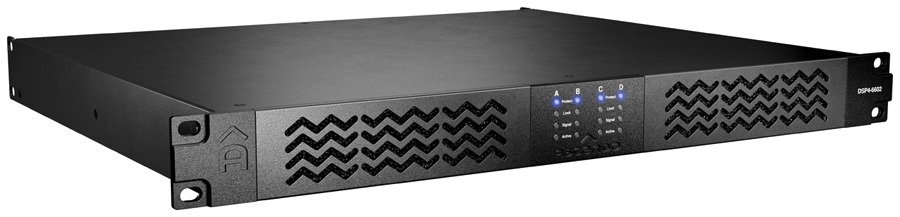

Inside the ASCENDO DSP4-6602: 6,600W Down to 5Hz
At the heart of the DSP4-6602 is serious home theater amplification muscle. ASCENDO specifies 4 x 650W into 8 ohms, 4 x 1,150W into 4 ohms, and 4 x 1,650W into 2 ohms, or up to 3,330W per channel when bridged into 4 ohms, for a combined 6,600W RMS. Equally important is bandwidth: the amplifier is rated for sustained output down to 5Hz, supporting both infrasonic effects and conventional LFE content in large cinema rooms. According to ASCENDO, “The DSP4-6602 has both the brute-force low-frequency performance and residential refinement that today’s high-end cinemas require.” A damping factor of at least 1000 (8 ohms, 20–200Hz) helps keep big subwoofer cones under tight control, so explosions, musical bass lines, and deep rumbles all start and stop with convincing precision instead of sounding bloated.
DSP Subwoofer Control: From Raw Power to Tailored Bass
Raw wattage alone cannot fix room modes, seating differences, or integration with main speakers, which is why DSP subwoofer control is central to the DSP4-6602. Each of the four channels offers 8-section input and 8-section output parametric EQ, allowing installers to correct room peaks, smooth response, and apply house curves with surgical accuracy. The amplifier includes high-pass and low-pass filters in Butterworth, Bessel, and Linkwitz–Riley types up to 48dB/octave, plus FIR filters, polarity adjustment, and per-channel delay—up to 100ms at the input and 20ms at the output. Together with 4 x 4 routing and mixing, these tools make it possible to time-align multiple passive subwoofers, blend them with mains, and compensate for room acoustics, turning extreme electrical power into bass that feels cinematic yet controlled.
Why Passive Subwoofer Systems Appeal to Custom Theaters

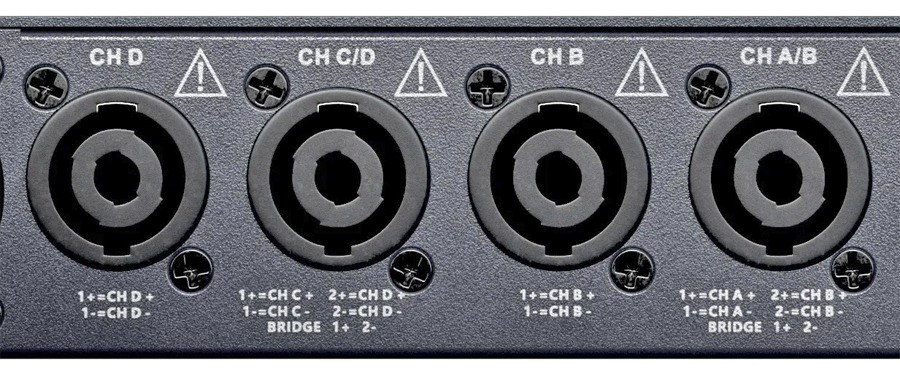

High-power subwoofer amplifiers like the DSP4-6602 change how cinema designers think about low-frequency systems. Instead of scattering powered subwoofers around the room, integrators can specify large-format passive subwoofers and drive them all from a centralized, DSP-controlled passive subwoofer amp. This approach simplifies power distribution, reduces in-room electronics, and lets the designer allocate amplifier channels exactly where needed. The DSP4-6602 is stable to 2 ohms and bridgeable into 4 ohms, making it flexible for single large subs, distributed bass arrays, or infrasonic units plus high-output subs. Because all routing, EQ, and limiting live in a single amplifier platform, long-term maintenance and future tuning are easier, especially in multi-row theaters where consistent bass across seats is a priority for the installer and client.
Beyond Consumer Gear: Professional Power, Residential Refinement
Many home theaters that need cinema-level output run into the limits of consumer subwoofer amps: fan noise, inadequate DSP, thermal issues, and clumsy integration. Traditional pro amplifiers offer power but can be noisy, hot, and awkward to control in a living-space rack. The ASCENDO DSP4-6602 is designed to address those trade-offs with a low-noise cooling system, front-to-back airflow, selectable 12V triggers, auto-standby, and Ethernet-based multi-amplifier management for larger systems. With a signal-to-noise ratio of at least 105dB and THD+N around 0.05% at typical operating levels, it behaves like a clean hi-fi component while delivering pro-level current. ASCENDO positions the unit for dealer-specified custom audio installation work rather than DIY setups, emphasizing that such high-power subwoofer amplifiers are meant to be tuned as part of a complete, professionally calibrated cinema.
