Rackmount NAS Systems: Two Opposite Answers to the Same Problem
Rackmount NAS systems are shared storage servers designed to slide into standard data center racks and deliver network-accessible capacity, performance, and data services in a compact, serviceable form factor that scales more cleanly than scattered desktop NAS appliances or direct-attached disks across multiple application hosts.
The Synology RackStation RS1226+ and RS1226RP+ sit at one end of the spectrum: modest 2U storage server designs with 8 bays, purpose-built for small and medium-sized businesses that need reliable, compact data management. At the other extreme stands Supermicro’s ASG-4116S-NU160R, a 4U monster that packs 160 U.2 NVMe SSD bays into a single chassis for roughly 20PB of flash capacity in one system. Both target enterprise NAS deployment, but they answer very different questions. One prioritizes day‑to‑day manageability and integrated software; the other chases NVMe storage density and raw scale. The real decision is not which is “better,” but which form of complexity you are willing to manage: operational sprawl or concentrated power.
Synology RS1226+ and RS1226RP+: Opinionated Design for SMB Reality
Synology’s RS1226+ and RS1226RP+ take a pragmatic, opinionated view of what smaller teams can handle without a storage specialist on staff. These 2U 8-bay rackmount NAS systems are engineered for small and medium-sized businesses that want compact, reliable data management rather than a science project. The short-depth chassis suits branch offices and network closets where every centimeter of rack depth and power draw is under scrutiny.
The core pitch is performance and features that feel “enterprise enough” while staying understandable. The systems deliver sequential read and write speeds of over 2,300 MB/s and 1,500 MB/s, with built-in 2.5GbE and M.2 NVMe slots for SSD caching to speed up hot workloads. They scale from 8 to 12 bays through the RX426 expansion unit when capacity grows. The real advantage, though, is software: DSM folds in private cloud file services, VM and container storage, and tiering that can store up to 3.5x more data in the same footprint, according to Synology. For most SMBs, that integrated stack beats raw specs.
Supermicro ASG-4116S-NU160R: When NVMe Storage Density Becomes a Strategy

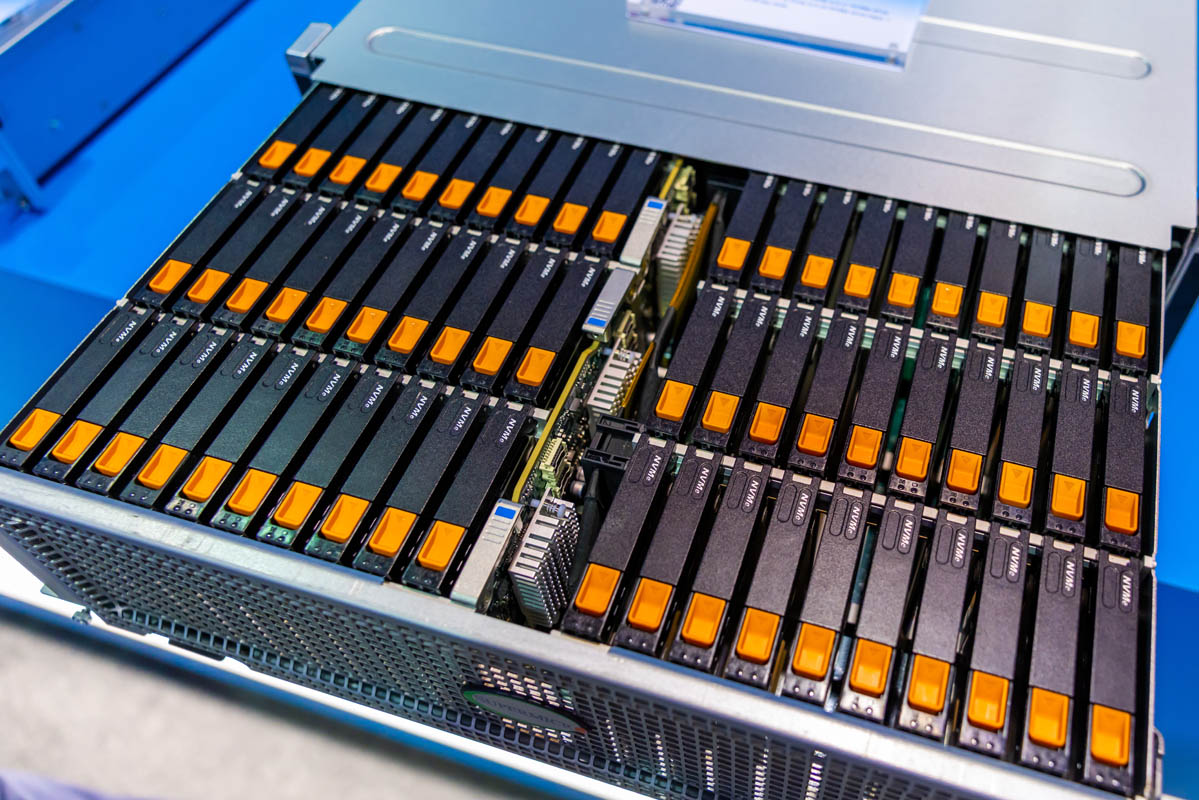

Supermicro’s ASG-4116S-NU160R is the polar opposite of “good enough” storage. It is a statement that density and power efficiency at scale now matter more than the comfort of traditional designs. This single-socket AMD EPYC server carries 160 U.2 NVMe drive bays in only 4U of rack space. With 122–128TB class NVMe SSDs, that enables roughly 20PB of storage in one system.

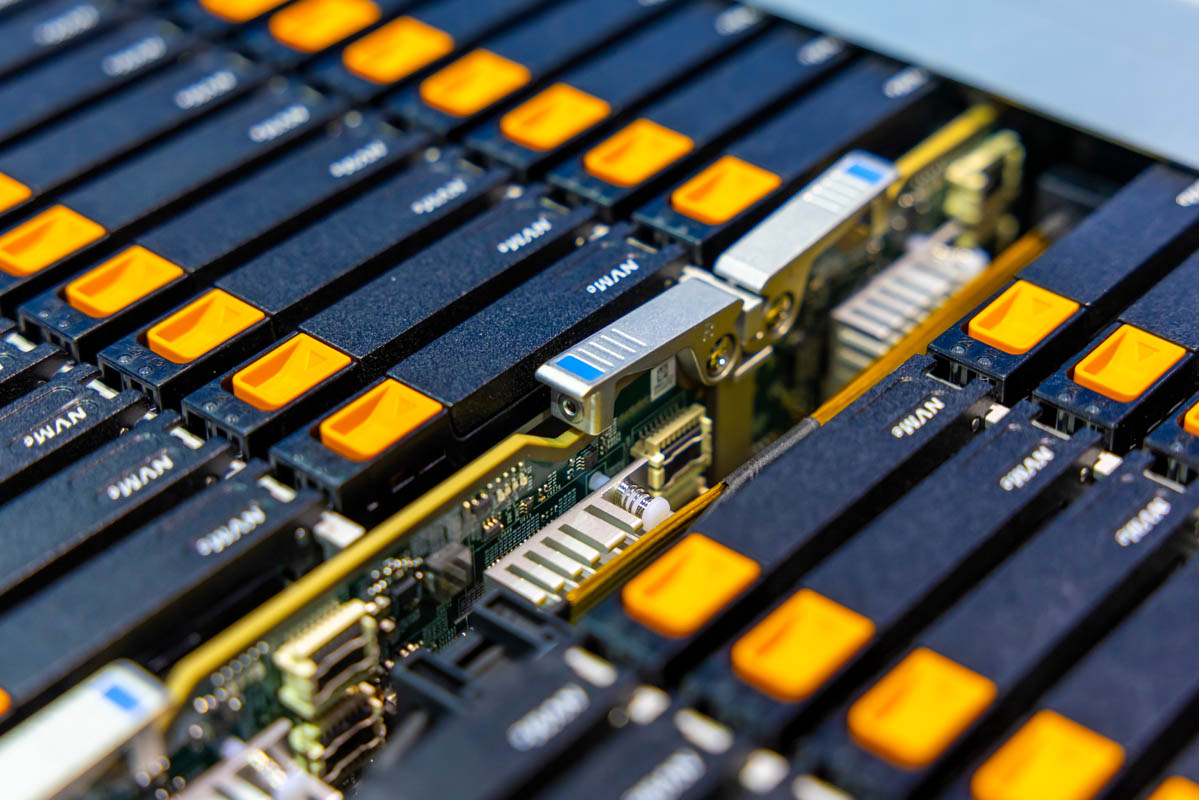

To pull this off, Supermicro uses slide-out trays and PCIe switch fabrics that echo classic top-loading SAS storage servers, but for NVMe instead of SAS expanders. The result is a serviceable chassis where SSDs and the CPU/memory tray slide out independently, making high-density hardware less painful to maintain. This is not about chasing maximum sequential bandwidth per drive; it is about concentrating capacity and reducing the number of CPUs and DIMMs compared with an army of 24-bay 2U servers. In effect, Supermicro is arguing that for high-performance environments with serious scale, collapsing sprawl into one dense platform is now smarter than stacking rows of smaller nodes.
Supermicro’s ASG-4116S-NU160R “was the densest storage platform” at the Flash Memory Summit show floor, highlighting how far NVMe storage density has advanced in mainstream rackmount form factors.
Management Simplicity vs Concentrated Performance
From a design philosophy standpoint, the RS1226 series assumes that the hardest part of storage is day‑two operations: backups, access control, and keeping services online during upgrades. Hot-swappable drive trays, online volume management, and dual power supplies on the RS1226RP+ are there to keep systems running through maintenance and outages. DSM’s integrated tools, from Synology Drive to Virtual Machine Manager and Container Manager, aim to make one 2U storage server carry many roles without becoming a mess of third‑party add‑ons. That is compelling if your storage admins also wear five other hats.
The ASG-4116S-NU160R, instead, declares that the main problem is hardware scale. With 160 NVMe SSDs fronted by PCIe switches and a single high‑power AMD EPYC 9005 CPU, it can replace a fleet of traditional 24-bay nodes, saving the extra CPUs and DIMMs those would need. Slide‑out trays and a front‑facing I/O layout try to make this density maintainable, but the operational mindset is different: this is a specialized, high-performance platform, not an all-purpose file server. You trade the comfort of smaller, more familiar boxes for concentrated complexity that pays off in capacity per rack unit and per watt.
Which Rackmount NAS Direction Should You Favor?
Choosing between these rackmount NAS systems is less about bays and more about how your teams think about storage. If your priority is a 2U storage server that you can rack in a branch office, hand to generalist IT staff, and use as a private cloud, backup target, and VM datastore, the RS1226+ and RS1226RP+ line up with that reality. Their value comes from integrated software and predictable behavior, not pushing hardware boundaries.
If, instead, you operate at a scale where petabytes of flash live in a single aisle and every extra chassis means more power, cooling, and management overhead, the ASG-4116S-NU160R’s NVMe storage density becomes strategic. Collapsing capacity and performance into one 4U unit reshapes how you think about rack space, power budgets, and parallelism. In my view, organizations should resist the temptation to chase extremes prematurely. Start with compact, manageable 2U systems that your team can run with confidence, and only move toward 160-bay NVMe platforms once your workloads and staffing clearly justify that level of specialization.
