What AI NAS storage is and who these two boxes suit
AI NAS storage is a network-attached all-SSD storage system designed to serve data fast enough for local AI inference, allowing models, embeddings, and training datasets to live close to the compute that uses them, rather than in a distant cloud.

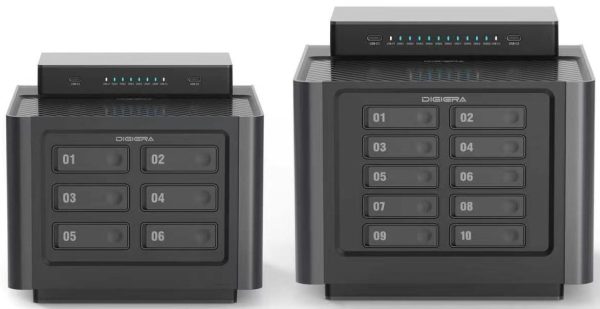

If you want an on-premises AI appliance that behaves like a finished product, OmniCore is the safer, more focused choice. It is a modular all-flash AI NAS built entirely around M.2 NVMe SSDs and delivers transfer speeds around five times faster than comparable HDD-based network storage systems. Its integrated AI suite runs on-device, so you get private, cloud-free local AI inference out of the box. Minisforum’s N5 Max, by contrast, is a barebones enclosure that combines five SATA and five NVMe bays with a powerful AMD Ryzen AI Max+ 395 processor and 64GB memory. It can become a flexible, always-on AI workhorse, but only if you are willing to configure your own software stack and live with a much less mature OS.
Specs face-off: all-SSD OmniCore vs hybrid N5 Max
On paper, both devices look like serious AI NAS storage contenders, but they get there in very different ways. OmniCore is a purpose-built all-SSD storage system with AI-specific compute across three configurations: Base with an 8-core Rockchip RK3588 and 6 TOPS, Pro with an Intel Core Ultra 5 325H and 87 TOPS, and Ultra with an Intel Core Ultra X7 358H, 16 cores, and up to 180 TOPS. One quotable spec line stands out: “Ultra offers up to 176TB across ten M.2 NVMe bays… and 64GB of LPDDR5 memory, it supports local LLM inference, virtual machines, containers, and collaborative 4K and 8K editing”. Minisforum’s N5 Max counters with a 16‑core AMD Ryzen AI Max+ 395, integrated Radeon 8060S graphics, and dual 10GbE, but leaves AI frameworks entirely up to you.
| Spec | OmniCore AI NAS | Minisforum N5 Max |
|---|---|---|
| Type | Modular all-flash AI NAS | Barebones NAS enclosure with AI-optimised mini PC |
| Drive support | Base: 6 M.2 NVMe; Pro/Ultra: 10 M.2 NVMe + 1 NVMe cache | 5 x 3.5" SATA, 5 x NVMe (4 free) |
| Max capacity | Base: 56TB; Pro: 176TB; Ultra: 176TB | Depends on user-fitted drives (not specified) |
| Processor | Base: Rockchip RK3588, 8 cores, 6 TOPS; Pro: Intel Core Ultra 5 325H, 8 cores, 87 TOPS; Ultra: Intel Core Ultra X7 358H, 16 cores, up to 180 TOPS | AMD Ryzen AI Max+ 395 |
| Memory | Base: 8GB LPDDR5; Pro: 32GB LPDDR5; Ultra: 64GB LPDDR5 | Up to 64GB (64GB in review unit) |
| Network | Base: dual 2.5GbE; Pro/Ultra: dual 10GbE | 2 x 10GbE |
| Direct connectivity | Pro/Ultra: Thunderbolt 4, USB‑C 4.0 at up to 40Gbps | 2 x USB 4, 1 x USB 3.2 Gen2, 1 x USB 2.0, 1 x HDMI |
| RAID support | Base: none; Pro/Ultra: RAID 0/1/5/6 | RAID0, RAID1, RAID5, RAID6, RAID10, JBOD |
| Dimensions (H×W×D) | 179 x 155 x 199 mm | 199 x 202 x 252 mm |
| Warranty | 2 years | Two year RTB |
OmniCore wins on compactness and on-device AI: it is physically smaller at 179 x 155 x 199 mm versus the N5 Max’s 199 x 202 x 252 mm, yet delivers higher stated TOPS and a built-in AI suite. The Minisforum unit wins on mixed storage flexibility and RAID modes: you can mix cheap HDD bulk storage with SSD tiers and set up RAID10 or JBOD, which OmniCore cannot match on its Base model. For raw SSD‑only throughput over dual 10GbE and Thunderbolt, OmniCore Pro/Ultra have the edge; for hybrid arrays and more traditional NAS layouts, N5 Max is more accommodating.
All-SSD performance vs hybrid tiers for local AI inference
For AI workloads, the single biggest difference is storage architecture. OmniCore is built entirely on M.2 NVMe SSDs with no mechanical components. According to its maker, this all-SSD design delivers sustained transfer speeds about five times faster than comparable HDD-based network storage systems. That matters when your models stream multi‑GB checkpoints or constantly hit embeddings and vector indexes: you avoid traditional HDD bottlenecks, and sustained 10GbE throughput keeps GPUs and NPUs fed. OmniCore’s AI suite lives on the box and runs against local data, so content stays on-premises and you avoid cloud latency for real-time inference.
Minisforum’s N5 Max takes a different route. It gives you five 3.5" SATA bays for large, cheap HDD arrays plus four free NVMe slots for SSDs. In testing, this included a RAID5 HDD pool, SSD RAID1, and even an SSD read cache layered on the disks. That is ideal if your AI jobs are bursty and you mainly need fast caches in front of colder data. However, AI performance is not integrated: you must set up environments such as Ollama, ROCm, or AMD’s Lemonade yourself, and run them on top of Miniscloud or a replacement OS. It can be a flexible on-premises AI appliance, but you trade simplicity for that flexibility.
Software maturity, shared caveats, and who should buy which
Both systems share one important caveat: they are not traditional plug-and-forget NAS boxes yet. OmniCore is launching via a crowdfunding campaign with Super Early Bird backer units before general availability, which means its ecosystem, documentation, and long-term support still need to prove themselves. Minisforum’s N5 Max arrives with Miniscloud, a proprietary OS that reviewers describe as an early release lacking polish, config backup, restore, and an app ecosystem. You can install alternatives such as TrueNAS or Open Media Vault, but that assumes strong admin skills and a tolerance for tinkering.
So who should pick which? OmniCore is better for teams that want a cohesive on-premises AI appliance with built-in AI NAS storage capabilities, minimal setup, and strong all-SSD performance. Its Pro and Ultra models support local LLM inference, VMs, containers, and even collaborative 4K and 8K editing workloads directly on the NAS. The Minisforum N5 Max suits power users who treat hardware as a platform: if you are comfortable deploying containers, configuring ROCm backends, and experimenting with different AI stacks, this box offers serious CPU, GPU, and RAID flexibility. But if you want something your less technical colleagues can live with, OmniCore’s integrated approach will be easier to recommend.
Finally, remember their shared weaknesses: both devices are relatively young ecosystems without the mature app stores or long history of classic NAS brands. Miniscloud in particular currently separates SMB user accounts from other remote features and feels haphazard, which undermines trust for critical data. OmniCore’s upside is that its AI features run entirely on-device without cloud APIs, while the N5 Max relies on your own choice of AI frameworks and benefits mainly if you are already “quite experienced with configuring local AI environments”.
Buy if / Skip if
- Buy the OmniCore if you want a turnkey on-premises AI appliance with integrated local AI inference, all-SSD NAS performance, and no dependence on cloud APIs for its AI features.
- Skip the OmniCore if you need mature, battle-tested NAS firmware today and are wary of devices that are only just reaching backers via crowdfunding.
- Buy the Minisforum N5 Max if you are highly technical, already comfortable building local AI environments, and want a flexible always-on AI workhorse with mixed HDD and SSD storage.
- Skip the Minisforum N5 Max if you expect a polished NAS OS with config backup, restore, and a rich app ecosystem out of the box, because Miniscloud is currently an early, less reliable platform.
- Buy the OmniCore if your priority is consistent all-SSD throughput for multi-user AI workloads, media editing, and fast model serving over dual 10GbE and Thunderbolt.
- Skip the Minisforum N5 Max if you dislike tinkering with alternative NAS operating systems or container stacks and would rather avoid managing ROCm, Vulkan, or custom AI backends yourself.
