What a Broadcast Viewfinder CRT TV Conversion Involves

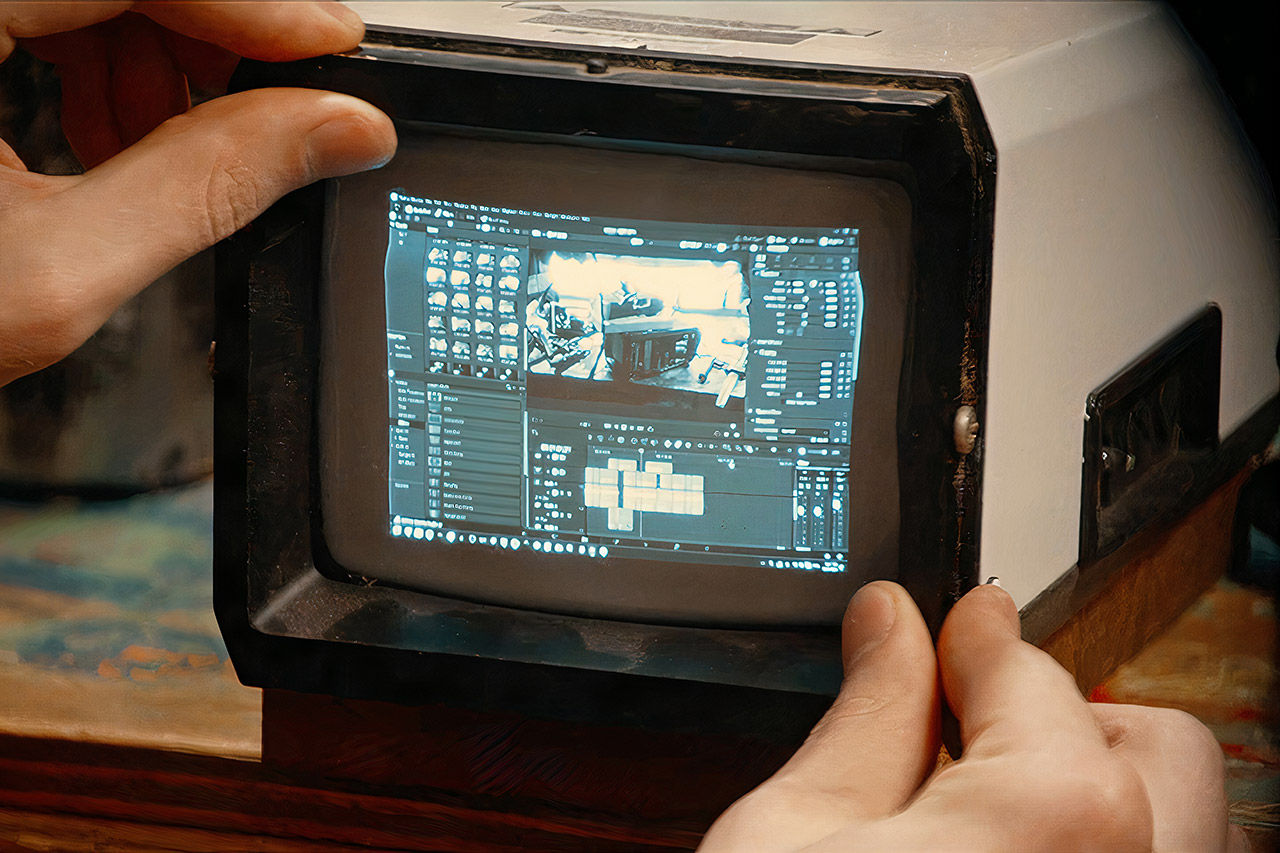

A CRT TV conversion using a broadcast camera viewfinder is the process of turning a specialized monochrome viewfinder module, originally designed for professional camera framing, into a fully independent television that accepts standard composite video and operates without its parent camera body. In this DIY television project, maker Evan Monsma began with a compact monochrome CRT viewfinder pulled from a professional broadcast camera once used for live production. That viewfinder was never meant to be a consumer display; its job was to give camera operators a precise, high-contrast framing aid tethered to a studio rig. By reverse-engineering the wiring, adapting the power and video connections, and rebuilding the enclosure, Monsma transformed a piece of vintage electronics into a practical, standalone screen that fits neatly on a desk and pairs with everything from old game consoles to modern HDMI sources.
Reverse-Engineering the Broadcast Camera Viewfinder
The original viewfinder connected to its camera via an eight-pin plug that carried power, video, and control signals. No pinout documentation existed, so Monsma opened the unit and traced every conductor with a multimeter. He identified the yellow wire as carrying around 12 volts, the black and red wires as ground, and a grey wire as the composite video line. With that mapping complete, he learned that only three connections were required to run the tube: power, ground, and video. He cut the factory harness and created a small adapter, turning the proprietary connector into a familiar DC barrel jack for power and an RCA jack for composite input. This careful reverse-engineering shows that vintage electronics repurposing often starts with patient measurement rather than guesswork.
From Camera Accessory to Standalone DIY Television Project
Once the wiring was understood, the viewfinder became a workable CRT TV conversion candidate. Monsma wired the yellow 12-volt line to a DC barrel socket, so the unit could run from a wall adapter or suitable battery, and routed the grey video line to a rear-mounted RCA connector. Heat-shrink tubing secures every junction and tucks away unused wires, making the hacked internals safe and tidy. The viewfinder’s original controls still function: brightness and contrast knobs allow fine tuning, and the focus-peaking switch remains active. According to the project description, even when contrast is turned down, text stays readable and shadow detail surpasses what many laptop screens show under similar conditions. An HDMI-to-composite adapter turns the setup into a bridge between modern sources and this retro monochrome display, completing the transformation into a flexible DIY television project.
Designing a Compact, Furniture-Grade CRT TV Stand
Electronics alone do not make a satisfying DIY television project, so Monsma built a custom wooden base to give the converted viewfinder a finished look. He carved channels into scrap wood to hide cables underneath, marked and drilled screw locations, then fastened the metal viewfinder shell to the board with small machine screws. A coat of white paint on the housing and Danish oil on the base turned a rough prototype into a cohesive object that resembles a purpose-built mini monitor rather than a lab experiment. The original sunshade was repurposed to flip over and form a flat top surface, ready to hold a small gadget or accessory. The hardwood mount keeps the unit stable and helps the CRT’s modest footprint stay organized on a desk, making this example of vintage electronics repurposing as practical as it is nostalgic.
Why Vintage Electronics Repurposing Still Matters
In use, the converted broadcast camera viewfinder behaves like a small, sharp CRT TV. After a brief warm-up, the monochrome image locks in and remains steady, free from the scaling artifacts common on low-cost LCDs. Monsma ran classic games and assorted video clips through it, fed by composite sources and an HDMI-to-composite converter. The analog input accepts old camcorders, retro consoles, and any device that outputs composite video, extending the life of gear that might otherwise sit idle. This kind of CRT TV conversion shows how broadcast-grade components can be adapted for consumer use with careful electrical work and thoughtful design. It proves that salvaged professional hardware still has value, turning surplus equipment into distinctive, reliable displays instead of e-waste, and giving makers a template for their own vintage electronics repurposing projects.
