What a DIY handheld console is and why builders love them
A DIY handheld console is a custom-built portable gaming device that combines recycled hardware, microcontroller-powered controls, and hand-made enclosures into a battery-powered system designed around the maker’s own play style. Instead of buying an off-the-shelf handheld, builders create one-of-a-kind machines from spare parts, broken home consoles, and 3D printed shells. The appeal is flexibility: you can keep the hardware you love, from classic PS2 Slim boards to retro controllers, and refit them into portable systems. These projects range from tidy, CAD-modeled cases to wild, duct-taped experiments. Many include retro console mod work, Bluetooth-capable controllers, and multi-hour battery packs. While they demand soldering, wiring, and some comfort with power electronics, they reward you with a handheld that no commercial device can match for personal quirks, repairability, and sheer character.
Turning a PS2 Slim into a duct-taped portable

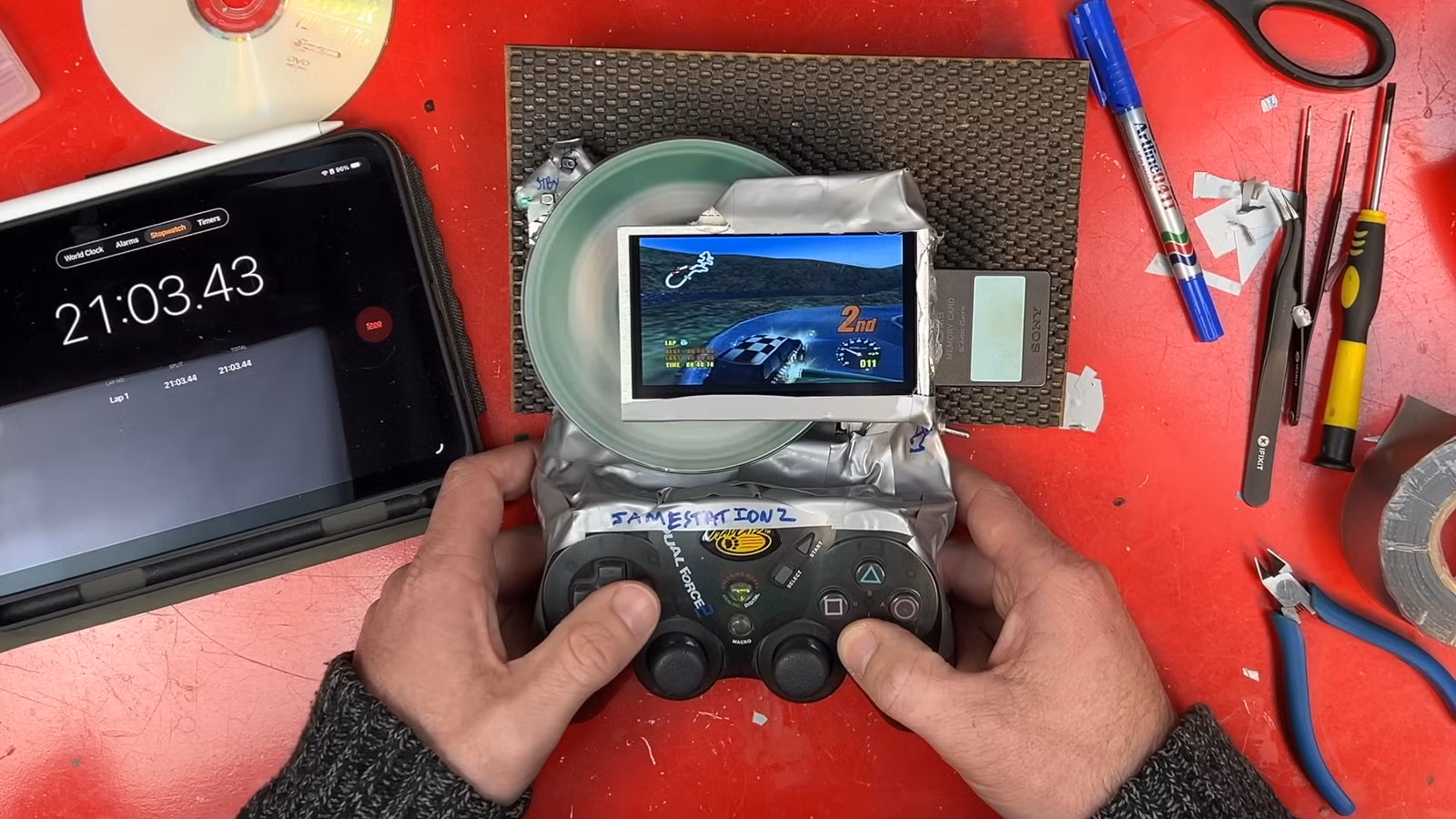

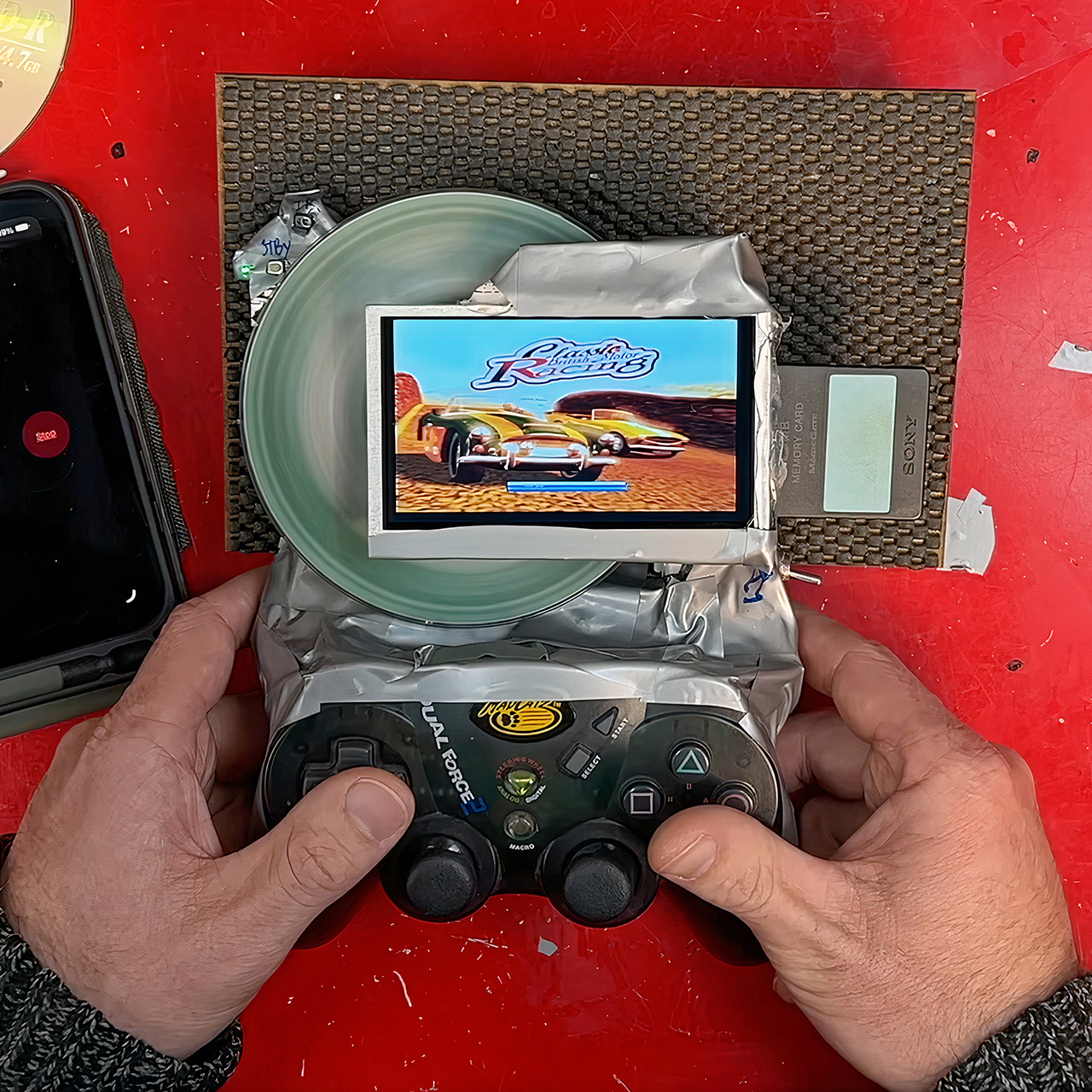

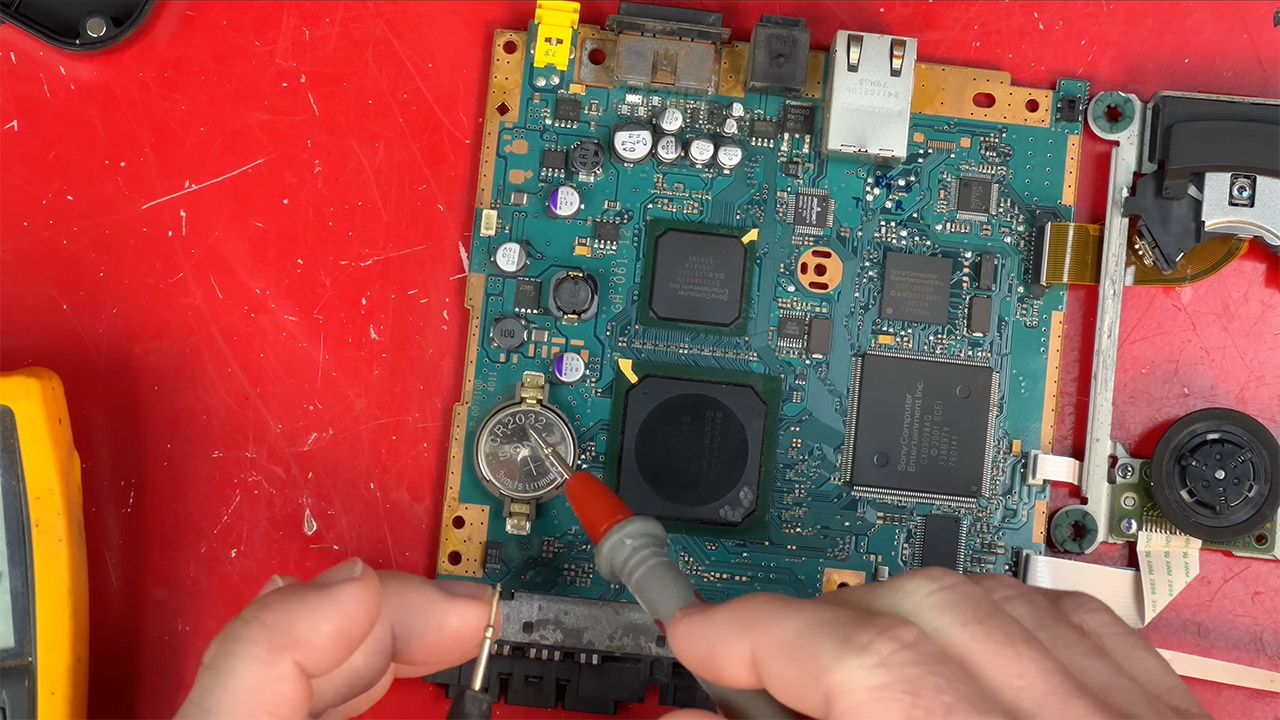

One of the boldest examples of custom portable gaming is James Channel’s PS2 Slim handheld, built from a non-functional console rescued from a pile of spare parts. He diagnosed the dead optical drive by measuring a failed CMOS battery and then editing EEPROM values with Sony-style calibration tools to restore the CD and DVD laser. A small LCD from a budget reversing camera became the screen, wired through the original AV port and powered by a regulator board. For controls, he gutted a Mad Catz Dual Force 2, hot-gluing its sticks and face buttons into a new layout. The whole rig is clamped together with extensive duct tape, including around the exposed flywheel disc drive that spins like a tiny buzz saw. According to XDA, the 10,000mAh power bank inside delivers around five hours of play.
Designing and printing a custom 3D printed controller
Before you can enjoy a DIY handheld console, you need a good way to control it. Maker Arnov Sharma’s ESP32-C6-based Xbox-style controller shows how to design a 3D printed controller from scratch. He arranged the dev board, analog joysticks, custom button PCBs, and a lithium cell in CAD, keeping the familiar Xbox button layout but reshaping the body into a rounded cuboid with a curved back. The shell and buttons were printed in contrasting PLA colors, then screwed together around the electronics. For the iconic Xbox button, he even 3D printed a pseudo-PCB that holds a 12×12 tactile switch, soldering wires directly to the leads instead of using a traditional board. The ESP32C6 DevKit handles Bluetooth, so the controller pairs with a PC and works in Steam like a standard pad, turning a home-built 3D printed controller into a practical everyday input device.
Building disc drives and power systems for portable play

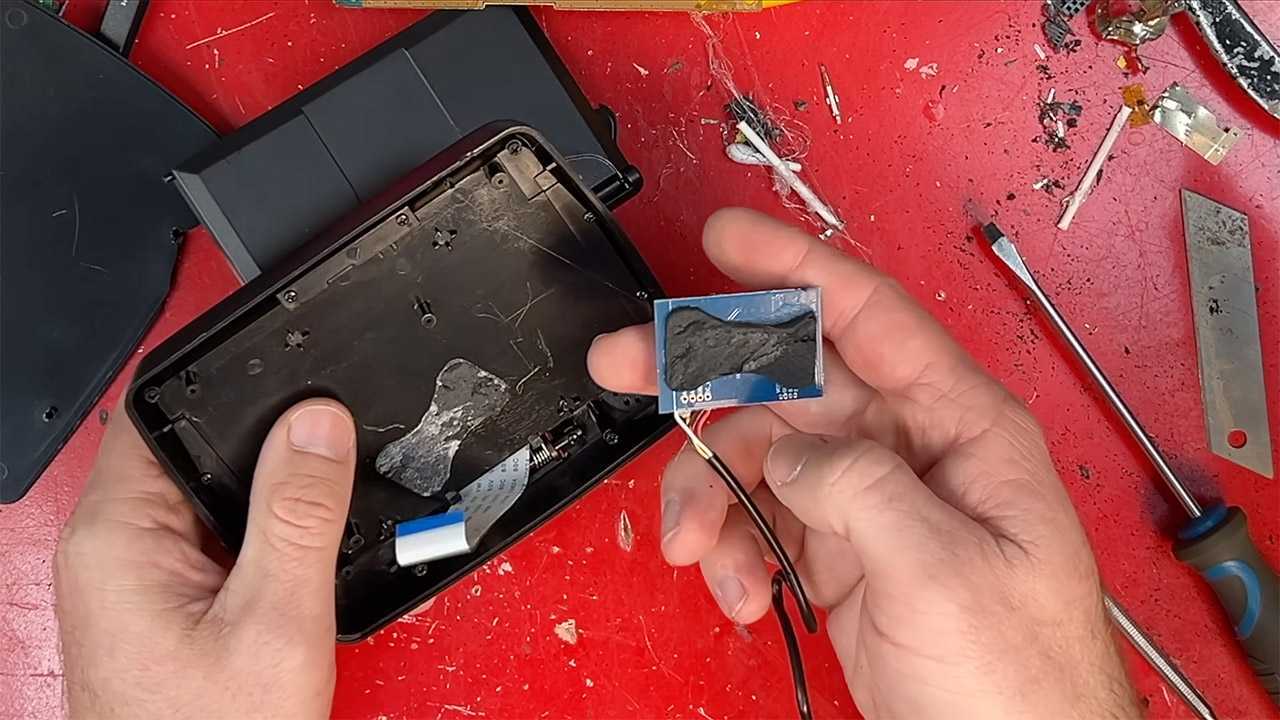

Optical media and batteries are the hardest parts of a PS2 portable build, but they are also where makers show the most creativity. James Channel’s handheld keeps the PS2’s disc mechanism but exposes the spinning disc on one face, turning it into a literal centerpiece. This unusual mechanical design proves you can route discs, cabling, and cooling in unconventional ways as long as the laser stays aligned and protected from major shocks. Power comes from a modified 10,000mAh power bank tied into a regulator to feed the PS2 Slim’s specific voltage needs, with USB-C charging for everyday use. On the controller side, Arnov Sharma uses a compact 3.7V, 500mAh 14500 lithium-ion cell with a PCM module spot-welded via a handheld TIG welder instead of soldering on the cell terminals, improving safety while still achieving hours of wireless gameplay.
Why custom portables beat commercial handhelds for tinkerers
DIY builders are proving that custom portable gaming rigs can rival, and sometimes beat, commercial handhelds for flexibility. A PS2 portable build preserves full backward compatibility with original discs, while homebrew ESP32 controllers can be remapped for anything from PC shooters to retro console mod projects. Because everything is hand-wired and exposed, repairs and upgrades are easier: you can swap in new screens, bigger batteries, or different sticks without waiting for official parts. The JamesStation 2’s five-hour runtime from a 10,000mAh pack shows what recycled power banks can achieve in a handheld, and similar packs can keep microcontroller-based controllers going even longer. More important than any single specification is the freedom to experiment. Every DIY handheld console tells a different story, whether wrapped in duct tape or housed in a sleek 3D printed shell, and that uniqueness is something mass-produced portables cannot provide.
