Two Compact NAS Systems, Two Very Different Philosophies
Minisforum’s new NAS strategy combines an AMD Strix Halo NAS for AI‑heavy tasks with an Intel Wildcat Lake NAS for fanless all‑flash storage, letting buyers choose between maximum compute performance and near‑silent, compact NAS systems built around solid‑state media and 10GbE networking. At one end sits the N5 Max, a Strix Halo NAS with an AMD Ryzen AI Max+ 395 chip, discrete‑class Radeon 8060S graphics, and high‑bandwidth memory, positioned as a hybrid between an AI workstation and a multi‑bay 10GbE NAS. At the other end is the S5, a Wildcat Lake NAS built as an ultra‑compact, ultra‑silent 10GbE NAS that depends entirely on M.2 SSDs and a passively cooled aluminum chassis. Together, they mark a shift from simple file servers toward task‑specific, compact NAS systems that either prioritise AI acceleration and raw power or low noise and low maintenance.
N5 Max: Strix Halo NAS Aimed at Local AI and Heavy Workloads

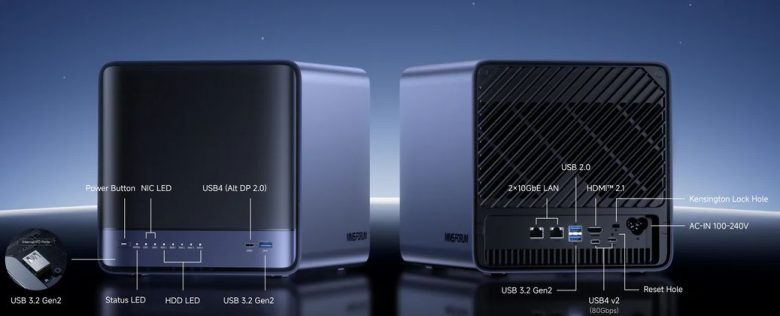

The MINISFORUM N5 Max targets power users who want a Strix Halo NAS that behaves like a full workstation. It pairs an AMD Ryzen AI Max+ 395 processor with a 16‑core, 32‑thread CPU and Radeon 8060S GPU, backed by 64GB of LPDDR5X‑8000 and a 128GB SSD for the pre‑installed OS. According to Liliputing, “the N5 Max is now available for $2599 (approx. RM12,000) (or $2469 (approx. RM11,400) when you order by June 15 using the coupon codes).” The 199 × 202.4 × 252.3mm chassis fits 5 SATA drive bays plus 5 M.2 2280 slots, with RAID 0/1/5/6 and up to 200TB of potential storage. Dual 10GbE ports, multiple USB4 connections, HDMI 2.1 and an internal USB 3.2 Gen 2 port turn it into a dense, fast 10GbE NAS suitable for local AI inference, media editing or even gaming. The trade‑off is noise: five fans and a 250W PSU favour cooling and sustained load over silent operation.
S5: Wildcat Lake NAS for Fanless All‑Flash Storage

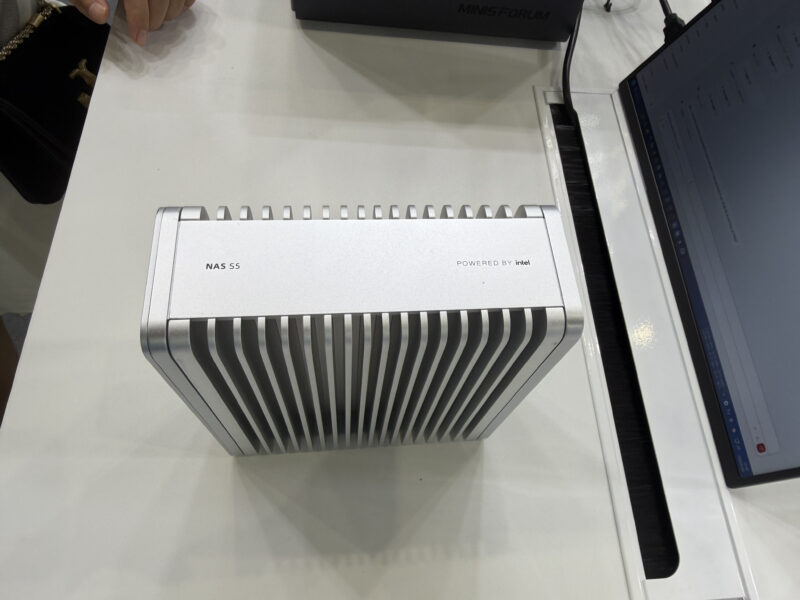

Where the N5 Max prioritises compute, the S5 focuses on fanless all‑flash storage using Intel’s Core Series 3 Wildcat Lake platform. Minisforum equips the S5 with a low‑power laptop chip (at least 5 CPU cores), 12GB of LPDDR5X‑7500 and a 64GB UFS 2.2 module for the OS, keeping the five M.2 2280 slots free for NAS duties. Each slot connects via PCIe Gen4 x1, favouring capacity over peak SSD speed while still feeding a 10GbE NAS link. The compact aluminum case doubles as a passive heatsink with integrated fins, enabling silent, always‑on operation with no moving parts. ServeTheHome notes that the final PCIe lane goes to a Realtek RTL8127 10GbE controller, supplementing native 2.5GbE, USB4, Wi‑Fi 7 and HDMI 2.1 for a surprisingly capable, compact NAS system. Limited AI tools ship with MiniCloud OS, but the S5 is clearly tuned for quiet, solid‑state storage rather than heavy AI workloads.
10GbE as the Common Thread in Compact NAS Systems
Despite their different targets, both Minisforum designs share a key trait: 10GbE networking as standard in compact NAS systems. The N5 Max features two 10 Gigabit LAN ports (Realtek RTL8127), giving enough bandwidth to feed multiple 3.5‑inch drives and SSDs for demanding workflows like video editing or large AI datasets. The S5, though limited to PCIe Gen4 x1 per SSD, still gains a significant boost from its single 10GbE port partnered with 2.5GbE and USB4, aligning aggregate SSD throughput with network capacity. This shared move to 10GbE NAS connectivity pushes these machines closer to small enterprise or advanced home‑lab territory, but in far smaller, denser boxes than traditional rackmount gear. For users who previously dismissed mini‑PC‑style NAS units as too slow for serious work, Minisforum’s dual‑platform approach argues that form factor no longer has to limit link speed or storage flexibility.
Who Should Buy Which: AI Enthusiasts vs Silent Storage Seekers
Minisforum’s split strategy makes the buying decision less about brand and more about priorities. If you want local AI models, GPU‑accelerated media work, or a combined gaming and storage station, the Strix Halo NAS in the N5 Max clearly fits better, trading fan noise and higher power draw for much stronger CPU and GPU resources plus dual 10GbE. If your main goal is reliable, silent, always‑on storage, the Wildcat Lake NAS in the S5 stands out: fanless all‑flash storage, low power use and an aluminum heat‑sink chassis that can run quietly in a living room or home office. Both benefit from MiniCloud OS and standard 10GbE, but they diverge on personality: N5 Max is an AI‑ready performance box that happens to be a NAS, while S5 is a minimalist, quiet 10GbE NAS that adds light AI features without chasing heavy acceleration.
