Ryzen 7 7700X3D: The Budget V-Cache Gaming CPU That Challenges High-End Builds

Verdict: A Cheaper 7800X3D That Makes Sense at the Right Price

The Ryzen 7 7700X3D is an eight-core Zen 4 desktop processor that adds AMD’s 3D V-Cache technology to deliver higher gaming performance at lower clock speeds and a reduced price compared with flagship V-Cache chips. In plain terms, it is a slightly downclocked, more affordable version of the 7800X3D, aimed at gamers who care about frame rates more than synthetic benchmark scores. My bottom-line verdict: as a budget gaming processor, the 7700X3D is excellent for mid-to-high-end builds when discounted, but only decent at its full MSRP. You give up around 5–10% peak clocks and a handful of frames per second versus the 7800X3D, yet retain the same core count and cache, making it a smart buy for value-focused enthusiasts rather than benchmark chasers.

Architecture and Specs: Zen 4 with 3D V-Cache, Dialed Back Clocks

At its core, the Ryzen 7 7700X3D is built on AMD’s Zen 4 architecture and uses a single eight-core CCD plus an I/O die, with a 1 × 8 core configuration. The defining feature is 3D V-Cache, a packaging design that stacks extra cache vertically on top of the cores, placing the cache die between the cores and the cooler; this layout limits heat dissipation and forces clock speed caps on first-generation 3D V-Cache chips such as the 7700X3D. Officially, it offers eight cores and 16 threads, a base clock of 4.0 GHz and boost up to 4.5 GHz, a 120W TDP, and up to 128GB of DDR5 support. AMD quotes a total cache of 104MB, while the L3 portion sits at 96MB, giving the chip its strong gaming focus. It is rated to operate at temperatures up to 89°C, and no box cooler is included. The launch price is USD 329 (approx. RM1,510), with listings soon dropping to USD 279 (approx. RM1,280), which finally makes the value story compelling.

Real-World Performance: Close to a 7800X3D Where It Matters

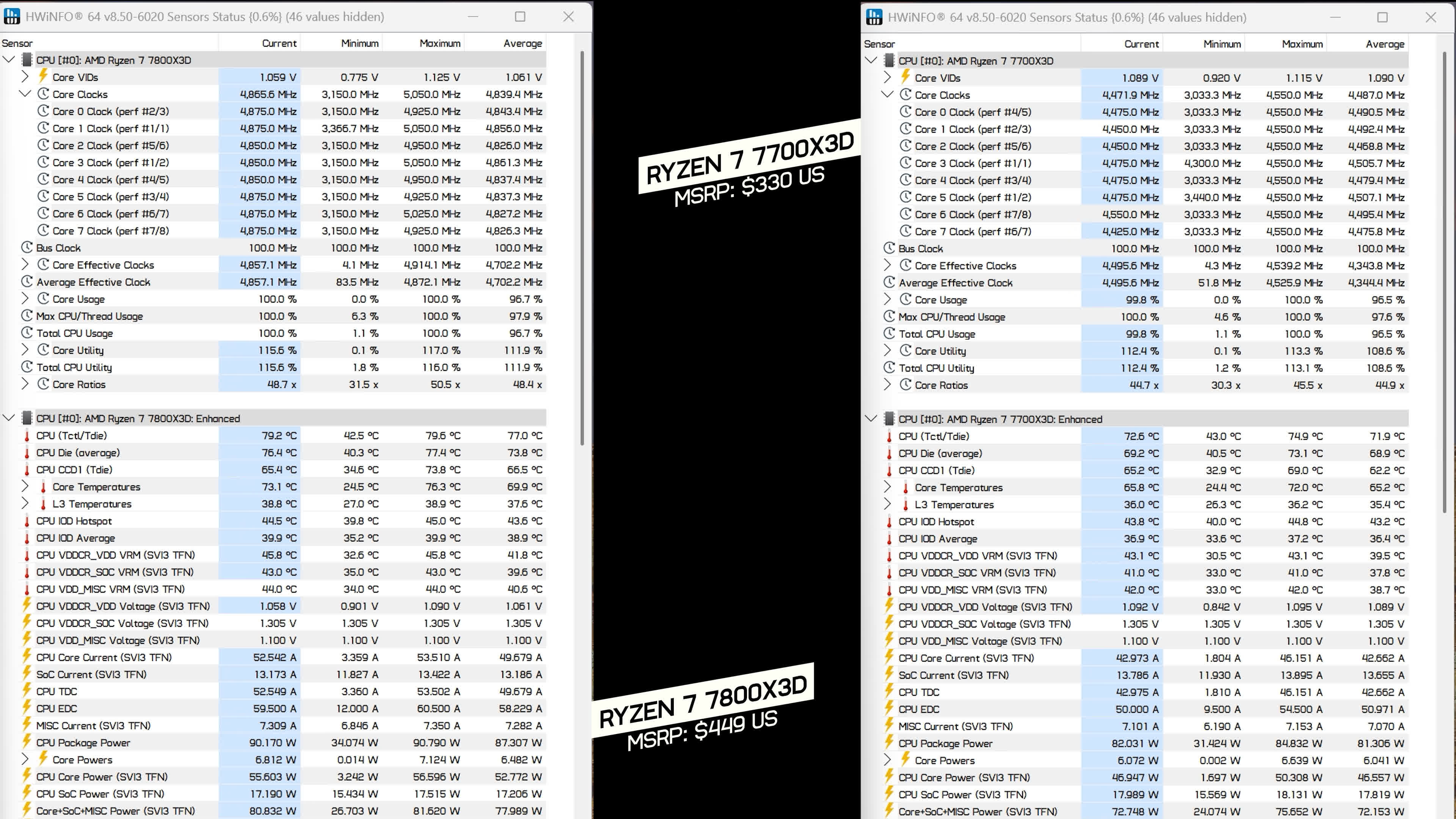

Measured behavior confirms that the Ryzen 7 7700X3D is “simply a downclocked 7800X3D” in practice. In Cinebench 2026 all-core loads, the 7800X3D runs at 4.85 GHz while the 7700X3D sits at 4.55 GHz, making the flagship about 7% faster with a similar 7% jump in power from 85W to 91W and a temperature rise from 75°C to 80°C. In single-core, the gap widens to 11%, with the older chip hitting 5.05 GHz versus 4.55 GHz on the new one. Yet, in games, the difference is smaller and often invisible once the GPU becomes the limit. Across 13 tested titles, the 7700X3D is commonly 4–10% slower than the 7800X3D at lower presets, but as soon as you push visual quality and GPU load, the frame rates converge, with the 7700X3D matching or nearly matching high-end alternatives, including AMD’s own 9800X3D in heavily GPU-bound scenarios.

Game Benchmarks: Strong 1080p Numbers for a Budget Gaming Processor

Game-by-game results show how the Ryzen 7 7700X3D behaves as a V-Cache gaming CPU. In Rainbow Six Siege X at 1080p Medium, it is 8% behind the 7800X3D and roughly on par with cheaper 3D V-Cache options like the 7500X3D, but still 6% faster than Intel’s Core Ultra 7 270K Plus and 21% ahead of the Core Ultra 5 250K Plus. In Marvel Rivals at 1080p Medium, it averages 216 fps with 1% lows of 165 fps, ending up about 10% slower than the 7800X3D yet ahead of the 250K Plus and only slightly behind the 270K Plus. Horizon Zero Dawn Remastered sees it averaging 232 fps at 1080p Medium with 1% lows of 150 fps, just 4% behind the 7800X3D and 19% faster than the older 5800X3D. Cyberpunk 2077: Phantom Liberty at Medium shows 203 fps with 1% lows of 148 fps, around 7% slower than the 7800X3D but ahead of both Core Ultra chips and 13% above the 5800X3D.

Platform, Value Positioning and the Real Trade-Offs

The Ryzen 7 7700X3D drops into existing AM5 boards and plays nicely with X870E test platforms, so anyone already on AM5 can treat it as a straightforward gaming-focused upgrade. Compared with the older 7700X, AMD’s internal data shows up to 9% more gaming performance thanks to the stacked cache. The trade-offs are clear: lower base and boost clocks than the 7800X3D, and capped frequencies due to the thermally constrained V-Cache layout, mean you lose some performance in single-threaded workloads and a few frames in the most CPU-bound games. But once the price dips to USD 279 (approx. RM1,280), the 7700X3D undercuts the 7800X3D’s original MSRP by a wide margin and offers near-flagship gaming results at mid-range money. Effectively, it is positioned as a budget alternative to the 7800X3D, aimed at mid-to-high-end gaming builds that pair it with strong GPUs rather than chasing the last 5% of CPU performance.

Buy if / Skip if

• Buy the Ryzen 7 7700X3D if you want near-flagship gaming performance and are happy to trade a few fps for a noticeably lower CPU price.
• Skip the Ryzen 7 7700X3D if you already own a 7800X3D and would gain little from switching to a slower binned variant.
• Buy the Ryzen 7 7700X3D if you are building a mid-to-high-end gaming rig on AM5 and want a V-Cache gaming CPU that slots into existing X870E or X670E boards.
• Skip the Ryzen 7 7700X3D if you prioritize maximum single-core or all-core performance over gaming and prefer higher clock speeds instead of extra cache.
• Buy the Ryzen 7 7700X3D if you can pick it up around USD 279 (approx. RM1,280) and care about value more than absolute benchmark leadership.
• Skip the Ryzen 7 7700X3D if you are satisfied with an existing 5800X3D or similar and do not plan to move to AM5 yet.
