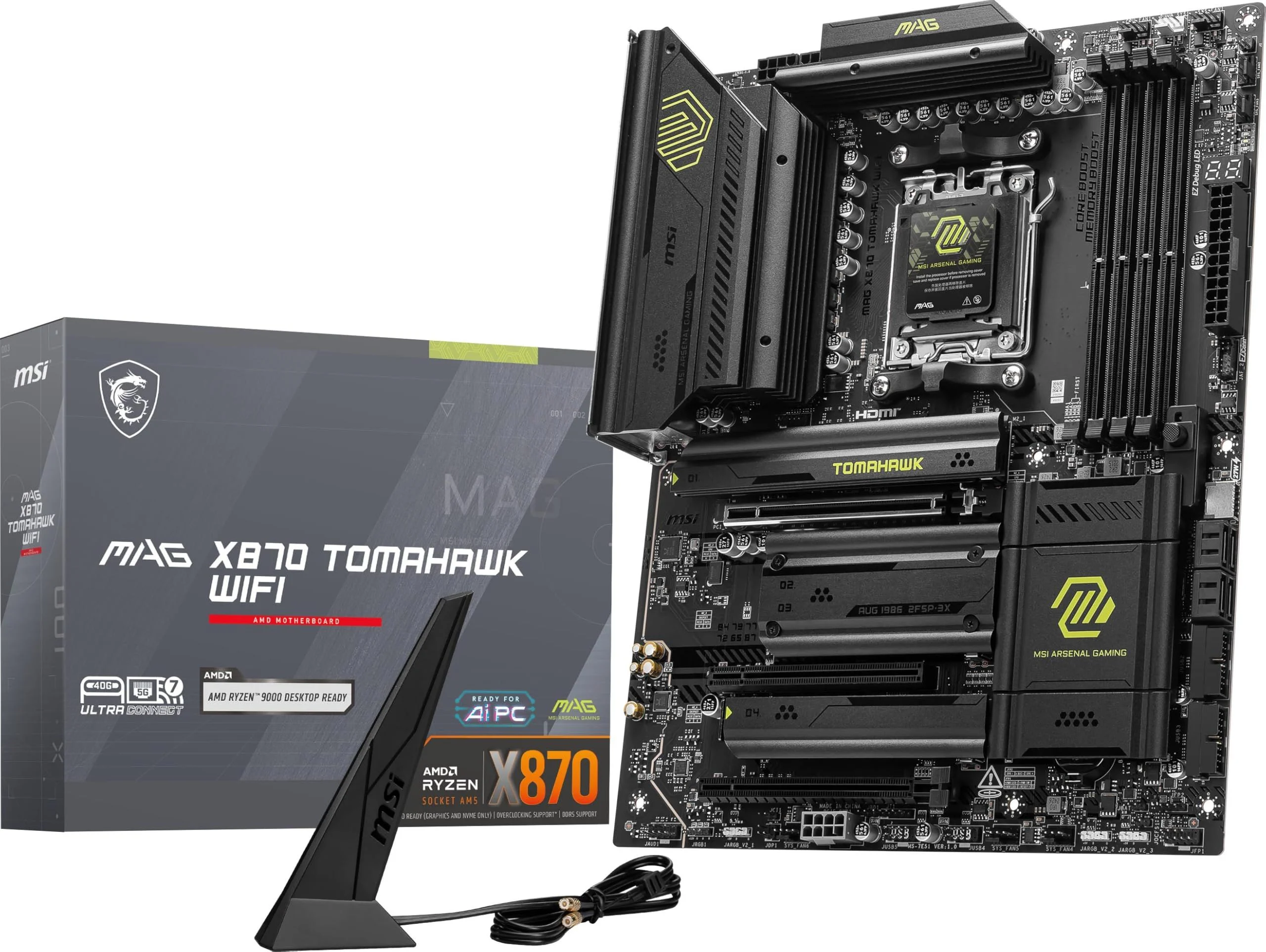

Top Pick: MSI MAG X870 Tomahawk WiFi for Most Ryzen Gamers
B850 gaming motherboards are AM5 platforms that pair current Ryzen 7000 and 9000 processors with PCIe 5.0 graphics and Gen5 NVMe storage, Wi-Fi 7 networking, and DDR5 memory, giving high-end gaming builds modern bandwidth, fast storage expansion, and strong upgrade room over older chipsets. For most builders, the MSI MAG X870 Tomahawk WiFi is the best Ryzen motherboard to buy because it hits the sweet spot between features and cost, avoiding wasted extras while still feeling premium for a long-term gaming rig. It supports AMD AM5 with the X870 chipset and works with Ryzen 9000, 8000, and 7000 desktop processors, offers four DDR5 UDIMM slots up to 256 GB with 8400+ MT/s overclock speeds, four M.2 slots including two CPU-connected PCIe 5.0 x4 sockets, plus a PCIe 5.0 x16 primary slot and dual USB 40 Gbps Type-C. Networking is excellent: Realtek 5G LAN, Wi-Fi 7, and Bluetooth 5.4 keep latency low on busy networks. Debug LEDs and a debug code display make it far easier to diagnose boot issues with new memory or storage. This board is ideal if you want high-end gaming performance for chips like Ryzen 7 9800X3D or Ryzen 9, with strong PCIe 5.0 storage support and networking, but you do not want to pay flagship prices. The main drawbacks are that USB4 and the second Gen5 M.2 slot share bandwidth in some layouts and the ATX form factor will not fit smaller cases.

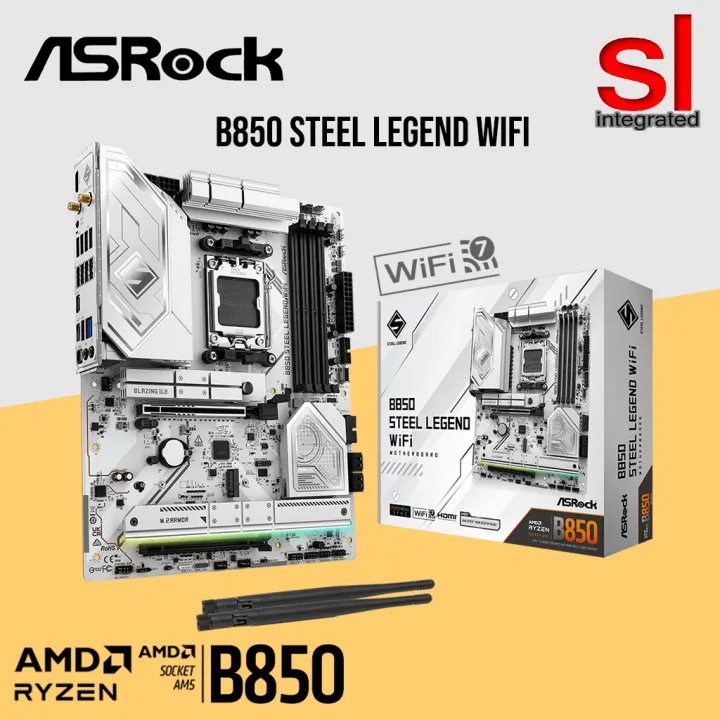

Best Value B850 ATX: ASRock B850 Steel Legend WiFi
If you want a B850 gaming motherboard that keeps costs down without losing PCIe 5.0 storage support or Wi-Fi 7, the ASRock B850 Steel Legend WiFi ATX is the clear value choice. It brings most of the important AM5 features to a lower tier, making high-end gaming builds more accessible while still supporting Ryzen 9000, 8000, and 7000 series processors. The board uses a 14+2+1 phase power design with 80A Dr.MOS for VCore and SOC, giving reliable power delivery for modern chips. You get four DDR5 DIMM slots up to 256 GB with 8000+ MT/s overclock support, one PCIe 5.0 x16 slot for the GPU, one PCIe 4.0 x16 slot, a Gen5 x4 M.2 socket, three Gen4 x4 M.2 slots, and four SATA3 ports. Realtek 2.5G LAN and 802.11be Wi-Fi 7 plus Bluetooth keep networking current. According to the source, this board packs “very strong specs for an AM5 gaming board at a lower price tier.” It is a smart fit for gamers who care about value, enough M.2 slots for a modern library, and Wi-Fi 7, but do not need USB4 or 5G LAN built in. The clear downsides are the lack of USB4, 2.5GbE instead of 5GbE, and white styling that might clash with some builds.
Specialist Pick: Gigabyte B850 Aorus Elite X3D for X3D CPUs
For dedicated gaming systems built around Ryzen X3D processors, the Gigabyte B850 Aorus Elite X3D is the specialist board to choose. It is a performance motherboard for the AMD AM5 platform that supports Ryzen 9000, 8000, and 7000 processors with targeted tuning for X3D chips. The headline feature is X3D Turbo Mode 2.0, proprietary software that optimizes gaming performance under heavy workloads and adjusts CPU power draw based on active gaming to squeeze extra frames out of your processor. A 16+2+2 phase digital power design on a six-layer PCB with 2 ounce copper helps keep temperatures low and power delivery clean when X3D chips boost. DDR5 memory overclocking reaches up to 8200 MT/s, giving high refresh rate monitors the frame pacing they need. Connectivity is modern with Wi-Fi 7 and DriverBIOS, and quick-release systems on the PCIe slot, M.2 drives, and heatsink armor make hardware swaps tool-free. This board is best for gamers who want every last bit of performance from Ryzen X3D chips and appreciate builder-friendly quick-release hardware. The main compromises are that it focuses its value tightly on gaming and tuning; buyers who want broad workstation features or multiple USB4 ports may find it too specialized.
Premium Storage Builds: ASUS ROG Strix X870E-E and B850 Alternatives
Some high-end gaming builds double as content or storage workhorses, and that is where an X870E board such as the ASUS ROG Strix X870E-E Gaming WiFi makes sense alongside B850 options. It uses the AMD X870E chipset with AM5 and supports Ryzen 9000, 8000, and 7000 desktop processors. The standout is its dense PCIe 5.0 storage layout: five M.2 slots total, including three PCIe 5.0 x4 sockets with Ryzen 9000 and 7000 CPUs, plus a PCIe 5.0 x16 primary slot for a flagship GPU. Two USB4 40 Gbps Type-C ports with display output support round out high-end connectivity. This board fits builders who need multiple Gen5 SSDs, USB4 devices, and an enthusiast tuning feature set for Ryzen 9 or X3D chips. However, the premium price and complex lane allocation can be overkill for gaming-only PCs, and its software stack may feel heavy to minimalists. In contrast, mainstream B850 choices like the ASUS TUF Gaming B850-Plus WiFi ATX and compact ASUS ROG Strix B850-I Gaming WiFi Mini-ITX focus on practical PCIe 5.0 graphics, Wi-Fi 7, and enough M.2 slots for typical libraries rather than extreme storage builds.
How to Choose: Form Factor, Features, and Networking
When choosing among the best Ryzen motherboards, focus on three to five criteria that matter in real gaming builds. Sources highlight platform support, chipset features, expansion layout, storage capacity, networking, USB or Thunderbolt connectivity, diagnostics, and form factor as the key factors. Priority goes to boards with current CPU support, DDR5 memory, PCIe 5.0 where it matters, enough M.2 storage, reliable wired and wireless networking, and a clear fit for a specific type of build. Decide first on form factor: ATX boards such as the MSI MAG X870 Tomahawk, ASRock B850 Steel Legend, and ASUS TUF Gaming B850-Plus WiFi suit mid-tower cases and more expansion, while Micro-ATX and Mini-ITX options like the B850-I target small-form-factor systems with tighter cooling layouts. Then match PCIe 5.0 storage support and GPU lanes to your performance goals. Finally, choose networking: Wi-Fi 7 motherboards are now common on B850 and X870/X870E platforms, with 2.5G or 5G LAN depending on how much you value low-latency wired connections.
- Buy the MSI MAG X870 Tomahawk WiFi if you want the most complete AM5 feature mix with 5G LAN, Wi-Fi 7, and dual Gen5 M.2 for a primary gaming rig.
- Skip the MSI MAG X870 Tomahawk WiFi if your case cannot fit an ATX board or you need dedicated, non-shared USB4 bandwidth.
- Buy the ASRock B850 Steel Legend WiFi if you need a value-focused B850 gaming motherboard with PCIe 5.0 graphics, Gen5 M.2, DDR5, and Wi-Fi 7.
- Skip the ASRock B850 Steel Legend WiFi if you require USB4 or faster-than-2.5GbE wired networking out of the box.
- Buy the Gigabyte B850 Aorus Elite X3D if you are building around a Ryzen X3D chip and want X3D Turbo Mode 2.0 and targeted gaming tuning.
- Skip the Gigabyte B850 Aorus Elite X3D if your workload is mostly productivity or workstation tasks and you do not need gaming-focused boost software.
- Buy the ASUS ROG Strix X870E-E Gaming WiFi if you plan a high-end system with multiple Gen5 SSDs, USB4 devices, and a flagship GPU.
- Skip the ASUS ROG Strix X870E-E Gaming WiFi if you want a leaner, gaming-only build where extra storage lanes and enthusiast extras are not worth the premium.
