Your FPS Problem Is Probably Not the GPU
CPU bottleneck diagnosis is the process of checking whether your processor, its firmware settings, or thermal limits are slowing down your graphics card and overall system performance even when the GPU appears healthy and underused, leading to hidden performance issues that many people mistake for faulty hardware or bad drivers.
Lower frame rates usually send people rushing to blame the graphics card, its drivers, or even the game, while the CPU quietly gets a free pass. That habit is backwards. In a modern gaming PC, GPU performance depends entirely on CPU pairing, memory configuration, and firmware limits; if any of those choke, your expensive card sits idle instead of rendering frames. When your CPU makes your GPU wait, it shows up as lower GPU usage instead of dramatic error messages. If GPU usage hovers around 80% instead of sitting close to 100%, those missing frames are waiting in the CPU queue, not in the GPU pipeline. It all comes down to CPU‑GPU pairing: a fast card chained to a misconfigured or throttling processor will behave like a mid‑range setup, no matter how much you spent.
This is why upgrading to a high‑end GPU for a high‑end gaming PC only makes sense once you know your current CPU can keep up. Before thinking about a new graphics card, you should be asking a sharper question: “Is my CPU, firmware, and cooling letting my existing GPU run at 99% when it matters?”
Reading the Signs: How to Spot a Real CPU Bottleneck
Once your frame rates climb into the triple digits, most games quietly become CPU‑bound, and the usual “drop settings” advice stops helping. You can lower shadow quality, reflections, and resolution, but when GPU usage still refuses to climb toward 99%, your processor is the ceiling, not your graphics card. The easiest way to confirm this is to monitor GPU usage in a tool like MSI Afterburner; when it is not sitting close to 100% and stays around 80%, your GPU has headroom it cannot use because it is waiting for the CPU to feed it frames.
This gap between usage and expectation is your red flag. At true GPU limits, you see 95–99% usage and changing CPU‑related settings barely moves the needle. At CPU limits, lowering graphics settings produces only small gains, while changes that reduce CPU load—like capping the frame rate slightly below a 240Hz monitor’s refresh—have a far bigger effect on stability and stutter. Frame generation is a band‑aid here: it can hide some of the bottleneck by inserting AI‑generated frames between real ones, but that comes at the cost of responsiveness and latency and does not remove the underlying CPU limit.
So before you mindlessly splurge on a high‑end GPU next time, make sure your current CPU can keep up. For many enthusiasts, the smarter move is not another graphics card, but fixing the configuration that keeps the existing one underfed.
Your BIOS Is Sabotaging You More Than Windows
When games stutter or benchmarks disappoint, people love blaming the operating system, background tasks, and mythical “bloat.” Yet your problems might begin long before the OS loads. Your BIOS or UEFI is one of the biggest determinants of your PC’s performance and stability; it defines CPU boost behaviour, power limits, memory speed, system temperatures, and even GPU performance. The defaults are designed for safe first boot, not for the hardware you paid for, so many gamers never change the BIOS defaults after building a PC and unknowingly throttle their system’s performance.
A classic example is memory. XMP or EXPO profiles are disabled by default, so that fancy DDR5‑6000 kit can run at much lower JEDEC speeds unless you manually choose a profile. That means lower maximum frame rates, especially in CPU‑sensitive games. For most gamers running a 32GB kit of DDR5‑6000 to DDR5‑6400, enabling these profiles is safe, while at higher capacities and frequencies some instability is expected, which is why the system can fall back to JEDEC defaults when needed.
Thermals are the other silent killer. Default fan curves are often tuned for silence over performance, so your fans ramp too late under load and the CPU approaches throttling temperatures before getting enough airflow. Thermal limits will tank your PC’s performance, and default fan behaviour can be the direct cause. Not everything is Windows’ fault; your BIOS might be misconfigured, and once you know which settings to enable, you can extract more performance without threatening stability.
Sensor Logs and AI: Finding Throttling You Cannot See

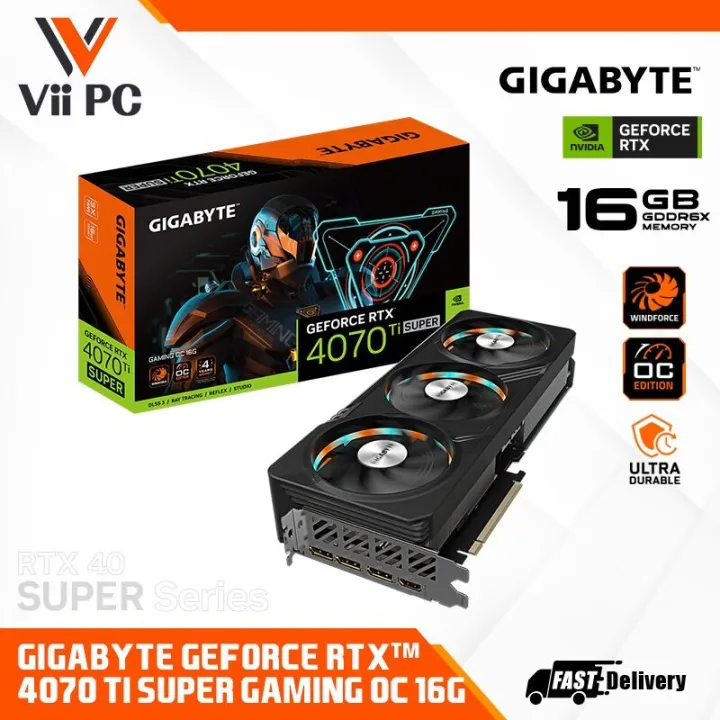

Sometimes the throttling is so subtle that even experienced users and on‑screen flags miss it. One rig with a Ryzen 5 7600X and RTX 4070 Ti Super started to show intermittent stutters in a usually fluid game, even after background processes were disabled, the frame rate was capped below a 240Hz monitor’s refresh, and the BIOS was checked for correct EXPO setup. Instead of throwing more time at forum advice or assuming the CPU was “showing its age” and needed replacing with a 9600X for around $229 (approx. RM1060), the owner logged a 30‑minute HWiNFO64 session at one‑second intervals and exported the CSV.
Those raw sensor logs went to an advanced Claude model with nothing but hardware specs and symptoms, and the AI analyzed the data in minutes. Fable 5 uncovered a pattern that human eyes and forum threads had missed. It appeared that HWiNFO’s PROCHOT and HTC throttle flags read “No” for every sample, so by AMD’s definition the CPU never throttled at all. Yet the chip was running thermally maxed out, with package power peaking at 94.5W against a stock 122W and the thermal limit falling from 93.7% to 80%.
Fable 5’s most notable achievement here was not just suggesting a Curve Optimizer offset, but pointing straight at a BIOS‑level setting that had been overlooked. In other words, AI‑assisted tools can examine sensor logs for patterns that do not show up as clear “throttling” flags and can reveal misconfigured BIOS throttling settings or power limits before you waste money on a new CPU.
A Systematic Playbook Before You Buy New Hardware
Most performance issues in gaming PCs come from firmware or configuration, not from faulty silicon. The BIOS defaults ensure stability on a new PC, but they also limit the performance of your system. Some settings can even revert to their default state when you change hardware, such as replacing a CPU, which can disable features like Resizable BAR without you noticing. Newer systems that support UEFI by default often ship with ReBAR enabled, but swapping CPUs can cause the firmware to roll back to conservative defaults and quietly cut GPU performance until you re‑enable it.
A better troubleshooting order looks like this: first, confirm whether you are CPU‑bound by watching GPU usage under load. Second, audit your BIOS: enable XMP or EXPO where appropriate, check PBO or Turbo Boost so the CPU is not holding back performance you already paid for, and fix fan curves so thermals do not trigger hidden throttling. Third, log sensor data during real workloads and, if needed, feed raw logs into an AI assistant that can spot patterns across thousands of readings.
Only after those steps should you consider expensive changes like moving to a new GPU or even a high‑end CPU such as an AMD Ryzen 7 9800X3D, which uses 3D V‑Cache to store more data on‑chip instead of in slower RAM. For many PC enthusiasts, most of the “upgrades” they need are already sitting in the firmware menu and monitoring tools, waiting to be turned on and tuned.
