The hidden enemy of high-end cooling: wrong case specs
CPU cooler clearance is the maximum height or space a computer case provides for a processor heatsink and fan assembly, and inaccurate measurements in this area can cause failed installations, poor thermal performance, and unnecessary hardware returns for enthusiast and ITX build cooling projects. Every millimeter counts because tower coolers, side panels, and case fans often occupy the same cramped vertical space. When case manufacturers lie by accident—through sloppy measurements or outdated drawings—builders who planned carefully still end up with coolers that do not fit, cases that will not close, and airflow paths that never work as intended. The result is a quiet epidemic: expensive coolers from brands like Noctua or be quiet! are blamed for "running hot" when the real culprit is misleading case specifications and confused airflow design.
Noctua did what case makers should have done in the first place: measure honestly. The company checked more than 100 popular cases and found incorrect CPU cooler clearance specs in 56 of them. That is not a rounding error; that is systemic negligence. In small-form-factor and ITX builds, where "the importance of every millimeter" decides if a build is possible at all, this is unacceptable. Enthusiasts buying premium coolers expect headaches from overclocking, not from a side panel smashing into the fin stack or a manual that understates how much room they actually have. The key takeaway: treat official case specs as marketing, not gospel.
When millimeters lie: real-world clearance failures
The most infuriating part of the CPU cooler clearance mess is that it cuts both ways. Sometimes you walk away from a preferred cooler because the spec sheet says it will not fit. Other times you commit to a big tower, then discover the case was overpromised. Both outcomes are avoidable—if manufacturers recorded reality instead of wishful thinking. Noctua’s testing shows that over half of the examined cases had bad numbers. That means today’s case compatibility issues are not rare edge cases; they are baked into the market.

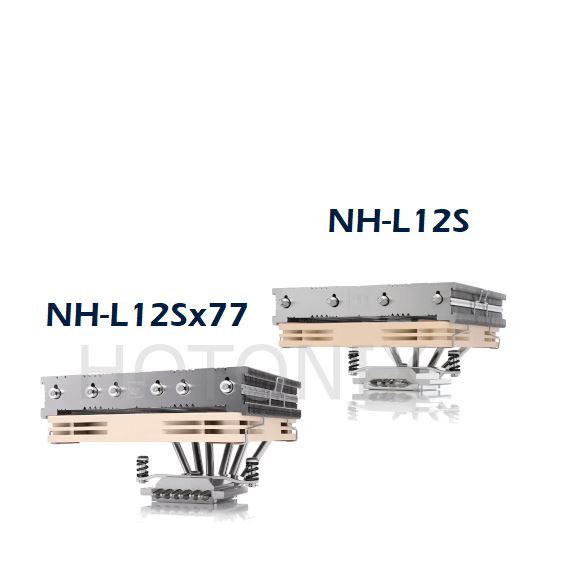

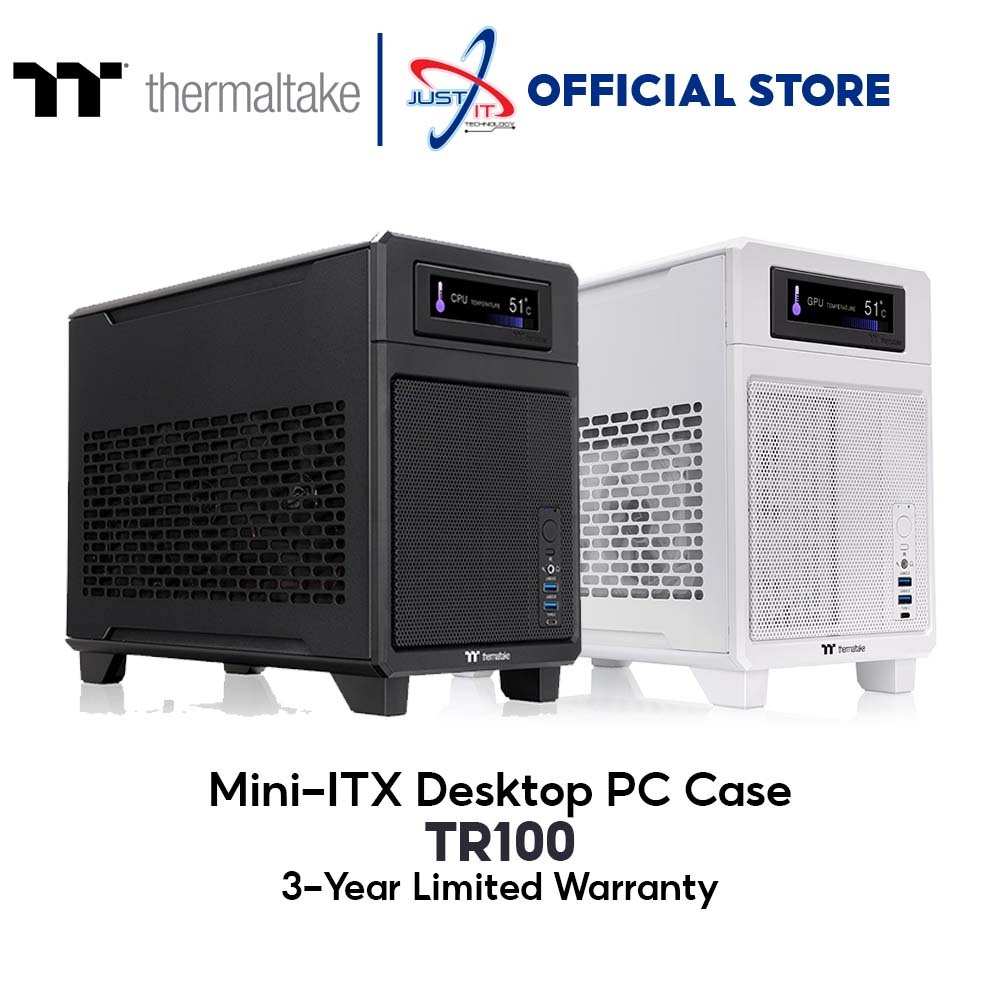

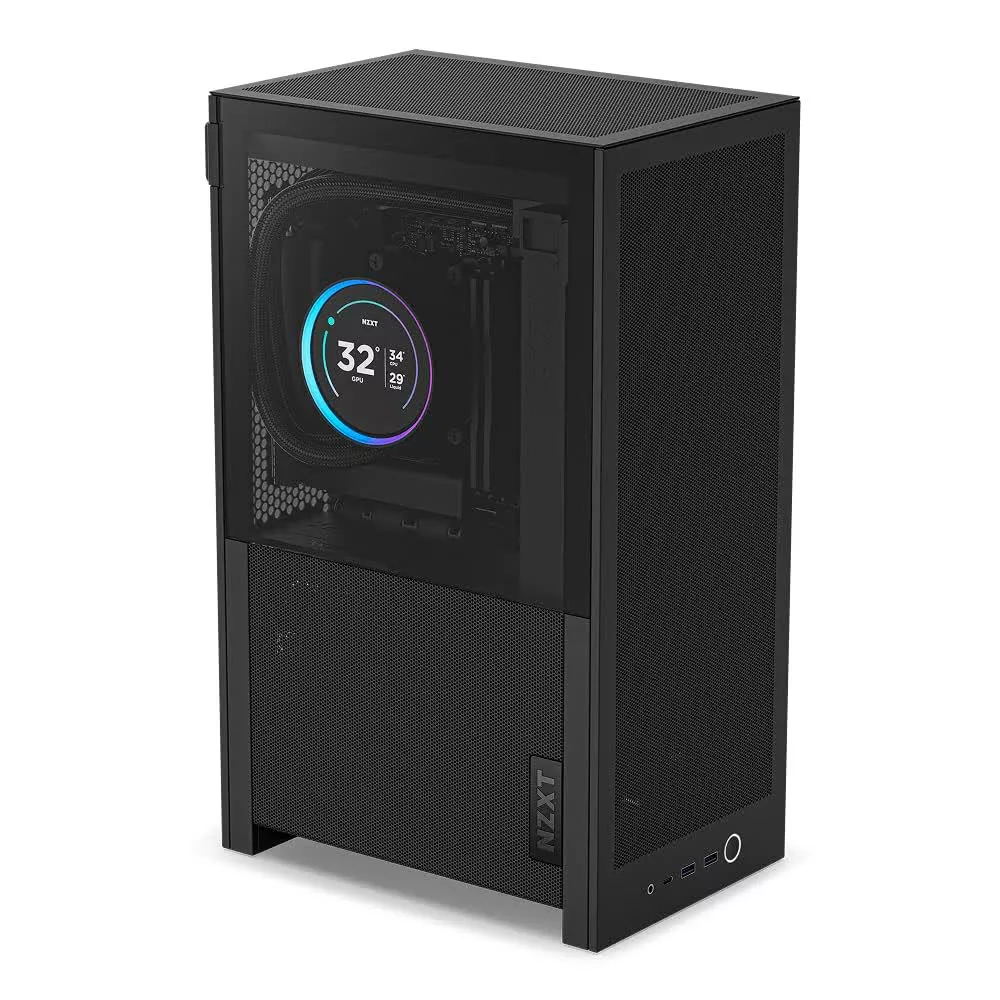

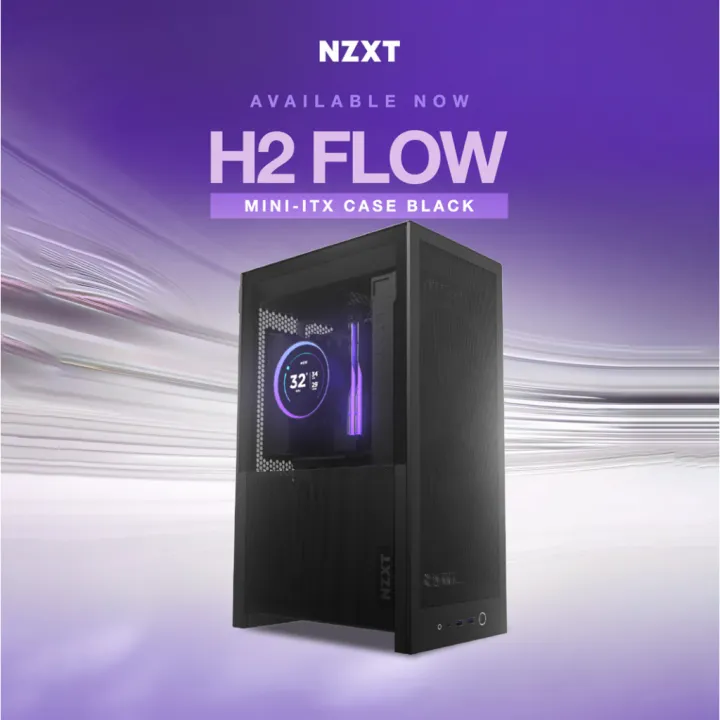

The examples are concrete. The NZXT H2 Flow is claimed to support up to 75mm of CPU cooler clearance, yet Noctua measured enough room for up to 79mm, so the NH-L12Sx77 cooler fits despite the official specs saying otherwise. The Thermaltake TR100 lists 68mm, but it can handle coolers up to 70.7mm. On the flip side, some cases are worse than advertised: the Asus Prime AP201 offers 168.3mm instead of 170mm, and the Lian Li B4-mATX has 164.5mm instead of the stated 168mm. In the best case you miss out on a cooler that would have fit; in the worst case the panel presses into the cooler or will not close at all.
Why ITX and SFF builders suffer the most
If you are building in a roomy mid-tower, you might shrug at a few millimeters of spec drift. In a compact small-form-factor or ITX case, that same error can kill an entire parts list. Noctua explicitly notes that because every millimeter matters in these builds, it felt compelled to run its own measurement campaign on popular enclosures. That alone should embarrass case vendors: cooler manufacturers should not have to maintain a shadow database to correct their numbers.
Small cases stack constraints: CPU cooler clearance, GPU length, PSU size, and fan locations fight for the same physical volume. Losing two or three millimeters means you might not be able to slide a front fan up to clear tall RAM, or you find that your carefully chosen cooler now touches the side panel. As Noctua points out, having less room than promised can prevent such adjustments entirely or make the case impossible to close. That is how builders end up blaming coolers like premium Noctua or be quiet! models for "poor thermals" when the real issue is a case that lied about its own dimensions.
When airflow works against you: the fan orientation trap

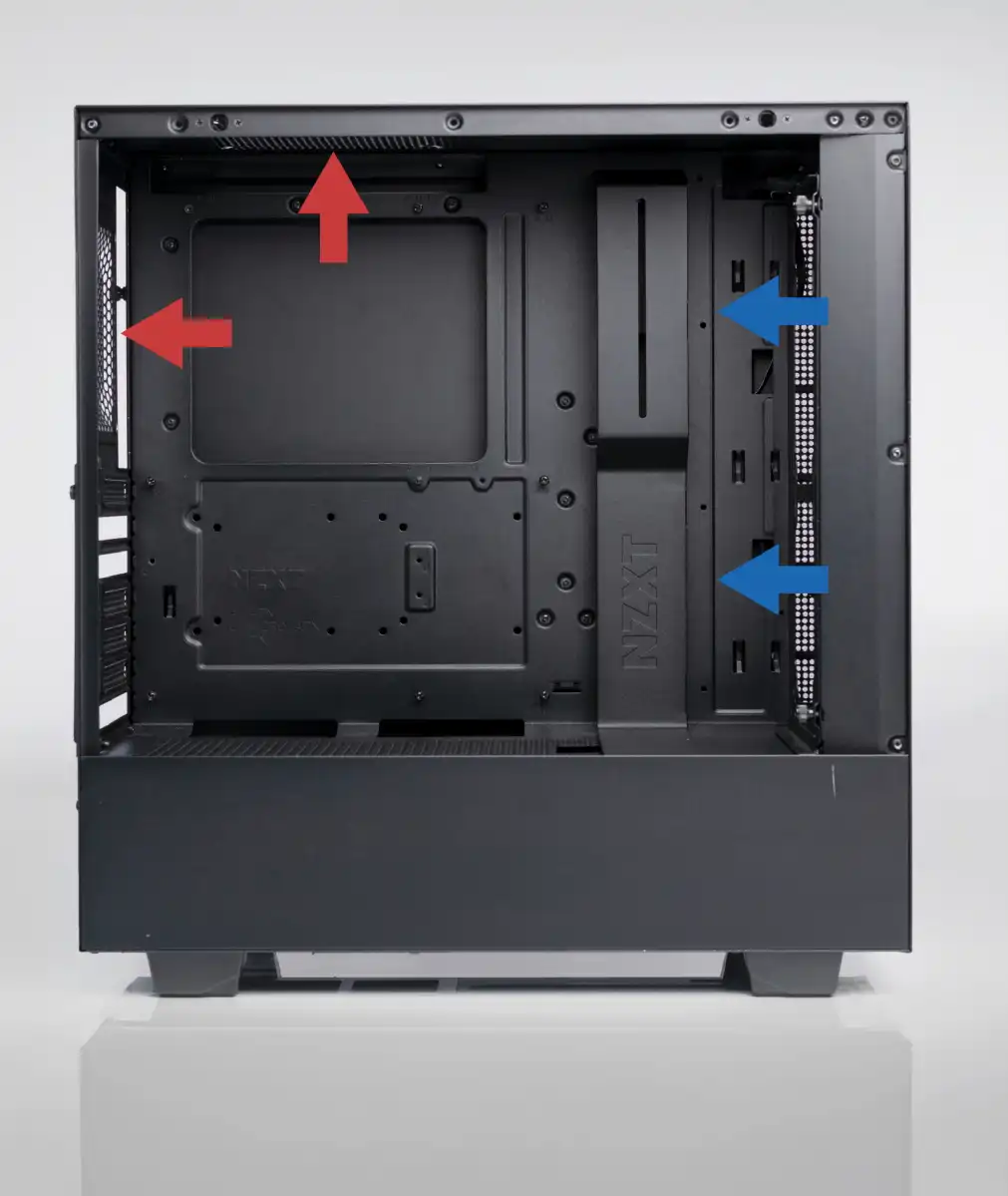

Even when your CPU cooler clearance is fine, thermal management troubleshooting often exposes a second saboteur: fan orientation. You can have enough physical room for a big cooler and still see higher CPU temperatures than expected because the airflow path is flawed. In many mid-tower layouts, cool air enters from the front, meant to travel across the CPU cooler and then exit at the rear or top. But a single fan set the wrong way can short-circuit this route.
If the front top fan is configured as an exhaust, it pulls fresh front intake air upward and out before that air reaches the heatsink. This "short-circuits the airflow" and leads to higher CPU temperatures, even though several fans may be spinning. The zero-cost fix: flip that front top fan to act as an intake and leave the rear-top fan as exhaust so fresh air is pushed through the CPU area before leaving the case. According to one report, this intake–exhaust mix on the top panel contradicts older rules of thumb yet often delivers more even airflow around the processor.
Practical steps before you blame the cooler
The worst move you can make is to assume your expensive cooler is the problem and rush to replace it. With more than 56% of case measurements turning out to be inaccurate, and with common airflow mistakes, most problems deserve a screwdriver long before they deserve a return label. Enthusiasts, especially those using premium coolers, need a new default mindset: distrust case specs, verify airflow, then decide.
- Check the real CPU cooler clearance. Measure from the CPU heatspreader to the side panel and compare it to your cooler’s specified height; do not rely only on the case spec sheet.
- Consult Noctua’s case compatibility database. When you see a tooltip next to a case’s maximum cooler height, it signals Noctua’s measurements differ from the manufacturer’s.
- Audit your airflow. Open the case, find the small arrows on fan frames, or use paper or smoke to see airflow direction.
- Fix the top-front fan. Rotate it so it blows air into the case while the rear-top fan stays exhaust, then test thermals before and after under similar loads.
- Stress-test in real workloads. Let Windows idle to stabilize, note baseline CPU temps, then run a game or heavy application and track average temperatures over several minutes.
One quotable lesson from Noctua’s experiment is blunt: "With more than 56% of case measurements being inaccurate, this could save PC builders a lot of headaches". Saving those headaches means treating case specs as hints, not commitments—and remembering that a fan flip can be more powerful than a cooler swap.
