From Linear Sensors to Intelligent Embedded Vision Cameras
Industrial embedded vision camera technology is shifting from basic image capture toward intelligent sensing platforms that combine high dynamic range, motion accuracy, and event-driven power modes to feed edge AI imaging pipelines and demanding inspection workflows without heavy host-side processing. This transition is driven by new sensor families like onsemi’s HyperLux and Sony’s IMX711, which embed HDR, low-noise readout, and advanced trigger logic directly on the die. Instead of relying on multi-frame HDR or CPU-intensive tone mapping, cameras can now produce inspection-ready streams in real time while staying within tight size and power envelopes. For OEMs designing conveyor vision inspection, medical instrumentation, or always-on monitoring, these capabilities are reshaping both system architecture and application possibilities, reducing latency, lowering average power, and improving the reliability of AI-driven decisions at the edge.
HyperLux HDR and Wake-on-Motion: Always-On Monitoring Without the Power Penalty

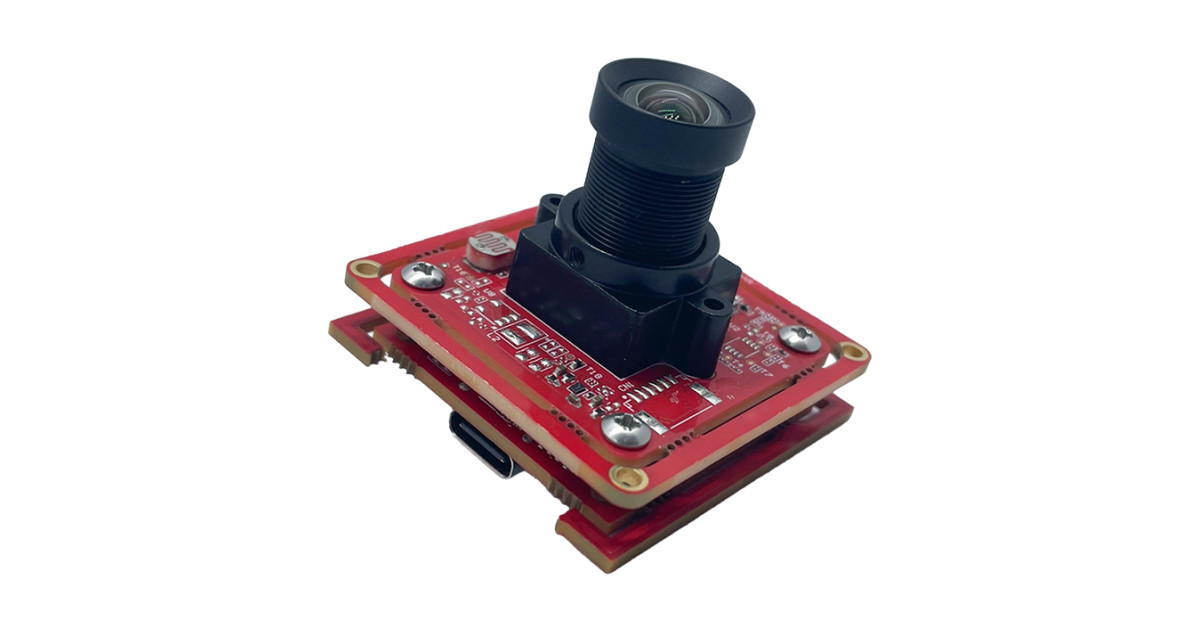

Vadzo’s Falcon-246CRS and Falcon-830CRS show how industrial HDR sensor design is changing embedded camera capabilities. The Falcon-246CRS uses the onsemi HyperLux LH AR0246 to deliver 120 dB electronic HDR with Adaptive Local Tone Mapping, producing display-ready frames without multi-frame blending or host tone mapping. That means fewer motion artifacts and simpler conveyor vision inspection pipelines when scenes have bright reflections and deep shadows. According to Vadzo Imaging, “The AR0246’s Wake-on-Motion keeps the sensor in a low-power monitoring state and triggers full-resolution capture only when motion exceeds a configurable threshold.” The 8 MP Falcon-830CRS extends this idea to 4K, combining LI-HDR with 100 dB dynamic range, electronic DR modes, and Wake-on-Motion in a USB camera aimed at edge AI imaging. Together, these HDR USB modules make always-on security, access control, and retail analytics viable within strict power budgets.
Global Shutter MIPI and USB Cameras for Motion-Critical Conveyor Inspection
Fast-moving production lines expose the limits of rolling-shutter sensors, where row-by-row readout skews barcodes, labels, and part geometry. Vadzo’s new global shutter cameras address this at the sensor level. The Bolt-235CGS integrates onsemi’s AR0235 HyperLux SG into a compact global shutter MIPI CSI-2 camera that delivers 1920×1200 color at up to 60 fps with full-pixel simultaneous exposure. By feeding embedded SoCs directly over 2-lane global shutter MIPI, it removes USB or network latency and suits AGVs, UAVs, and compact AI gateways. For USB-based systems, the Falcon-234CGS AR0234 USB 3.2 Gen 1 camera pairs a 2 MP global shutter sensor with an onboard ISP that handles debayering, color correction, and timing-critical GPIO sync. This combination yields geometrically consistent frames for conveyor vision inspection and label verification, while freeing host CPUs to focus on machine learning inference and data logging.
Monochrome, Color, and NIR: Aligning Spectral Variants with Specialized Applications
Emerging industrial HDR sensor platforms are increasingly offered in color, monochrome, and RGB-IR variants so that one hardware family can span diverse imaging tasks. Vadzo’s Falcon-830CRS AR0830 HDR USB camera, for example, is available in RGB Bayer, RGB-IR, and monochrome options, with enhanced sensitivity at 850 nm and 940 nm. That makes the same embedded vision camera suitable for day/night access control terminals, eye-safe NIR illumination in ophthalmology instruments, or precise industrial measurement systems that prefer monochrome signal-to-noise. Smaller-format HyperLux sensors like the AR0246 enable wearable or badge-style modules, while global shutter devices such as AR0234 and AR0235 provide motion-stable capture where geometric accuracy is critical. By choosing the right spectral variant and shutter mode, OEMs can tailor one base design across medical diagnostics, code reading, dimensional gauging, and edge AI imaging endpoints without a full optical or mechanical redesign.
Sony’s IMX711: Photon-Level X-Ray CMOS for Non-Destructive Inspection
At the high end of industrial and scientific imaging, Sony’s IMX711 X-ray CMOS sensor extends these trends into non-destructive inspection and measurement. The 3.73-type device offers approximately 280,000 effective pixels and uses direct conversion, charge-integrating architecture to output signals proportional to X-ray energy. Sony reports that the IMX711 delivers a maximum 26,100 fps, currently the industry’s fastest among charge-integrating X-ray CMOS sensors, while suppressing charge saturation to keep measurements accurate. Low-noise design enables high-accuracy energy measurements at wide dynamic range as well as photon-level energy information on the same chip. For advanced semiconductor inspection, precision metrology, or scientific instruments, this means a single sensor can support both aggregate dose calculations and fine-grained spectral analysis, aligning X-ray inspection with the same push toward higher dynamic range, lower noise, and tighter edge AI integration seen in visible-light embedded vision cameras.
