What an RP2040 Homelab Dashboard Is and Why It Helps
An RP2040 homelab dashboard is a small physical server interface built from a Raspberry Pi Pico, an OLED display, and a rotary encoder that connects over USB and sends keyboard commands to control or monitor a headless server without installing any additional drivers or writing firmware from scratch. Instead of logging in via SSH every time you want to restart a Docker container or trigger a backup, you turn the encoder, press a button, and watch the DIY OLED display confirm what your homelab server is doing. Because the RP2040 behaves as a standard USB HID keyboard, it works with most operating systems out of the box. This makes it a practical homelab server controller for NAS boxes, compact servers, and old laptops that run headless but still need quick, reliable control.
Parts, Cost, and Core Features of the RP2040 Dashboard
This RP2040 dashboard builds on the open-source Pico Commander project, which turns a Raspberry Pi Pico into a compact automation pad with a DIY OLED display and optional sensors. According to Hackster.io’s Pico Commander write-up, the entire setup is a “$15 open-source macro pad built on the Raspberry Pi Pico,” so the bill of materials stays lean and friendly for homelab tinkerers. You pair the Pico with a small I²C OLED display, a rotary encoder with a push switch, and optional Hall effect sensors for hidden “panic” actions like safe shutdown or screen lock. Because the Pico identifies as a USB HID keyboard, no vendor drivers are required; your homelab server sees it as a keyboard. A visual, offline web editor writes configuration JSON, so you adjust shortcuts and automation pipelines without touching Python or C++ code.
Step 1: Flash CircuitPython on the RP2040
To turn your RP2040 board into a homelab server controller, start by flashing CircuitPython onto the Raspberry Pi Pico. Download the latest CircuitPython .uf2 file for the Pico, hold the BOOTSEL button, and connect the board via USB so it appears as the RPI-RP2 drive. Copy the .uf2 file over; after a reboot, the board mounts as a CIRCUITPY drive ready for your RP2040 dashboard firmware. This step converts the board into a flexible driverless platform that can talk to the OLED display, the rotary encoder, and HID keyboard libraries. Because the device will act as a USB keyboard, it will plug into any headless server that accepts standard HID input. Once CircuitPython is running, you are ready to wire up the DIY OLED display, encoder, and optional Hall sensors that give your physical server interface real control.
Step 2: Wire the OLED Display, Encoder, and Sensors
With CircuitPython installed, wire the Pico to create a tidy physical server interface. Power all components from the Pico’s 3.3 V rail, keeping ground common. Connect the DIY OLED display over I²C: SDA to GP4 and SCL to GP5 as outlined in the Pico Commander documentation. Then wire the rotary encoder, which drives your menus and selections: connect the CLK output to GP6, DT to GP7, and the encoder’s push switch (SW) to GP8. For advanced automation, you can add a Hall effect sensor with its OUT pin connected to GP15, enabling hidden magnet-triggered actions. This layout keeps wiring straightforward while giving your RP2040 dashboard tactile control and clear on-screen feedback. Once wired, the device becomes a compact homelab server controller that you can mount on your rack, desk, or even the side of a NAS case.
Step 3: Load the Firmware and Configure the Web Dashboard

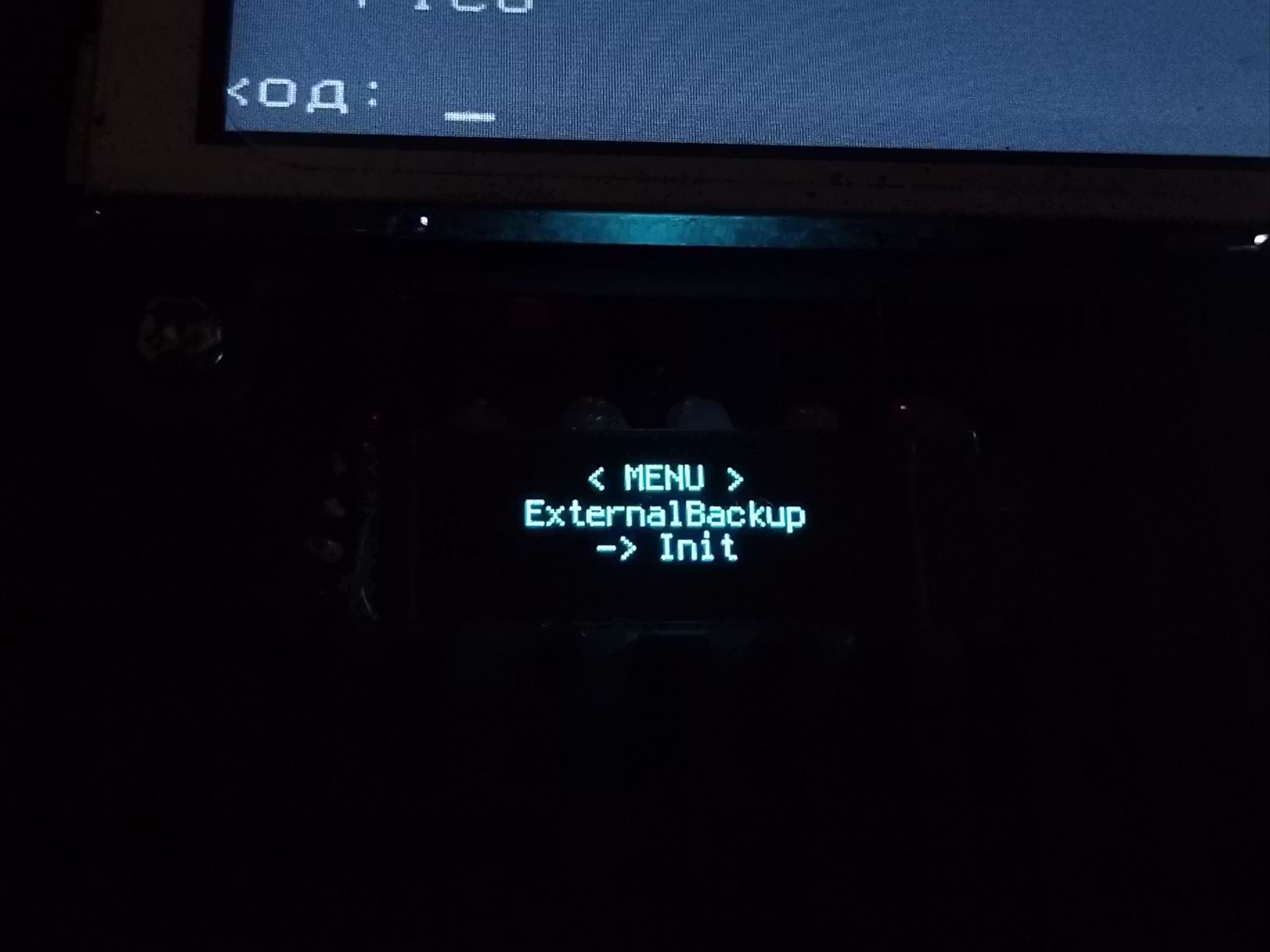

Next, clone the Pico Commander repository and copy its firmware files to the CIRCUITPY drive: all .py files, the config.json file, and the lib/ directory containing the Adafruit OLED and HID support libraries. The board will reboot and initialize the display, giving you a basic menu-driven RP2040 dashboard. To customize it, open editor.html from the repository in a web browser. This offline web tool edits config.json visually, letting you build multi-level menus and automation pipelines. You can chain commands such as typing docker-compose down, pressing Enter, waiting 2000 ms, then typing docker-compose up -d with another Enter. Save your new config.json and drop it onto the Pico to update behavior instantly. The result is a driverless, web-configurable dashboard that makes headless server tasks faster and more approachable than repeated SSH sessions.
