What Extreme GPU Cooling Mods Really Deliver
A high‑end GPU cooling mod is any non‑standard, enthusiast‑grade change to a graphics card’s thermal solution that aims to drastically reduce temperatures, noise, or both, by adding oversized heatsinks, AIO cooler GPU setups, or custom water cooling loops that go beyond typical manufacturer designs, often at the cost of more complexity, space, and money for relatively modest performance gains. Enthusiast forums are full of claims that a radical GPU cooling mod is the secret path to higher frame rates and longer hardware life. The reality is more nuanced: three recent projects—a 360mm AIO strapped to an RTX 3080, a passive GPU heatsink on an RTX 4060, and an RTX 5090 cooling conversion to custom water—prove huge thermal wins yet expose the limits of cooling as a magic performance fix. These builds show that priorities like silence, aesthetics, and overclocking headroom matter more than raw FPS.
AIO + Fans on RTX 3080: Massive Drops, Minimal FPS Gains

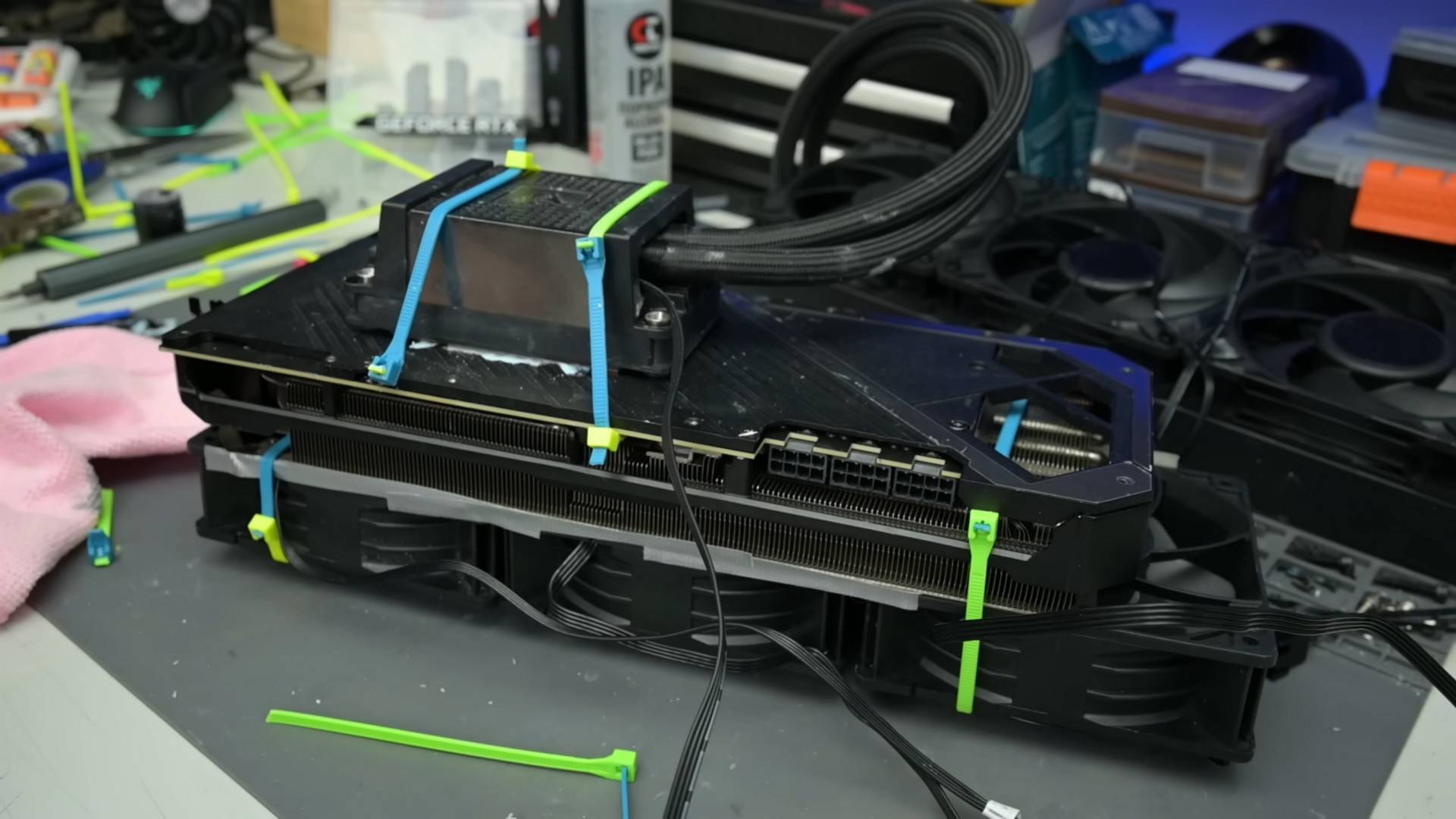

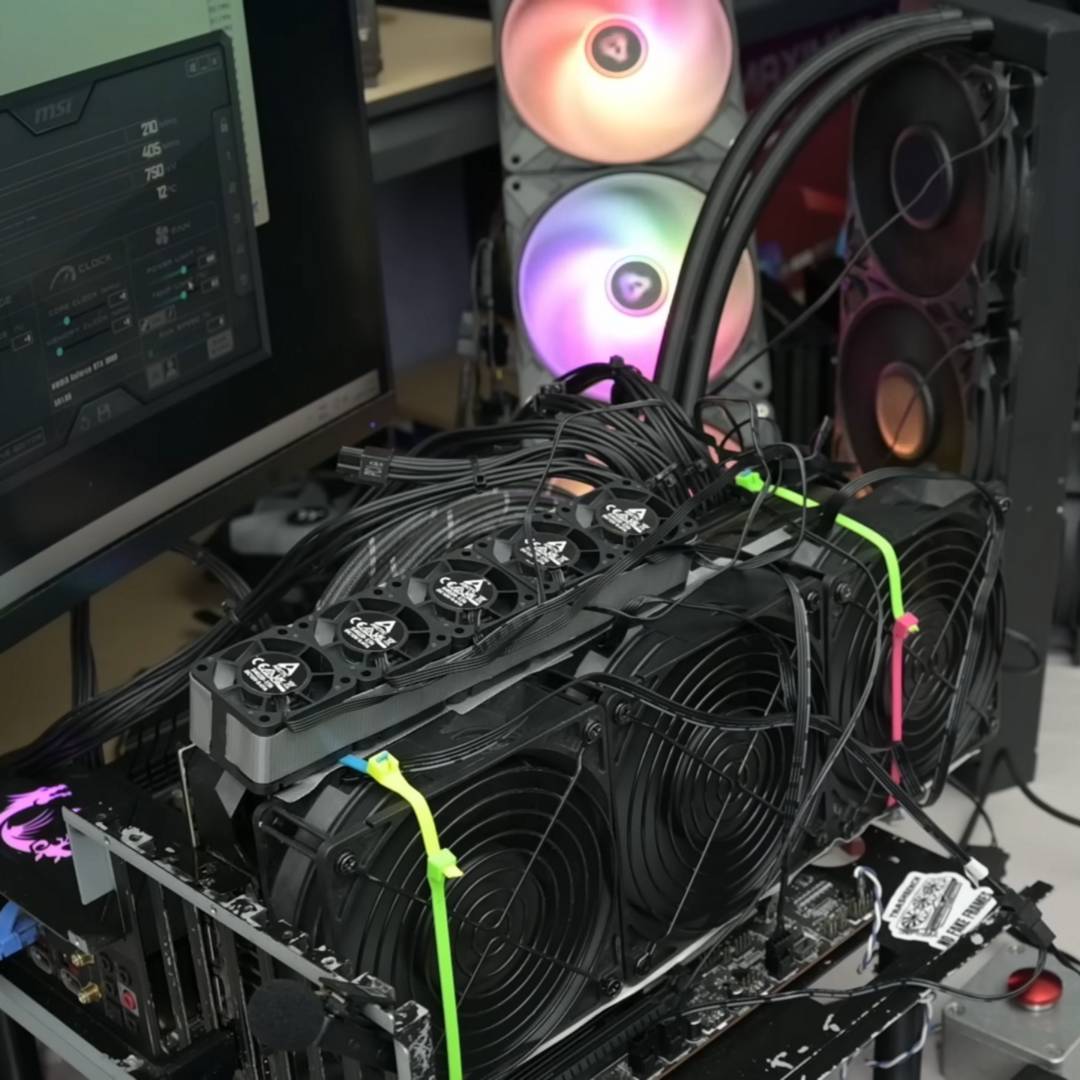

The wildest of the three mods is an RTX 3080 burdened with a 360mm AIO cooler and a total of 11 fans, including eight extra case and server units strapped around the stock fin stack. In benchmarks, this AIO cooler GPU setup cut core temperatures by 29°C in Heaven and 33°C in Tomb Raider, with the card sitting around 34°C in Tomb Raider instead of stock levels. VRAM and hotspot temperatures fell sharply too, dropping by 28°C and 19°C respectively. That sounds like the dream thermal profile, yet the payoff in frame rates was underwhelming: the modder reported only a 2fps gain, and an aggressive overclock added just 7fps—around a 5% uplift. One quotable takeaway is: "No matter how much air you blast through a fin stack, there are no gains to be had once you get beyond a certain threshold". In short, this GPU cooling mod proves that lower temps do not automatically equal meaningfully higher performance.
Passive RTX 4060: Silence First, Speed Second

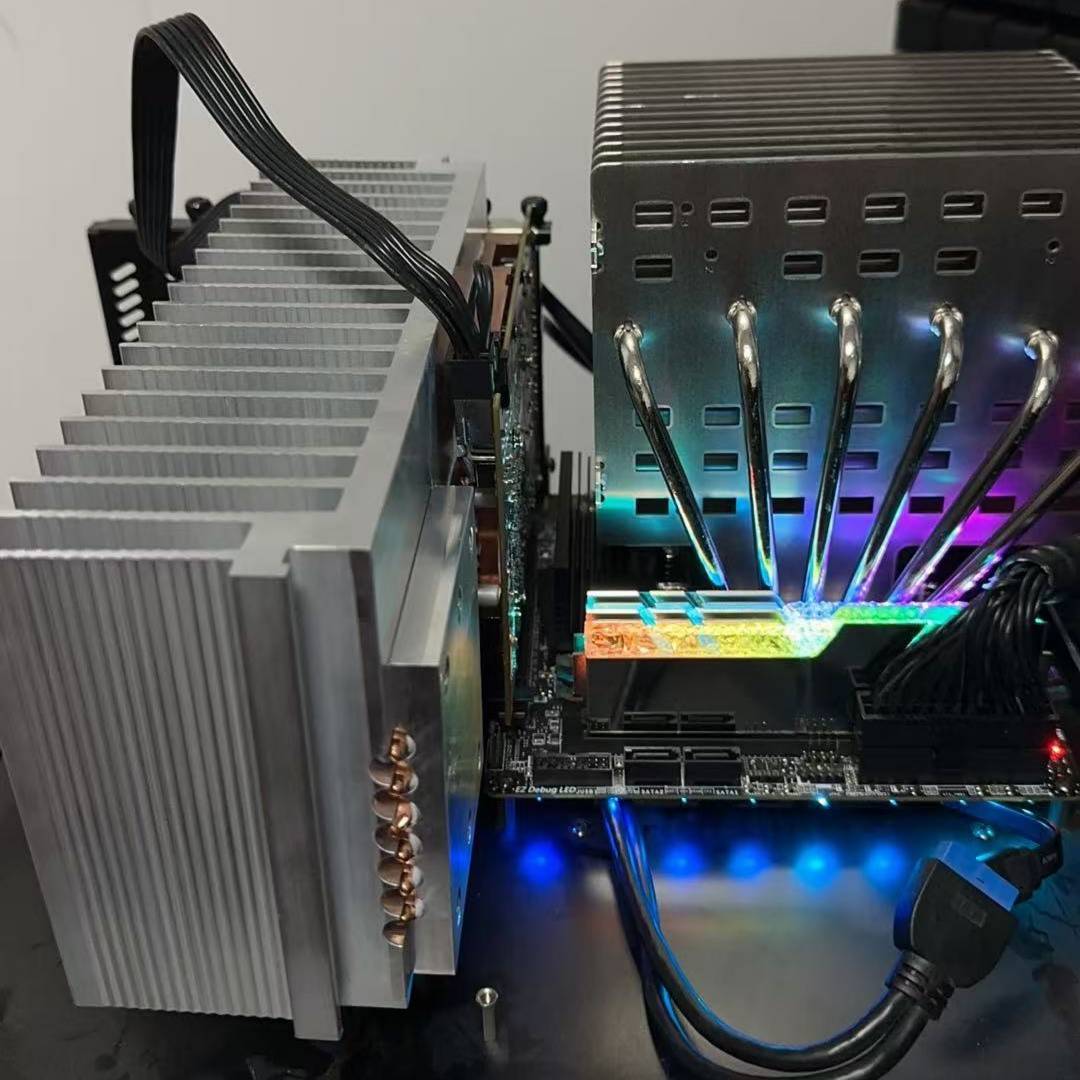

On the opposite side of the spectrum sits a fanless RTX 4060 outfitted with a mammoth custom passive GPU heatsink. The original cooler is replaced by a solid aluminium block with an extruded fin stack, six heatpipes, and enough mass to weigh 2.5kg—more than twice the size of the stock card. The cooler stretches past 220mm in length and occupies about three slots, dwarfing the PCB and even nearby components on the motherboard. This design is tuned for natural convection, spacing the fins wider than traditional active coolers that rely on concentrated airflow. Performance is not the core goal here; the point is silence and the satisfaction of a genuinely fanless GPU at roughly 115W TGP, which is close to the practical upper limit for DIY passive cooling. The drawback is that temperatures—especially on modern GDDR7 memory—were not shared, so there is no proof that the mod is safe under load. This build is more proof‑of‑concept art than a drop‑in solution.
Custom Water on RTX 5090 Lightning Z: Flagship Thermals at Flagship Cost

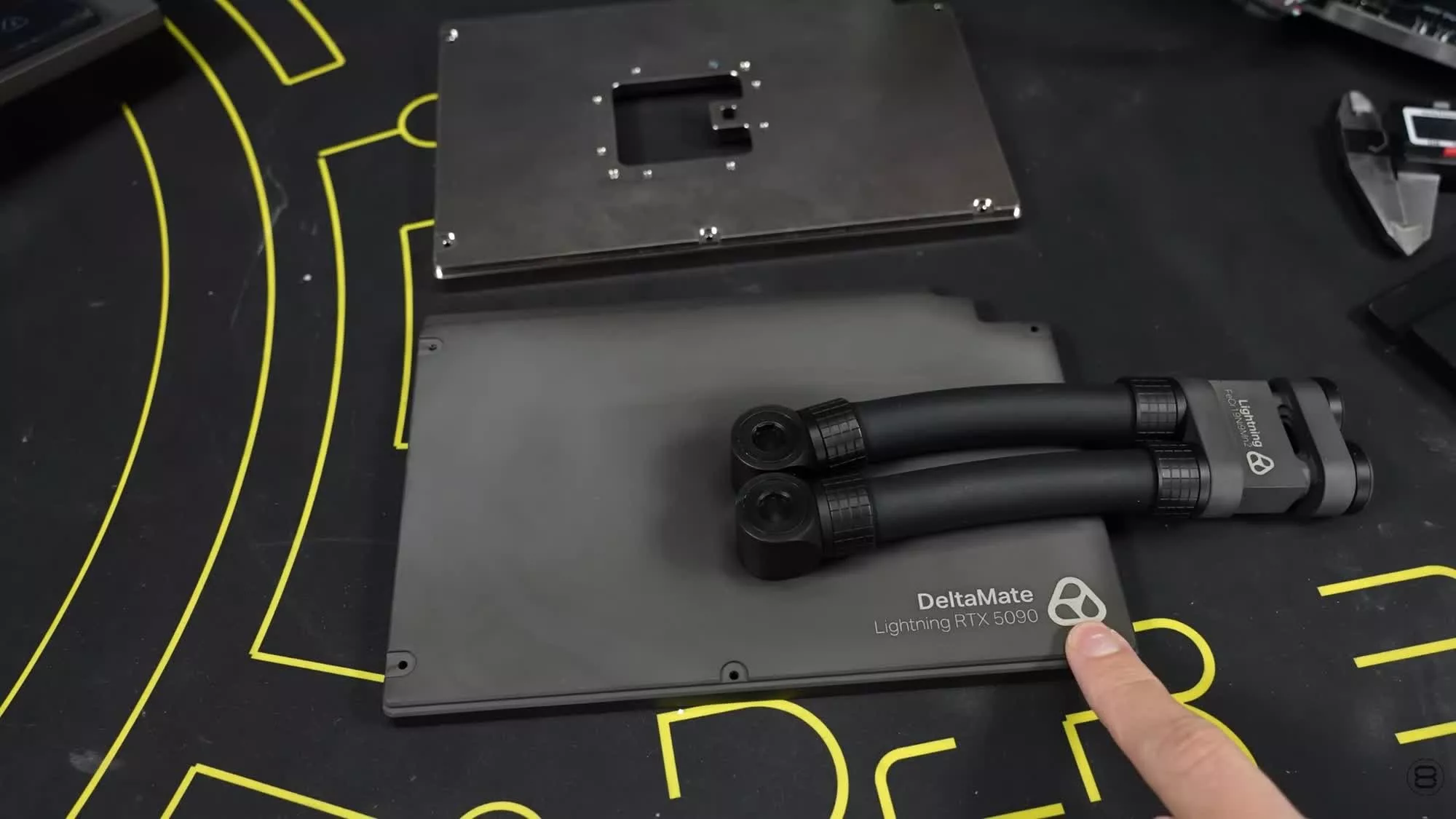

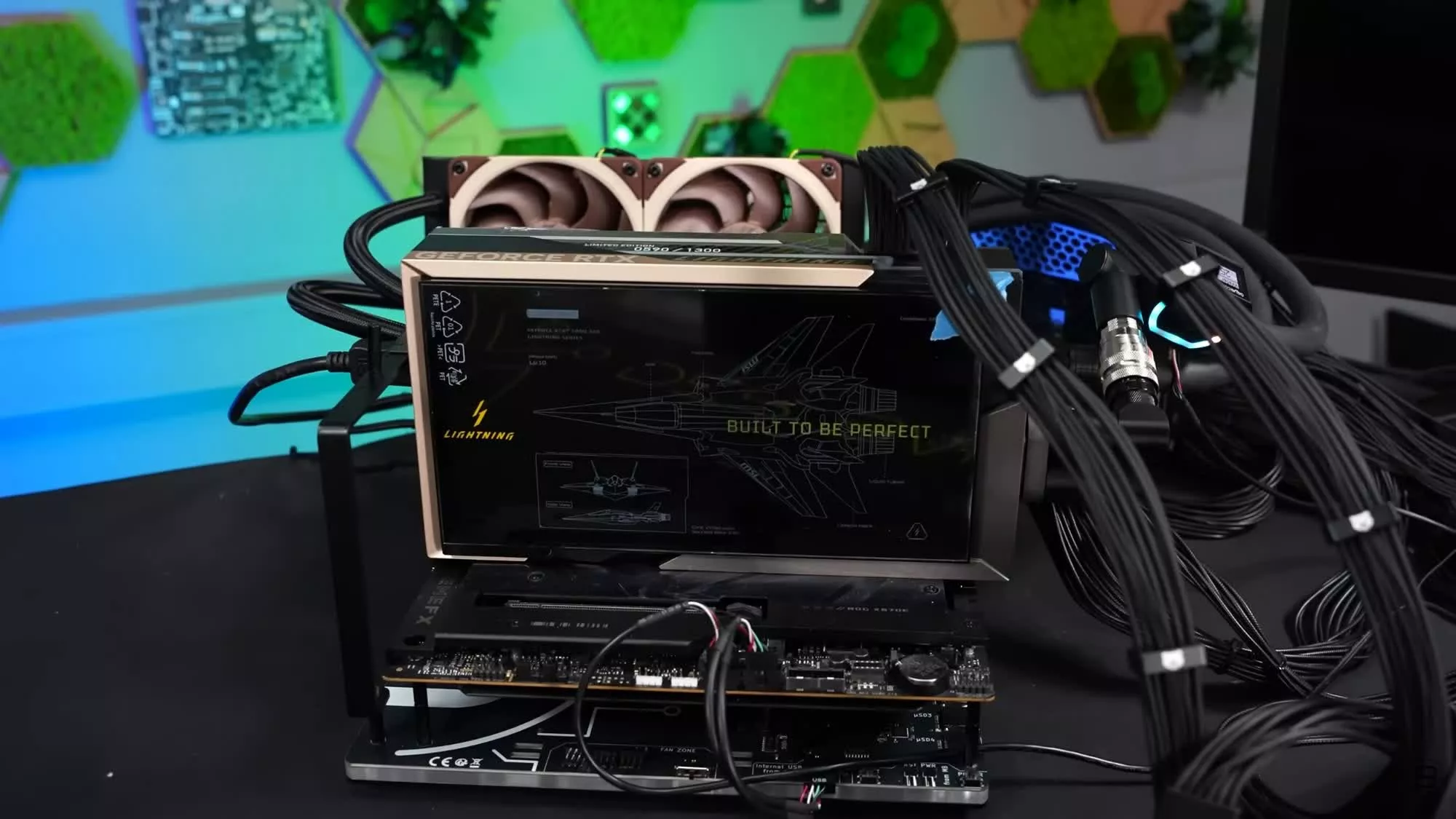

The most refined project is an RTX 5090 Lightning Z converted from its stock integrated AIO to a full custom water cooling loop. The card itself targets the extreme tier of RTX 5090 cooling, pairing Nvidia’s Blackwell silicon with an internal AIO and an 8‑inch LCD, and carries an official MSRP of USD 5,000 (approx. RM23,000), often selling for USD 7,000 to USD 8,000 (approx. RM32,200 to RM36,800) on the secondary market. A stainless‑steel waterblock replaces the original AIO internals, connecting the GPU to an external MO‑RA radiator and three D5 pumps moving about 190 litres of coolant per hour. Under an 800W load, this custom water cooling mod cuts GPU temperatures from around 64°C to roughly 53°C and keeps the coolant at only 32°C even after an hour of gaming. Online speculation pegs the conversion kit at around USD 8,000 (approx. RM36,800) on top of the card itself. This is the cleanest, most controlled of the three mods—but it is squarely aimed at hardcore overclockers, not mainstream gamers.
Noise, Complexity, Cost: Choosing the Right Kind of Overkill
Look across these three GPU cooling mods and a clear pattern emerges: thermal wins are easy, practical wins are harder. The RTX 3080 AIO stack trades modest FPS uplift for enormous noise and absurd mechanical complexity, including tiny 15,000rpm server fans that "make a horrible amount of noise". The passive RTX 4060 delivers pure silence but demands a hulking cooler that is 2.5kg and three slots wide, highlighting that bulk is inevitable if you want fanless operation above 100W TGP. The custom‑loop RTX 5090 Lightning Z mod keeps a flagship pulling around 800W at a steady 53°C, but expects four‑figure hardware, intricate plumbing, and corrosion‑aware material choices like PVD‑coated stainless steel. The shared caveat is that none of these paths make much sense for regular players: they are experiments for modders and DIY hobbyists who care more about silence, aesthetics, or overclocking headroom than about cost or simplicity.
