What Is a Cyberdeck and Why Build One?
A DIY cyberdeck is a custom-built portable computer that combines retro-futuristic cyberpunk styling, compact hardware, and tailored software into a single handheld or briefcase-style machine you design around your own workflows and interfaces. The term “cyberdeck” comes from William Gibson’s 1984 novel Neuromancer, where hackers use deck-like computers packed with LEDs to jack into cyberspace, and modern builders echo that look with dystopian or utilitarian designs that still work as everyday tools. According to ZDNET, a cyberdeck can be any portable computer with a screen or head‑mounted display and some kind of keyboard, whether physical or virtual, so there is no strict definition to satisfy. This freedom makes the form factor perfect for cyberpunk computing projects that mix Raspberry Pi portable computer builds, custom retro computer cases, and experimental user interfaces into one compact, highly personal machine.
Choosing the Core Hardware: Pi, Display, Power, and Case

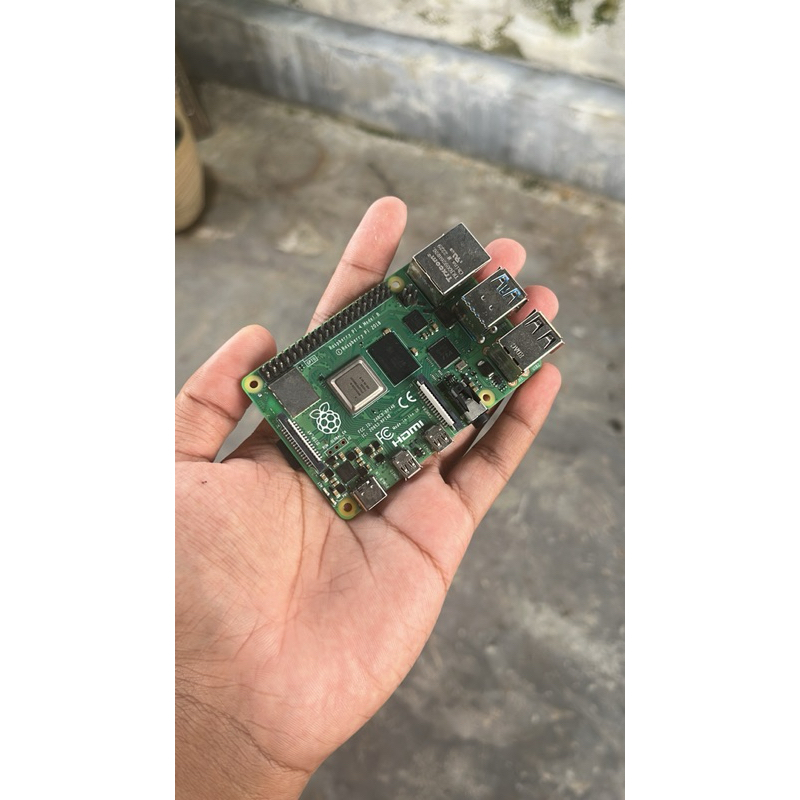

For a first DIY cyberdeck build, start with a Raspberry Pi 4, 5, or Zero 2 as the main board, since they are well-documented and compatible with many accessories. Pair your Pi with a compact screen, such as the official Raspberry Pi touchscreen or a smaller HAT-style display, to keep your build portable. Small Bluetooth keyboards with built‑in trackpads work well and save space compared with full‑size boards. Power can come from 18650 lithium‑ion cells with a controller, a single-board computer that includes its own battery circuit, or an external power bank wired to the Pi’s power port. Enclose everything in a case that matches your vision: an off‑the‑shelf Pi case, a repurposed tin for a custom retro computer look, or a 3D‑printed shell sourced from online designs. Modern development boards often have clear pin labels, which makes wiring displays, sensors, and controls far less error‑prone.
Planning the Layout and Building the Shell
Before you solder anything, sketch your cyberdeck’s layout on paper or in CAD: where the display sits, how the keyboard folds or slides, and where ports and vents go. Decide whether you want a clamshell, briefcase, or console‑style profile with the screen fixed above the keys. Arrange your Raspberry Pi, batteries, and any microcontroller boards so that cables stay short and airflow around the CPU is not blocked. If you 3D print your case, take advantage of the many community designs available for cyberpunk computing projects and adjust them for your screen size and battery pack. Otherwise, test‑fit components inside a metal or plastic box and mark standoffs, screw holes, and cutouts for connectors. Leave space on the front panel for switches, status LEDs, and maybe a small joystick, since these tactile elements contribute a lot to the sci‑fi feel while providing useful controls once the software side is ready.
Wiring Controls and Adding Smart Interfaces
With the shell planned, wire the essentials: secure the Pi, mount the display, and connect the keyboard and power system. Use the Pi’s GPIO header or an attached microcontroller to add buttons, rotary encoders, or joysticks for mode switching and in‑app navigation. Custom firmware, such as projects built with ESP‑IDF for ESP‑based boards, can handle dedicated input devices, LED indicators, and sensor readings while your main Raspberry Pi portable computer runs the desktop environment or Linux tools. Think in layers: the Pi focuses on applications and networking, while a secondary board supervises low‑level controls, lighting, and battery telemetry. Break out sensor connectors for future upgrades like Wi‑Fi antennas, proximity sensors, or environmental monitors. As you route cables, bundle signal lines and keep power lines thicker, and label connectors so maintenance or upgrades months later do not turn into guesswork inside a crowded retro‑styled chassis.
Software: From Kali Linux to WioDeck‑Style HUD Tools
Once the hardware boots, your cyberdeck becomes useful through software. On a Raspberry Pi, you can run a general desktop OS or specialized systems such as Kali Linux for penetration testing, digital forensics, and security workflows. ZDNET describes Kali on an overclocked Pi as a powerful platform, which shows how capable small boards can be. For a multi‑tool heads‑up display, the WioDeck project on the Seeed Wio Terminal is a helpful blueprint: it started as a Claude usage meter, then gained system stats, process monitoring, Pomodoro and countdown timers, a Wi‑Fi analyzer, BLE scanner, sonar proximity view, environmental data, Matrix digital rain, and an SD card viewer. All of this is reachable from a joystick‑driven menu with settings saved to flash. Use that model for your own DIY cyberdeck build: group tools into tabs or screens, map hardware buttons for quick switching, and store preferences so the deck feels like a coherent, custom instrument.
