From LED Blink to Robot Claws: 5 Beginner-Friendly Microcontroller Projects

Why Start with Microcontrollers This Weekend?

Beginner-friendly microcontroller projects are small, hands-on electronics builds that teach you how to control LEDs, sensors, audio, and motors with simple C++ code and low-cost boards like Arduino and ESP32, progressing from basic circuits to interactive gadgets in a few evenings.

Think of this as a roadmap: you start with a single blinking LED, then level up to Wi‑Fi boards, touch-screen synthesizers, and even a Doc Ock‑style robot claw. Arduino beginner projects give you the first win with microcontroller LED control and basic C++ logic, while ESP32 DIY builds add connectivity and more muscle. Along the way you benefit from open source hardware ecosystems and open-source engines like AMY, which run on boards such as the M5Stack CoreS3. The only real prerequisite is a bit of patience with wiring and IDE setup; the reward is seeing your code come to life on your desk. We will walk through one clear sequence of builds so you are not wondering what to try next.

Step 1: Blink an LED with Arduino (Your First Win)

Your first stop is the classic Arduino LED blink. It looks simple, but it teaches digital output, timing, and the full code‑upload loop on an Arduino board. One builder noted that they learned Arduino basics, digital output, LEDs, resistors, breadboard connections, uploading code, and debugging from a single‑LED project. That is exactly the kind of foundation you want before touching more complex M5Stack projects or robot claws.

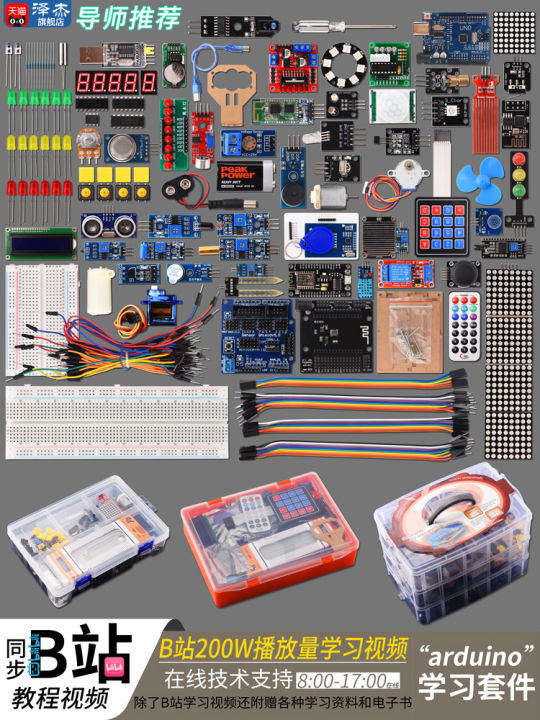

You will need an Arduino UNO with USB cable, a breadboard, a red LED, a 220 Ω resistor, and some jumper wires. The biggest early gotcha is not the circuit but the IDE: selecting the wrong board or COM port can block uploads and eat time. Once you push past that and the LED finally blinks, you will feel why people get hooked on electronics. From there, you can already experiment with a second LED and different delay values to see patterns change.

1. Wire the LED and 220 Ω resistor in series on a breadboard, then connect them to a digital pin and ground on the Arduino UNO using jumper wires.
2. Plug in the USB cable, open the Arduino IDE, select the correct Arduino UNO board and serial port, and load a basic Blink sketch that toggles the chosen pin.
3. Upload the code and confirm the LED turns on and off; then adjust the delay values in the sketch and re-upload to explore different blink timings.
4. Add a second LED and resistor to another pin, extend your code to control both outputs, and observe how independent delays create different blinking patterns.

Step 2–3: Move to ESP32 and Discover M5Stack Synth Magic

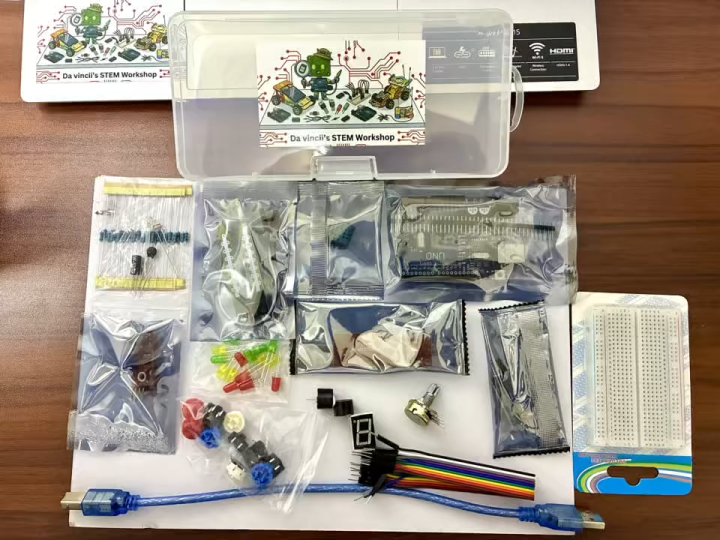

Once you are comfortable with simple Arduino beginner projects, it is time to meet the ESP32. ESP32 boards sit between microcontrollers and single-board computers: they cannot run a full desktop OS, but they cover a huge chunk of DIY needs such as smart home, circuitry, and sensor-heavy projects. One builder even replaced many Raspberry Pi roles with ESP32 boards for Wi‑Fi scanners and similar tasks. The appeal is that ESP32 offers comparable functionality for this niche while staying far cheaper than many modern single-board computers.

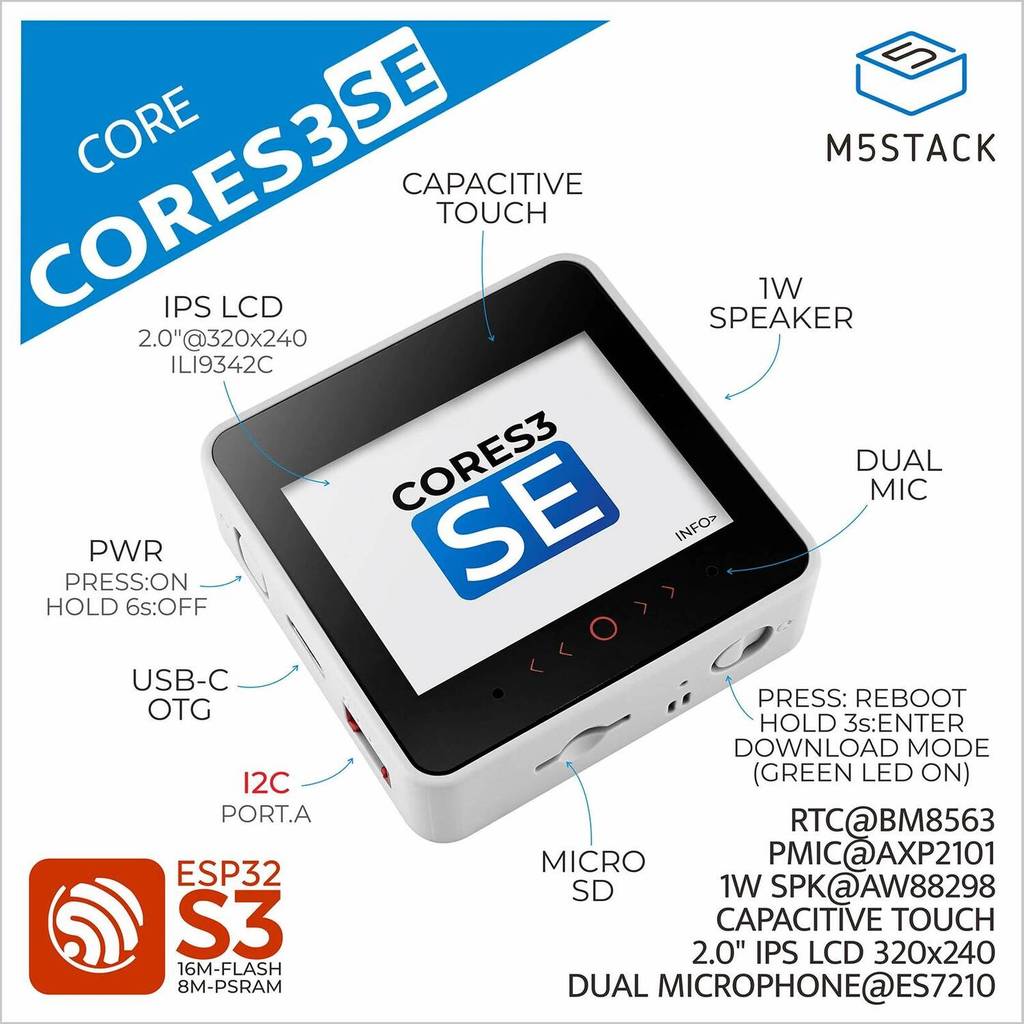

A great way to explore ESP32 DIY builds is through M5Stack projects. M5Stack CoreS3 is an ESP32-S3-based controller with a built-in display and touch panel that can act as the heart of creative instruments. The M5Stack AMY Synth uses a CoreS3 plus the open-source AMY synthesis engine to form a compact instrument with a 26-key illuminated keyboard, touch-screen patch interface, physical controls, MIDI input, and stereo I2S audio output in a single prototype. You move from blinking one LED to driving a full audio path with note handling, LEDs for each key, and continuous stereo output.

The main challenge with this step is no longer wiring a resistor; it is keeping audio responsive while scanning keys, updating the LCD, and processing controls. Early versions of the synth suffered from audio interruptions when LCD updates, serial logging, keyboard scanning, and analog input processing happened at the same time. Another subtle pitfall is correct Note Off handling, which turned out to be one of the most important problems in the project. The payoff is a playable instrument where every pressed key sounds reliably and every released key stops cleanly.

Step 4–5: Build Up to a Touch Synth and a Robot Claw

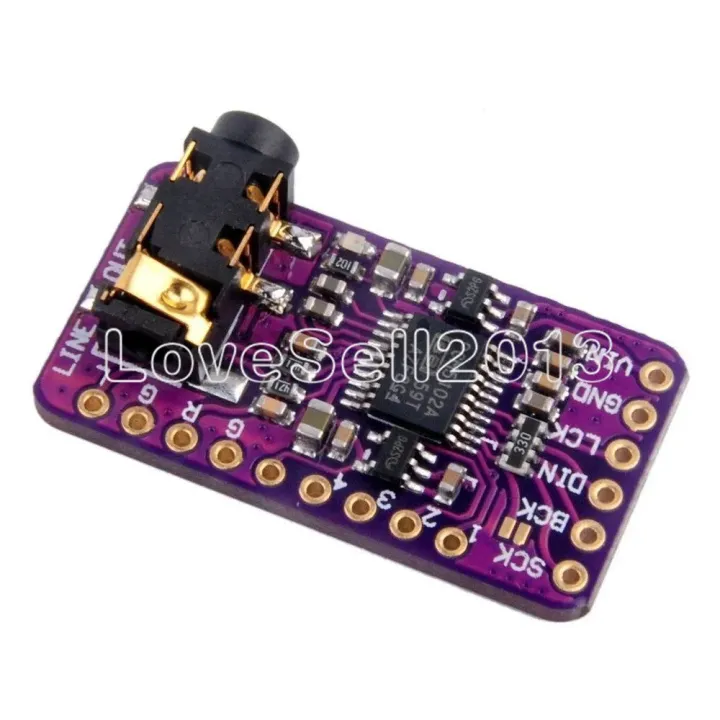

To see how far the same microcontroller skills can stretch, look at how the M5Stack AMY Synth comes together in stages. The builder first assembled power circuits and tested the CoreS3, then connected the PCM5102 DAC and verified a test sound. Next came keyboard scanning with a 26-key diode matrix, followed by keyboard LEDs, a physical control panel, UART MIDI input, and finally analog controls and touch UI. Each part was tested independently before being wired into the main loop. According to the project author, the current prototype successfully integrates AMY synthesis, continuous I2S audio, keyboard scanning, Note On and Note Off handling, keyboard LED feedback, touch and physical patch selection, preset banks, UART MIDI input, stereo line output, pitch bend, modulation, and power-on visual diagnostics.

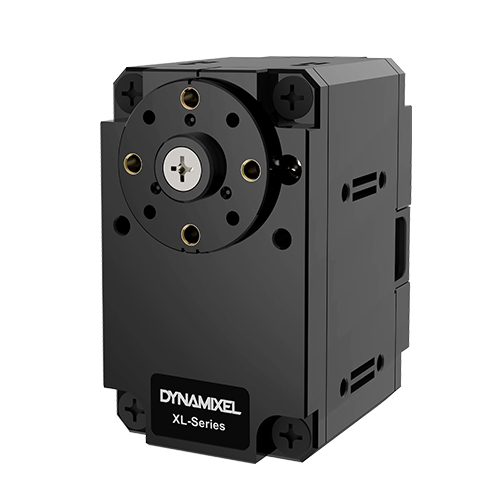

If you want a more mechanical end goal, step into the world of robot claws. One Doc Ock–style robot claw uses an Arduino OpenRB-150 as its controller, paired with 12 Dynamixel XL430-W250-T servos, 9 red 300 mm LED filaments, a Pololu-5592 12 V to 3.3 V step down for LED power, a COM-24144 N MOSFET for switching the LEDs, and four potentiometers that control the globe’s speed, direction, height, width, and depth offsets. The result is a claw that holds a globe between four fingers and slowly spins it for that “take over the world” feeling. This build highlights how microcontroller LED control and servo management scale into kinetic art. Thanks to community examples and shared STL files, you can access the 3D models and details needed to make your own.

Here the most common mistakes shift toward mechanical alignment, power distribution, and matching servo expectations in code. But the same habits—building in stages, testing each subsystem, and reusing open-source hardware documentation—keep the complexity manageable. By this point, your weekend journey has taken you from a single LED to a portable synth and a villain-coded robot claw.

Why These Projects Are Worth Your Weekend

From a blinking LED to an audio synth and a spinning globe, these five projects show how much ground you can cover with microcontrollers in a short time. You start with microcontroller LED control on an Arduino UNO and end with ESP32 DIY builds that rival small single-board computer setups for many tasks. Along the way you meet boards like M5Stack CoreS3, whose built-in display and touch panel make instruments easier to use because patch banks, numbers, names, and controls stay visible without any computer connected.

The key things to watch for: IDE and port setup on day one, resource conflicts in richer projects, and careful testing of Note Off behavior and audio responsiveness in synth builds. On the mechanical side, plan for power rails and servo count before printing parts. The big upside is that open-source engines, firmware, shared STLs, and community write-ups lower the barrier for DIY hardware enthusiasts. Put in a weekend of focused tinkering and you walk away with skills that apply to almost any open source hardware project you will touch next.
