The Quiet Redesign of RTX 5060 Budget Graphics Cards
The recent wave of RTX 5060 GPU variants refers to refreshed cards that keep the same reference-level performance targets but switch to cut-down GB205 dies, alter PCB layouts, and in some cases adopt 16-pin power connectors, changing the practical choices and trade-offs facing buyers of budget graphics cards without formally announcing a new product tier. This shift is not cosmetic; it speaks to how vendors are reusing higher-tier silicon and board designs to keep the RTX 50 series flowing while a planned refresh is delayed. MSI has added four new RTX 5060 cards under a "V1" label, while Yeston and Maxsun have released themed RTX 5060 editions that visibly diverge from the original GB206-based design. Together, they redefine what an "RTX 5060" means on store shelves.
Why Vendors Are Moving RTX 5060s to GB205 Dies

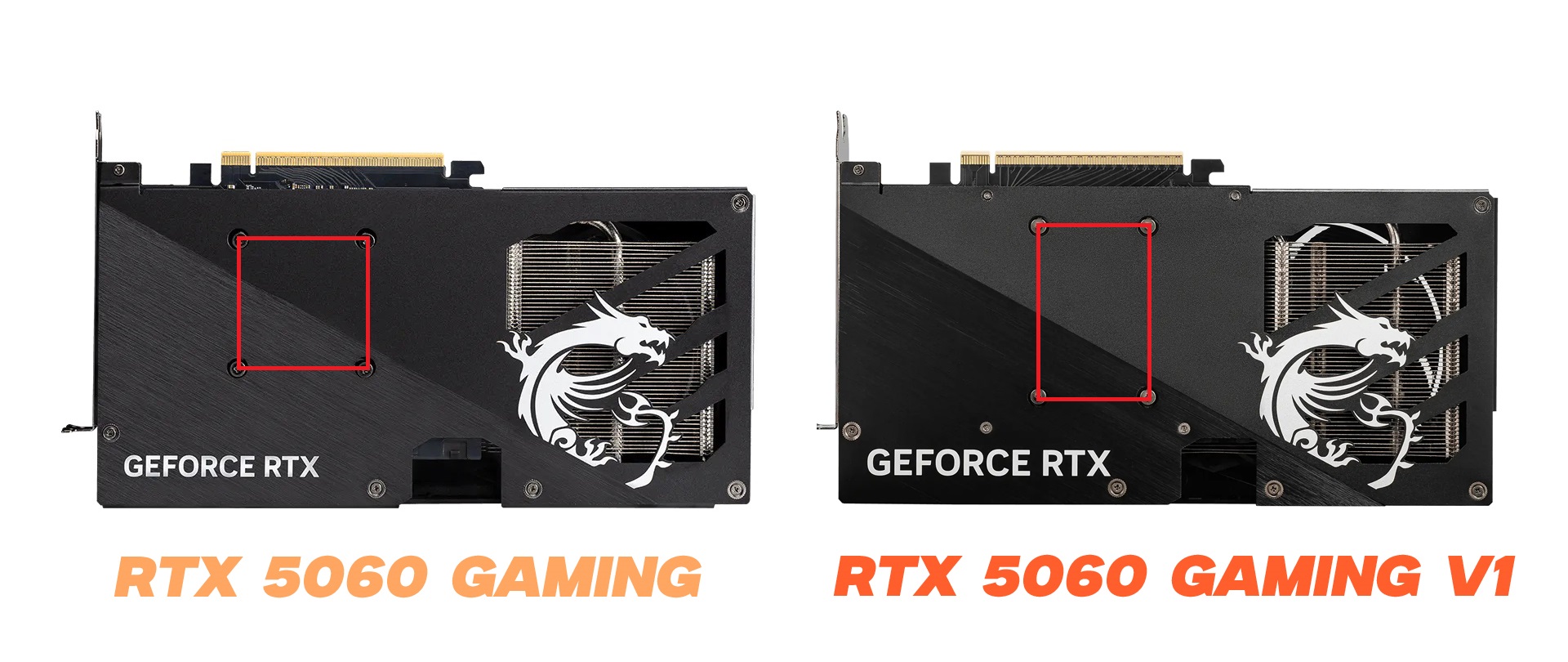

The key move behind these new RTX 5060 GPU variants is the switch from the original GB206 die to a cut-down GB205, the same silicon family that powers the RTX 5070. MSI’s new "V1" cards in its VENTUS and GAMING lines match reference RTX 5060 specifications but use GB205 cores mounted in a rectangular pattern, a clear visual tell compared with the square mounting on earlier GB206 cards. According to one report, "these RTX 5060 cards utilize the GB205 GPU die, which is responsible for powering the GeForce RTX 5070". In disassembly footage of Yeston and Maxsun models, the chips are explicitly labeled "GB205-200-KA-A1," with a memory channel disabled to maintain the familiar 8 GB on a 128-bit bus. Vendors are clearly repurposing 70-class silicon rather than waiting for new dies while the RTX 50 Super refresh remains on hold due to memory prices.
8-Pin vs 16-Pin: Evolving GPU Connector Standards

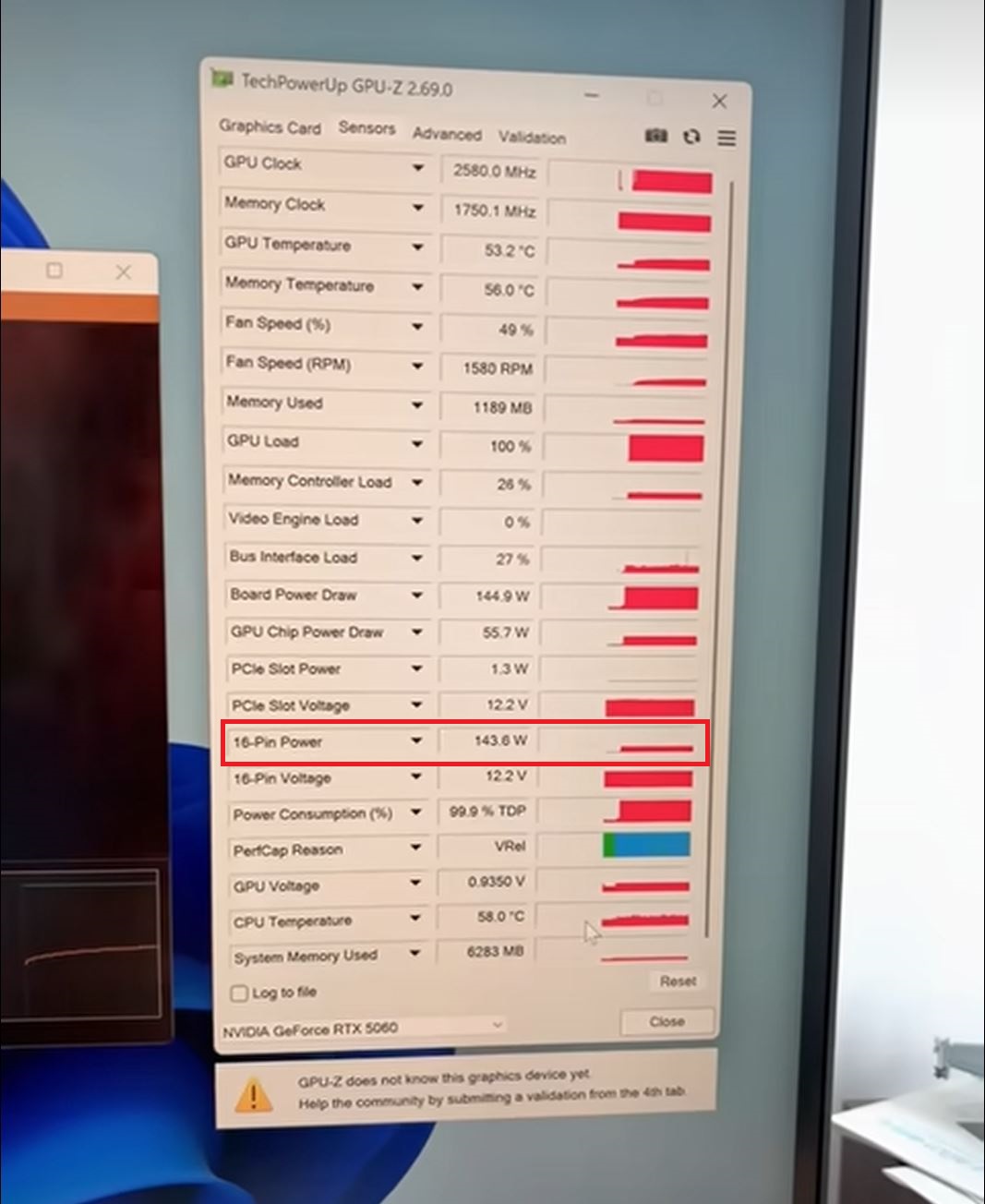

On paper, connector standards on these budget graphics cards should be a non-issue: the RTX 5060 is rated at around 145–150 W depending on the edition, well within the comfort zone of a single 8-pin PCIe connector. MSI’s GB205-based RTX 5060s even redesign their PCBs to keep that familiar 8-pin layout, aligning them with GB206 cards. In contrast, Yeston and Maxsun have retained PCB designs originally meant for higher-end 70-class boards and therefore ship their GB205 die RTX 5060 models with 16-pin power instead, leaving unused traces where an 8-pin header could sit. That sends a clear message: vendors expect the 16-pin standard to spread downward, and they prefer to reuse existing layouts rather than spin cheaper, fully optimized boards for lower power GPUs. One source notes that "an 8-pin connector will always remain the king" for modest cards, but the writing is on the wall for future designs.
What These Changes Mean for Your Next Budget Build

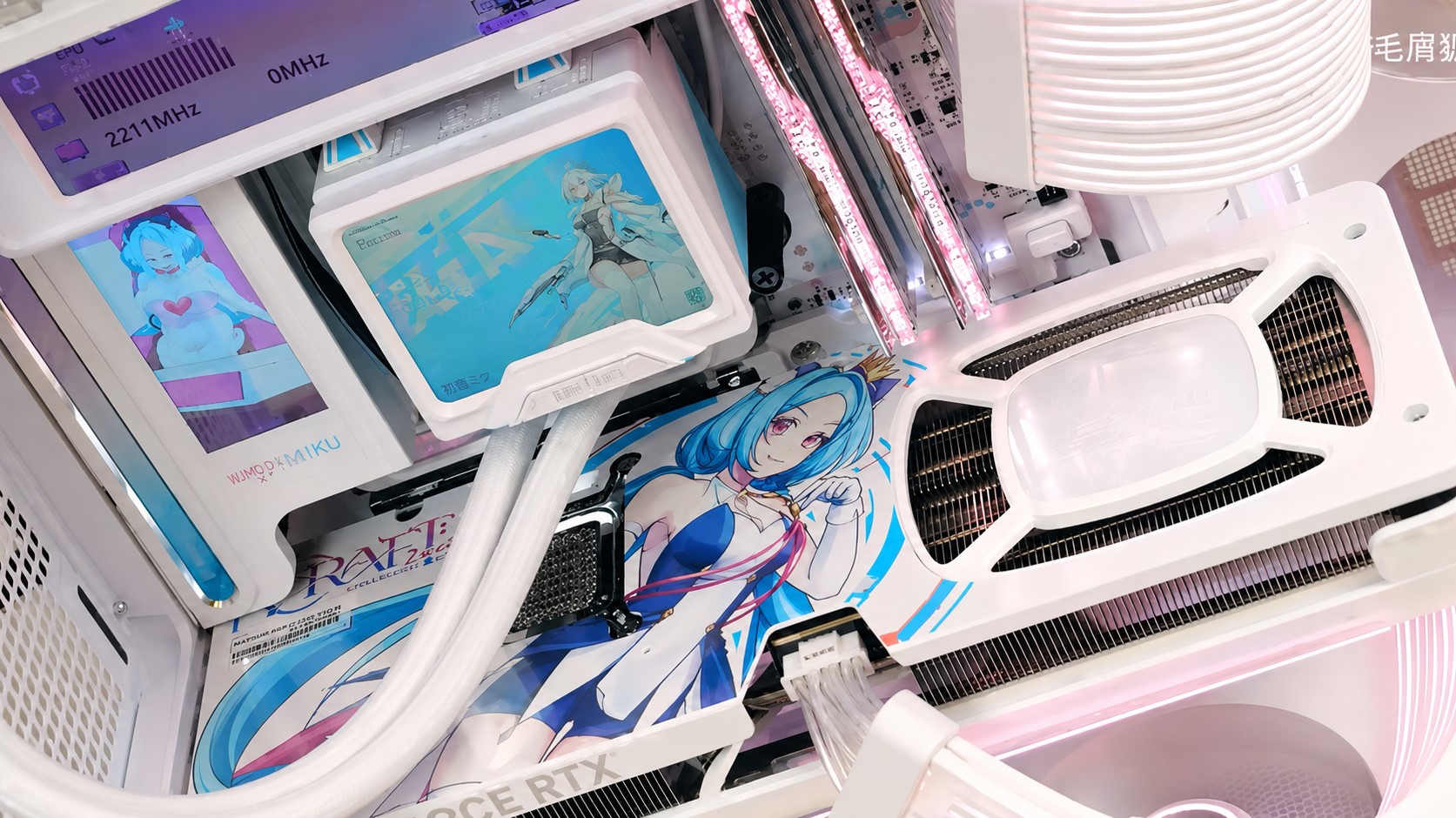

For ordinary builders, the quiet transition to GB205 dies and changing connector standards matters less for raw frame rates and more for practical planning. The RTX 5060 does not draw enough power to trigger the melting and burning issues seen on higher-end RTX 50 cards using 16-pin connectors, but the traditional 8-pin remains a simpler and arguably safer plug on entry-level PSUs. When picking an RTX 5060 GPU variant, you now have to look beyond the name: MSI’s non-V1 and V1 models share specs but differ in core mounting and internal silicon, while Yeston’s Gaea and Maxsun’s i-Craft Cyber Magical Girl editions carry 16-pin connectors and GB205 chips originally tied to 70-class boards. The upshot is clear. If you care about straightforward compatibility and avoid adapters, favor 8-pin designs; if you’re building around newer power supplies, 16-pin GB205 cards hint at a more standardized, forward-looking path for the budget tier.
