RTX 5060 Vendors Quietly Swap GB206 For Cut-Down GB205 Dies

The RTX 5060 Die Change: A Silent Redesign With Real Consequences

The RTX 5060 die change refers to vendors quietly replacing the original GB206 GPU design with cut-down GB205 silicon and revised mounting layouts, sometimes paired with 16-pin power connectors, to reuse higher-end PCB designs and optimize manufacturing while keeping official RTX 5060 specifications intact. This is not a simple cosmetic refresh; it fundamentally changes what silicon you are buying under the same product name. MSI has added four new RTX 5060 cards under a fresh “V1” label, all using the GB205 die that normally powers the RTX 5070, but trimmed to match RTX 5060 reference specs. At the same time, other vendors are shipping GB205-based boards with next‑gen 16-pin connectors and distinct core mounting shapes. The headline message: the RTX 5060 is no longer a single, consistent design, and that matters if you care what is on your PCB.

MSI’s V1 Cards: GB205 Silicon Hiding In Plain Sight

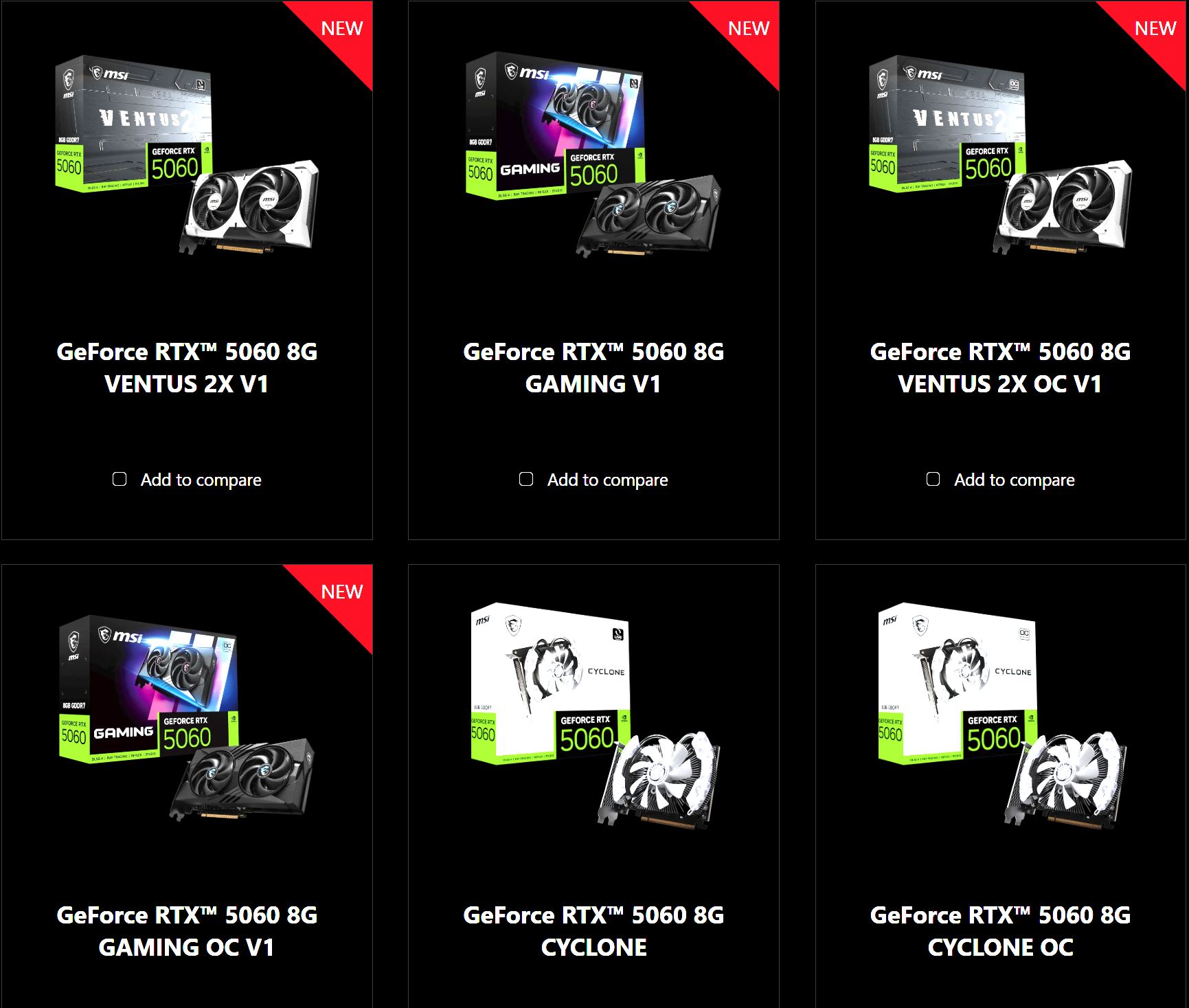

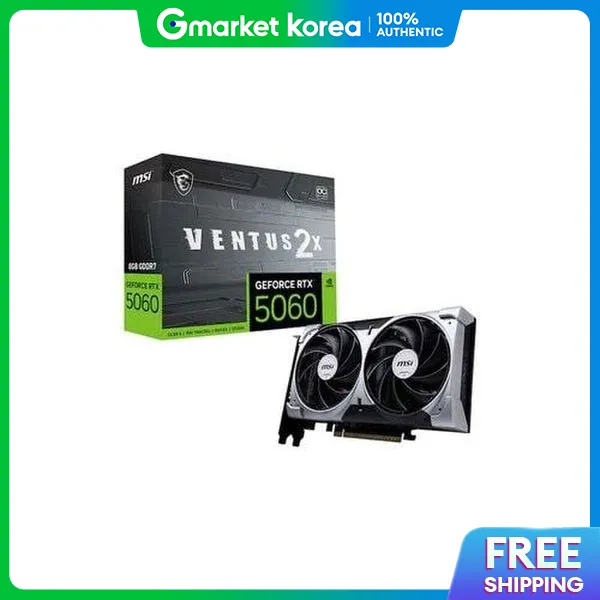

MSI’s move is the clearest signal that RTX 5060 is becoming a multi‑die product. The company has quietly added four new RTX 5060 models to its lineup under a new "V1" family, expanding the existing VENTUS and GAMING series with both non‑OC and OC variants. The difference is not in clock speeds or advertised specs but in what sits under the cooler: these cards use a cut‑down GB205 GPU, the same architecture found in the RTX 5070, instead of the launch‑day GB206. One quotable point from the reporting sums it up neatly: "MSI has utilized the cut-down GB205 to ensure it can match the specs of the regular RTX 5060 reference edition, which uses the GB206 GPU." The tell‑tale sign is the rectangular core mounting, a trait shared with GB205‑based RTX 5070 boards, whereas older RTX 5060 cards show a square mounting layout. This is a stealth redesign, not a new SKU.

Yeston and Maxsun: GB205 Boards With 16-Pin Connector RTX Designs

If MSI is subtle, Yeston and Maxsun are blunt: they are shipping RTX 5060 cards that look and wire up like 70‑class boards. Their latest RTX 5060 editions use the same GB205 die and retain PCB layouts first created for higher‑end GPUs, including a 16-pin power connector RTX design instead of the usual 8‑pin. That means traces for an 8‑pin PCIe connector are present but left unused, while the 16‑pin is wired in. This is overkill for a card rated at 145–150W depending on edition, a power level comfortably handled by a single 8‑pin in typical designs. Internally, disassembly reveals a "GB205-200-KA-A1" die, with one memory channel disabled to maintain an 8GB configuration over a 128‑bit bus. All four GDDR7 chips sit on one side of the GPU substrate, with four unused spots around them. The choice to keep the original PCB and power connector is straight cost optimization: reuse what exists, even if it is arguably excessive.

Design Shifts: Core Mounting, Thermals, and Manufacturing Strategy

The most visible hint of the RTX 5060 die change is not a spec sheet, but the core mounting geometry. GB205‑based cards use a rectangular GPU core mounting that matches RTX 5070 hardware, while GB206 models feature a square mounting layout. Both MSI’s V1 cards and the Yeston and Maxsun boards show this rectangular pattern once you look beneath the cooler. Functionally, this suggests vendors are aligning low‑end boards with mid‑range mechanical and thermal designs, which simplifies cooler tooling and manufacturing. According to reporting, Yeston and Maxsun "retained the PCB design originally meant for higher-end cards," keeping the GB205-based layout wholesale. That includes the mounting arrangement, memory placement, and power input routing. On paper, performance must stay within RTX 5060 guidelines, since the GB205 is cut down and a memory channel disabled. In practice, the physical design changes show how aggressively vendors are reusing mid‑range infrastructure for the entry segment.

Why This Quiet Swap Matters For GPU Lineup Strategy

This shift is not happening in a vacuum. The refreshed RTX 50 "Super" series has reportedly been paused due to memory pricing, leaving vendors to work with existing SKUs while demand and wafer allocation continue to shift. Under those constraints, moving some RTX 5060 production to cut‑down GB205 dies is a textbook example of silicon flexibility: use surplus mid‑range wafers to feed the entry segment instead of spinning up more GB206. MSI’s matching of GB205 to RTX 5060 specs, and Yeston/Maxsun retaining PCB designs made for RTX 5070‑class cards, both highlight a drive to reduce engineering overhead and standardize designs across the lineup. Adding 16-pin connectors to a 145–150W product shows the same instinct: drag lower‑end boards toward the newer power standard as existing layouts are repurposed. The conclusion is simple: the RTX 50‑series ramp is being managed through quiet, behind‑the‑scenes hardware swaps rather than obvious new product launches.
