ASRock X870E Taichi White vs Gigabyte B850M Aorus Stealth

Big ATX vs compact micro-ATX: two very different AM5 ambitions

High-end AM5 motherboards now split into two clear philosophies: full-size ATX boards that push feature density to the limit, and micro-ATX high-end boards that prioritize clean cable management and smart layouts for smaller, more curated builds. The ASRock X870E Taichi White represents the first camp with an aggressively packed X870E motherboard design, while Gigabyte’s B850M Aorus Stealth chases a cable-free front view using rear-mounted connectors and thoughtful small-form-factor ergonomics. Both target enthusiasts, but they serve different personalities: one rewards maximalists who want every cutting-edge feature in a single slab of PCB; the other appeals to builders who care as much about the view through tempered glass and airflow as they do about raw spec sheets. In my view, this split is healthy. Instead of yet another generic AM5 board, both products show a willingness to rethink what a "flagship" means once aesthetics, cable routing, and DIY experience join raw performance on the priority list.

ASRock X870E Taichi White: feature density as a design statement

The ASRock X870E Taichi White is unapologetically about maximum feature density on the AM5 platform, and its X870E motherboard design reflects that ambition. It uses dual Promontory 21 chipset dies, which enable USB4 by default plus PCIe Gen 5 support for both graphics and NVMe storage in a single package. The platform natively supports DDR5-5600 and pushes “over 8000 MT/s” on higher-end boards, aligning with the broader push toward DDR5-8200 support for extreme memory profiles. At USD 439.99 (approx. RM2,020), this is positioned clearly as a premium enthusiast option rather than a budget AM5 entry. This design philosophy suits builders who want an all-in-one feature buffet: USB4 for fast external drives, PCIe Gen5 everywhere for GPUs and SSDs, wide USB and SATA counts, and full overclocking support, including the latest PBO and Curve Optimizer algorithms for Ryzen 9000 CPUs. One quotable summary is that “X870E uses two Promontory 21 dies with USB4 and PCIe Gen5 for both GPU and NVMe,” capturing how aggressively this board aims at future-proof connectivity.

Gigabyte B850M Aorus Stealth: cable management becomes the main feature

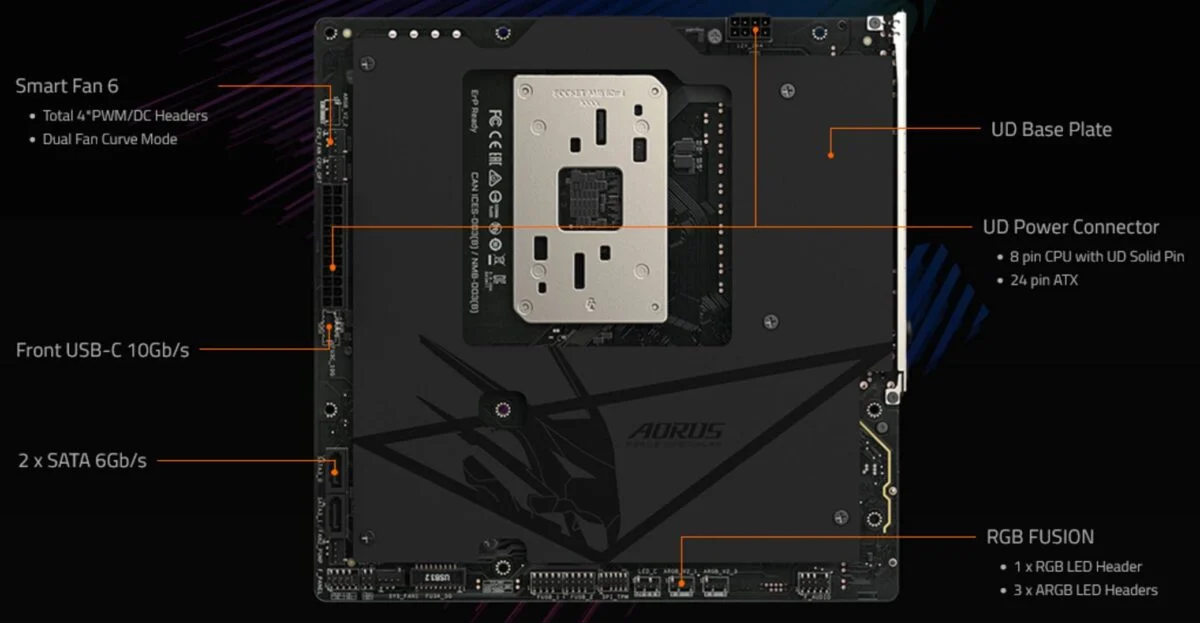

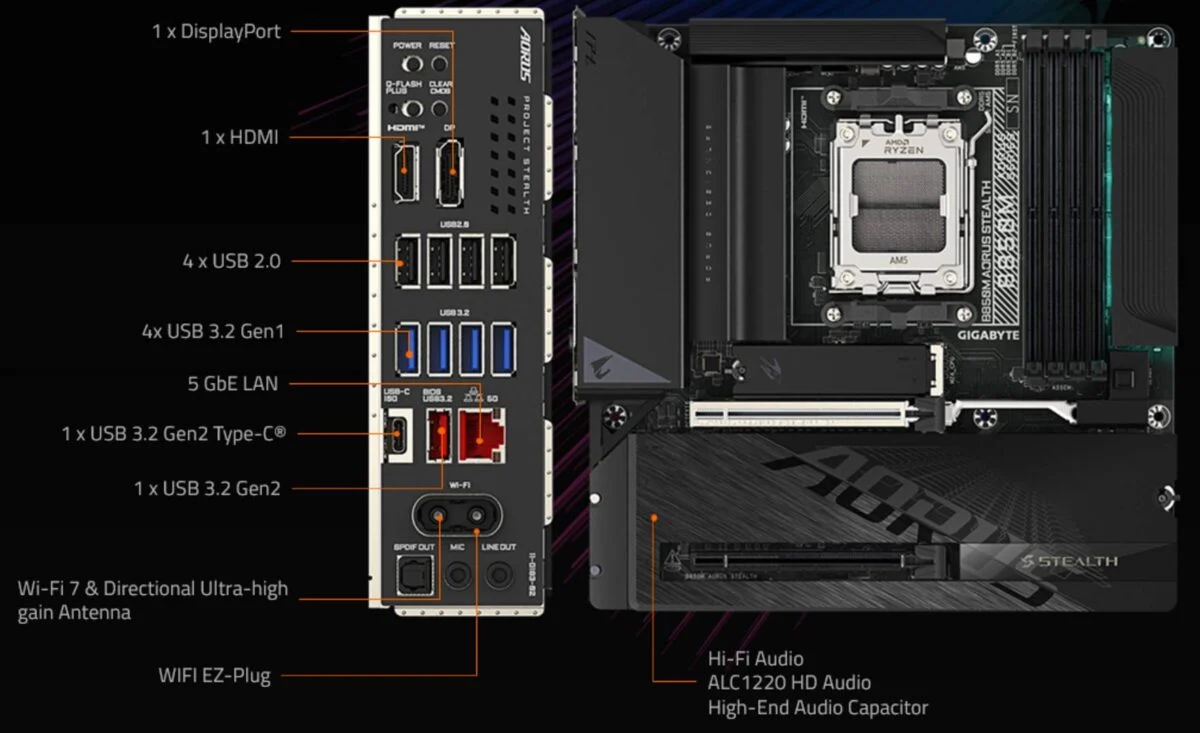

If the Taichi White is about feature saturation, Gigabyte’s B850M Aorus Stealth is about tidiness and usability. This micro-ATX high-end board moves all its power, SATA, and fan connectors to the rear side of the PCB, which removes visual clutter from the front and improves air circulation through the case. That alone radically upgrades AM5 cable management, turning the board itself into a cable-routing tool rather than a problem. On the rear, you even find the case’s 10Gb/s USB‑C front panel connector, CPU 8‑pin power, and SATA ports, so almost everything ugly is out of sight. Despite the focus on cleanliness, specs are far from basic. The B850M Aorus Stealth supports Ryzen 7000, 8000, and 9000 processors with an 8+2+2 60A VRM that is described as small but sufficient for any current chip as long as you’re not overclocking. It offers four UDIMM slots for up to DDR5-8200 and 256GB of memory, a PCIe Gen5 x16 slot plus a Gen4 x4 slot, and three M.2 connectors with one Gen5 x4 and two Gen4 x4 sockets. The rear connector design reduces front-panel clutter while still providing 5GbE LAN, Wi‑Fi 7, HDMI, and DisplayPort on the back I/O, paired with PCIe 5.0 storage support.

Shared strengths, hidden trade-offs: what these boards do and don’t solve

Both boards share impressive headline capabilities. They support DDR5-8200 level memory speeds, at least in terms of platform and board-level limits, making them suitable for high-frequency EXPO or manual tuning. Both sit on AMD’s AM5 platform with support for Ryzen 7000, 8000, and 9000 processors, plus Gen5 storage and some form of high-speed graphics connectivity. They also represent how AM5 motherboards are becoming more than just spec lists: Taichi White pushes feature count and overclocking, while the B850M Aorus Stealth addresses the visual and airflow headaches that traditional front-mounted connectors created. However, neither design is free of caveats. The Stealth layout demands a compatible chassis with cable cutouts at the right spots, or the entire rear-connector idea collapses. Its PCIe and M.2 speeds can even drop from Gen5 to Gen4 x4 depending on the Ryzen CPU series you install, which undercuts the future-proof story if you don’t match components thoughtfully. The Taichi White, meanwhile, leans so hard into feature density and X870E chipset capabilities that it may feel like overkill in simpler builds, especially if you’re not planning to use USB4, PCIe Gen5 GPU, or heavy PBO-tuned overclocks.

Which philosophy fits your next AM5 build?

Choosing between these two boards is less about raw performance and more about what you value in your build. The ASRock X870E Taichi White is a statement piece for those who want the most fully loaded X870E motherboard design under USD 500 (approx. RM2,300), leaning into USB4, PCIe Gen5 for both GPU and NVMe, and overclocking support that aligns with Ryzen 9000’s new algorithms. It rewards people who treat the motherboard as the central hub of experimentation and expansion. The Gigabyte B850M Aorus Stealth, on the other hand, treats cable management as a first-class feature. Its rear-mounted power and fan connectors, PCIe 5.0 M.2 support, and micro-ATX footprint make it ideal for builders who want a clean glass-panel view without giving up high-speed connectivity and DDR5-8200 support. The conclusion is simple: if your priority is maximum IO and overclocking flexibility, the Taichi White is the natural fit. If you care more about a compact, visually tidy build with strong but sensible specs, the B850M Aorus Stealth’s cable-hiding innovation is the more interesting direction.
