Why Microcontroller Audio Projects Are Worth Your Time
Microcontroller audio projects are small electronic builds where a microcontroller reads, processes, and outputs sound or audio-driven visuals using a handful of simple, low-cost components. If you can blink an LED with a development board, you are close to building a DIY MP3 player or a VU meter badge. The main difference is learning how to move audio data instead of blinking patterns, and that is far less scary than it sounds. In this guide we will walk through two practical builds: an RP2040 audio player that acts like a tiny soundboard, and a PIC-based badge that turns microphone levels into animated LEDs. Both stay away from Wi‑Fi stacks and cloud dashboards and focus on hands-on open-source audio hardware you can wire, solder, and tweak on your bench.
Project 1: A Four-Button DIY MP3 Player With RP2040 Audio

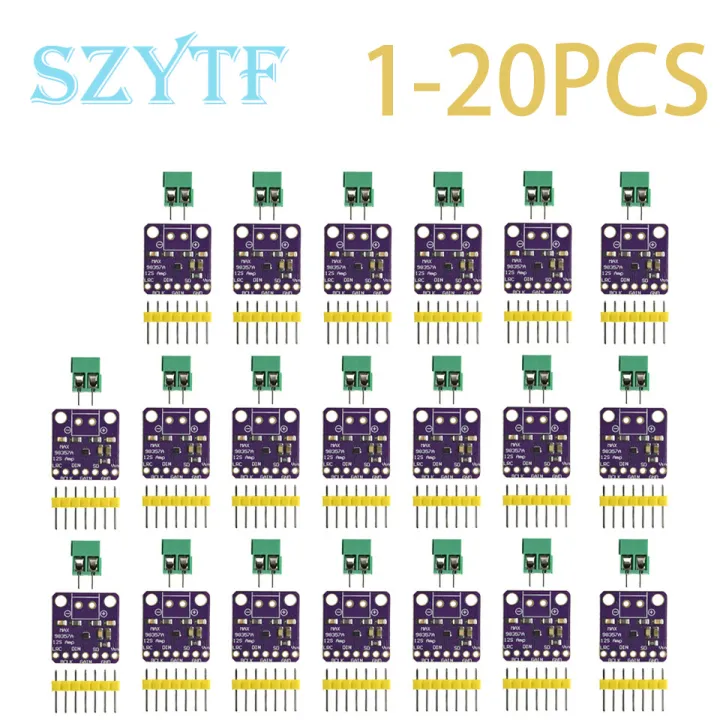

The first build is a DIY MP3 player that behaves like a minimal soundboard: four buttons, four tracks, instant playback. It uses a Raspberry Pi Pico based on the RP2040 connected to a MAX98357A I2S digital audio amplifier, so you get clean RP2040 audio without wrestling with analog codecs. The neat twist is storage. Instead of an SD card, MP3 files live in the Pico’s internal flash using the LittleFS file system, so there is no SD card required. That means fewer wires, fewer parts, and fewer intermittent SD socket issues. You upload files like /song1.mp3 through /song4.mp3 into LittleFS and map each one to a button press. If you have ever wanted a small box that plays different sounds on demand—sound effects, voice prompts, escape room clues—this hits that sweet spot.

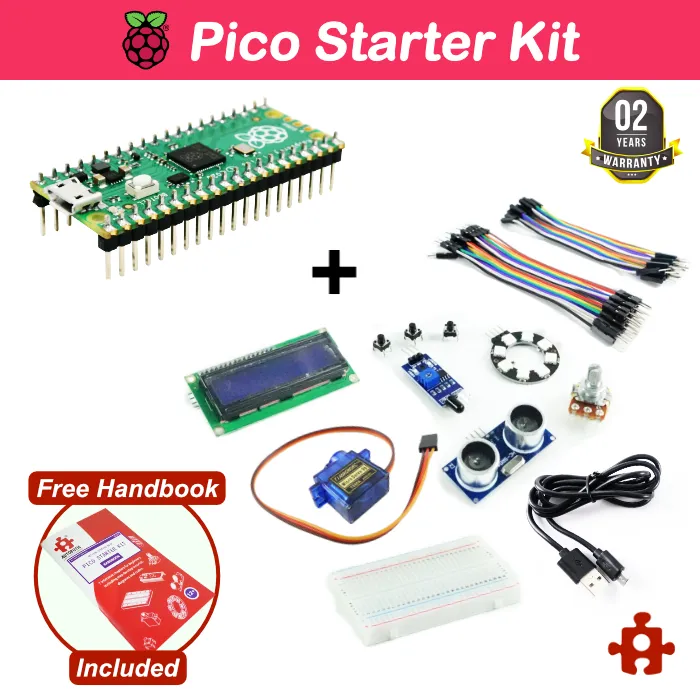

- Gather parts and tools: an RP2040 board such as a Raspberry Pi Pico, a MAX98357A I2S amplifier module, a small speaker, four momentary push buttons, wires or a breadboard, and a USB cable for programming.
- Wire the amplifier: connect the Pico’s I2S pins (BCLK, DATA, LRCLK) to the MAX98357A inputs and power the module from the Pico’s supply so digital audio can reach the amplifier.
- Connect the buttons: wire each button between a chosen GPIO pin and ground, relying on the Pico’s internal pull-up resistors so the microcontroller can read presses cleanly.
- Prepare audio files: convert or choose four MP3 clips and name them /song1.mp3 through /song4.mp3, then copy them into the LittleFS filesystem on the Pico so they sit in internal flash.
- Flash the firmware: upload the provided Arduino sketch that initializes LittleFS, configures I2S, sets pinMode for the four buttons, and implements background MP3 streaming through I2S.
- Test each button: power the board, press Button 1 to play song1.mp3, Button 2 for song2.mp3, and so on; confirm only one track plays at a time and that audio switches as you change buttons.
The logic in the firmware follows a predictable flow: the Pico watches all four buttons, stops any current audio when one goes low, opens the matching MP3 from LittleFS, decodes it, and streams frames through I2S while the MAX98357A converts them to analog for the speaker. The two most common mistakes are simple wiring and naming issues. If a track will not play, the files might not be in LittleFS, or their names may not exactly match /song1.mp3 through /song4.mp3, and the names are case-sensitive. If a button appears dead, the GPIO pin number may be wrong, the wiring to ground may be off, or the INPUT_PULLUP configuration might be missing. Once those are sorted, you end up with a compact, reliable multi-button MP3 player that is beginner-friendly and easy to customize for toys, exhibits, and talking gadgets.
Project 2: A PIC VU Meter Badge With Microphone Input
The second build is a VU meter badge: a small board with a PIC16F17576 microcontroller in a DIP-40 package and a row of 5 mm LEDs that respond to sound picked up by an electret microphone. Instead of streaming music, this project focuses on audio visualization. The microphone signal is conditioned by on-chip op amp peripherals, then digitized by the ADC and mapped across seven VU meter LEDs to show volume levels. The designer kept things approachable by using 100% through-hole parts so soldering is straightforward and other hobbyists can attempt the build later. There is no IoT stack, no Bluetooth, no cloud API—just a coin cell, a PIC, a microphone, and LEDs. It is a good way to learn how microcontrollers can process real-world audio signals without layering on extra complexity.
After the hardware is assembled, the key step is configuring the PIC’s built-in op amps and ADC so they behave like an external preamp and measurement circuit. Once the basic pin and peripheral configuration is generated, a timer periodically samples the ADC channel tied to the op amp’s output and maps the 12-bit readings to the seven VU meter LEDs. The firmware also gathers ten samples at a time and computes the peak-to-peak value from the minimum and maximum readings to better capture the changing audio waveform. One subtle gotcha sits on the PCB side: the PIC16F17576 does not include an internal multiplexer to route one op amp’s output into another or into the ADC, so those links must be wired externally on the board. Another easy mistake is forgetting to add a way to disconnect the microphone bias, which can dominate quiescent current when the badge is supposed to be sleeping.
Putting It Together: Practical Audio Builds Beyond Blinking LEDs
Both of these microcontroller audio projects share a theme: they use simple, available parts and open designs to do something more engaging than yet another blinking LED tutorial. The RP2040 soundboard shows how LittleFS and a MAX98357A can turn internal flash into reliable audio storage with high-quality digital output, while the VU meter badge turns a basic electret microphone into a live audio display using a PIC’s op amps, ADC, and a handful of LEDs. According to the project author, the badge was built entirely from through-hole components specifically so others could build their own and experiment. If you try both, you will have one project that plays sounds on command and another that responds visually to any nearby audio. The main things to watch for are details: file names and pull-ups on the RP2040 side, and op amp routing, microphone bias, and current draw on the PIC badge. Get those right, and the result is compact, satisfying open-source audio hardware you can proudly show off.
