What Hidden RTX Sensors Are and Why They Change GPU Monitoring
Hidden RTX GPU temperature sensors are on-die and on-memory thermal probes that exist in hardware but are blocked or obscured in official monitoring interfaces, meaning users see only smoothed "GPU temperature" while hotspot and per-memory readings quietly influence throttling, stability, and long‑term reliability in ways most owners cannot directly verify or diagnose. This gap matters. When NVIDIA pulled hotspot data from its public interface, the sensor stayed on the die, measuring the hottest point on RTX chips the whole time. At the same time, every memory module on many RTX cards carried its own temperature sensor, a capability NVIDIA never disclosed. Enthusiasts have now forced these readings into the open, and that transparency is exposing where cooling and factory assembly fall short.
From Average Temperature to Hotspot: Flying Half-Blind on RTX
Traditional GPU temperature monitoring tools have encouraged users to trust a single, average core reading that smooths out local problems. On RTX 50‑series cards, utilities like HWMonitor, HWiNFO, GPU‑Z, and MSI Afterburner could show that averaged GPU temperature but were blocked from reading the hotspot even though the sensor existed. According to one investigation, NVIDIA removed hotspot access from both public and NDA‑protected interfaces, leaving the value only inside its internal MODS diagnostics suite. That decision had real impact: some owners saw calm averages under 70°C while hidden hotspots passed 100°C, hit a 107°C thermal limit multiple times, and forced the card to drop clocks. In other words, throttling and stability were governed by a number users were not allowed to see, and none of that explains why NVIDIA chose to hide it.
How Enthusiasts Unlocked RTX Hotspot and Memory Temperatures

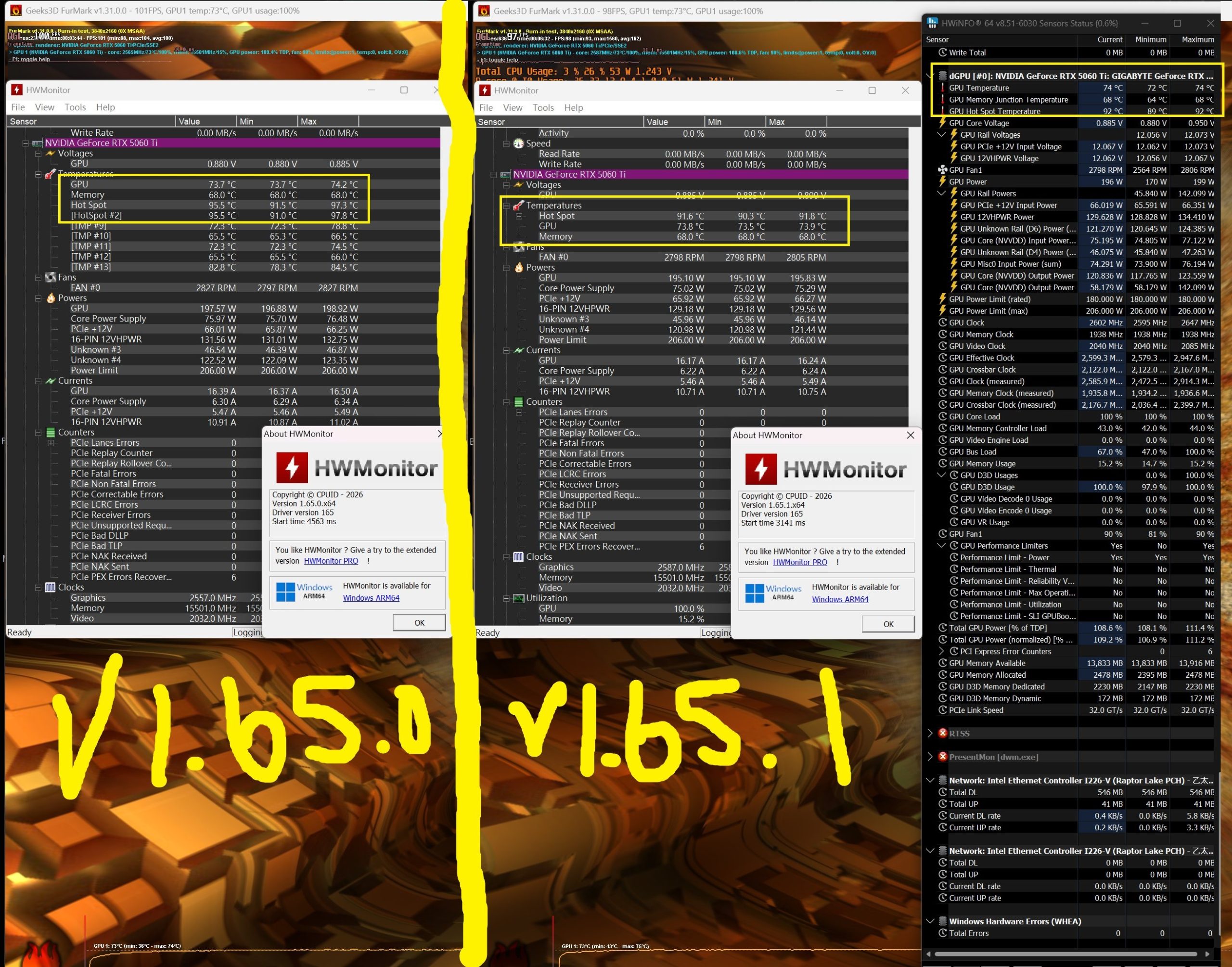

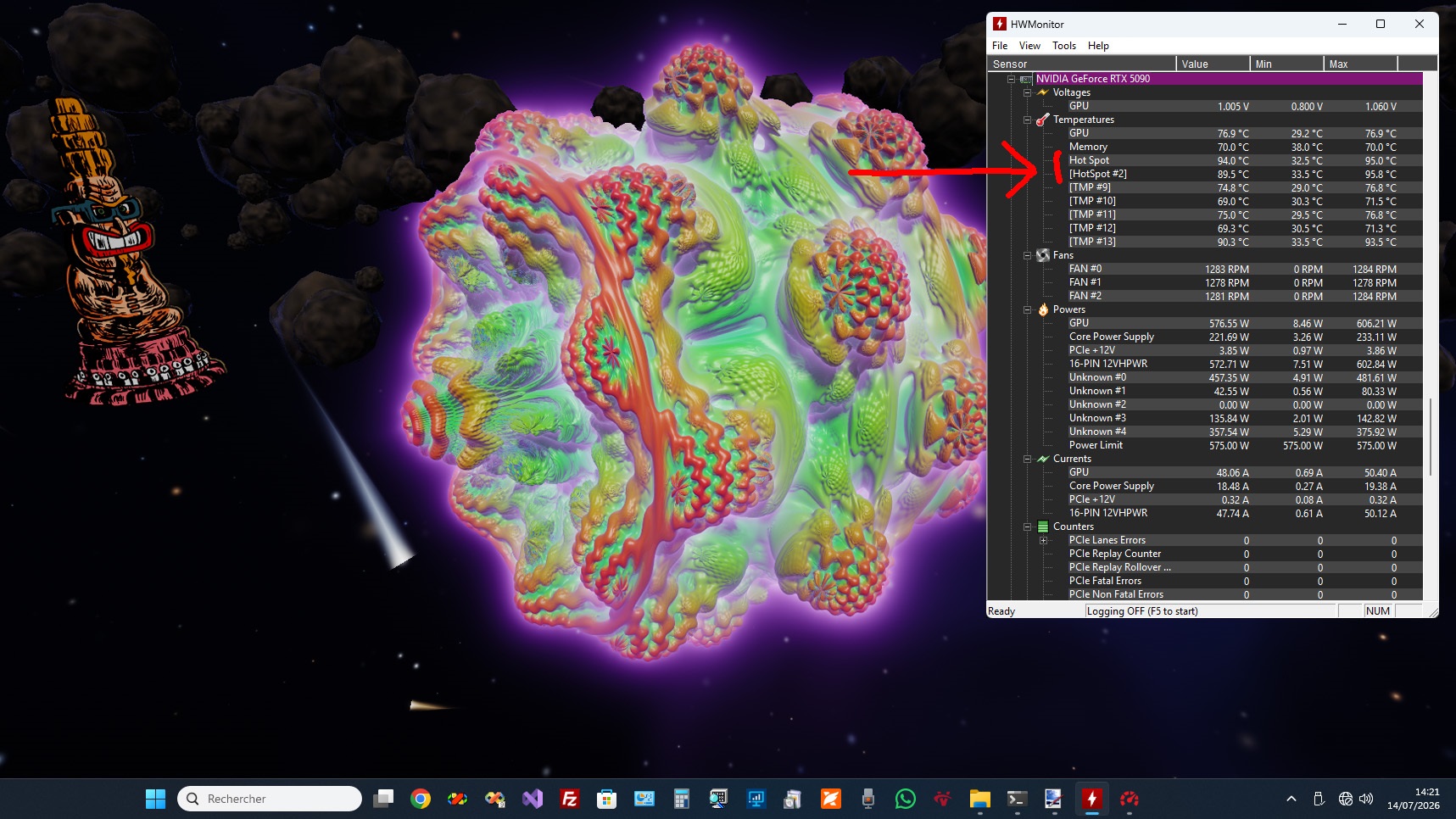

Community modders refused to accept flying blind. Through extensive research, modding, and reverse engineering, enthusiasts restored hotspot monitoring on RTX 50 cards. A workaround showed the series could exceed 100°C at the hottest point, with clear links to thermal throttling and performance loss when cooler contact or thermal interface material was poor. Once the story spread, third‑party utilities cracked the readings open, and what surfaced ranged from ordinary behavior to alarming spikes past throttle limits. HWMonitor was first to add hotspot support, initially exposing two hotspot values before refining its report for more accurate, stable results. Modders then went further, discovering that every memory module on RTX cards based on GDDR6, GDDR6X, and newer GDDR7 carries a temperature sensor. Per‑module monitoring makes it possible to see which chips run hottest and to identify uneven cooling that average VRAM temperatures would hide.
Now, although multiple memory temperature readings may seem excessive, they provide valuable insight into GPU cooling performance, as GPUs rarely cool every memory chip equally. While NVIDIA may not like this, the solutions have been created anyway. This is a rare case where community tooling reveals more about a product’s behavior than its own official software, and that is a damning commentary on how little telemetry vendors think enthusiasts deserve.
Why Granular Sensors Matter for Thermal Management and Overclocking

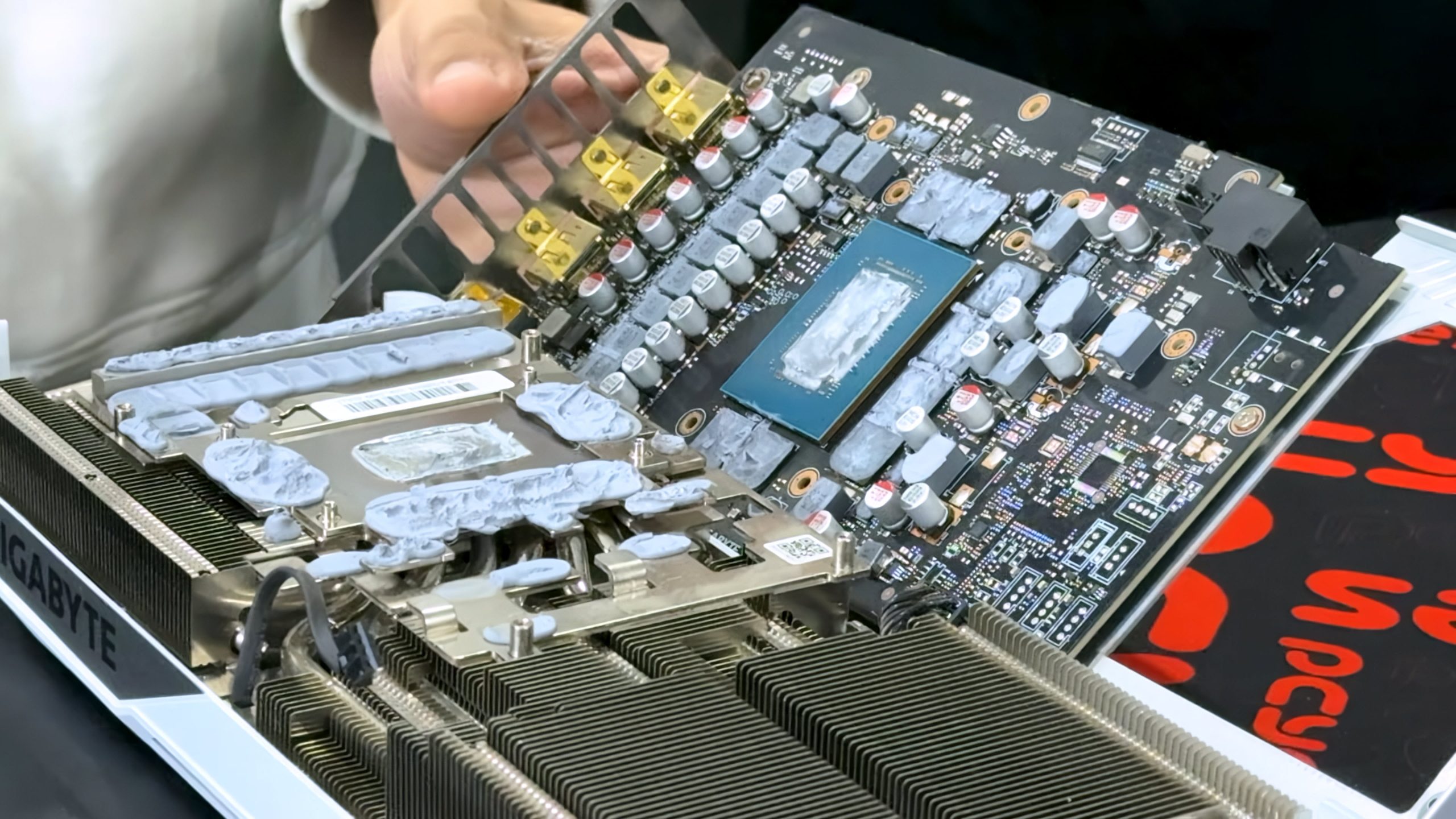

Hidden hotspot and per‑memory sensors are not esoteric trivia; they change how serious builders approach GPU thermal management. The averaged GPU temperature that mainstream tools show is reassuring because it smooths everything out. The hotspot is the reading that exposes a localized failure: a cooler seated slightly off, a dry or badly spread layer of thermal paste, or an aging thermal interface. For overclockers and high‑end builds, being able to watch hotspot under sustained load and treat a value creeping toward the throttle point as a reason to inspect cooling rather than panic is invaluable. Per‑module memory monitoring immediately reveals which chips are running hottest and helps enthusiasts decide whether to replace thermal pads or fit water blocks to handle those hotspots. Now that major utilities offer hotspot measurements on RTX 50 cards, it has become far more convenient for users to understand GPU behavior properly.
The Mystery of NVIDIA’s Decision and What Owners Should Do Next
NVIDIA’s choice to obfuscate hotspot and keep per‑memory sensors undocumented sends the wrong signal to power users. Instead of owning the readings and educating customers, the company blocked public access at the driver level and reserved full telemetry for its internal tools. None of that explains why it chose to hide a sensor that is central to troubleshooting badly assembled or poorly cooled cards. The community response shows that opacity is not sustainable: enthusiasts will uncover hidden data, and third‑party tools will ship it anyway. For owners of RTX GPUs, the practical takeaway is straightforward. Treat the average GPU temperature as a baseline, but rely on hotspot and per‑memory metrics to judge real thermal health. If hotspot readings approach throttle limits or one memory chip consistently runs far hotter than the rest, assume there is a cooling or contact problem and address it before it silently erodes performance and stability.
