Ruby, Titanium, and Why PSU Efficiency Suddenly Matters
80 PLUS Ruby certification and Titanium efficiency PSU ratings are new high-end power supply standards that push high-wattage power supplies to convert more wall power into usable system power with minimal waste, lowering heat output and improving long-term reliability for demanding GPUs and CPUs that spend significant time at both light and heavy loads. This is not an abstract spec-sheet game; as GPUs and AI-focused systems push power requirements higher, wasted watts turn straight into extra heat, fan noise, and electricity bills. For enthusiasts planning rigs around chips like an RTX 5090 and a Core Ultra 9 285K, the key takeaway is blunt: efficiency certifications now directly affect how comfortable, stable, and cost-effective your build will be over years of use. Chasing the highest badge is less important than understanding which tier fits your workload and budget.
SeaSonic’s Ruby Milestone: Efficiency Where PCs Actually Idle
SeaSonic’s PRIME ENTERPRISE RX-1600 becoming the first ATX PSU tested at 115V to earn 80 PLUS Ruby certification sets a new baseline above the familiar Gold and even Titanium tiers for desktop PSUs. Ruby sits at the top of the 80 PLUS program, currently listed above Titanium, and tightens the rules especially at low loads. A Ruby-certified unit must hit at least 85% efficiency at 5% load, 91% at 10%, 93% at 20%, 95% at 50%, and 91% at full load at 115V. In testing, SeaSonic’s unit even exceeded those minimums, reaching 88.88% efficiency at 5% load and over 95% at 20% and 50% loads. That matters because powerful workstations, gaming rigs, and AI boxes rarely sit pegged at 100% all day; they spend plenty of time browsing, idling, or lightly rendering. A PSU that wastes less energy at those low loads runs cooler and quieter overall, shrinking the thermal budget for hot components like an RTX 5090 and a Core Ultra 9 285K.

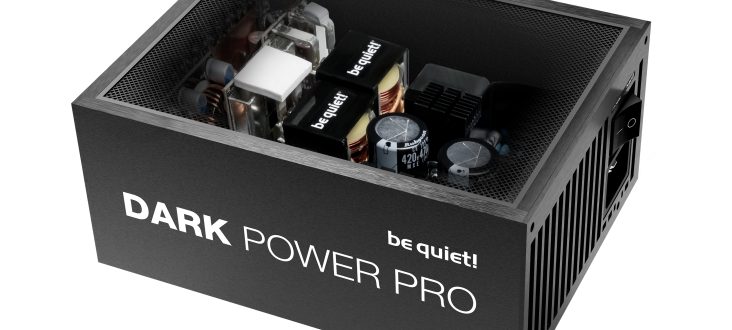

Titanium Goes Smart: be quiet! Dark Power Pro 14 IO
While Ruby pushes the theoretical ceiling, be quiet!’s Dark Power Pro 14 IO series shows how Titanium efficiency PSU designs can become practical tools in everyday high-end builds. Offered in 1300W and 1600W capacities, these ATX 3.1 units carry 80 Plus Titanium efficiency along with Cybenetics Titanium certification, reaching up to 94.9% efficiency. They are built for serious rigs with native 12V-2×6 support for PCIe 5.1 graphics cards and additional PCIe connectors for current GPUs. More important than the logo is the fully digital control design and IO Center software, which lets you monitor real-time efficiency, power usage, and fan speeds, and even flip between single-rail and multi-rail operation. Enthusiasts should view this as the template for next-generation PSUs: not just efficient, but transparent and tunable, giving you direct insight into how much power that RTX 5090-class GPU and Core Ultra 9 285K-class CPU are pulling and what it costs to feed them.
Corsair RMe and Cybenetics: Efficiency Plus GPU Power Protection

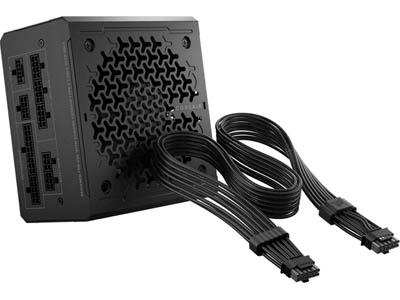

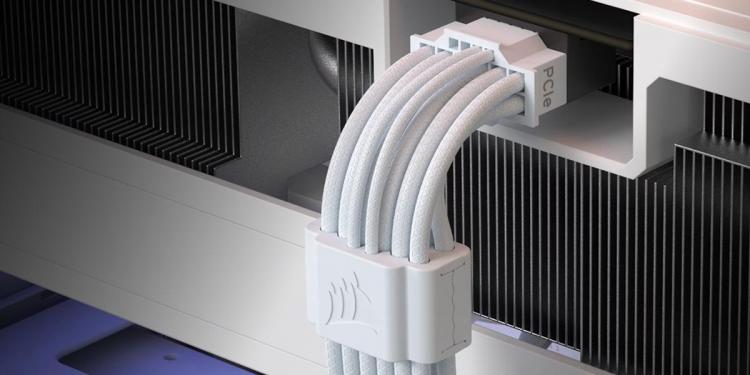

At slightly lower wattages, Corsair’s updated RMe Series shows a different path: combine solid efficiency with smarter GPU protection instead of chasing the absolute top tier. The RM850e and RM1000e units move from Cybenetics Gold to Cybenetics Platinum efficiency, reaching up to 91% overall efficiency while staying compact and quiet. Their standout feature is the ThermalProtect PCIe 5.1 600W 12V-2x6 GPU power cable, which embeds hardware in a cable comb about 30mm from the GPU connector to monitor cable temperature. If the cable exceeds 65°C, the tech triggers a GPU shutdown to prevent potential damage. This is what serious GPU power protection cables should look like: not just the new 12V-2x6 form factor, but active safeguards against bad connections, sustained high load, or poor ventilation. Add ATX 3.1, PCIe 5.1 compliance, 105°C capacitors, and a seven-year warranty, and you get a PSU aimed at long-term reliability through several upgrade cycles rather than raw bragging-rights efficiency.
What Enthusiasts Should Really Prioritize
The emerging landscape of PSU efficiency standards—80 PLUS Ruby at the top, Titanium close behind, plus Cybenetics ETA and LAMBDA for efficiency and noise—tempts builders to treat certifications like GPU model numbers. That mindset is a mistake. For high-wattage power supplies feeding RTX 5090- and Core Ultra 9 285K-class hardware, the practical gains are about lower heat, less electrical waste, and more predictable behavior under both idle and heavy load, not collecting stickers. Ruby’s focus on low-load efficiency, Titanium’s near-95% peak efficiency, and Cybenetics’ broader testing all point toward the same goal: stable, cool power delivery. The smart way forward is to pick a tier that matches your usage and budget, then look harder at platform design: digital control, thermal engineering, protective features, and warranty. Efficiency badges open the door, but engineering quality and GPU power protection cables like ThermalProtect decide whether your system stays safe and quiet five years from now.
