What the Radxa Dragon Q8B Is and Why It Matters

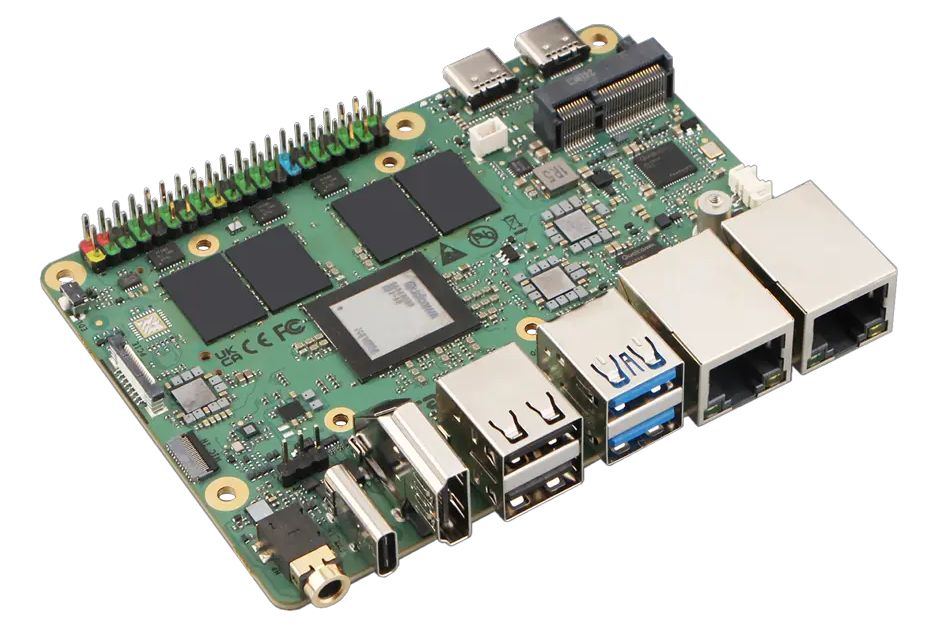

The Radxa Dragon Q8B is a compact single-board PC that combines Qualcomm’s Snapdragon 8cx Gen 3 ARM processor with multi‑gigabit networking, PCIe 3.0 expansion, and rich I/O to deliver desktop‑class performance for developers, makers, and edge computing workloads in a palm‑sized board. Measuring 100 x 75 mm, the Dragon Q8B is larger than Radxa’s earlier credit‑card‑sized Dragon Q6A but trades that extra footprint for a faster CPU, GPU, and NPU, plus more ports and slots. It supports up to 32 GB of LPDDR4x‑4266 memory and runs GNU/Linux distributions such as Radxa OS, Ubuntu, Armbian, and Arch Linux. Because Snapdragon 8cx Gen 3 was designed for Windows PCs, the Dragon Q8B also stands out as an ARM processor mini PC that can support Windows 11, positioning it as a bridge between mobile silicon and traditional desktop environments.
Snapdragon 8cx Gen 3: Mobile Silicon in Desktop Clothing
At the heart of the Radxa Dragon Q8B lies the Snapdragon 8cx Gen 3, a platform originally built for thin‑and‑light Windows laptops but now repurposed as the engine of an ARM‑based single-board PC. While this processor was released in 2021, it is still a major step up from the Dragon Q6A’s Qualcomm QCS6490 SoC thanks to a faster CPU, GPU, and NPU plus support for quicker memory. Early benchmarks cited by Liliputing show that it is “one of the fastest Arm-based single-board PCs in its price range,” putting it in contention with many x86 mini‑PCs on raw responsiveness for everyday tasks and light development workloads. The 8cx Gen 3’s efficiency focus should also appeal to edge deployments and 24/7 services that care about power budgets. In practice, this moves Snapdragon 8cx Gen 3 beyond laptops and into small labs, home servers, and embedded prototypes.
Dual 2.5 GbE LAN and Expansion for Networked Workloads

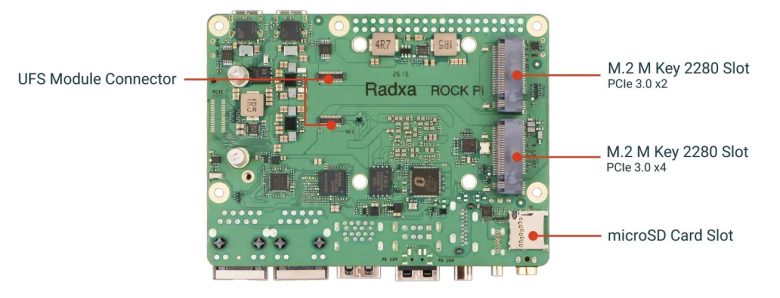

Networking is where the Dragon Q8B pushes beyond hobby‑grade boards. It includes dual 2.5 GbE LAN ports, giving developers dual gigabit ethernet plus overhead for multi‑gig links, link aggregation, or isolated networks for testing. For labs building firewalls, software routers, or SD‑WAN appliances, this layout is far more flexible than the single‑port designs common in Raspberry Pi‑class boards. The networking story is reinforced by PCIe 3.0 connectivity: one M.2 2280 slot with PCIe 3.0 x4, another M.2 2280 with PCIe 3.0 x2, a UFS 3.1 module connector, and a microSD card reader. There is also an M.2 2230 E‑Key slot for Wi‑Fi and an FPC connector exposing a PCIe 3.0 single lane for external add‑ons. Together, these options let the Dragon Q8B grow from a developer’s test board into a compact router, storage node, or edge gateway.
I/O, OS Support, and Mini‑PC Market Impact

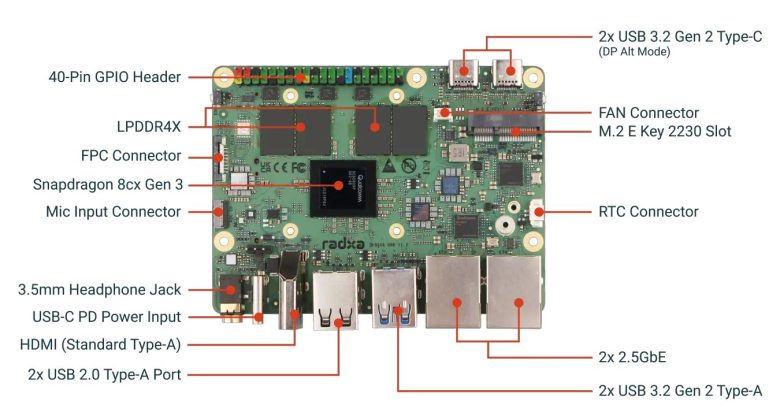

Beyond networking, the Dragon Q8B offers I/O more typical of a mini‑PC than a bare development board. Users get two USB 3.2 Gen 2 Type‑C ports with 10 Gbps bandwidth and video output, two USB 3.2 Gen 2 Type‑A ports, two USB 2.0 Type‑A ports, HDMI, a 3.5 mm audio jack, and a mic input connector, plus a 40‑pin GPIO header for maker projects. Power comes via a separate USB Type‑C port, with Radxa recommending a 60 W input, and the board provides fan and RTC battery headers along with buttons for power and entering EDL recovery mode. On the software side, Radxa supports multiple GNU/Linux distributions and highlights Windows 11 support, which is still rare among ARM processor mini PC designs. This combination positions the Dragon Q8B as a credible challenger to traditional x86 mini‑PCs for developers who want ARM performance with desktop‑grade connectivity.
Target Users, Use Cases, and Pricing Signals
Radxa is clearly aiming the Dragon Q8B at developers, makers, and edge computing specialists who need more performance and connectivity than typical hobby boards can provide. Its compact form factor suits clustered deployments, lab servers, home‑lab experiments, and proof‑of‑concept appliances that depend on multi‑gig networking and PCIe storage or accelerators. Liliputing notes that prices start at USD 149 (approx. RM700) for a 4 GB RAM model and USD 209 (approx. RM980) for an 8 GB version, though the 4 GB configuration is currently out of stock. According to Radxa, buyers can apply the DRAGON-Q8B-OFF coupon to save USD 45 (approx. RM210) on the 8 GB model. Those figures place the Radxa Dragon Q8B in direct competition with many x86 mini‑PCs, but with the added twist of ARM efficiency and the ability to move the same Snapdragon 8cx Gen 3 codebase between laptops and edge devices.
